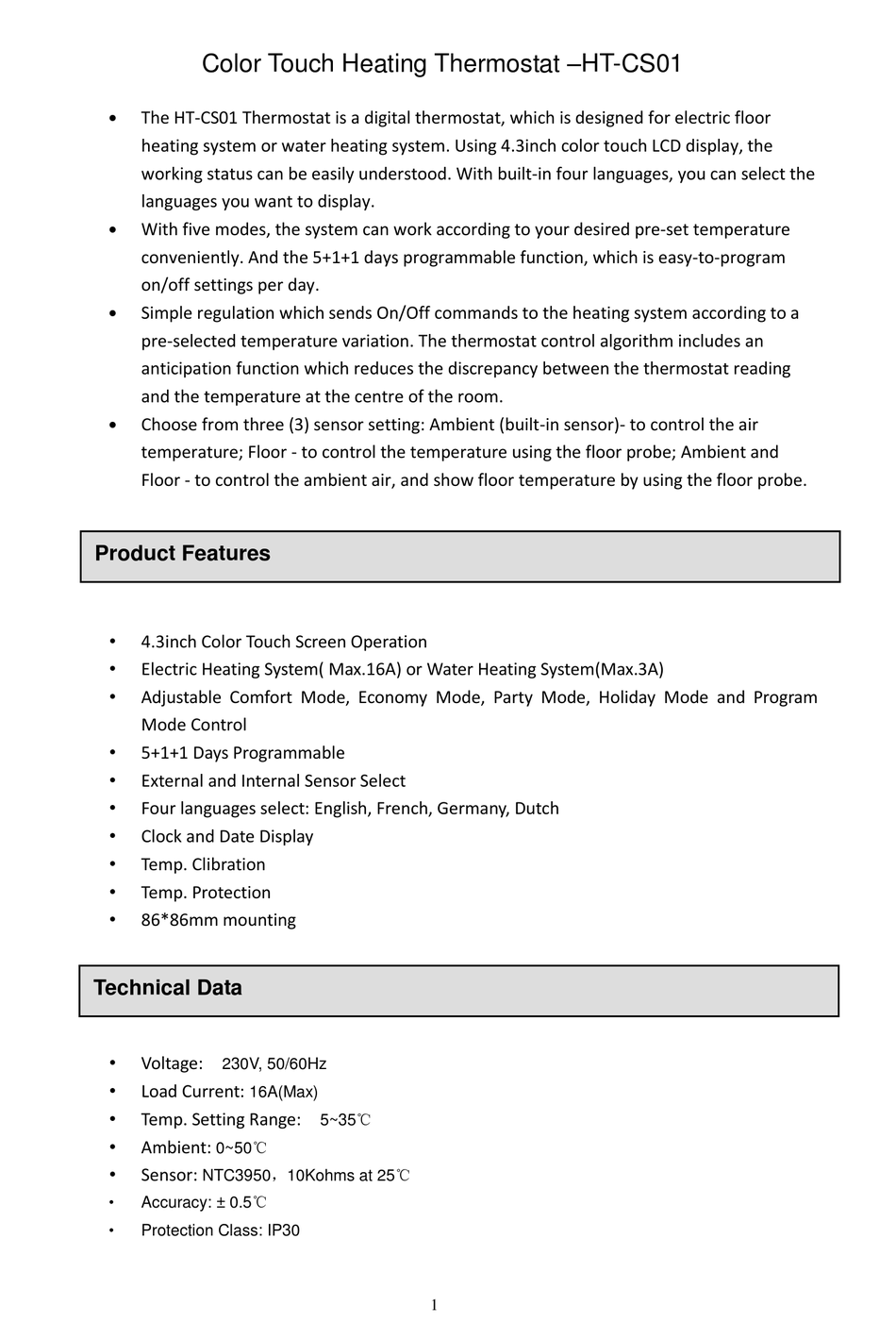

Color Touch Heating Thermostat –HT-CS01

The HT-CS01 Thermostat is a digital thermostat, which is designed for electric floor
heating system or water heating system. Using 4.3inch color touch LCD display, the
working status can be easily understood. With built-in four languages, you can select the
languages you want to display.

With five modes, the system can work according to your desired pre-set temperature
conveniently. And the 5+1+1 days programmable function, which is easy-to-program
on/off settings per day.

Simple regulation which sends On/Off commands to the heating system according to a
pre-selected temperature variation. The thermostat control algorithm includes an
anticipation function which reduces the discrepancy between the thermostat reading
and the temperature at the centre of the room.

Choose from three (3) sensor setting: Ambient (built-in sensor)- to control the air
temperature; Floor - to control the temperature using the floor probe; Ambient and
Floor - to control the ambient air, and show floor temperature by using the floor probe.

Product Features

•
4.3inch Color Touch Screen Operation
•
Electric Heating System( Max.16A) or Water Heating System(Max.3A)
•
Adjustable Comfort Mode, Economy Mode, Party Mode, Holiday Mode and Program
Mode Control
•
5+1+1 Days Programmable
•
External and Internal Sensor Select
•
Four languages select: English, French, Germany, Dutch
•
Clock and Date Display
•
Temp. Clibration
•
Temp. Protection
•
86*86mm mounting

Technical Data

•
Voltage:
230V, 50/60Hz
•
Load Current:
16A(Max)
•
Temp. Setting Range:
•
Ambient:
0~50℃
•
Sensor:
NTC3950，10Kohms at 25℃
•
Accuracy: ± 0.5℃
•
Protection Class: IP30
5~35℃
