DVD Player with Game Controller

User Manual

DP709

Table of Contents

Need help?

Do you have a question about the DP709 and is the answer not in the manual?

Questions and answers

Summary of Contents for aiko DP709

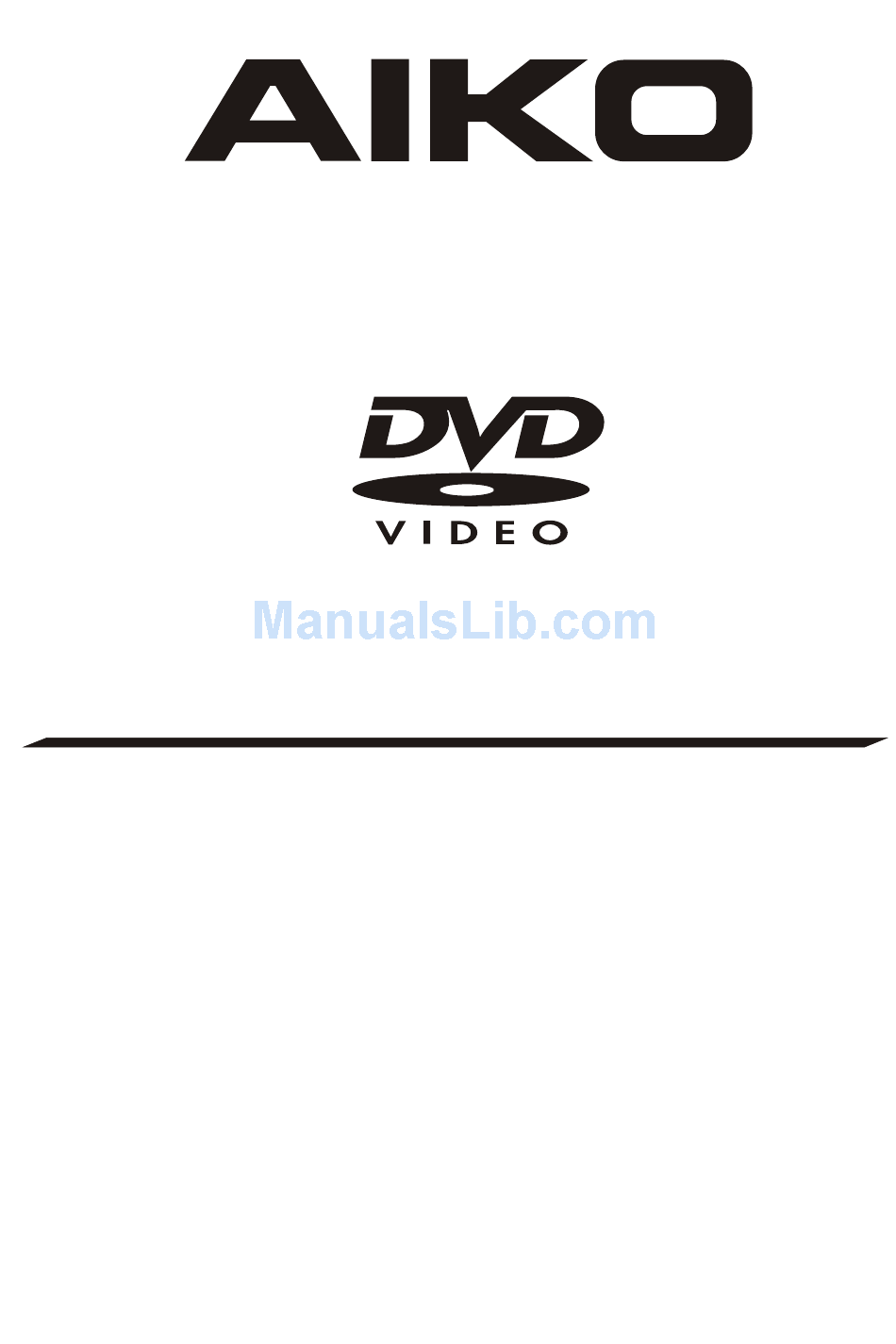

Page 1 DVD Player with Game Controller User Manual DP709...
Page 2: Table Of Contents
Contents Features..................2 For your Attention................3 Package Contents.................4 Panel...................5 Connections................6-8 System Setup................9-12 Remote Control..............13-14 Basic Playback...............15-18 Troubleshooting................19 Specifications................20...
Page 3: Features
Features Thanks for your purchase of our product. Please read through this manual before making connections and operating this product. Retain this manual for future reference. DVD player is a domestic video player of new generation which produces high quality pictures and Hi-Fi audio effect. Its performance is much better than that of any previous home video equipment.
Page 4: For Your Attention
For Your Attention IMPORTANT NOTES Please read through this manual before making connections and operating this product. Retain this manual for future reference. Don't open the cabinet of this unit. No user-serviceable parts inside. Refer servicing to qualified personnel only. Switch off the unit when you don't use it.
Page 5: Package Contents
Package Contents Package Contents User manual Remote control A/V cable Game controller Game disc Playable Disc and Media Types: Disc types Symbol Contents Audio + Video Audio Video-CD COMPACT Audio + Video DIGITAL VIDEO VIDEO CD Audio CD-DA Picture CD JPEG Photo CD Kodak Electronic Photo...
Page 6: Panel
Panel Front panel STANDBY 1. DISC TRAY DOOR 4. OPEN/CLOSE 2. DISPLAY SCREEN 5. PLAY/PAUSE 3. USB SLOT 6. STANDBY Rear panel VIDEO U/Pb V/Pr 1------GAME PORT------2 Stereo L Stereo R COAXIAL S-VIDEO OUTPUTS OUTPUTS 5.1 CH AUDIO OUT 5.1 CH AUDIO OUT 1.
Page 7: Connections
Connections Connections Connections Connections Connections Connections Connections Connections Connections Connections VIDEO SYSTEM CONNECTION VIDEO SYSTEM CONNECTION VIDEO SYSTEM CONNECTION VIDEO SYSTEM CONNECTION VIDEO SYSTEM CONNECTION VIDEO SYSTEM CONNECTION VIDEO SYSTEM CONNECTION VIDEO SYSTEM CONNECTION VIDEO SYSTEM CONNECTION VIDEO SYSTEM CONNECTION The following video outputs are available for this unit.
Page 8: Audio System Connection
Connections Connections Connections Connections Connections Connections Connections AUDIO SYSTEM CONNECTION There are two types of audio output systems. They are analog audio output system and There are two types of audio output systems. They are analog audio output system and There are two types of audio output systems.
Page 9: Connections
1. Start button START 2. Select button Game Controller DP709 is included 1 game controller Note: The player is compatible with game VCDs, but not all the game discs.Some keys on the front panel are invalid when you are playing game. However, you can operate it with the keys on the remote control and the game controller alternatively.
Page 10: System Setup
System Setup Menu Operation 1. Press [SETUP] on the remote control to show the setup menu. 2. Press [ ]/[ ] to select an item. The submenu of the selected item will be displayed below instantly. 3. Press [ ]/[ ] to select an item you desire to set in the submenu, then press [ENTER] /[ ]to enter.
Page 11: Last Memory
System Setup 1.6 HDCD(High Definition Compatible digital) HDCD (High Definition Compatible digital) is a patented encode/decode process for delivering the full richness and details of the sound from HDCD-encoded CDs. Set the digital filter to 2x, 1x or off. 1.7 LAST MEMORY ON: During a playback or in the paused/stopped status each time you open the disc tray or turn off the player, the unit will memorize the last playback time.
Page 12: Video Setup Page
System Setup 3.2 DYNAMIC When you watch films with large dynamic scope in low volume, for example at night, you can adjust the dynamic value up to avoid losing sound details resulting from the low volume. 4 VIDEO SETUP PAGE 4.1 VIDEO OUTPUT OFF: Set video output to CVBS (via the composite output) or to S-Video if the S-Video connection is made.
Page 13: System Setup
System Setup 5.2 AUDIO, SUBTITLE and DISC MENU Select a preferred audio language, subtitle language and disc menu language in these items. You can also make selection of the audio language by using the [AUDIO] and the subtitle language with the [SUBTITLE] on the remote control. NOTE: If the selected language is not available for the currently playing disc, the disc's default audio, subtitle, disc menu language setting will remain enabled.
Page 14: Remote Control
Remote control Remote Control Operation Insert two AAA/1.5V batteries into the remote control. Point the remote control at the remote sensor on the front panel. The remote control works within a distance of about 8 metres from the sensor and within an angle of about 30 degrees from the left and right side.
Page 15 É ù µ À AUDIO MENU 27 V-MODE 11 N/P SUBTITLE ANGLE A-MODE V-MODE 28 MUTE 12 ZOOM ZOOM MUTE L/R/ST 29 L/R/ST 13 STEP SLOW STEP PROG 30 USB 14 SLOW 31 PROGRAM 15 OSD (on-screen display) DP709 -14-...
Page 16: Basic Playback
Basic Playback POWER Press to switch on the unit. Press it again to switch off the unit. Press repeatedly to select a TV type, NTSC, PAL or MULTI. OPEN/CLOSE Press to open /close the disc tray. The digit keys can be used to input numbers or make selection of a track or a chapter, etc.
Page 17 Basic Playback Press it once to pre-stop a playback. Press [ ] to resume the playback from the pre-stopped status. Press it twice to stop a playback and the disc will be reset to the starting point. STEP Press repeatedly to advance the video frame by frame. Press [ ] to resume the normal playback.
Page 18 Basic Playback AUDIO Press repeatedly to select the available audio languages provided by the disc (for DVD). L/R/ST Press repeatedly to switch the available audio channels (LEFT MONO, RIGHT MONO, MIX-MONO and STEREO) provided by the disc (for VCD). ANGLE Press to switch the viewing angles.
Page 19: Basic Playback
Basic Playback MP3/MPEG4 DISC PLAYBACK Insert an MP3/MPEG4 disc into the player; a content menu will display on the screen. MENU OPERATION: Use the direction key [ ]/[ ] to select a folder or a file, then press [ENTER] to enter the selected folder or play the selected file.
Page 20: Troubleshooting
Troubleshooting Before resorting to maintenance service, please kindly check by yourself with the following chart. Symptom Cause(s) Remedy Please check that the AC power No Power The AC power cord is not connected cord is connected securely. to the power supply or is not connected to a power supply securely.
Page 21: Specifications
Specifications AC~100-240V / 50/60Hz Power supply Less than 20W Power consumption PAL /NTSC TV system 650nm, 780nm Laser wave length DVD: 4Hz~22kHz 48kHz PCM 4Hz~ 44kHz 9 6kHz PCM Audio frequency range 4Hz~20kHz 90dB S/N ratio Audio dynamic range 90dB Temperature: 0~40 , operated Operating conditions horizontally...
Page 22: Dvd Player
DVD Player Congratulations on your purchase of the DVD Player. brand imported and sold under licence by Big W Discount Stores, 1 Woolworths Way, Bella Vista NSW 2153...
