Summary of Contents for FrosTek 115

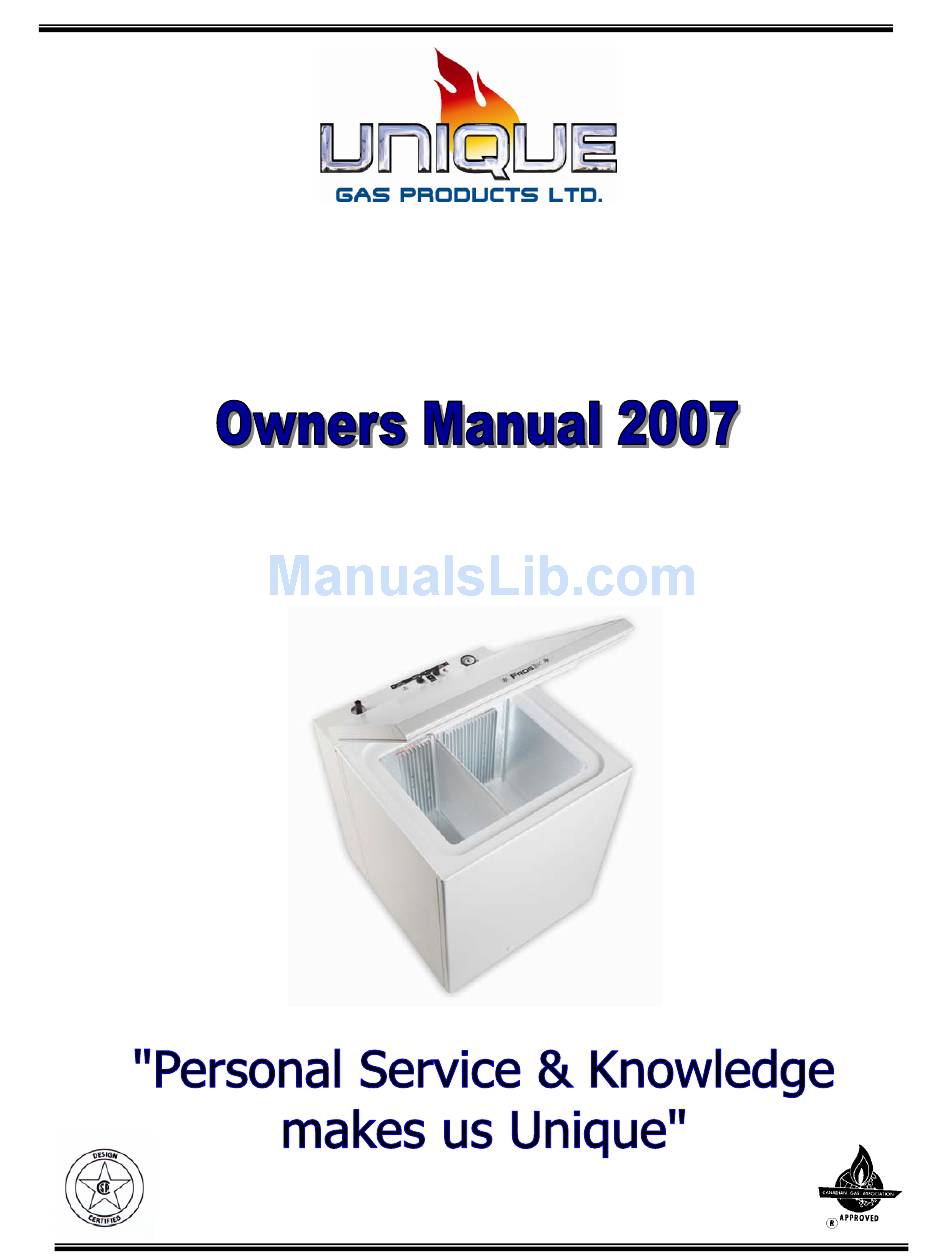

- Page 1 2245 Wyecroft Road #5, Oakville, Ontario Canada L6L 5L7 Ph: 905-827-6157 Toll Free: 1-877-427-2266 Fax: 905-827-2027 www.PropaneFridge.com Manufactures Model: Frostek 115 UGP 4.0 Sold as: 12/13/07...
- Page 2 NOTICE TO INSTALLER/CUSTOMER Please read carefully before hook-up! 1. The dwelling must have an adequate air supply and access to fresh air/oxygen in order to operate safely. Propane fridges/freezers, like any other gas appliance, must have access to fresh air/oxygen. This unvented appliance must not be used in an air- tight application.
-
Page 3: Table Of Contents
T able of Contents INSTALLATION INSTRUCTIONS PROPANE GAS CONNECTION LIGHTING INSTRUCTIONS LOADING THE FREEZER MAINTENANCE CLEANING INSTRUCTIONS DEFROSTING TROUBLESHOOTING LIMITED GUARANTEES PERFORMANCE GUARANTEES WHAT IS A CHEST FREEZER TROUBLESHOOTING QUESTIONNAIRE PARTS LIST CARBON MONOXIDE INSTRUCTIONS (CM Model) WARRANTY... - Page 4 4 cu ft (115 litre) food, frozen food and beverage appliance, which operates on propane. The interior dimensions of the food storage is: 115 litre (left side depth: 26 1/2" x width: 8 1/2" and length of 16 3/4") (right side depth: 17", width: 11 3/4"...
- Page 5 HIGHLIGHTS 1) Read full manual before using the freezer and record the serial # and the date of purchase on page 9. Please take the time to fill out and send in the warranty card, warranty issues may not be answered if the warranty card has not been received.
- Page 6 TABLE OF CONTENTS PAGE # INSTALLATION INSTRUCTIONS PROPANE GAS CONNECTION LIGHTING INSTRUCTIONS LOADING THE FREEZER MAINTENANCE CLEANING INSTRUCTIONS DEFROSTING TROUBLESHOOTING LIMITED GUARANTEES PERFORMANCE GUARANTEES WHAT IS A CHEST FREEZER TROUBLESHOOTING QUESTIONNAIRE PARTS LIST FIGURES VIEW OF CONTROL PANEL FIGURE 1 VIEW OF BACK AREA OF FREEZER VIEW OF BURNER BREAKDOWN FRONT OVERVIEW...
-
Page 7: Installation Instructions
CGA or AGA approved tubing. The following list of approved regulators can be used: REGO - 302, MARSHAL BRASS - 210, PRECIMEX - 3001. IMPORTANT: Operating the FROSTEK with the wrong gas pressure can destroy the cooling unit and void the guarantee. -
Page 8: Lighting Instructions
LIGHTING INSTRUCTIONS: A. is the manual shut off gas valve. B. is the gas indicator: when on the green position, it indicates that the gas is flowing and the chest freezer is lit. Should the chest freezer flame shut off, or the propane flow be cut, the indicator will move to the white position. This indicator should be on the green position when the freezer is operating on propane. -
Page 9: Maintenance
LOADING THE FROSTEK-115G: After 24 hours of operation, check the thermometer to see the inside temperature of the freezer. When it has reached -10 degree Celsius or colder, you can start putting in the food, at a rate of 12 lbs every 24 hours. Note: The is best suited for keeping frozen food frozen. - Page 10 TROUBLESHOOTING AN ABSORPTION FREEZER: Absorption systems have the advantage of operating without electric power, and have a relatively silent operation, as there is no compressor. Its refrigerant does not contain ozone-depleting substance. However, the system is smoother and slower, and does not have the brute cooling down force of Freon. Many minor malfunctions or bad installation, etc.
- Page 11 Bottom feeder pipe should be bent, as shown in figure 1 as point "C" being the lowest of the cooling unit. 10. Should the above not result in proper cooling, a new cooling unit may be required. Any leak of the refrigerant would also result in requiring a new cooling unit.
-
Page 12: Limited Guarantees
SERIAL NUMBER: DATE OF PURCHASE: LIMITED GUARANTEES DURABILITY GUARANTEE ATLANTIC MINI-FRIDGE CO LTD. guarantees that the cooling unit of the Chest Freezer will operate for 3 years from the date of delivery. Should the cooling unit block, overheat, or simply stop working within the 3-year period, a new cooling unit will be provided free of charge as replacement. -
Page 13: What Is A Chest Freezer
WHAT IS A PROPANE CHEST FREEZER? 1. An absorption operating cooling unit is NOT AS QUICK OR AS STRONG as a compressor type. Moreover, because it operates with heat (instead of a compressor), it must be able to get rid of this heat in the process of cooling the interior of the freezer. - Page 14 IF FOR ANY REASON YOU FEEL YOUR FREEZER IS NOT OPERATING AS IT SHOULD, PLEASE FILL IN THE QUESTIONNAIRE AND SEND IT TO THE FACTORY FOR ASSISTANCE. THE ADDRESS INFORMATION IS ON PAGE 1. Name: Address: Tel # : E-mail: Fax # : Model: Serial #:...
- Page 15 PARTS LIST ID # PART # DESCRIPTION ID # PART # DESCRIPTION COMPLETE DOOR – 115G FREEZER DOOR GASKET E676-10 ¼” 90° ELBOW E110-07 LIGHT COVER E680-10 MANUAL SHUT OFF VALVE E176-07 EXTERIOR DRAIN PLUG E681-10 MANUAL SHUT OFF VALVE COUPLER E403-07 COOLING UNIT –...
- Page 16 115G Revised: September 1, 2006...
- Page 17 115G Revised: September 1, 2006...
- Page 18 115G Revised: September 1, 2006...
- Page 20 Carbon Monoxide Monitor Instructions for Model Frostek 115/4.0 - CM OWNER’S MANUAL Model 9RV-SSO Carbon Monoxide Alarm for Appliance Safety Shutoff ATTENTION: PLEASE READ, FOLLOW AND SAVE! (See Additional Instruction Sheet for Safety Shutoff Connection) Dear New COSTAR 9RV-SSO Owner, Congratulations as you have taken steps to help insure the health and life safety of you and your family.
- Page 21 WHAT YOU SHOULD KNOW ABOUT CO Carbon monoxide (CO) is an insidious poison. It is a colorless, odorless and tasteless gas. It is a cumulative poison. The following symptoms are related to CARBON MONOXIDE POISONING and should be discussed with ALL members of the household: MILD EXPOSURE Slight headache, nausea, vomiting, fatigue (often described as "flu–like"...
- Page 22 WHAT YOU SHOULD DO IF THE ALARM SOUNDS WARNING Activation of this device indicates the presence of carbon monoxide (CO) which can KILL YOU. If alarm sounds: For Users in the United States, follow the protocol in steps 1 through 4 below: Operate reset/silence button;...
- Page 23 IMPORTANT CONSIDERATIONS: The COSTAR 9RV-SSO has been designed and is warranted to operate for six years. Never disconnect the battery to silence an alarm. The alarm will automatically sense when the level of CO in the air falls below the danger level.
- Page 24 IMPORTANT: WHAT YOUR CO ALARM CAN AND CANNOT This unit is designed to detect carbon monoxide (CO) and shutoff an appliance for safety only. This CO alarm is designed for use within a single residential living unit. It is designed to detect carbon monoxide (CO) entering its sensing chamber.
- Page 25 place units: – Within 5 feet (1.5m) of any cooking appliance or furnace. – Near an open window or door, because the fresh air entering the opening may delay CO from reaching the alarm. – In damp or very humid areas or next to bathrooms with showers. Install detectors at least 10 feet (3 meters) away from bathrooms.
- Page 26 INSTALLATION INSTRUCTIONS: READ CAREFULLY BEFORE INSTALLING ALARM CAUTION: THIS UNIT IS SEALED. THE COVER IS NOT REMOVABLE! Select proper location (See section 5.0) A mounting plate is provided on the back of the alarm. Remove the mounting plate from the back of the alarm by holding the mounting plate and twisting the alarm in the direction indicated by the "OFF"...
- Page 27 (See Step A in Figure 2 ) As described in Figure 2, attach the mounting plate on the wall. Use the screws and anchors provided to secure the mounting plate. The battery is INSTALLED REVERSED FOR SHIPPING. Remove and reinstall the battery in the correct orientation as noted on the inside of the battery door.
- Page 28 indicating that the alarm is powered ALARM CONDITION: Repeating signal pattern: RED LED turns "on" for 2 seconds with 4 short beeps and then 5 seconds of silence. Pushing and holding the test/reset button for 3 seconds will silence the alarm for about 4 minutes.
- Page 29 NOTE: IF TAMPER RESISTANT PIN HAS BEEN USED, REFER STEP UNDER INSTALLATION INSTRUCTIONS FOR REMOVAL INSTRUCTIONS. (See Figure 3) To replace the battery remove the alarm from the mounting plate by rotating the alarm in the direction of the "OFF" arrow on the cover (See Figure 2 Step D).
- Page 30 WARNING: RESIDENTIAL USE: TEST ALARM OPERATION AT LEAST ONCE PER WEEK DURING USE OR IF APPLIANCE WAS TURNED OFF FOR A PERIOD OF TIME. 11.0 SERVICE AND WARRANTY If after reviewing this manual you feel that your CO Alarm is defective in any way, do not tamper with the unit.
- Page 31 (including stainless models) 5 YEAR LIMITED WARRANTY* Unique Gas Products Ltd. warrants that this UNIQUE refrigerator/Frostek freezer is free from defects in material and workmanship under normal usage and service under the following terms: This Warranty is made only to the first purchaser (”original purchaser”) who acquires this refrigerator for his/her own use and will be honored by Unique Gas Products Ltd.
-
Page 32: Limited Warranty
LIMITED WARRANTY COSTAR Model 9RV-SSO UNIQUE GAS PRODUCTS LTD offers you this limited warranty on your new carbon monoxide alarm, including all of its component parts except the battery. This limited warranty extends solely to the original end- user purchaser of this product, provided your purchase was made from an authorized vendor. Transfer or resale of this product will automatically terminate warranty coverage.
