Download
Share
Print this page
  1. Manuals
  2. Brands
  3. Roketa Manuals
  4. Offroad Vehicle
  5. RTQ-260w
  6. Installation instructions manual

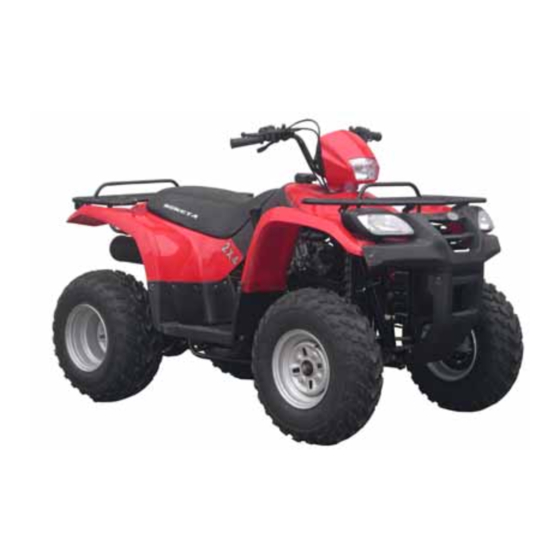

Roketa RTQ-260w Installation Instructions Manual

Hide thumbs
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
RTQ-260w
Instruction for the installation

Advertisement

loading

Related Manuals for Roketa RTQ-260w

Summary of Contents for Roketa RTQ-260w

  • Page 1 RTQ-260w Instruction for the installation...

  • Page 2: Step 1：Install Handle Bar

    STEP 1：INSTALL HANDLE BAR PART NAME SPEC. REMARK PART NAME SPEC. REMARK ①HANDLEBAR ④ clamp On ATV ATTACHMENT HOLDER ②handlebar ⑤clamp holder On ATV ATTACHMENT ③bolt M8×60 attachment Install step: 1.put⑤on①. ② ⑤，clamp by④. ① ③ ④ ⑤ ② 2. Put on 1.
  • Page 3 STEP 2：INSTALL MAIN LAMP AND LAMPSHADE PART NAME SPEC. REMARK PART NAME SPEC. REMARK ①SCREW ⑨INSERT OF ODOMETER ON MAIN LAMP Four hole On main INDICATION lampshade ⑩INSERT OF SWITCH OF POWER Six holes On main ②TOP COVER ON MAIN LAMP lampshade ③BRACKET OF MAIN ⑾INSERT OF ODOMETER’S POWER...
  • Page 4 ① ② hang hole hole of installation ③ ⒂ ④ pothook ⑤ ⑥ ⒁ ⑦ ⑧ ⑨ ⑩ ⒀ ⑾ ⑿...

  • Page 5: Step 3：Install Front Wheel

    STEP 3：INSTALL FRONT WHEEL PART NAME QTY. SPEC. REMARK ①FRONT WHEEL INSIDE CARTON 23*7-10 ②NUT See ○ 3 ○ ○ 3 trig hub On the ATV INSTALL STEP： ② 2. Take②off③ ○ ○ 3 then fix by 2 and fasten. 3.

  • Page 6: Parts Name

    STEP 4：INSTALL REAR SHOCK ABSORBER PARTS NAME SPEC. REMARK ①rear shock absorber On the ATV ②bolt On ⑤ M12×80 ③nut On ⑤ ④pin On ⑤ ⑤REAR SHOCK On the ATV ABSORBER HOLDER INSTALL STEP: 1. TAKE AWAY②③④FROM⑤ ① ③ ④ 2.
  • Page 7 STEP 5：INSTALL BATTERY PART NAME SPEC. REMARK ①ELECTROLYTE In box of battery ②FILLER In box of battery ③RUBBER PLUG In box of battery ④BATTERY 12V/9Ah Inside carton ⑤BOX OF BATTERY Inside carton ⑥REAR OVERCLOTH On ATV ⑦ SEAT Inside carton ①...
