GLOBAL ASSISTIVE DEVICES Access 4 Instruction Manual

Multi-purpose alerting device: alarm clock, led lamp with flashing feature,telephone ring signaler, vibrator jack
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Multi-purpose Alerting Device:
Alarm Clock, LED Lamp with flashing feature,
Telephone Ring Signaler, Vibrator Jack.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Access 4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GLOBAL ASSISTIVE DEVICES Access 4

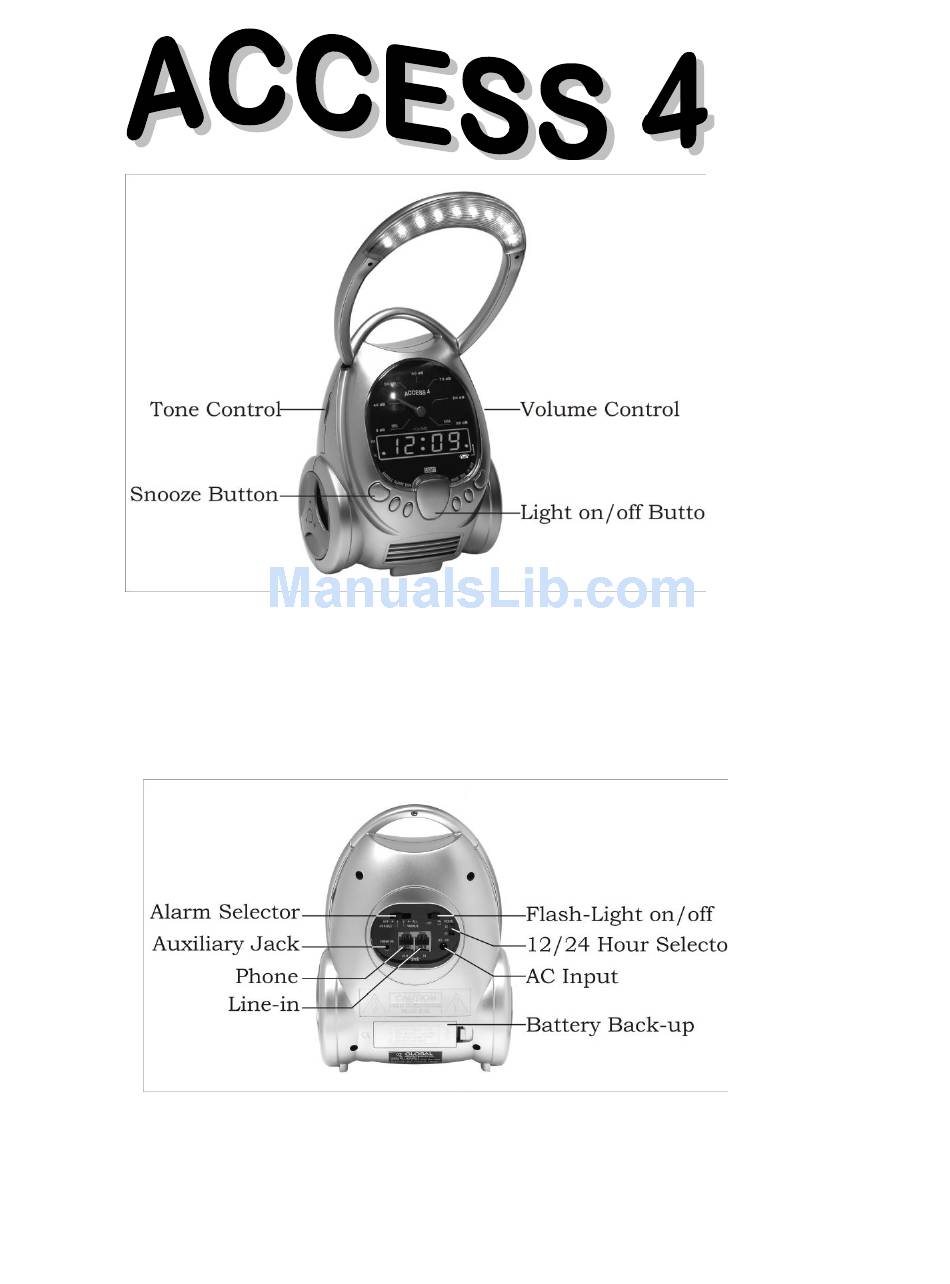

  • Page 1 Multi-purpose Alerting Device: Alarm Clock, LED Lamp with flashing feature, Telephone Ring Signaler, Vibrator Jack.

  • Page 2: Power Source

    12/24 HOUR DISPLAY MODE: Select the desired 12 or 24 Hour mode by using the HOUR switch located on the back of the unit. POWER SOURCE: AC Operation A plug in 9VAC 750 mA power supply (included) powers the clock. Check to ensure that the voltage indicated on your power supply corresponds to the correct voltage of your area.
  • Page 3 Battery Back up for Clock Memory Keeps the clock time running in the event of a short term AC power failure. The LED Lamp can also be powered by the Battery back up. The correct time will show when AC power returns if battery is not dead.

  • Page 4: Setting The Clock Time

    SETTING THE CLOCK TIME: To set the Hour: Press and hold the TIME button (located on the front). While you hold down the TIME button, press the HOUR button until it advances to the correct hour. Note: For 12-Hour Display mode, check that you have set correctly in AM or PM.
  • Page 5 the top left of the clock display) will illuminate when in PM time. To set the Minutes: Press and hold the ALARM button (located on the front). While you hold down the ALARM button, press the MIN button until it advances to the correct minutes.
  • Page 6 VIBRATE position will activate the VIBRATOR jack and cause the connected “Vibes” Bedshaker to vibrate. ALL position will activate the audible, vibrate and flashing lamp. If you do not want the lamp to flash, slide the lamp switch (located on the back top right of the clock) to OFF.

  • Page 7: Snooze Alarm

    marked VIBRATOR. Place the Bedshaker between your box spring and mattress or under your pillow. When the alarm is activated, the vibrations will alert you. Flashing: The LED lights will flash when the alarm is activated. If you do not want it to flash, slide the lamp switch (located on the back top right of the clock) to OFF.
  • Page 8 RJ11 jack marked IN and the other end of the cord into the wall phone jack. ACCESS 4 will respond to the Telephone Ring with the functions that are set. Select Light, Audible and/or Vibrate. A green...

  • Page 9: Limited Warranty

    LIMITED WARRANTY: ACCESS 4 is warranted to be free from defects in material or workmanship for One Year from the date of purchase. This is a limited warranty and does not apply to the telephone line cord. This warranty does not cover any unit which has been subject to misuse, negligence or accident.
  • Page 10 Circumstances or consequences arising out of or in any way related to the use of or inability to use our products is the responsibility of the consumer. Global Assistive Devices, Inc. cannot be held liable in any way. GLOBAL ASSISTIVE DEVICES, INC.
