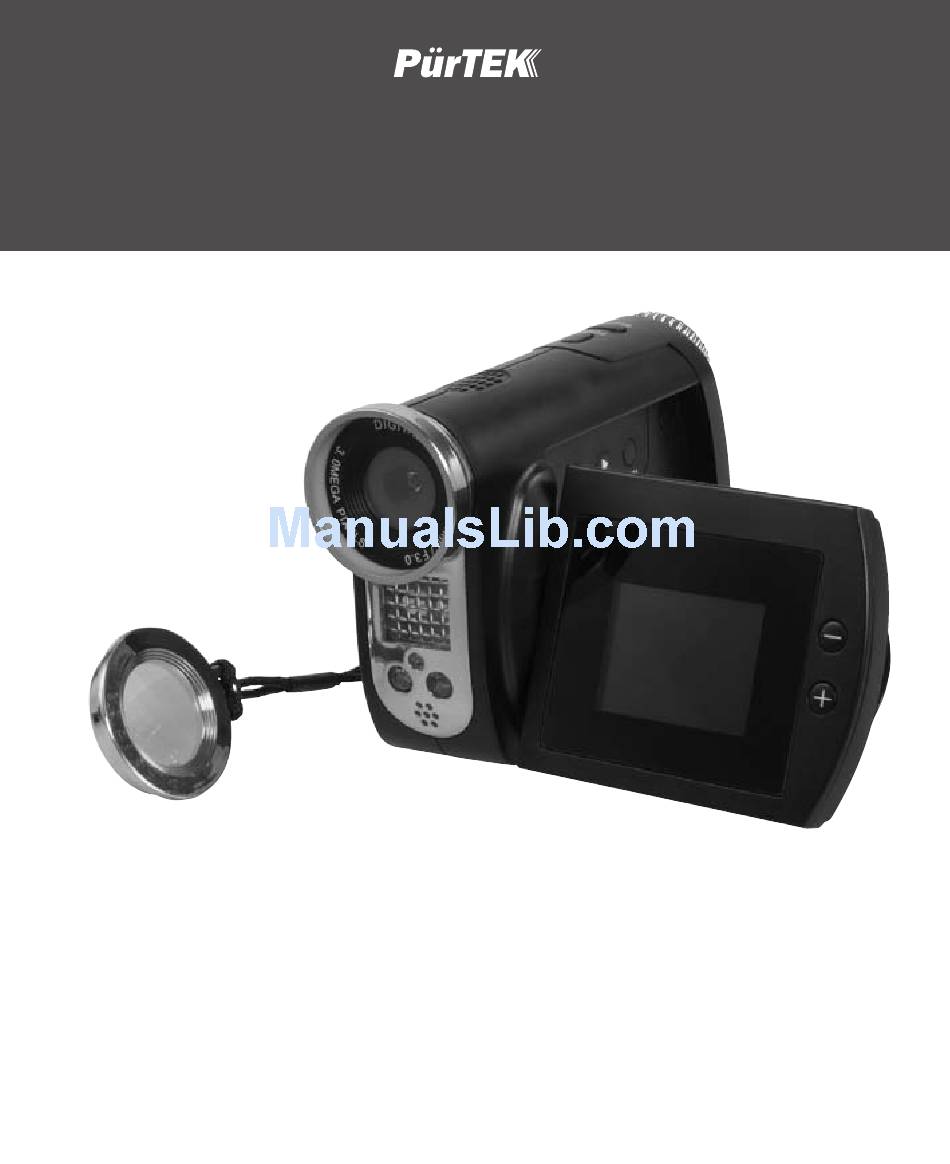

Page 1 Digital Video Camcorder with Night Vision PTDVNT User Manual...
Page 2: Table Of Contents
Table of Contents • Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 •...
Page 3: Specifications
Specifications Image Sensor: VGA CMOS Sensor Resolution: VGA (640 x 480) 1 .3 M (1280 x 960) 3M (2048 x 1536) Video Clip: QVGA (320 x 240) VGA (640 x 480) Digital Zoom: Display: Color 1 .5” TFT LCD External Memory: Micro SD card (up to 8GB) Internal Memory: 128 MB File Format: JPEG/ AVI Lens: Fixed (2P Lens) F . No .: 3 . 0 Focus Range: 0 . 7 m ~ infinity Interface: USB/ AV out Flashlight: LED/ IR LED Shutter Speed: 1/8 to 1/2048 second Power: 2 x AA alkaline batteries Dimensions:...
Page 4: Disconnecting From Your Computer
Disconnecting From Your Computer: Before disconnecting the Digital Camera from the computer, be sure to stop the device in Windows . To stop the Digital Camera, please follow the steps below: Remove from PC: (For Windows Me/2000/XP/VISTA) 1 . Click the “Safely Remove Hardware” icon located on the task bar . Select the device you want to stop (e .g . Safely remove USB Mass Storage Device Drive (E:)) . 2 . Follow the on-screen instructions to remove the Digital Video Camcorder safely . Getting to Know Your Digital Video Camcorder Front View Lens Flashlight Self-timer Indicator Night shoot Microphone...
Page 5: Getting To Know Your Digital Video Camcorder
Getting to Know Your Digital Video Camcorder Back View Mode Knob Status Indicator Battery Compartment Zoom in (+) AV jack Zoom Micro SD out (–) card slot USB jack LCD Panel Side View Speaker Left Power Shutter Mode Knob Menu Right Down...
Page 6: Loading The Batteries
Loading the Batteries 1 . Remove the battery box cover by sliding it off . Insert two (2) AA batteries (not included) into the battery compartment, observing the proper polarity as indicated . 2 . Push the battery compartment cover down and slide forward to close . Battery precautions Follow these precautions when using batteries in this device . 1 . Use only the size and type of batteries specified . 2 . Be sure to follow the correct polarity (+/–) when installing the batteries as indicated inside the battery compartment . Reversed polarity may cause damage to the device . 3 . Do not mix different types of batteries together (e .g . Alkaline and Carbon-zinc) or old batteries with new ones . 4 . If the device will not be used for an extended period of time, remove the batteries to prevent damage or injury from possible battery leakage .
Page 7: Power On/Off
Power On/Off Push the POWER button for 2 seconds to activate your digital camera . Push it again to turn it off . If the digital camera is left inactive for 1, 3 or 5 minutes, it will automatically turn off . Auto-Off can be set to 1 minute, 3 minutes, 5 minutes, or disabled . (For more information, see the “Setup” section . ) . Power Low If your battery is low, you will see a battery icon ( ) and “Low battery” will display on the bottom left corner of the LCD . It will then turn itself off in 3 seconds . Using the Filter The quality of images or videos will be better when you install the filter on the lens before taking pictures or recording video when in daylight . Note: When using a Night Shoot LED to capture a night scene, remove the filter . (For more information about night shooting, see Camera Mode on pages 13-15)
Page 8: Modes
Attach the filter to the camcorder . 1 . In order to avoid damaging or losing the filter, attach the filter to the camcorder using the included connecting cord . Do not use the cord as a hand strap to carry the camcorder . 2 . Attach the string as indicated by looping the connecting cord through the strap lug on the bottom of the unit . Modes Setup Playback Voice Recorder Mass Storage Camcorder PC Cam Burst Camera Setup Language, Date & Times, Auto Off, Light Frequency, Beep, TV Output, Format, System Reset and S . Image can be set in Setup Mode . 1 . Switch MODE knob to Setup Mode .
Page 9 2 . Press e or d buttons to choose the desired item . Press Shutter to enter settings and then press e or d to change setting . Press Shutter again to confirm or Menu to exit without any change . • Language: English, French, German, Italian, Spanish, Japanese • Date Input: (Set the date and time .) 1 . Press Shutter to enter . 2 . Press e or d to select Off or Set . If you select Set, press e or d and f or g to make changes . The Date has three modes: YYYY/MM/DD DD/MM/YYYY MM/DD/YYYY Press e or d to select the mode desired . Then press f or g and e or d to set the date and times desired . 3 . Press Shutter again to confirm and return . • Auto off: Off, 1 minute, 3 minutes, 5 minutes (To conserve power, you can set Auto-off function .)
Page 10: Playback Modes
• Beep: On, Off (Turn the key tone ON or OFF) • TV Output: NTSC, PAL (Select the TV output format . The standard output in North America is NTSC .) • Format: Execute, Cancel (Format the memory storage . Warning: Formatting the memory will delete all images, videos, voice recordings and files .) • Sys. Reset: Execute, Cancel (Return to the factory default settings .) • S. Image (Startup Image): Default, User Image 1, 2 or 3 . (You can choose the Default or user image as startup image .) Playback Mode Turn the Mode knob to Playback to play videos, recorded voice and pictures .
Page 11 Playback of Videos or Voice Recordings 1 . Use the arrow keys f, g, e or d to scroll through the voice recordings or video clips . 2 . Press Shutter once to select the desired voice recording or video clip . 3 . Press Shutter again to start the voice recording or video clip . Press Shutter again to pause the voice recording or video clip . 4 . While playing back, press e to fast forward the video clip (1x/2x/4x/8x speed) . 5 . Press d to stop the voice recording or video clip . 6 . To adjust volume, press Menu and select Volume 7 . To return to the selection panel, press – (minus) beside the LCD Panel .
Page 12 • Delete: Single, All, Select • DPOF: Single, All (If your printer supports DPOF (Digital Print Order Format) functionality and can directly print images stored in a SD card, then you can print the images you need by inserting the SD card into the printer .) • Copy to card: Execute, Cancel (When there’s internal memory in the digital camera, you can copy all files including video, recorded voice and pictures from internal memory to SD card) • Thumbnail: Execute (You can back to preview mode immediately) • Volume: 1~8 (You can adjust the volume for video or recorded voice .) • S. Image (Startup Image): User Image 1~3, Cancel (Select a startup image from your photos . For more information about S .Image, see page 10 .)
Page 13: Recording Voice (Voice Recorder Mode)
Voice Recorder Mode 1 . Turn Mode knob to Voice Recorder Mode . 2 . Press Shutter to start voice recording . Press Shutter again to stop recording . Camcorder Mode 1 . Switch Mode knob to Camcorder Mode 2 . Press Shutter to start recording video . Press Shutter again to stop recording . 3 . Turn on the Flash light LED or Night shoot LED . • Press f to turn on/off the LED Flashlight . • Press g to turn on/off the Night Vision LED . • The following icon will display on the screen . Flashlight LED Night Shoot LED Note:...
Page 14 5 . Press e or d buttons to choose the desired menu item . Press Shutter to enter settings and then press e or d to change setting . Press Shutter again to confirm or Menu to exit without any change . • Size: VGA (640 x 480), QVGA (320 x 240) • White Balance: Auto, Daylight, Cloudy, Fluorescent, Tungsten • EV: + 2 . 0 , + 1 .5, + 1 . 0 , + 0 .5, +0 . 0 , -0 .5, -1 . 0 , -1 .5, -2 . 0 • Color: Off, Monochrome, Sepia, Vivid • Time stamp: Off, Date only, Date & Time...
Page 15: Taking Pictures (Camera Mode)
Camera Mode 1 . Turn Mode knob to Camera mode 2 . Press Shutter to take a picture . 3 . Turn on the Flash light LED or Night shoot LED . • Press f to turn on/off the LED Flashlight . • Press g to turn on/off the Night Vision LED . • The following icon will display on the screen . Flashlight LED Night Shoot LED Note: • Flashlight LED: If daytime light is low, images or videos will be better when the LED Flashlight is used . (The effective distance of the Flash light is about 3m in a darkened environment) • Night Vision LED (Infrared Lamp): To capture a night scene or dark scene, use the Night Vision LED . Images and videos captured in this mode will be in monochrome . (The effective distance of the Night Vision LED light is about 6m in a darkened environment) 4 . Press MENU to set Picture Quality .
Page 16 • Quality: Fine, Standard, Economy • Preview: On, Off • White Balance: Auto, Daylight, Cloudy, Fluorescent, Tungsten • EV (Exposure Value): +2 . 0 , +1 .5, +1 . 0 , +0 .5, +0 . 0 ,-0 .5, -1 . 0 , -1 .5, -2 . 0 • Self timer: Off, 5sec, 10sec, 15sec • Scene Mode: Auto, Portrait, Landscape, Sport, Night, Backlight • Color: Off, Monochrome, Sepia, Vivid...
Page 17: Continuous Shooting (Burst Mode)
Burst Mode This Digital Video can shoot continuously shoot up to 3 pictures within 0 .5 seconds . 1 . Turn Mode knob to Burst mode . 2 . The operating method is the same as in Camera mode . 3 . Press Menu to set the picture quality, the same as Camera mode . Note: • Scene Mode cannot be operated in Burst mode . • In this mode, you can also open the Flash light LED and Night shoot LED to strengthen the environment’s light . The operating method is the same as in Camera mode . PC Camera Mode Turn the Mode knob to PC Camera Mode . The Digital Camera can be used as a PC Cam when it is set to PC Cam Mode . To activate the PC Cam, connect the Digital Camera to your...
Page 18: Memory Space Indication
Mass Storage Mode is compatible with Windows and can be used by connecting the Digital Camcorder to a computer with the supplied USB cable . Images or movies can be copied, moved or deleted in exactly the same way as other files on your computer . Note: For Windows ME, 2000, XP and VISTA operating system, it is not necessary to install the Digital Camera driver . Driver installation is only needed for Windows 98 . Memory Space Indication 1 . is shown in the lower left corner of display that indicates the micro SD Card is inserted in the device (see FIG-1) . 2 . When the internal memory is full, “Memory Full” will be displayed on the LCD . 3 . Once the memory is full and the camera does not have external memory installed, the last image, audio or video will not be saved after the power is turned off . Caution: Please note that this Digital Camcorder does not support hot swapping of the memory card, so be sure to turn off the Digital Camcorder before inserting or removing the memory card .
Page 19: Installing Digital Camera Driver
Installing Digital Camera Driver 1 . Insert the CD into your computer 2 . Double Click DRIVER folder in CD . 3 . Click SETUP, the screen below will appear . 4 . STK02N Installation Program will auto run until the following screen appears . 5 . Click FINISH to complete the installation . 6 . Restart the computer after completing the installation Installing Arcsoft Photo Editing Software Install all software before connecting the Digital Camera to a computer . 1 . Insert the CD into CD-ROM driver . The software will auto run .
Page 20: Operating Arcsoft Photo Editing Software
2 . Select the language . 3 . Click YES and the driver will start the Arcsoft Installation . 4 . Press NEXT until the following screen appears . C lick FINISH to finish Arcsoft Installation . Operating Arcsoft Software Captured images can be edited and the PC Cam mode can be activated with the Arcsoft Software . To edit images, set the USB Connection to Mass Storage mode . To capture images through the Arcsoft Software, set the USB Connection to PC Cam mode . (See “PC Camera Mode”, page 17 .) Note: This software does not support the Mac operating system . 1 . To start the program Photo Impression 5: Start → Program → Arcsoft Software Suite → Photo Impression 5...
Page 21 2 . Select “DSC/ Scanner”, then “Get photo from…” 3 . Select the device “Standard Camera” If the Digital Camera has been set to Mass Storage mode, captured images can be copied to the computer after device selection . The software will capture images if the Digital Camera is set to PC Cam Mode .
Page 22: Copyright Notice
Copyright Information All rights reserved . No part of this publication may be reproduced, transmitted, stored in a retrieval system, or translated into any language in any form by any means, optical, electronic, recording, or otherwise, without the written permission of our company . We reserve the right to revise this manual and to make changes to any or all parts at any time, without obligation to notify any person or entity of such revisions and changes . LEI ELECTRONICS INC. LIMITED WARRANTY These products are warranted against defects for ninety (90) days from the date of purchase . Within this period, LEI Electronics Inc . agrees to remedy such defects by repairing or replacing, at it’s option, any products provided they are sent PREPAID to the address listed below within the warranty period and includes a copy of the original sales receipt as proof of purchase . EXCEPT AS PROVIDED HEREIN, LEI ELECTRONICS INC . MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE . This warranty gives you specific legal rights and you may have other rights which will vary from province to province . For product support please contact www .leiproducts . c om or 1-800-449-3315 . Custom Manufactured in China for/ Fabriqué...
