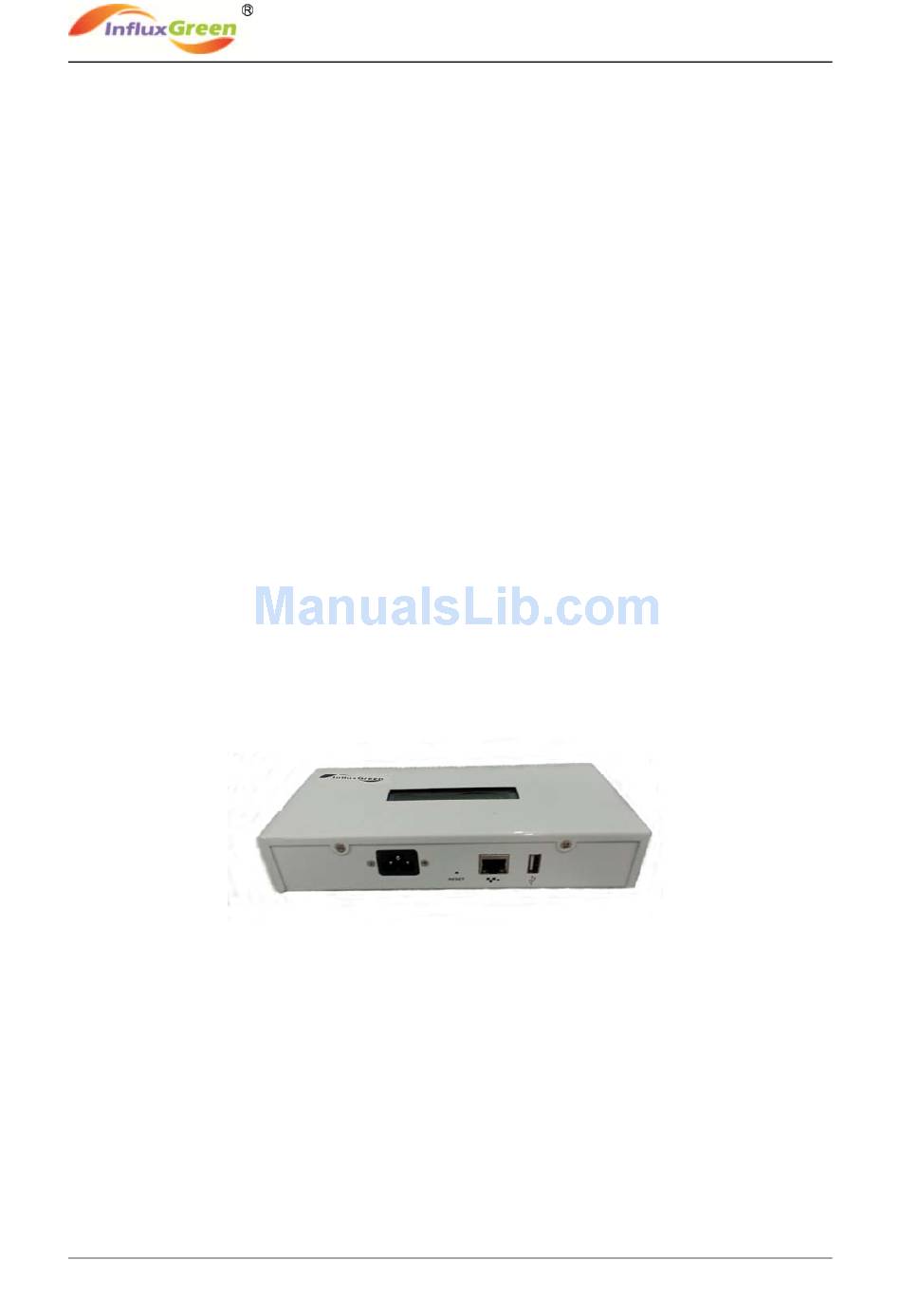

- Page 1 InfluxGreen Energy Pte Ltd VISION Communication Gateway Installation and Operation Manual Version: 1.1 Page 1 Copyright InfluxGreen Energy Pte Ltd 2012 REV 1.0 ...
- Page 2 WARNING. Users are recommended to visit the company website at www.influxgreen.com for more information about our new products and the latest versions of the user manuals. Page 2 Copyright InfluxGreen Energy Pte Ltd 2012 REV 1.0 ...
-
Page 3: Table Of Contents
5. Alarm Information .............................12 6. Technical Data ............................12 7. Disposal ..............................13 Page 3 Copyright InfluxGreen Energy Pte Ltd 2012 REV 1.0 ... -
Page 4: Notice
Communications Route Gateway r Inteli Web‐Based Application Page 4 Copyright InfluxGreen Energy Pte Ltd 2012 REV 1.0 ... -
Page 5: The Communication Gateway Installation Guide
Fix 2 x M5 bolts (screws or nails) of diameter 4.5mm into the wall. ii. Ensure a pitch of 100mm between the M5 bolts. iii. Allow an exposure of about 5‐8mm of the bolts for the actual mounting of the device, taking into consideration the stress range of the bolts used. Vision communication gateway installation and operation manual. Page 5 Copyright InfluxGreen Energy Pte Ltd 2012 REV 1.0 ... -
Page 6: Setting Up And Obtain The Ip Address
3.3 Setting Up and Obtain the IP address Insert one end of the Ethernet cable into the Ethernet port of the Vision Communication Gateway device. Insert the other end to the Ethernet port in the broadband router. Make sure that the DHCP service is turned on. Once the device is connected to the internet, it will obtain an IP address automatically. If the installation is successful, the following will be shown on the screen of the device. Page 6 Copyright InfluxGreen Energy Pte Ltd 2012 REV 1.0 ... -
Page 7: Login To Local Web Service And Set Local Time
The two IP addresses are now configured and basic Ethernet connection has been established between the PC and the communication gateway device. Open the web browser, type in the IP address of the Vision communication gateway device and log in to the local web service (for details, see “local interface”). Click “Configuration” and enter the configuration page. You can the set the local time manually, or you may enter a local NTP service to obtain the local time and respective time zone automatically. Page 7 Copyright InfluxGreen Energy Pte Ltd 2012 REV 1.0 ... -
Page 8: Operation
NOTE: SAG refers to “System Agent Generation”. “Agent” is used as it refers to the power conversion system that converts the solar energy to the grid electricity. Page 8 Copyright InfluxGreen Energy Pte Ltd 2012 REV 1.0 ... -
Page 9: Local Web Service
The factory default username and password are “Admin” and “1234” respectively. It then brings you to the “Overview” page. The “Overview” page provides a system overview and highlights the current status of the installed PV system. Page 9 Copyright InfluxGreen Energy Pte Ltd 2012 REV 1.0 ... - Page 10 Page 10 Copyright InfluxGreen Energy Pte Ltd 2012 REV 1.0 ...
- Page 11 13. In the “Configuration” screen, it allows the user to configure the IP address, system time or time server. Page 11 Copyright InfluxGreen Energy Pte Ltd 2012 REV 1.0 ...
-
Page 12: Alarm Information
C to 40 C Cooling Nature Convection; No Fans Enclosure Environmental Rating Indoor – NEMA 1(IP30) Features Standard Warranty Term 3 Years Compliance IEC60950‐1, EN60950‐1, AS NVX60950 Page 12 Copyright InfluxGreen Energy Pte Ltd 2012 REV 1.0 ... -
Page 13: Disposal
InfluxGreen Energy Pte Ltd 7. Disposal Please refer to the WEEE guidelines on the disposal of the used device. Page 13 Copyright InfluxGreen Energy Pte Ltd 2012 REV 1.0 ...
