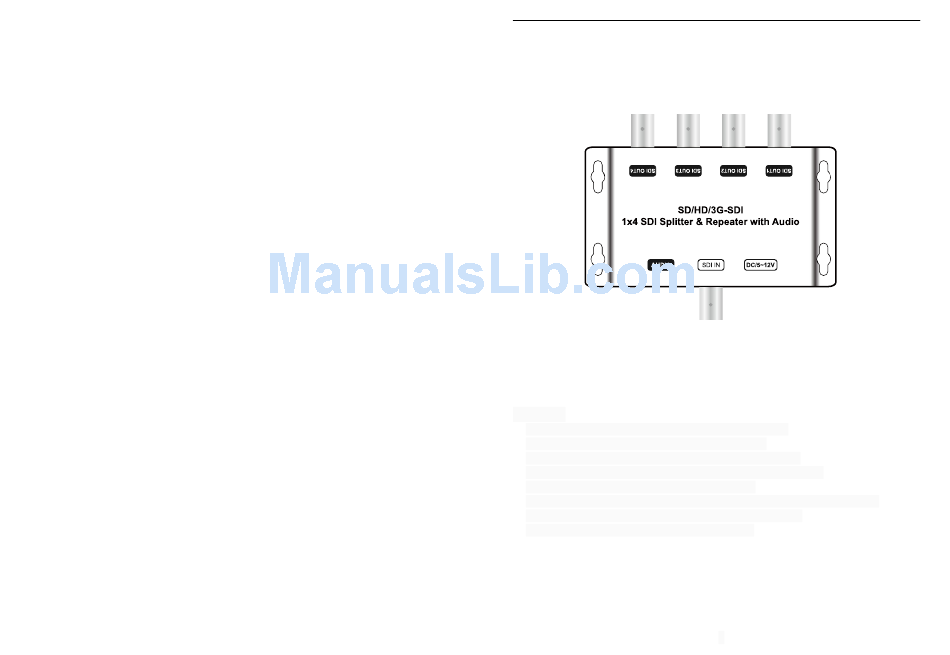

Operating Instructions
SD/HD/3G-SDI 1 to 4 Distribution Amplifier &
Repeater with audio
Operating Instruction
Dear Customer
Thank you for purchasing this product. For optimum performance and safety, please
read these instructions carefully before connecting, operating or adjusting this product.
Please keep this manual for future reference.
Features
1) Distributes 1 SDI input to 4 SDI outputs simultaneously
2) With Audio extraction (3.5mm stereo audio output)
3) Single unit can transmit up to 120m/390ft (Beldon 1694A)
4) Re-clocking function capability---unlimited repeater connection
5) Support SDI Standard :SD-SDI,HD-SDI, 3D-SDI
6) Data Rates: 270Mbps(SD-SDI), 1.485Gbps (HD-SDI), 2.97Gbps (3G-SDI)
7) Signal Type: SMPTE 292M, SMPTE 259M, SMPTE 424M
8) DC 5V~12V (Power consumption less than 2W)
NOTICE
Our company reserve the right to make changes in the hardware, packaging and any
accompanying documentation without prior written notice.
1
Advertisement
Summary of Contents for Foxun SX-SDI-104
- Page 1 Operating Instructions SD/HD/3G-SDI 1 to 4 Distribution Amplifier & Repeater with audio Operating Instruction Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Features 1) Distributes 1 SDI input to 4 SDI outputs simultaneously 2) With Audio extraction (3.5mm stereo audio output)
- Page 2 Operating Instructions Specifications Re-clocking Function SDI Standards SD-SDI, HD-SDI,3G-SDI HD/SD-SDI Detection Auto SMPTE 259M Supported Protocols SMPTE 292M SMPTE 424M 270Mbps(SD-SDI), 1.485Gbps (HD-SDI), 2.97Gbps (3G-SDI) Data Rates 480i@60hz, 720p@50/59.94/60hz, 1080i@50/59.94/60hz, Video Support 1080p@23.98/24/25/29.97/30/50/59.94/60hz SDI Signal Type SMPTE-292M, SMPTE-259M, SMPTE-424M Output Impedance 75 ohms HD-SDI up to 120m Cable Equalization...
- Page 3 Operating Instructions PANEL DESCRIPTIONS Left Side View Right Side View 1) 3.5mm stereo audio jack 2) SDI input 3) Green indicator of source status 4) Red indicator of power input 5) DC 5V~12V 6) SDI outputs Connecting and Operating 1. Connect a camera or other device equipped with SDI output to 1x4 SDI repeater input.
- Page 4 Operating Instructions Operating Instructions Typical Application After sale Service and Warranty (1) Distribute one SDI input to 4 SDI output WARRANTY If your product does not work properly because of a defect in materials or workmanship, our Company (referred to as "the warrantor" ) will, for the length of the period indicated as below, (Parts(2)Year, Labor(90) Days) which starts with the date of original purchase ("Limited Warranty period"), at its option either(a) repair your product with new or refurbished parts, or (b) replace it with a new of a refurbished product.
