Summary of Contents for LA Fitness DK850BAF01AA

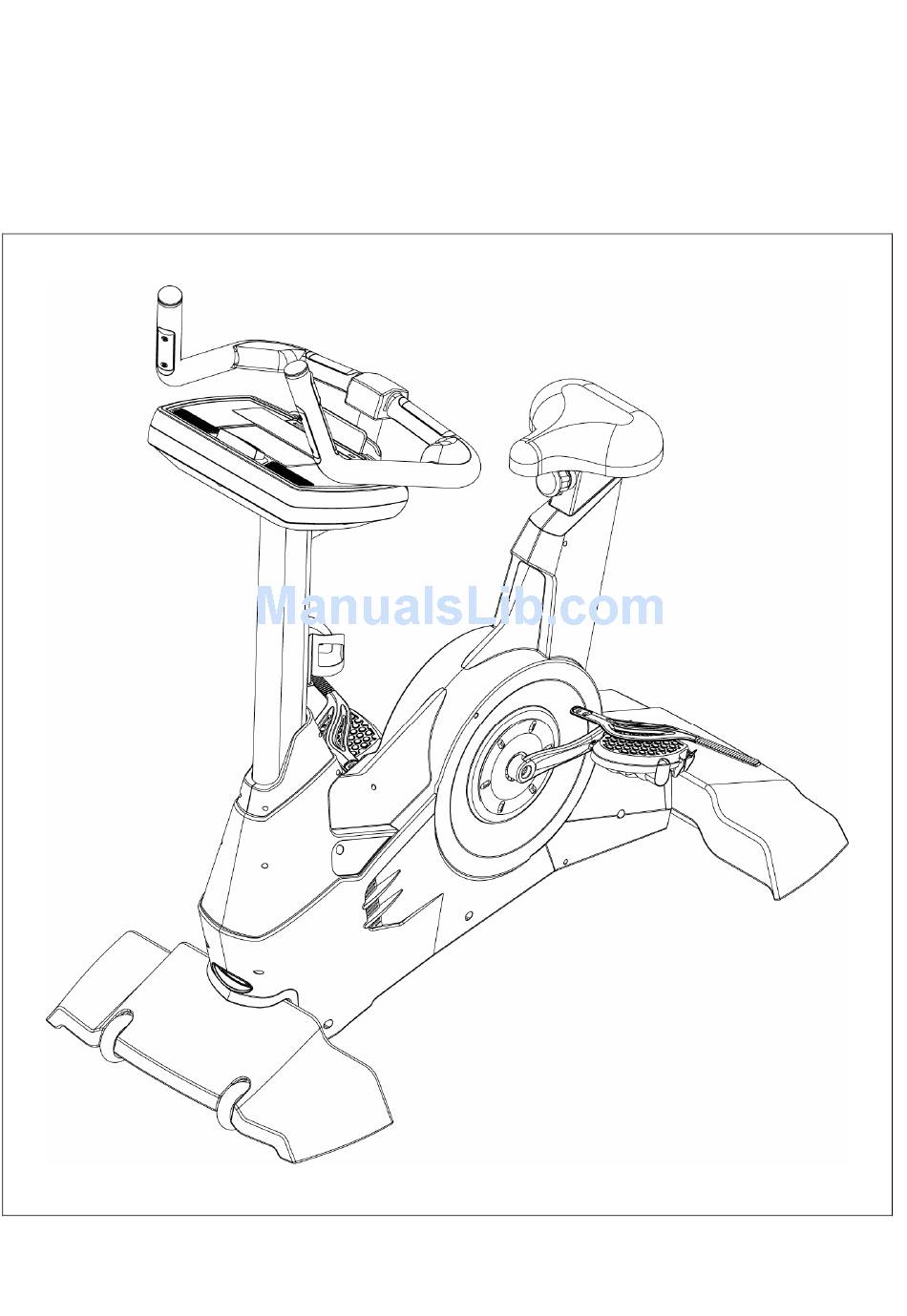

Page 1 DK850BAF01AA OWNER’S MANUAL...
Page 2: Table Of Contents
Index Pre Installation Tips / Selecting Where Your Bike Goes …………………………………… Important Safety Instructions ……………………………………………………………… Specifications ……………………………………………………………………….... Assembly Parts ……………………………………………………...………………………. Parts Details ………………………………………………………………………………… Assembly Procedures ………………………………………………………………………. Operation Instruction ……………………………………………………………………….. 2012/3/2Ver1.1+V1.0...
Page 3: Pre Installation Tips / Selecting Where Your Bike Goes
Pre Installation Tips The following are tips to aid you in the installation of the 850B Fitness Bike: 1. Prepare all relevant parts before starting, this will save you time! 2. All screws are tightened by turning to the right and loosened to the left. 3.
Page 4: Important Safety Instructions
Important Safety Instructions When using this product, basic precautions should always be followed, including the following: Please read the instruction carefully before starting to use this product. Danger – To reduce the risk of electric shock： Always unplug this product from the electrical outlet immediately after using and before cleaning the treadmill.
Page 5 Keep the cord away from hot surfaces or ground. 10. Never operate the product with the air vents blocked. Keep the air vents free of lint, hair, etc. 11. Never drop or insert any objects into any vent of the treadmill. 12.
Page 6: Specifications
Specifications Max. User Weight 400 lbs/180 kg Size of Machine 64 cm x 132 cm x 146 cm Packing Weight of 62.2kg Machine Net Weight of 52.2kg Machine Power Supply 15V/1A DC (Charger) Note: Charge your battery once per week 2012/3/2Ver1.1+V1.0...
Page 7: Assembly Parts
Assembly Parts 2012/3/2Ver1.1+V1.0...
Page 8: Parts Details
Parts Details ITEM Description Steel hexagon socket head screw M8xP1.25x25 Blue Nylok Spring washer M8 Flat washer Ø8x Ø16x2.0t Inner steel hexagon socket head screw M8XP1.25X20 Blue Nylok Spring washer M8 Umbrella-head cross screw blue nylok M4xP0.7x10 Spring washer M4 Round-head cross screw M5x15 Allen wrench 6mmx40x120 <120 crossing for longer part>...
Page 9: Assembly Procedures
Assembly Procedures STEP 1. Attaching the Seat to the Main Frame of the bike After must first loads POPIN(H), then seat cushion (D) depends on the arrow direction insertion frame group (C) localization then. 2012/3/2Ver1.1+V1.0...
Page 10 STEP 2. Attaching the Upper Control Frame to the Main Frame 1. Thread the wire from the Bike Frame (B) to the Upper Control Frame (C), then place the two frames together. Insert steel hexagon socket head screws (a), spring washers (b) and flat washers (c) according to the figures and tighten.
Page 11 STEP 3. Attaching the Handlebars Thread the 3 wires in the Handles (E) through the exit of the bend pipe on the Control Frame. Then fix the handlebars by tightening with the CKS Hex Screws (d) and Spring Washers (e) according to the drawing below.
Page 12 STEP 4. Wire connection of control pipe system Pull out the wires in the tube of the Upper Control Frame (B) according to the drawing below. 2012/3/2Ver1.1+V1.0...
Page 13 STEP 5. Attaching the Computer 1. Connect the Computer (A) with the wires from the Upper Control Frame (B). Fix using Blue Nylok Screws (f) and M4 Spring Washers (g). Make sure the screws have been tightened well to avoid any loosening or possible damage to the computer. Caution: When assembling the Computer, kneeling down may be needed.
Page 14 STEP 6. Attaching the Decoration Covers to the Bike Frame Finally, fasten the left and right decoration covers (G and F) with Round Head Philips Screws (h) according to the drawing below. 2012/3/2Ver1.1+V1.0...
Page 15: Operation Instruction
Computer Operation Instructions I. Subject Instruction This computer is 7”with TFT-LCD window which can display SPEED、 LEVEL、 DISTANCE、 CAL、TIME、WATTS、BPM、RPM and PROGRAM figure. II. Display and booting of the starting-up window goals mode：Target TIME, DISTANCE and CALORIE exercise mode. race mode: User can compete with computer according to the distance and time he wants.
Page 16 different kind of program to choose. user mode: User can set up the intensity of each level freely, total are 32 levels. III. Key Functions(Any effectively key should create one sound) 1. QUICK START：Press this key to start the machine directly and account numbers of all kinds of function 2.
Page 17 IV. Mode Instructions For the treadmill is dynamo type, it need 25PRM above or 15VDC/1000ma transformer to start the computer continuously. When the treadmill not plug to the transformer, the computer will be totally powered by dynamo. While the rotate speed is lower than 40RPM, the computer will be powered by batteries.
Page 18 (0.25MIL).You can switch it to project mode by pressing key. 14. After the program is over or under pause mode for seconds, the buzzer will beep for 5 sound and then the accumulate sport values will display in the center window and after 20 seconds or press key, it will back to start/ready menu.
Page 19 General Operation and Instructions： 1. Under start/ready status, press key, it will enter into MANUAL mode and after 3 seconds countdown, the treadmill will start running. 2. MANUAL mode has total 20 levels for your choice as you prefer. 3. There are 6 main program controls for choose under start/ready menu 4.
Page 20 User can press key to choose the desired LEVEL(According to the rotate speed, the same LEVEL has different resistance feedback) Fitness Test Mode(Physical fitness training) 1. Press key to select this mode and press key into the target value setting: Press number instant key or to adjust WEIGHT(Preset value: 70kg;...
Page 21 FEMALE HEART RATE <35 >=197 >=181 >=150 >=140 <140 <45 >=212 >=197 >=161 >=150 <150 <55 >=228 >=212 >=181 >=169 <169 >=55 >=238 >=223 >=197 >=181 <181 RESULT HRC Mode(need to wear wireless chest belt) The purpose of this program is self-training based on heart rate. During the training, when heart rate of runner achieves the setting number that you make, the LEVEL value will keep within a certain range for best training effort.
Page 22 display ”RPM↓”to remind. 8. HR CONTROL Mode： Preset heartbeat control mode is 50W(Level2). When computer detects the pulse, the heartbeat value will be judged every 10 seconds. Judgment method of Heartbeat value as follows: A. While running, program will compare actual heartbeat value with preset heartbeat value.
Page 23: User Mode
User Mode This mode will record the last state user entered. Press key to select this mode and press key to enter. You can press MODE key again to adjust the resistance from 1 to 32 level (press to adjust from L1-L20) .The corresponding light will flash during setting this level, then press confirm and into next level setting.
Page 24: Program Mode
computer will show the value. Program Mode 1. Press key to select this mode and press key to enter. Press key again to select special program: User can select Rolling、Fat burn、Aerobic、Hill run、Hill climb and Hill intervals total 6 automatic Program mode. 2.
Page 25 Program Control Project Figure level ◎ 2012/3/2Ver1.1+V1.0...
Page 26 2012/3/2Ver1.1+V1.0...
Page 27 2012/3/2Ver1.1+V1.0...
Page 28 2012/3/2Ver1.1+V1.0...
Page 29 2012/3/2Ver1.1+V1.0...
Page 30 2012/3/2Ver1.1+V1.0...
Page 31 2012/3/2Ver1.1+V1.0...
Page 32 2012/3/2Ver1.1+V1.0...
Page 33 2012/3/2Ver1.1+V1.0...
Page 34 2012/3/2Ver1.1+V1.0...
Page 35 2012/3/2Ver1.1+V1.0...
Page 36 2012/3/2Ver1.1+V1.0...
