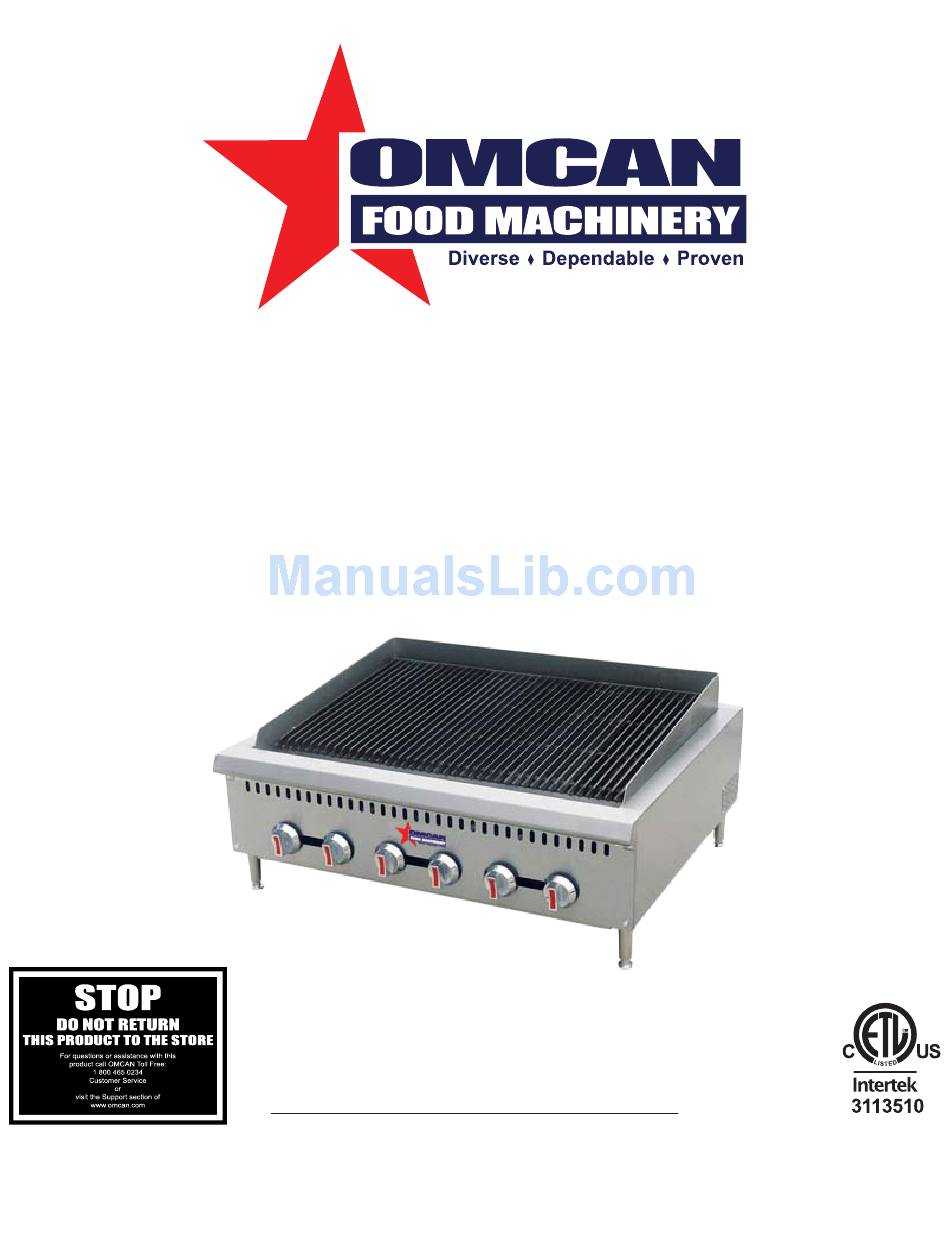

- Page 1 Counter Top Gas Char Broiler Models OGC-24, OGC-36, OGC-48 Instruction Manual Version 1 3115 Pepper Mill Court, Mississauga, ON, L5L 4X5 1-800-465-0234 1889 Maryland Avenue, Niagara Falls, NY, 14305 www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model OGC-24 / Model OGC-36 / Model OGC-48 Section Page General Information -------------------------------------------------------------------------------- 3 Safety & Warranty ---------------------------------------------------------------------------------- 3 Technical Specifications ---------------------------------------------------------------------- 4 - 5 Installation --------------------------------------------------------------------------------------- 6 - 7 Operation --------------------------------------------------------------------------------------------- 8 Maintenance ----------------------------------------------------------------------------------------- 8 Instructions for Field Conversion... -
Page 3: General Information
General Information Omcan Manufacturing and Distributing Company Inc. and Food Machinery Of America, Inc. dba Omcan are not responsible for any harm or injury caused due to any person’s improper or negligent use of this equipment. The product shall only be operated by someone over the age of 18, of sound mind, and not under the influence of any drugs or alcohol, who has been trained in the correct operation of this machine, and is wearing authorized, proper safety clothing. -
Page 4: Technical Specifications
E) GAS CONTROL KNOB. Used to set or adjust the temperature of the grilling surface. F) GRILL GRATES. Cooking surface. Model Description Burners BTU/hr Gas Type OGC-24 Gas Charbroiler 24” 4 80,000 Natural or LPG* OGC-36 Gas Charbroiler 36” 6 120,000... - Page 5 Technical Specifications OGC-24 OGC-36 OGC-48...
-
Page 6: Installation
Installation INSTALLATION TO BE DONE BY LICENSED PROFESSIONALS ONLY. SET UP 1. Remove all packing material and tape, as well as any protective plastic from the equipment. 2. Place the equipment in the desired position and height. 3. Install the four (4) legs onto the equipment. 4. - Page 7 Installation Gas Conversion (see Page 9): • Conversion from Natural Gas to Liquid Propane (LP) or vice versa may only be performed by the factory or its authorized service agent. In case of troubleshooting, ensure the correct orifice sizes of the spuds have been provided. • Natural Gas Orifice is #45. • Liquid Propane Gas Orifice is #54. • Orifice size is marked on the spud. LIGHTING THE PILOT: The manifold units are equipped with standing pilots and each should be lit immediately after the gas is supplied to the equipment.
-
Page 8: Operation
Operation Before initial use, turn the gas control knob to the maximum setting and allow the equipment to burn-in for 15 minutes. Seeing smoke coming from the cooking surface is normal during burn-in. After 15 minutes of burn-in, equipment is ready for use. 1. -
Page 9: Instructions For Field Conversion
Instructions for Field Conversion MANDATORY MARKINGS Below are examples of the rating plates that must be fixed to the rear of the unit on completion of the conversion by the installer. - Page 10 Instructions for Field Conversion Counter top gas charbroiler: OGC-24/OGC-36/OGC-48. WARNING: Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read the installation, operating and maintenance instructions thoroughly before installing or servicing equipment. WARNING: This conversion kit shall be installed by a qualified service agency in accordance with the manufacturer’s instructions and all applicable codes and requirements of the authority having jurisdiction. If the information in these instructions is not followed exactly, a fire, explosion or production of carbon monoxide may...
- Page 11 Instructions for Field Conversion result causing property damage, personal injury or loss of life. The qualified service agency is responsible for the proper installation of this kit. The installation is not proper and complete until the operation of the covered appliance is checked as specified in the manufacturer’s instructions supplied with the kit. MODELS PARTS INCLUDED OGC-24 4 × Jet #54 drill 1 × installation plate OGC-36 6 × Jet #54 drill 1 × installation plate OGC-48 8 × Jet #54 drill...
-
Page 12: Instructions For Field Conversion
Instructions for Field Conversion 2. The pilot burner valve is positioned to the right of the control valve, a small adjustment screw is located on the front face of the valve body. This can be turned in or out with a small flat screw driver. 3. Adjust the screw in small increments whilst the pilot flame is burning until a small stable flame is achieved. 4. Replace the front panel and secure, refit the control knobs. INSTRUCTION FOR NORMAL OPERATING SEQUENCE: Pilot Burner Operation: The units are equipped with standing pilots, and should be lit immediately after the gas is turned on. • Turn off main valve to unit and wait 5 minutes to clear gas. -
Page 13: Parts Breakdown
Parts Breakdown Model OGC-24 36476 Model OGC-36 36477 Model OGC-48 36478... - Page 14 Parts Breakdown Model OGC-24 36476 Model OGC-36 36477 Model OGC-48 36478 Reference OGC-24 Part number OGC-36 Part Number OGC-48 Part Number Description Number OGC-1 OGC-1 OGC-1 Grate OGC-2 OGC-2 OGC-2 Radiant Cover OGC-3 OGC-3 OGC-3 Heat Insulation Plate - Chamber...
-
Page 15: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: www.omcan.com/warrantyregistration.html For mailing in Canada For mailing in the US OMCAN INC. OMCAN PRODUCT WARRANTY REGISTRATION... - Page 16 Over the last 60 years, Omcan has grown to become a leading supplier to the food service industry in Canada and the USA. Our success over these many years is directly attributed to our established relationships with all of our valued customers and through providing them with Diverse, Dependable and Proven products.
