Summary of Contents for COP Security 15-AU50ES

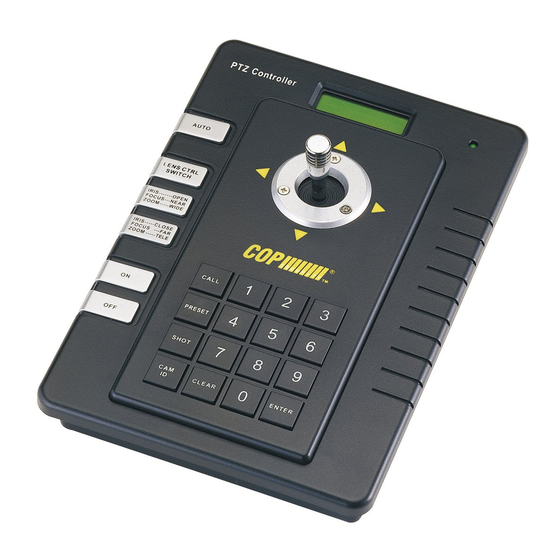

- Page 1 Speed Dome Camera Controller Operation Manual VER: 1.1 Please read this operation manual before using this device and use the device properly. Also, please keep this manual with care to ensure easy access at any time.
-
Page 2: Table Of Contents
INDEX █ Summary ---------------------------------------------------------------------------------------1 è Introduction of the Keyboard Panel -------------------------------------------------------1 --------------------------------1 The Sketch of the Front Panel and Description of Buttons █ Rear Panel -------------------------------------------------------------------------------------3 █ Select Protocol of the Keyboard -----------------------------------------------------------4 █ Operation of the Keyboard -----------------------------------------------------------------4 █ Installation and Connection ----------------------------------------------------------------7 █... -
Page 3: Summary
█ Summary ◆ The keyboard controller is used for terminal receivers such as the intelligent speed dome etc. It is very easy for operating and setting the speed dome camera. The controller is also to control the terminal receiver to achieve the function of controlling pan/tilt, lens and etc. ◆... -
Page 4: Rear Panel
5、IRIS CLOSE / FOCUS FAR / ZOOM TELE: to execute the function which [LENS CTRL SWITCH] selected , there is three function: iris close, focus far, zoom tele. 6、ON：Switch on the setting of function. 7、OFF：Switch off the setting of function. 8、SHOT：To call cruising track. -
Page 5: Select Protocol Of The Keyboard
█ Select Protocol of the Keyboard 1. Protocol Setting： press [CALL]+[200]+[ON], LCD will show “Display: Select Protocol ”, and turn the joystick left or right to select the protocol you wanted, press [ Enter] to save the protocol. 2． Protocol type： ◆... - Page 6 class; the range of the dwelling time is：1 to 255. ◆ When the No. N preset point is set as No. 0, then all preset points before the No. N preset point in the track will be valid however all numbers of preset points afterward and their speed and dwelling time shall be set as 0 automatically.
- Page 7 11. Control the Zoom of the Camera：firstly, press [LENS CTRL SWITCH], you can see “Lens Zoom CTRL”showed on the LCD, secondly, press [ZOOM WIDE]/[ZOOM TELE] to execute the function. 12. Control the Focus of the Camera：firstly, press [LENS CTRL SWITCH], you can see “Lens Focus CTRL”showed on the LCD, secondly, press[FOCUS FAR]/[FOCUS NEAR] to execute the function.
-
Page 8: Installation And Connection
█ Installation and Connection: Attention： Please read the operation manual of the keyboard and the speed dome carefully before connecting wires. Any incorrect connections can cause permanent damage of the device. When connecting wires, first switch off the power supply of all devices. The communication wires between devices should be shielded twisted cable. When installing cables they should be far away from high voltage lines or other possible interference circuits as can as possible. -
Page 9: Technical Specifications
█ Technical Specifications： ◆ Communication between Speed Dome Camera and Controller：Port to multi-port and half duplex function. ◆ Communication connector: RS-485. ◆ Baud Rate of Communication：Four baud rates i.e. 2400bps, 4800bps and 9600bps. ◆ Distance of Communication：1200m in maximum ◆ Power Supply：DC12±1V/1A ; ◆...
