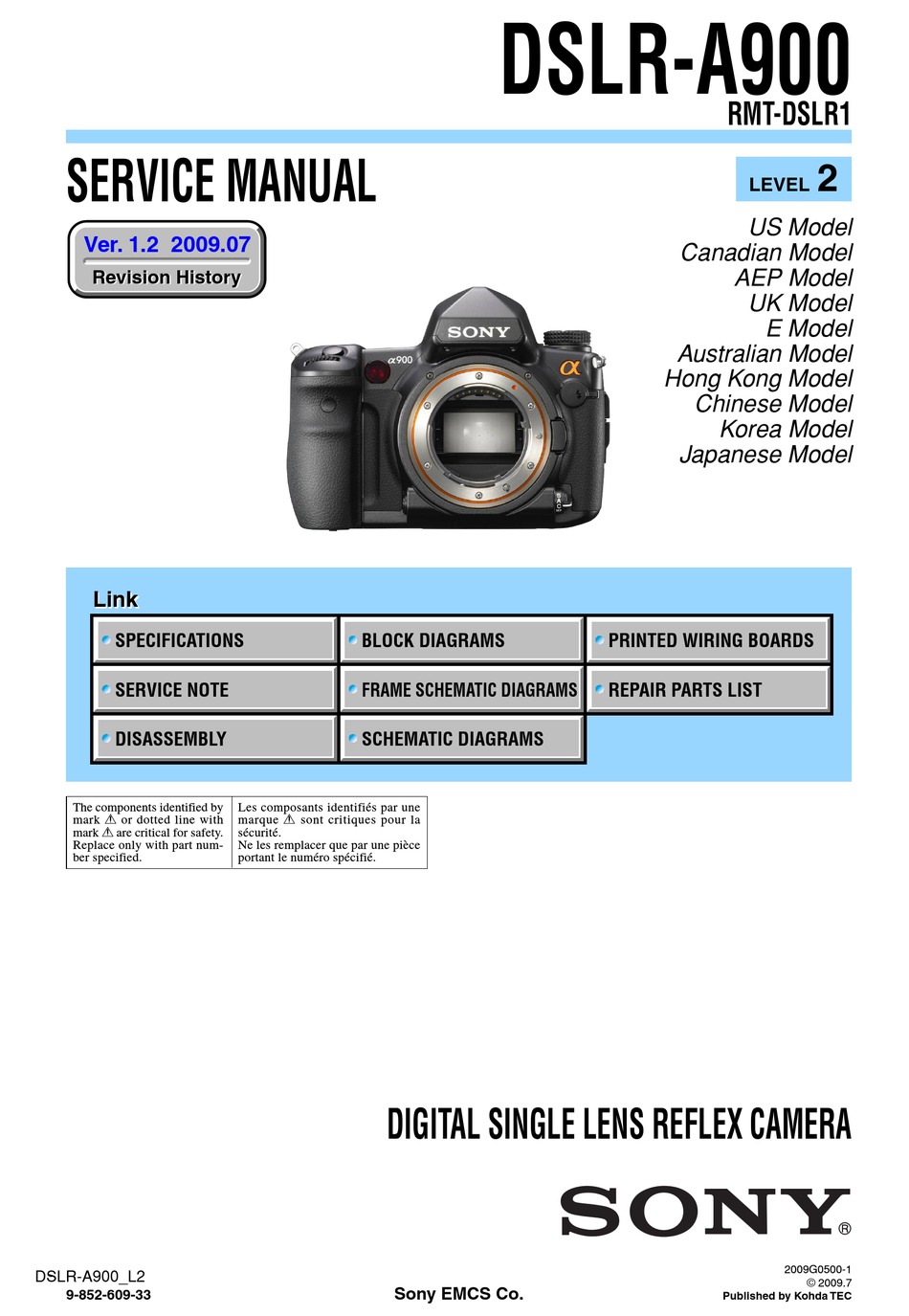

SERVICE MANUAL
Ver. 1.2 2009.07
Revision History
Revision History
Link
Link
SPECIFICATIONS
SERVICE NOTE
DISASSEMBLY
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
DSLR-A900_L2
9-852-609-33
BLOCK DIAGRAMS
FRAME SCHEMATIC DIAGRAMS
SCHEMATIC DIAGRAMS
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
DIGITAL SINGLE LENS REFLEX CAMERA
Sony EMCS Co.
DSLR-A900
Hong Kong Model
PRINTED WIRING BOARDS
REPAIR PARTS LIST
RMT-DSLR1
2
LEVEL
US Model
Canadian Model
AEP Model
UK Model
E Model
Australian Model
Chinese Model
Korea Model
Japanese Model
2009G0500-1
© 2009.7
Published by Kohda TEC
