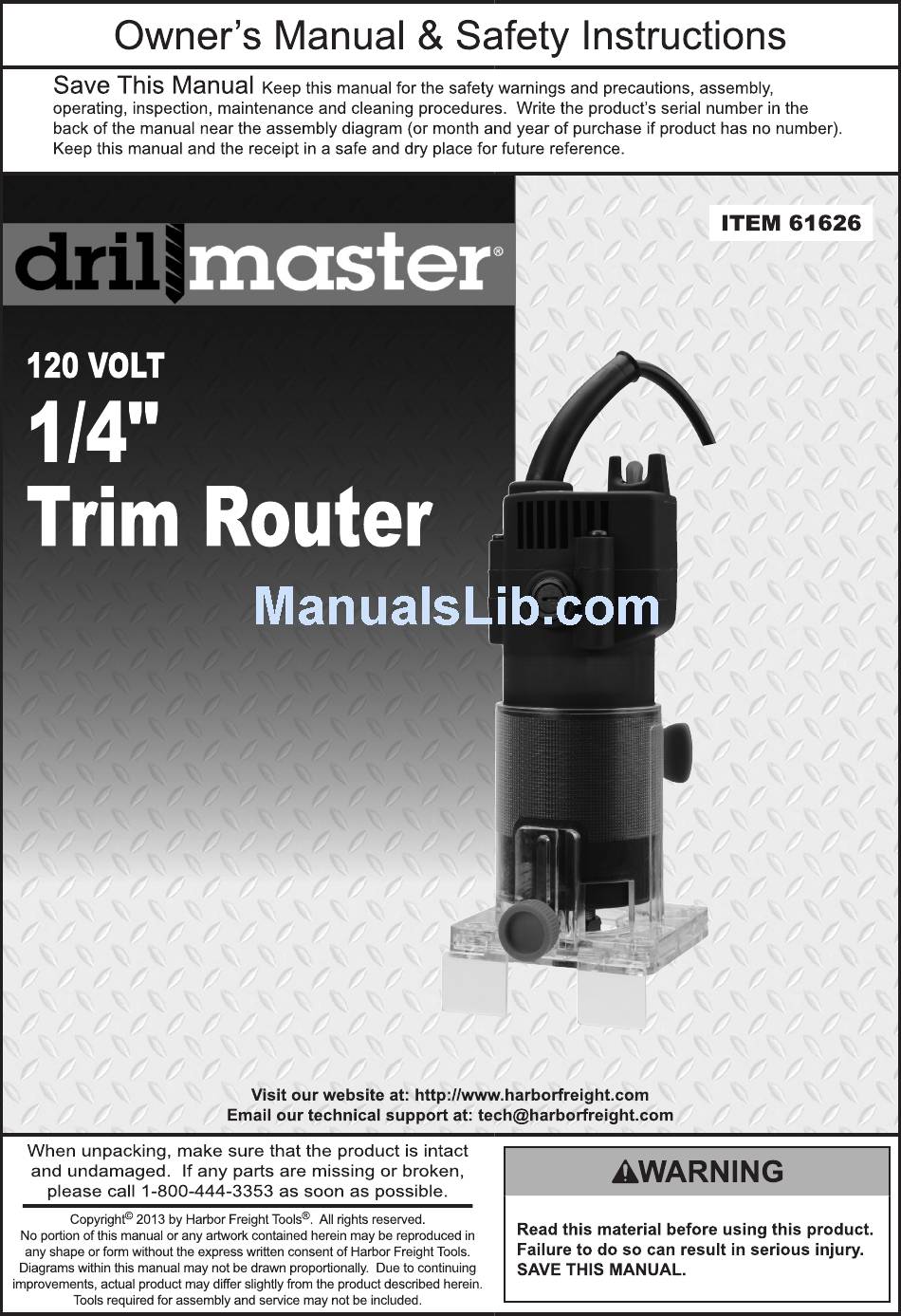

Summary of Contents for Drill Master 61626
-
Page 2: Table Of Contents
2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. Page 2 For technical questions, please call 1-800-444-3353. Item 61626... -
Page 3: Electrical Safety
Trigger is dangerous and must be repaired. with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. Item 61626 For technical questions, please call 1-800-444-3353. Page 3... - Page 4 Keep it out of reach of children. common sense and caution are factors which cannot be built into this product, but must be supplied by the operator. REV 02d; 04b; 10b Page 4 For technical questions, please call 1-800-444-3353. Item 61626...
-
Page 5: Save These Instructions
If any abnormal as tingling, numbness, and white or blue fingers), vibration occurs, stop use immediately. seek medical advice as soon as possible. SAVE THESE INSTRUcTIONS. Item 61626 For technical questions, please call 1-800-444-3353. Page 5... - Page 6 Association, and the National Electrical Code. 2. Double insulated tools may be used in either of the 120 volt outlets shown in the preceding illustration. (See Outlets for 2-prong plug.) Outlets for 2-prong plug Page 6 For technical questions, please call 1-800-444-3353. Item 61626...
-
Page 7: Extension Cords
Keep flammable objects away. Alternating Current WARNING marking concerning Risk of Electric Shock. Amperes Properly connect power cord to appropriate outlet. n 0 xxxx/min. No Load Revolutions per Minute (RPM) Item 61626 For technical questions, please call 1-800-444-3353. Page 7... -
Page 8: Specifications

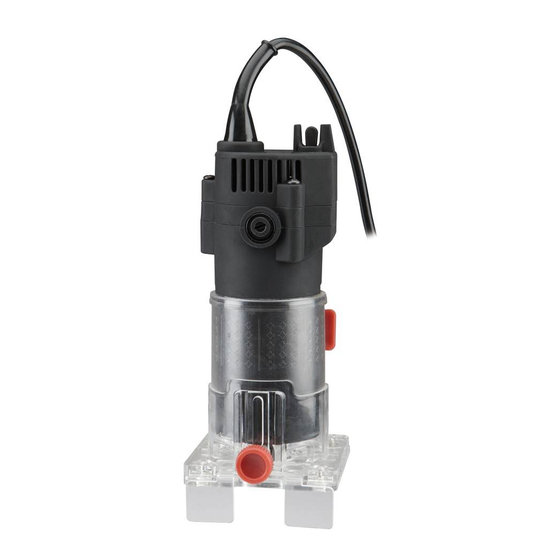

Functions Wing Switch Router Fence Fence Base Bracket Knob Trim Guide Attachment Knob Edge Knob Lock Knob Base Page 8 For technical questions, please call 1-800-444-3353. Item 61626... -
Page 9: Operation
Tighten the Base Knob. to ensure that the adjustment is correct. 4. The scale on the Housing now shows the starting position. This starting position will vary depending on the bit used. Item 61626 For technical questions, please call 1-800-444-3353. Page 9... - Page 10 2. Drill a small pilot hole at the center point of the circle. 4. Insert a pin (not included) through the center hole in the Fence and into the pilot hole. Page 10 For technical questions, please call 1-800-444-3353. Item 61626...
- Page 11 Fence following the edge of the temporary guide. 6. To prevent accidents, turn off the tool and disconnect its power supply after use. Clean, then store the tool indoors out of children’s reach. Item 61626 For technical questions, please call 1-800-444-3353. Page 11...
-
Page 12: Maintenance
WARNING! If the supply cord of this power tool is damaged, it must be replaced only by a qualified service technician. Page 12 For technical questions, please call 1-800-444-3353. Item 61626... -
Page 13: Troubleshooting
See Extension Cords in Grounding section on page 6. Follow all safety precautions whenever diagnosing or servicing the tool. Disconnect power supply before service. Item 61626 For technical questions, please call 1-800-444-3353. Page 13... -
Page 14: Parts List And Diagram
Note: If product has no serial number, record month and year of purchase instead. Note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. Page 14 For technical questions, please call 1-800-444-3353. Item 61626... -
Page 15: Assembly Diagram
Assembly Diagram Item 61626 For technical questions, please call 1-800-444-3353. Page 15... -
Page 16: Warranty
Limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
