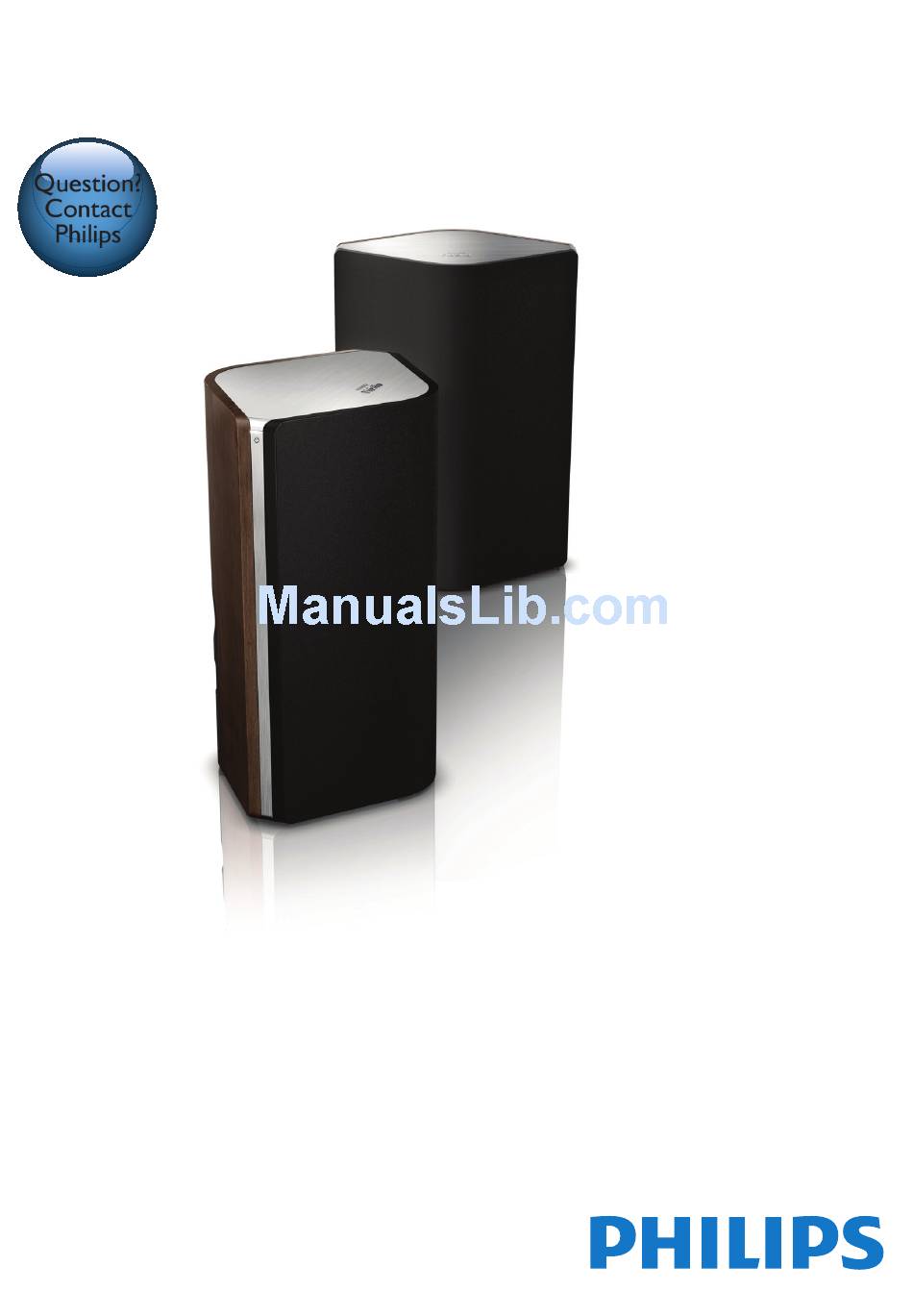

Page 1: User Manual
Always there to help you Register your product and get support at www.philips.com/support AW9000 Question? Contact Philips User manual... -
Page 3: Table Of Contents
3 Prepare Download Philips AirStudio+ Lite to your smartphone or tablets Connect speaker cables Connect power and switch on 4 Connect AW9000 to your home Wi-Fi network Option 1: Set up wireless connection to a non-WPS router through an iOS device... -
Page 4: Important
1 Important h Do not remove the casing of this product. i Do not expose the product to dripping / splashing water, rain or high humidity. j Keep this product away from direct sunlight, naked flames or heat. Safety k Do not install near any heat sources such as radiators, heat registers, stoves, Information for Europe: or other electrical equipment (including... -
Page 5: Notice
Environmental information Notice All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.) Your system consists of materials which can be recycled and reused if disassembled by This product complies with the radio a specialized company. -
Page 6: Your Wireless Hi-Fi Speaker
Google Play Store (for model number and serial number are on the Android devices) bottom of the apparatus. Write the numbers Your AW9000 should be connected to the here: same local network as your iOS/Android device Model No. __________________________ or through the Wi-Fi router. -
Page 7: Overview Of The Main Unit
Overview of the main unit a +/- h MP3-LINK socket • Adjust volume. • Connect an external audio player through a 3.5mm audio cable (not b Numeric keys (1 to 5) supplied). • Select an Internet radio station. i WI-FI SETUP button c AUX 1 button •... -
Page 8: Prepare
Flick right to view the introduction pages and then go to the initial Setup page, or tap Skip intro to enter the initial Setup page directly. (For users of Android smartphones or tablets) Install Philips AirStudio+ Lite from Google Play Store and then run the app. -
Page 9: Connect Speaker Cables
On the initial Setup page, tap Setup a new Connect speaker cables speaker. Note • Insert the stripped portion of each speaker wire into the socket completely. • For optimal sound, use the supplied speakers only. Read the general setup steps, then tap Next. Unscrew the speaker connectors. Insert fully the end of a speaker cable with red mark into the left red (+) connector. -
Page 10: Connect Power And Switch On
Connect power and switch Caution • Risk of product damage! Make sure that the power supply voltage matches the voltage printed on the bottom of the device. • Risk of electric shock! When you unplug the AC power cord, always pull the plug from the socket. Never pull the cord. -
Page 11: Connect Aw9000 To Your Home Wi-Fi Network
Fi network b AW9000 has been powered on and booted up successfully (see 'Connect power and switch on' on page 8). c you have jotted down your Wi-Fi To connect AW9000 to your existing home Wi- password. Fi network, you need to apply your home Wi-Fi settings to AW9000. Once connected successfully, AW9000 will Choose your best setup method based on the remember your home Wi-Fi settings. - Page 12 As instructed, exit the app, and then select » The power/status indicator starts to Philips_Install from the list of available blink amber and white alternately. Wi-Fi networks. » A new Wi-Fi network created by AW9000 will appear, with the network name (SSID) of Philips_Install. < 30S WiFi SETUP < 3S...
- Page 13 Make sure that your iOS device is Name your speaker as you like, and then connected to Philips_Install, and then go tap OK to connect AW9000 to your back to Philips AirStudio+ Lite. home Wi-Fi network. Wait until the password input box appears. Enter the password of your home Wi-Fi network, tap Done to finish input, and then tap Next.
-
Page 14: Option 2: Set Up Through A Non-Wps Wi-Fi Router And Android Device
As instructed, briefly press WI-FI SETUP on the back of the main speaker. » The power/status indicator starts to blink amber and white alternately. » A new Wi-Fi network created by AW9000 will appear, with the network name (SSID) of Philips_Install. < 30S WiFi SETUP < 3S... - Page 15 Wi-Fi network created by AW9000 automatically. * If your Wi-Fi password contains such special characters as #/:/;/', you need to change your password. Name your speaker as you like, and then Wait until the speaker is found. tap OK to connect AW9000 to your home Wi-Fi network.
-
Page 16: Option 3: Set Up Wireless Connection To A Wps Router
Wait until the power/status indicator on Read the WPS setup instructions. AW9000 turns solid white. » AW9000 is connected to your home Wi-Fi network successfully. Note • After successful network setup, you can tap Rock n' Roll on the above app screen to get ready for music play directly. -
Page 17: Option 4: Set Up Wired Connection Through An Ethernet Cable
Speaker already setup on the initial Setup page (see » The following app screen appears. 'Download Philips AirStudio+ Lite to your smartphone or tablets' on page 6). » AW9000 is connected to your home Wi-Fi network successfully. If you have tried wireless connection, before setup of wired connection, you need to reset the wireless Hi-Fi speaker (see 'Troubleshooting' on page 27). - Page 18 ETHERNET socket on the back of the device • one of the Ethernet ports on your home Wi-Fi router 12V=1A To Modem LAN4 LAN3 LAN2 LAN1 Reset Wait until the power/status indicator turns solid white. » AW9000 is connected to your home Wi-Fi network successfully.
-
Page 19: Play
PC/Mac that supports DLNA UPnP. Listen to Internet radio stations through AW9000 Run Philips AirStudio+ Lite on your iOS or Android smartphone or tablet. To tune to an Internet radio station, select and tap its name in the result list. - Page 20 tap , and then tap the 3rd row to replace the previous station. shown. To tune to a preset radio station Press numeric keys (1-5) on AW9000 • directly to tune to the first five preset radio stations. • You can also go to Presets on the app screen and tap one of your preset stations to start play.
-
Page 21: Play From An External Device
To tune to a favorite radio station Create your favorite list • Go to Favorite stations on the app screen and tap one of your favorite stations to start play. Tune to an Internet radio station. To delete a favorite radio station Tune to the radio station and tap . - Page 22 Start play on the external audio player and adjust volume. • You can also press a source key on AW9000 to select the corresponding audio source directly. » You can hear music from the wireless Hi-Fi speaker.
-
Page 23: Upgrade Firmware
To improve the performance of AW9000, Philips may offer you new firmware for upgrade of your AW9000. Warning • Always connect your AW9000 to AC power for firmware upgrade. Never power off your AW9000 during firmware upgrade. Make sure that AW9000 is powered on and connected to the same Wi-Fi network as your smartphone or tablet. Make sure that your home Wi-Fi network is connected to the Internet. -
Page 24: Product Information
7 Product Frequency range 2412 - 2462 MHz (CH1- CH11) (for /79, /37, /55, information /97) 2412 - 2472 MHz (CH1- CH13) (for /12, /10, /05) PBC (one button Note push) • Product information is subject to change without prior notice. General information AC power Input: 100 ~ 240 V, 50/60 Hz Specifications Operation Power 40 W... - Page 25 • Make sure that the AC power plug of the #/:/;/'. device is connected properly. • If you choose to rename your AW9000 • Make sure that there is power at the AC manually on the Philips AirStudio+ Lite outlet.
- Page 26 Do not release the numeric key 1 until the power/ status indicator flashes amber for a second time. Occasional breaking of music streaming Do one or all of the following: • Move AW9000 closer to your Wi-Fi router. • Remove any obstacles between AW9000 and your Wi-Fi router. •...
-
Page 27: Appendix: Understand Meanings Of Led Colors
LED colors LED color Meaning Blinking AW9000 is booting up or amber firmware upgrade is in progress. Solid AW9000 is not connected to any amber network. White AW9000 is in wireless setup mode, assisted by the AirStudio+ amber Lite app. Follow the set-up alternately instructions on the app. - Page 28 Gibson Innovations Ltd., and Gibson Innovations Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license.
