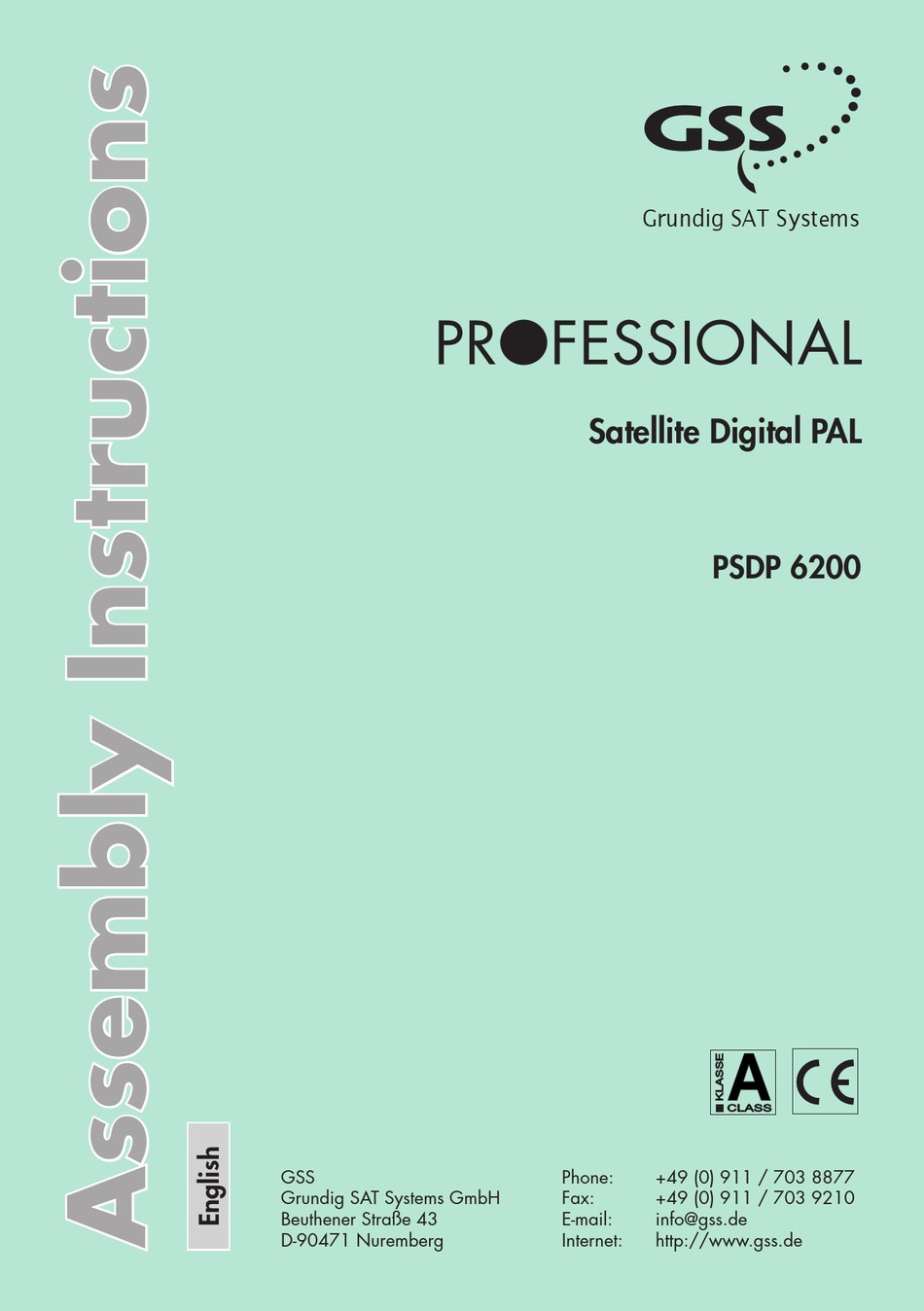

- Page 1 Grundig SAT Syst ms Satellite Digital PAL PSDP 6200 C LASS CLASS Phone: +49 (0) 911 / 703 8877 Grundig SAT Systems GmbH Fax: +49 (0) 911 / 703 9210 Beuthener Straße 43 E-mail: info@gss.de D-90471 Nuremberg Internet: http://www.gss.de...
-
Page 2: Table Of Contents
Contents 1 Safety regulations and notes ..................4 2 General information ....................5 2.1 Packing contents ..................5 2.2 Meaning of the symbols used ................5 2.3 Technical specifications ................5 2.4 Description ....................6 2.5 Software query ...................7 3 Assembly ........................7 3.1 Installing the cassette ...................7 3.2 EMC regulations ..................8 3.3 Overview of the cassette ................9 3.4 Connecting the cassette ................9... - Page 3 Setting audio output ................28 Adjusting the picture format ..............28 Switching teletext mode off/on ............28 Activating test lines ................29 Locking the regional window ............30 Subtitle settings ................30 Setting the time zone and summer time ..........33 Setting time-controlled, alternative channels ........34 Switching the timer on and off ............34 Setting the duty cycle ...............34 Setting the days of the week .............35 Setting the LNB oscillator frequency (timer) .........35...
-
Page 4: Safety Regulations And Notes
• Test the software versions of the head-end station and the cassette and update them if necessary. The current software versions can be found at ”www.gss.de”. • For further information please read the assembly instructions for the head-end station used. -
Page 5: General Information
General information 2.1 Packing contents 1 cassette PSDP 6200 2 HF cables 1 CD (assembly instructions) 1 Brief assembly instructions 1 Measuring log 2.2 Meaning of the symbols used Important note —> General note • Performing works 2.3 Technical specifications... -
Page 6: Description
“V 40” or higher. You can find the current operating software for the control unit and the cassette, the software “BE-Flash” and the current assembly instructions on the website “www.gss.de”. The cassette is designed for use in the following head-end stations: –... -
Page 7: Software Query
2.5 Software query Control unit If necessary, you can activate the indication of the software version of the con- trol unit manually: • Press any two keys on the control unit of the head-end station simultaneously until the display goes dark and afterwards the software version, e.g. “V 40” and the system clock frequency (e.g. -
Page 8: Emc Regulations
0° ACHTUNG! AUSGANG Vor dem Kassettenwechsel max. 90 dBμV unbedingt denNetzstecker ziehen. CAUTION! Before changing cassettes remove mains plug. 3.2 EMC regulations To comply with the current EMC regulations, it is necessary to connect the lines leading in and out of the head-end station using cable terminals. When mounting the cassette in a head-end station which is installed in a 19"... -
Page 9: Overview Of The Cassette
“BE-Flash” software to update the software of the cassette. You can find the “BE-Flash” software and the current operating software of the cassette at the website ”www.gss.de”. • Use a “one-to-one cable” to connect the cassette’s RS 232 interface and the PC according to the wiring scheme below. -
Page 10: Retrofitting A Ca Module
3.6 Retrofitting a CA module The cassette is equipped with a common interface. It allows you to connect a CA module for various encryption systems and service providers. Encoded channels can only be decoded with a CA module suitable for the encoding system and the corresponding smart card. -
Page 11: The Control Panel At A Glance
The control panel at a glance 4.1 Menu items Program the cassette using the buttons on the control unit of the head-end station. The two-line display of the control unit then shows the menus. Use the key to select the following main menu items: –... -
Page 12: Programming
• Test the software versions of the head-end station and the cassette and update them if necessary. The current software versions can be found on the website ”www.gss.de”. • Connect the test receiver to the HF output or the test output of the head-end station. -
Page 13: Programming Procedure
5.3 Programming procedure 5.3.1 Channel strip ”A“ without CA module Ein / On BE–Remote V 40 PROFESSIONAL t > 10 s Box … …… ……… …… Box 4 QPSK-PAL Box 5 ....– – – ......Page 15/16 Page 15/16 Bx 4A QPSK-PAL Bx 4B... - Page 14 Bx 4A OUTPUT Bx 4A OUTPUT Fine - 64 … 63 Page 16 Kanalzug “A” ohne Kanalzug “A” mit CA-Modul CA-Modul, Channel strip “A“ with CA module Page 16 Channel strip “A“ without CA module Bx 4A 10600 9750 / 10600 Bx 4A SYMBOL 27500...
- Page 15 Bx 4A TESTLINES on / off Bx 4A PIDS dynamic / fixed dynamic off / txt / dvb / black Bx 4A SUBTITLE Bx 4A SUBTITLE 100 … n west west / east Bx 4A SUBTITLE Sprachauswahl 01 / 02 "deu"...
-
Page 16: Channel Strip "A" With Ca Module
TIMER 10600 9750 / 10600 TIMER SYMBOL 27500 22000/ 27500 TIMER FREQ 11836 -1.8 CN 12 TIMER 01/07+ Das Erste TIMER AUDIO 01/02 - 6 dB + 6 … - 26 dB Page 13 5.3.2 Channel strip ”A” with CA module Page 14 Bx 4A Bx 4A MENU... -
Page 17: Decoding 2 Stations With One Ca Module (Channel Strip "B")
5.3.3 Decoding 2 stations with one CA module (channel strip “B”) Page 13 Bx 4B Bx 4B MODULATOR MODULATOR on / off on / off Level -3 Level -3 0 … - 6 dB 0 … - 6 dB Bx 4B Bx 4B NORM NORM... -
Page 18: Programming The Cassette
5.4 Programming the cassette —> Pressing the button for longer than 2 seconds cancels the pro- gramming procedure. This takes you back to the program item “Selecting the cassette” from any menu. Any entries that have not been saved are reset to the previous settings. -
Page 19: Programming The Main Menu Of The Cassette
• Press the button. —> The “Selecting the channel strip” – “Bx 4A” menu is activated. 5.4.1 Programming the main menu of the cassette Selecting the channel strip Bx 4A QPSK-PAL Bx 4B QPSK-PAL – SAT.1 —> The display shows e.g. the menu Bx 4A QPSK-PAL “Bx”... -
Page 20: Switching The Modulator Off Or On
Switching the modulator off or on Adjusting the output levels of the channel strips In this menu, you can switch off and on the modulator and set the HF output levels of the channel strips “A” and “B” to the same values. Bx 4A MODULATOR on / off... -
Page 21: Setting The Tv Standard Of The Output Signal
Setting the TV standard of the output signal In this menu you can set the TV standard of the output signal. Bx 4A NORM CCIR 5.5 FM CCIR 5.5 FM … OIRT 6.5/6.3 FM • Press to select the TV standard of the output signal (”CCIR 5.5 FM …... -
Page 22: Setting The Output Channel
Setting the output channel In this menu you set the output channel of the channel strip (C2 … C69 including channels S2 … S41). Bx 4A OUTPUT Bx 4A OUTPUT Fine - 64 … 63 • Use the buttons to set the output channel. Setting the fine-tuning Only change the fine-tuning in exceptional circumstances, since once you change it, all connected television sets of the... -
Page 23: Setting The Lnb Oscillator Frequency
• Press the button. —> The “Setting the LNB oscillator frequency” – “LNB” menu is activated when the channel strips “A” without a CA module installed and “B” are programmed. —> Programming the channel strip “A” with a CA mod- ule installed the “Setting the operating voltage for the CA module”... -
Page 24: Setting The Input Symbol Rate
Setting the input symbol rate The symbol rates of the satellite transponders can be found in the current channel table of the satellite operator, in various satellite magazines and in the Internet. Bx 4A SYMBOL 27500 22000 / 27500 • Using the button the symbol rates 22000“... -
Page 25: Reception Quality
Bx 4A FREQ 11953 -1.8 CN 12 • Use to position the cursor under the digit of the ◀ ▶ frequency displayed to be set. • Press to set the respective digit of the input fre- quency needed. • Repeat the procedure by the quantity of the digits to be set. •... -
Page 26: Channel Selection
Channel selection As soon as the automatic station search has found all of the TV or radio channels, the corresponding data appear in the display of the head-end station. Bx 4A 01/09+ Meaning of the terms displayed in this example: “Bx 4A”... -
Page 27: Selecting The Tv Station Sound
• To select the TV or radio station wished out of the transport stream, use the buttons. • Press the button. —> The “Selecting the TV station sound”, ”Setting the vol- ume level” – “AUDIO” menu is activated. Selecting the TV station sound Setting the volume level If two sound options in different languages or Dual sound (“2ch”) are broadcast for a TV station, you can select the... -
Page 28: Setting The Audio Mode
Setting the audio mode Setting audio output In this menu you can define whether the Mono, Stereo or Dual Tone signal from the MPEG data stream or the VPS Sig- naling (if available) is to be used (“mpeg” … “stereo”). In addition in this menu you can swap the languages for TV channels with dual tone. -
Page 29: Activating Test Lines
Bx 4A VIDEO WSS on TXT on on / off on / off Adjusting the picture format • Press to switch Wide-Screen-Signaling “on” or “off”. Switching teletext mode off/on • Use to position the cursor under ”TXT …”. ◀ ▶ •... -
Page 30: Locking The Regional Window
Locking the regional window In this menu the dynamic switch over between the main channel and the associated regional channels can be de- activated. Bx 4A PIDS dynamic / fixed dynamic • Press to switch on the dynamic regional switch over (“dynamic”) or off (“fixed”). - Page 31 off / txt / dvb / black Bx 4A SUBTITLE Bx 4A SUBTITLE 100 … n west west / east Bx 4A SUBTITLE Sprachauswahl 01 / 02 "deu" Language selection Bx 4A SUBTITLE black 40 / 10 • Press to switch on the ”Teletext operation” (“txt”), ”Transmission of subtitles”...
- Page 32 DVB subtitle • If you want to activate subtitle pages from the DVB data stream, if available, activate “SUBTITLE dvb” menu in the “txt” menu item using the buttons. • Position the cursor under language selection (e.g. ”01/02”) using the buttons.
-
Page 33: Setting The Time Zone And Summer Time
Setting the time zone and summer time This setting is necessary for “Radio display” and time-control- led channel switching. The internal clock of the cassette syn- chronises automatically to Greenwich Mean Time, longitude “0” (GMT). So that the programmes can be correctly dis- played, the time zone (offset) that your location is in relation to GMT can be changed. -
Page 34: Setting Time-Controlled, Alternative Channels
Setting time-controlled, alternative channels In this menu alternative channels can be switched on or off time-controlled. During the time set (“TIMER on“) the channel set in the timer is transmitted. Switching the timer on and off Bx 4A TIMER Bx 4A Bx 4A TIMER TIMER... -
Page 35: Setting The Days Of The Week
Setting the days of the week Bx 4A TIMER Days MTWTFSS The letters “M T W T F S S“ mean: M – Monday T – Tuesday W – Wednesday T – Thursday F – Friday S – Saturday S – Sunday •... -
Page 36: Setting The Input Symbol Rate (Timer)
Setting the input symbol rate (timer) TIMER SYMBOL 27500 22000/ 27500 —> For setting see page 24. • Press the button. —> The “Setting the input frequency (timer)” – “TIMER FREQ” menu is activated. Setting the input frequency (timer) TIMER FREQ 11836 -1.8... -
Page 37: Channel Selection (Timer)
Channel selection (timer) TIMER 01/07+ Das Erste —> For setting see page 26. • Press the button. —> The “Selecting the TV station sound / Setting the vol- ume level (timer)” – “TIMER AUDIO” menu is acti- vated. Selecting the TV station sound / Setting the volume level (timer) TIMER AUDIO... -
Page 38: Configuring The Ca Module
5.4.2 Configuring the CA module Setting the operating voltage for the CA module In this menu the operating voltage for the CA module can be set. Bx 4A Bx 4A MENU 01/06 Supply 5.0 V > Information *) 3.3 V / 5.0 V *) Die angezeigte Information ist abhängig vom verwendeten CA-Modul. - Page 39 • Select the required function with the buttons. • Press for setting the CA module. ◀ ▶ • Save the settings with the button. • To return to the “Setting the operating voltage for the CA module“ – “CA“ main menu, press the button.
-
Page 40: Decoding 2 Stations With One Ca Module
5.4.3 Decoding 2 stations with one CA module This feature is only possible if the data of channel strip ”A” are used in channel strip “B”. Bx 4B Bx 4B MODULATOR MODULATOR on / off on / off Level -3 Level -3 0 …... -
Page 41: Selecting The Channel Strip
The settings not described below are the settings pertaining to channel strip “A”. Selecting the channel strip • Select channel strip “B” (page 19). Switching the modulator off or on Adjusting the output levels of the channel strips —> For setting see page 20. Setting the TV standard of the output signal —>... -
Page 42: Setting The Lnb Oscillator Frequency ("Tuner Line B")
Tuner of channel strip ”A” (”TUNER Line A”) • Press the button. —> The “Channel selection” – e.g. “Bx 4B 05/ 09+ TV” menu is activated. The display shows the station selection menu of chan- nel strip ”B” containing the data of channel strip ”A”. Bx 4B 05/09+ —>... -
Page 43: Final Procedures
Final procedures After installing the head-end station, upgrading accessories or installing cassettes it is necessary to tighten all cable connections, cable terminals and cover screws in order to maintain compliance with current EMC regula- tions securely. • Securely tighten the cable connections fingertight using an appropriate open- ended spanner. - Page 44 CCIR – Hyperband (Frequency raster 8 MHz) S 21 303.25 S 25 335.25 S 29 367.25 S 33 399.25 S 37 431.25 S 22 311.25 S 26 343.25 S 30 375.25 S 34 407.25 S 38 439.25 S 23 319.25 S 27 351.25 S 31...
- Page 45 - 45 - - 45 -...
- Page 46 Service: Phone: +49 (0) 911 / 703 2221 Fax: +49 (0) 911 / 703 2326 Email: service@gss.de Alterations reserved. Technical data E. & O.E. © by GSS GmbH 24092009...
