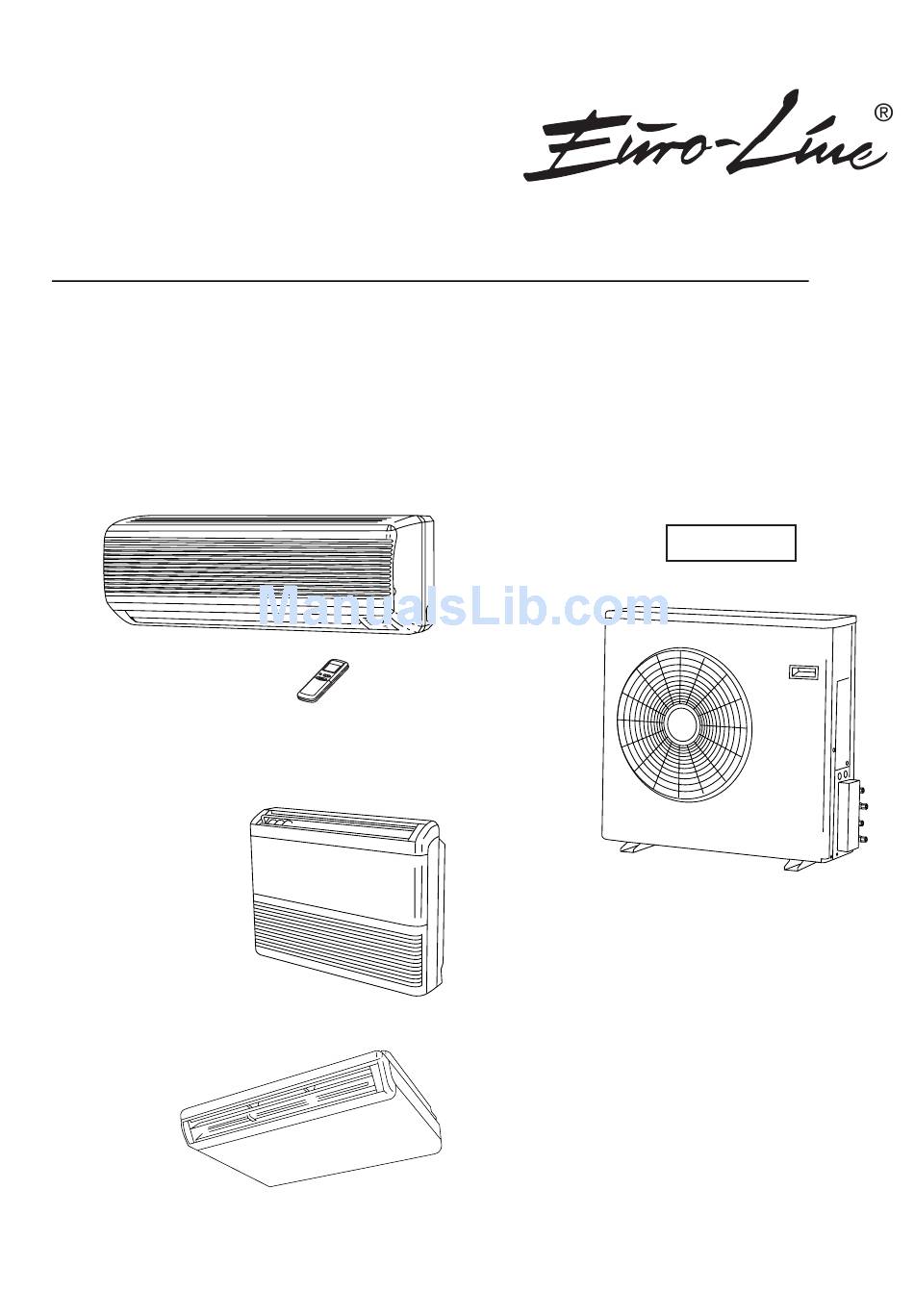

- Page 1 TECHNICAL & SERVICE MANUAL Indoor Unit Outdoor Unit AWR512CL AER524DC FCR512CL MULTI-SPLIT SYSTEM AIR CONDITIONER AWR512CL Outdoor Unit FCR512CL Floor-Mounted AER524DC Ceiling-Mounted 0.8180.133.0 04/2001...
-
Page 2: Please Read Before Starting
Important! When Transporting Be careful when picking up and moving the indoor and Please Read Before Starting outdoor units. Get a partner to help, and bend your knees when lifting to reduce strain on your back. Sharp This air conditioning system meets strict safety and edges or thin aluminum fins on the air conditioner can operating standards. -
Page 3: Table Of Contents
Table of Contents Page OPERATING RANGE SPECIFICATIONS 2-1 Unit Specification 2-2 Major Component Specifications 2-3 Other Component Specifications DIMENSIONAL DATA REFRIGERANT FLOW DIAGRAM ELECTRICAL DATA 5-1 Electrical Characteristic 5-2 Electric Wiring Diagrams 5-3 Performance Charts INSTALLATION INSTRUCTION 6-1 Installation Site Selection 6-2 Place and Space for Installation 6-3 Wiring Instructions REFRIGERANT R407C:SPECIAL PRECAUTION WHEN SERVICING UNIT... -
Page 4: Operating Range
1. OPERATING RANGE Temperature Indoor Air Intake Temp. Outdoor Air Intake Temp. Maximum 32°C D.B. / 23°C W.B. 43°C D.B. Cooling Minimum 19°C D.B. / 14°C W.B. 19°C D.B. -
Page 5: Specifications
2. SPECIFICATIONS 2-1. Unit Specifications Indoor Unit AWR512CL X 2 Outdoor Unit AER524DC Power Source 220–240V ~ 50Hz Voltage rating 230 V Performance Cooling Max Capacity 6.70 BTU/h 22900 Air circulation (High) 490 x 2 Moisture removal (High) Liters/h 1.2 x 2... - Page 6 Indoor Unit FCR512CL x 2 Outdoor Unit AER524DC Power Source 220–240V ~ 50Hz Voltage rating 230 V Performance Cooling Max Capacity 6.70 BTU/h 22900 Air circulation (High) 700 x 2 Moisture removal (High) Liters/h 1.30 x 2 Electrical Rating Cooling Available voltage range 198 ~ 264 Running amperes...
-
Page 7: Major Component Specifications
2-2. Major Component Specifications Outdoor Unit AER524DC Type Rotary (Hermetic) Compressor model…Q'ty / Code number C - R N 1 1 0 H 5 B … 2 / 802356-45B Nominal output 1,100 Compressor oil ... Amount FV68S ... 550 Ω Coil resistance (Ambient temp. - Page 8 Indoor Unit AWR512CL Controller Part No. POW-K8E(A), POW-K8E(B) Controls Microprocessor Control circuit fuse 250 V 3.15 A Remote Control Unit RCS-8PS3E Fan & Fan Motor Type Cross-flow Q'ty ... Dia. and length 1 ... ø95 / L617 Fan motor model ... Q'ty KFV4Q-11H5P-S ...
-
Page 9: Other Component Specifications
Indoor Unit FCR512CL Controller PCB Part No. POW-K185GS-N Controls Microprocessor Control circuit fuse 250 V 3 A Remote Control Unit RCS-5PS3E Fan & Fan Motor Type Cross-flow Q'ty ... Dia. and length 2 ... ø130 / L180 Fan motor model ... Q'ty K48407-M01416 ... -
Page 10: Dimensional Data
3. DIMENSIONAL DATA Outdoor Unit AER524DC Narrow tube service valve ø6.35 (1/4") Wide tube service valve ø12.7 (1/2") Power supply wires connection Inter-unit wires connection Unit : mm... - Page 11 Indoor Unit AWR512CL Drain hose ø18 Remote control unit 18.5 99.5 58.5 Narrow tube ø6.35 (1/4") Center of tubing hole (2 places) Wide tube ø12.7 (1/2") Unit : mm...
- Page 12 Indoor Unit FCR512CL Center of tubing hole Remote control unit ø75 (4 places) Wide tube ø12.7 (1/2") Narrow tube ø6.35 (1/4") Drain hose ø26 18.5 Unit : mm...
-
Page 13: Refrigerant Flow Diagram
4. REFRIGERANT FLOW DIAGRAM Applicable Indoor Unit : AWR512CL (x2) FCR512CL (x2) Outdoor Unit : AER524DC Outdoor Unit Indoor Unit A Accumulator Wide tube O.D. ø12.7 mm Accumulator (1/2 ") Wide tube service valve Indoor Unit B Narrow tube Narrow tube service O.D. -
Page 14: Electrical Data
5. ELECTRICAL DATA 5-1. Electrical Characteristics Outdoor Unit AER524DC NOTE The values in the table below indicate the sum of indoor and outdoor units which are in running condition. 230 V Single phase 50Hz Number of Indoor Unit 1-Unit 2-Units Rating Conditions Running Amps. -
Page 15: Electric Wiring Diagrams
5-2. Electric Wiring Diagram Outdoor Unit AER524DC TO INDOOR TO INDOOR POWER UNIT B UNIT A SUPPLY TERMINAL PLATE (4P)X2 Ground OVERLOAD OVERLOAD RELAY 3 RELAY 1 OVERLOAD OVERLOAD RELAY 4 RELAY 2 COMPRESSOR COMPRESSOR FAN MOTOR MOTOR B MOTOR A... - Page 16 To avoid electrical shock hazard, be sure to disconnect power before checking, servicing Indoor Unit AWR512CL WARNING and/or cleaning any electrical parts. FCR512CL...
-
Page 17: Performance Charts
5-3. Performance Charts Indoor Unit AWR512CL (x1) FCR512 (x1) Outdoor Unit AER524DC ■ Cooling Characteristics Indoor inlet air D.B. temp. (°C) Outdoor inlet air D.B. temp. (°C) Indoor inlet air D.B. temp. (°C) Outdoor inlet air D.B. temp. (°C) NOTE . -
Page 18: Installation Instruction
6. INSTALLATION INSTRUCTIONS 6-1. Installation Site Selection Tubing length (L) INDOOR Maximum Allowable Tubing Length(L) and UNIT Elevation Difference(H). IMPORTANT Less than elevation difference (H) between OUTDOOR The Multi-Split System outdoor unit should be installed as close to the 2 units UNIT the indoor units as possible. -
Page 19: Wiring Instructions
6-3. Wiring instructions WARNING WARNING This appliance must be grounded. Before starting installation of the multi-split system, Wiring System Diagram disconnect the gray tripolar cable of 2 meter length joined at the indoor units' terminal base in positions 220–240V L, N and Ground mark. Be sure to refer to the Wiring ~ 50Hz Disconnect Ground... -
Page 20: Refrigerant R407C:special Precaution When Servicing Unit
7. REFRIGERANT R407C : SPECIAL PRECAUTIONS WHEN SERVICING UNIT 7-1. Characteristics of new refrigerant R407C 7-1-1. What is new refrigerant R407C R407C is a new refrigerant that contains three types of non-azeotropy-type mixed refrigerant which does not adversely affect the Earth's ozone layer. Its refrigeration capacity and energy efficiency are about the same level as the conventional refrigerant R22 7-1-2. -
Page 21: Tools Specifically For R407C
7-3. Tools specifically for R407C For servicing, use the following tools for R407C Tool Distinction Tool Name • Gauge manifold • Charging hose • Gas leak detector • Refrigerant cylinder • Charging cylinder Tools specifically for R407C • Refrigerant recovery unit •... -
Page 22: In Case Of Compressor Malfunction
7-5. In case of compressor malfunction Should the compressor malfunction, be sure to replace compressor as quickly as CAUTION possible. Use only the tools indicated exclusively for R407C. See "7-3. Tools specifically for R407C". 10-5-1.Procedure for replacing compressor (1) Recovering refrigerant •... - Page 23 (5) Recharging Valve • Be sure to charge the specified amount of refrigerant in liquid state using the service port of wide tube service valve. The proper amount is listed on the unit's nameplate. When the entire amount cannot be charged all at once, charge gradually while operating the unit in Cooling Operation.
-
Page 24: In Case Refrigerant Is Leaking
7-6. In case refrigerant is leaking Never attempt to charge additional refrigerant when refrigerant has been leaking CAUTION from the unit. Follow the procedure described below to locate points of leaks and carry out repairs, then recharge the refrigerant. (1) Detecting Leaks •... - Page 25 (6) Recharging Valve • Be sure to charge the specified amount of refrigerant in liquid state using the service port of wide tube service valve. The proper amount is listed on the unit's nameplate. When the entire amount cannot be charged all at once, charge gradually while operating the unit in Cooling Operation.
-
Page 26: Charging Additional Refrigerant
7-7. Charging additional refrigerant 7-7-1.When tubes are extended • Observe the proper amount of refrigerant as stated in this service manual or the installation manual that came with the indoor unit. Charge additional refrigerant in liquid state. Never charge additional refrigerant if refrigerant is leaking from the unit. Follow CAUTION instructions given in "10-6. -
Page 27: Function
8. FUNCTION 8-1. Room Temperature Control Room temperature control is obtained by cycling the compressor ON and OFF under control of the room temperature sensor in the remote control unit. The room temperature (and other information) is transmitted every 3 minutes by the remote control unit to the controller in the indoor unit. -
Page 28: Dry Operation
8-2. Dry Operation (Dehumidification) Dry operation uses the ability of the cooling cycle to remove moisture from the air, but by running at low level to dehumidify without greatly reducing the room temperature. The air conditioner repeats the cycle of turning ON and OFF automatically as shown in the chart below according to the room temperature. -
Page 29: Freeze Prevention
8-3. Freeze Prevention This function prevents freezing of the indoor heat exchange coil. When the compressor has been running for 10 minutes or more and the temperature of the indoor heat exchange coil falls below –1°C, the control circuit stops the compressor for at least 6 minutes. The compressor does not start again until the temperature rises above 8°C or 6 minutes has elapsed. -
Page 30: Troubleshooting
9. TROUBLESHOOTING 9-1. Check before and after troubleshooting WARNING Hazardous voltage can cause ELECTRIC SHOCK or DEATH. Disconnect power or turn off circuit breaker before you start checking or servicing. 9-1-1. Check power supply wiring. Check that power supply wires are correctly connected to terminals No. 1 and No. 2 on the 3p terminal plate in the outdoor unit. -
Page 31: Air Conditioner Does Not Work
9-2. Air conditioner does not operate. 9-2-1. Circuit breaker trips (or fuse blows). A. When the circuit breaker is set to ON, it is tripped soon. (Resetting is not possible.) There is a possibility of ground fault. Check insulation resistance. If resistance value is 2MΩ... - Page 32 B. Circuit breaker trips in several minutes after turning the air conditioner on. There is a possibility of short circuit. • Check capacity of circuit breaker. Replace with suitable one (larger capacity). Capacity of circuit breaker is suitable. Measure resistance of outdoor fan •...
-
Page 33: Some Parts Of Air Conditioner Does Not Operate
9-3. Some part of air conditioner does not operate. 9-3-1. Only outdoor fan does not run. Check fan casing • Remove foreign for foreign matter matter or repair. Fan cannot on inside. be turned. Check fan rotation. • Turn fan gently once or twice by hand. -
Page 34: Air Conditioner Operates, But Abnormalities Are Observed
9-4. Air conditioner operates, but abnormalities are observed. 9-4-1. Poor cooling Check position of remote control unit. • Change position of • Cool air from air conditioner remote control unit. reaches position directly. Insulate both wide and Wide and narrow tubes between •... -
Page 35: Arrangement Of Electrical Components
10. ARRANGEMENT OF ELECTRICAL COMPONENT Outdoor Unit AER524DC Electric Parts Compressor moter capacitor C3 Compressor moter capacitor C2 Relay ( RB ) Terminal plate ( 4P ) Relay ( RA ) ( To indoor unit B ) 1 2 3 4 1 2 3 4 Fan moter capacitor C1... -
Page 36: Checking Electrical Components
11. CHECKING ELECTRICAL COMPONENTS 11-1 Measurement of Insulation Ground wire Resistance Clip The insulation is in good condition if the resistance exceeds 2MΩ. Probe 11-1-1. Power Supply Wires Insulation Clamp the ground wire of the power supply wires with Fig.1 tester the lead clip of the insulation resistance tester and measure the resistance by placing a probe on either of... -
Page 37: Checking Motor Capacitor
11-2. Checking Motor Capacitor Remove the lead wires from the capacitor terminals, and then place a probe on the capacitor terminals as shown in Fig. 5. Observe the deflection of the pointer, setting Multimeter the resistance measuring range of the multimeter to the maximum value. -
Page 38: Disassembly Procedure For Indoor Unit
12. DISASSEMBLY PROCEDURE FOR INDOOR UNIT IMPORTANT! Please Read Before Starting Safety precautions for servicing the CEILING-MOUNTED indoor unit Before attempting to replace heavy and bulky parts such as the evaporator and fan motor, disconnect the indoor unit from the system and place it on the floor. Refer to the steps given below. When checking or servicing the air intake grille, side panels, or electrical component box, first check that power is completely disconnected. -
Page 39: Removing Side Panels
12-2. Removing Side Panels Hook (1) Remove the 3 screws attaching the left side panel. (Fig. 3) Slot (2) Note the position of the hook on the inside of the left side panel. To disengage the hook from the slot, Hook slide down the panel for removal. -
Page 40: Removing Flap Motor
12-4. Removing Flap Motor (1) Remove the 3 screws used to mount the top panel. Screw (Fig. 6) Top panel (2) While unlatching the 2 tabs inside the back of the top panel, lift the top panel diagonally in the direction of the arrow.(Fig. - Page 41 (3) Remove the 6 screws of the front panel and pull it toward you. (Fig. 9) (4) Remove the 2 screws used to mount the Screw evaporator. (Fig. 10) (5) Remove the rubber cap to pull the thermistor out of Front panel the evaporator.
-
Page 42: Removing Fan And Fan Motor
12-6. Removing Fan and Fan Motor (1) Unlatch the 2 hooks on each side to take off the front fan casing. (Fig. 12) Hook Front fan casing Hook Fig.12 (2) Remove the 2 screws attaching the rear fan casing and then pull the fan casing out. Rear fan casing Fig.13 (3) Insert a hex wrench in the fan boss and turn it... - Page 43 Via Varese, 90 - 21013 Gallarate - Va - Italy Tel. +39 0331 755111 - Fax +39 0331 776240 www.argoclima.it...
