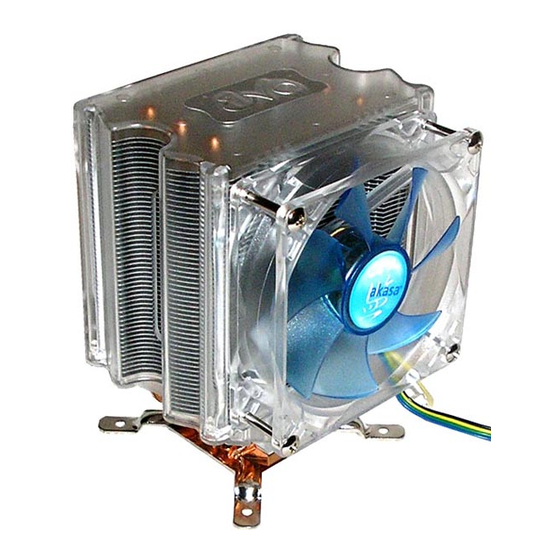

- Page 1 Installation Instruction...
- Page 2 AKASA, except as allowed under copyright laws. The only warranties for AKASA products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. AKASA shall not be...
-
Page 3: Installation Components
Installation Components LGA775 (B) X 4pcs (C) X 4pcs (A) X pcs (D) X 4pcs (J) X pcs AMD K8 (F) X pcs (J) X pcs (E) X pcs (K) X pcs AK-9 (additional parts) (H) X 8pcs (I) X 4pcs (G) X pcs... - Page 4 AK-922 for LGA775 1. Place a rubber washer (part D) over each of the screws of the LGA775 backplate (part A). 2. Place the LGA775 backplate under the motherboard aligning the screws to fit through the four holes available around the CPU as illustrated. 3.
- Page 5 4. Apply the proper amount of thermal compound on the CPU surface; a thin layer is ideal, extra thermal compound will not improve performance. Make sure the CPU surface is perfectly clean. If not, clean it with Isopropyl or Akasa Timclean.
- Page 6 7. Connect the 2-pin female LED connector to the 2-pin male power connector from the fan. 8. Connect the 4-pin fan connector to the CPU fan motherboard connector. If a connector marked CPU fan is not apparent on the board, check the motherboard manual for fan connection information.
- Page 7 2. Place the backplate provided (Part E) below the motherboard aligning the two standoffs with the holes in the motherboard as illustrated. 3. Take off the pre-attached LGA 775 heatsink retention bracket and retain the four (4) screws for the next step. 4.
- Page 8 Make sure the CPU surface is perfectly clean. If not, clean it with Isopropyl or Akasa Timclean. 6. Place the cooler on top of the CPU; align two spring loaded screws with the backplate standoffs and secure the cooler by tightening the screws.
- Page 9 8. Connecting the fan: A. Remove a PCI slot backplate and install the fan control unit (part K). B. Connect the 4-pin fan connector to the male connector of the Y cable. C. Connect the 3-pin female connector (with red / yellow / black wires) to the fan control. D.
