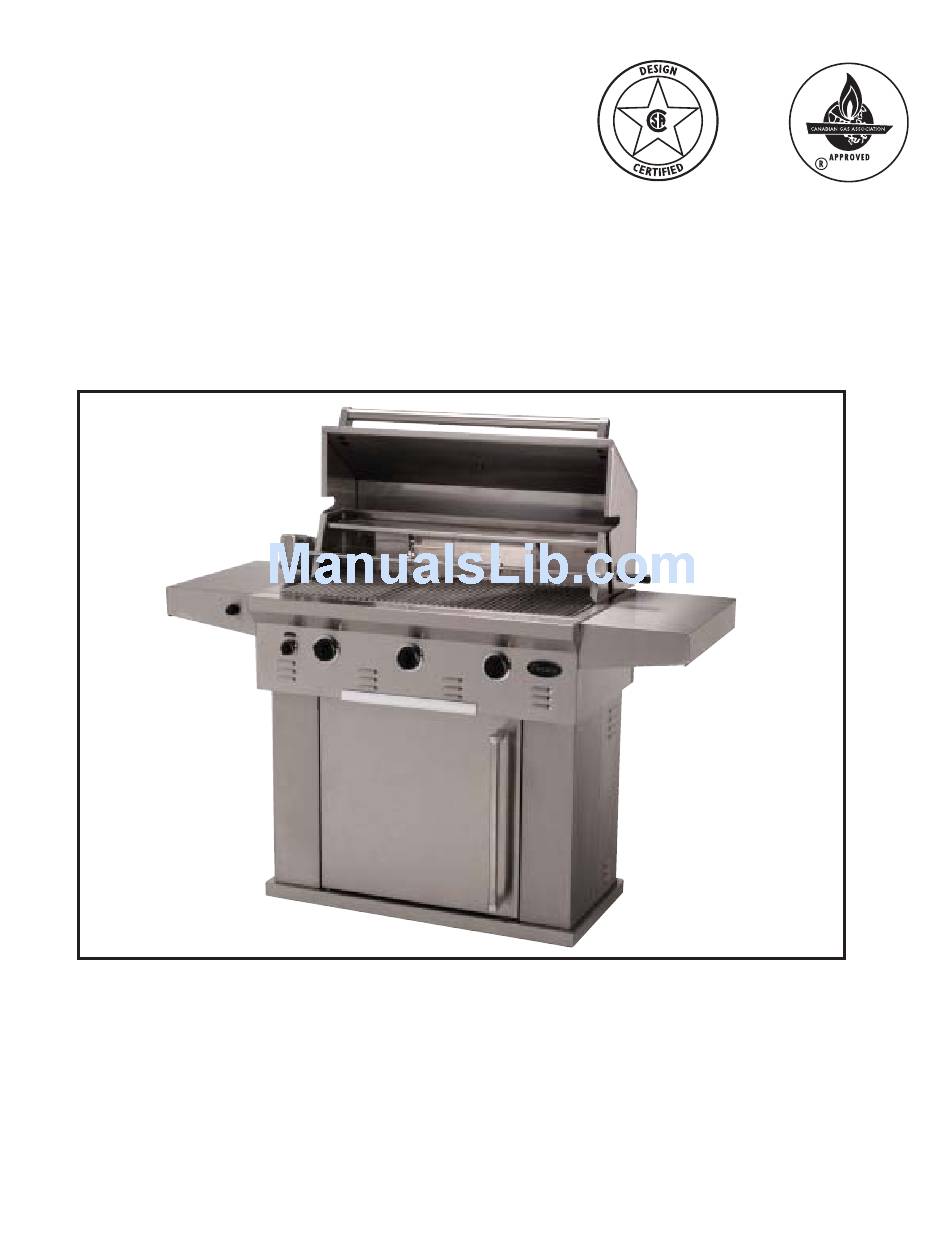

- Page 1 Tuscany “Value at its Finest” Professional Stainless Steel Grill: 30”& 38” Models 38” Grill (TGR38 shown with optional equipment) USE AND CARE MANUAL FOR OUTDOOR USE ONLY MADE IN THE USA 4/2002...
-
Page 2: A Message To Our Customers
A Message to our Customers Congratulations and thank you for your purchase of the Tuscany Gas Grill. Your grill has been designed to provide the very best in outdoor cooking enjoyment. We believe it is the finest grill on the market. For your safety please read all the assembly instructions and care and use directions before operating the appliance. -
Page 3: Table Of Contents
TABLE OF CONTENTS GENERAL SAFETY INSTRUCTIONS.............2 GRILL FEATURES....................3 GRILL COMPONENTS LIST................4 INSTALLATION / ASSEMBLY................5--8 BUILT-IN INSTALLATION................9-11 GAS REQUIREMENTS..................12-13 LEAK TESTING....................14 USING THE GRILL...................15-17 Lighting the Grill...................16 Rotisserie Usage..................17-18 CARE & MAINTENANCE................19 TROUBLE SHOOTING..................20-21 WARRANTY......................22 Please record Grill information for future reference and service work: Model #: Serial #: Date of Purchase:... -
Page 4: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS IMPORTANT SAFETY INFORMATION - Read this manual carefully before using your grill to reduce the risk of fire, burn hazard or other injury. - Extreme care should be used because of the high temperatures produced by this appliance. CHILDREN SHOULD NOT BE LEFT UNATTENDED IN AN AREA WHERE THE GRILL IS BEING OPERATED. -
Page 5: Grill Features
GRILL FEATURES: 38” (TGR38) shown for illustration Grilling/Cooking surface Cart door (optional) Infrared back burner (optional) Control knobs: main burners Drip/grease tray Control knob: infrared back burner (optional) Rotisserie motor assembly (optional) Cart (optional) Roll top grill hood Electronic ignitor... -
Page 6: Grill Components List
GRILL COMPONENTS LIST Cart Parts L-shaped side pieces U-shaped back side piece Base Wheel channels Cart Door Parts (option) Door with handle Magnetic door catch Nylon bushing Nylon shoulder washer Hex head screws Grill Parts Stainless steel grill head Stainless steel side shelves Electronic ignitor 3 Piece flavor grid (on 38”... -
Page 7: Installation / Assembly
INSTALLATION / ASSEMBLY Note: Prior to assembly remove protective film from stainless steel parts Cart Assembly Attach the two L-shaped sides to the U- shaped back portion of the cart, making sure Screws the four holes face up & the key holes are on the bottom, using the (8) self taping hex Fig. - Page 8 INSTALLATION / ASSEMBLY Attaching Grill Head to Cart w/door Use the following instructions if attaching Grill to cart with a door. Bolts With the grill on its back, loosen all 4 bolts Fig. 6 on the bottom side of the grill. (See Fig. 6) Using 2 self taping hex head screws, Screw holes for magnetic catch...
- Page 9 Re-insert the battery, positive side first, and Fig. 12 spring assembly and attach the ignitor cap. (See Fig. 13) Note: There are 4 different types of ignitors on Tuscany Grills. They depend on model. TG30 Single Wire w/ground wire TGR30 Dual Wire Fig.
-
Page 10: Installation / Assembly 5
INSTALLATION / ASSEMBLY Side Shelves Attachment (38” model shown for illustration) Attach the shelf with the ignitor to the left side of grill and the other shelf to the right by Fig. 14 inserting the shelf hooks into the slots on the side of the grill and pushing down on the shelf assembly until level with grill. -
Page 11: Built-In Installation
BUILT-IN INSTALLATION The Tuscany Grill can be installed as a built-in Grill. If installed as a built-in Grill, the Grill surround must be constructed of Non-combustible material. Planning and Design Start by identifying the number and size of components you want to include: Grill, sideburner, access doors for storage or other items you may wish to furnish such as: refrigerator, sink, warming drawer. - Page 12 BUILT-IN INSTALLATION Side cutouts are needed on each side to feed ignitor wires to Note: Make sure to use a the ignitor plates and allow access to side gas connections. non-combustible base and (Size: 10” high x 5” long, set 1” back from front edge) sides for the structure ”...
-
Page 13: Built-In Installation
SIDEBURNER BUILT-IN INSTALLATION Use the following drawing if installing the sideburner as a free standing component in the structure. The sideburner is recommended for right hand mounting. It is recommended that the sideburner be installed on the right hand side. Without a With a trim trim kit. -
Page 14: Gas Requirements
GAS REQUIREMENTS General Information Verify the type of gas supply to be used, either Natural Gas (NG) or Liquid Propane (L.P)., and make sure the marking plate (located on the back of the unit) agrees with that of the supply. Note: Never attach an unregulated gas line to the appliance. -
Page 15: Gas Requirements
GAS REQUIREMENTS L.P. Gas Installation Tuscany Gas Grills that are set to operate with L.P. gas come with a high capacity hose and regulator assembly. This assembly is designed to connect directly to a standard 20 lb. L.P. cylinder. Attach the gas hose assembly to the brass 3/8 flared fitting on the under side of the grill. Tighten securely and attach other end to the propane tank. -
Page 16: Leak Testing
LEAK TESTING General Information Although all gas connections on the grill are leaked tested at the factory prior to shipment, a complete gas tightness check must be performed at the installation site due to possible mishandling in shipment, or exces- sive pressure unknowingly being applied to the unit. -
Page 17: Using The Grill
USING THE GRILL Grill Location Do not use the grill in garages, breezeway, sheds or any enclosed area. Never operate the grill in enclosed areas as this could lead to a carbon monoxide buildup, which could result in injury or death. Place the grill on a level surface. -
Page 18: Lighting The Grill
LIGHTING THE GRILL (38” model shown for illustration) Before Lighting Warning: Important! Before Lighting... Check the gas supply line for cuts, wear or abrasion. Do not attempt to Always keep your face and body as far away from the “Light” the grill if the grill as possible when lighting. -
Page 19: Rotisserie Usage
USING THE ROTISSERIE BURNER (on models equipped with infrared back burner) The grill rotisserie system is designed to cook items from the back using infrared heat. The rotisserie burner is an infrared type which provides intense searing radiant heat. Preferred by chefs over other cooking methods, this intense heat is magnificent for searing in the natural juices and nutrients found in quality cuts of meats. - Page 20 USING THE ROTISSERIE BURNER (on models equipped with infrared back burner) Rotisserie Lighting (38” model shown for illustration) Open the lid. Push and turn the control knob to the “HIGH” position. Wait 5 seconds. Then press and hold the electronic ignitor button. You’ll hear a snap- ping sound.
-
Page 21: Care & Maintenance
CARE and MAINTENANCE Drip Tray The drip tray located at the bottom of the grill should be cleaned periodically to prevent heavy buildup of debris. The drip tray can be lined with aluminum foil for easier cleaning. Note: Allow the drip tray to cool before attempting to clean. Cooking Grates The cooking grates can be cleaned immediately after cooking is completed and after turning off the flame. -
Page 22: Trouble Shooting
TROUBLE SHOOTING General Trouble Shooting You should inspect the burners at least once a year or immediately if any of the following conditions occur: The smell of gas in conjunction with the burner flames appearing yellow. The Grill does not reach temperature. The burners make a popping noise. -
Page 23: Trouble Shooting
TROUBLE SHOOTING Problem Solution Check gas connection. Flame is erratic Fuel level may be low. Grill may be in need of cleaning. Check flavor grids and cooking grates for excess build-up. Flare-Ups Ensure Grill is not placed directly in path of wind. -
Page 24: Warranty
WARRANTY LIMITED LIFETIME WARRANTY Tuscany Grills have a Lifetime Warranty on all stainless steel parts, 15 years on cast stainless burners, 5 year warranty on stainless steel burners, and a one year warranty on all other parts. IMPORTANT: We recommend you return the warranty registration card so that you can be contacted with any questions of safety arise that could affect you.
