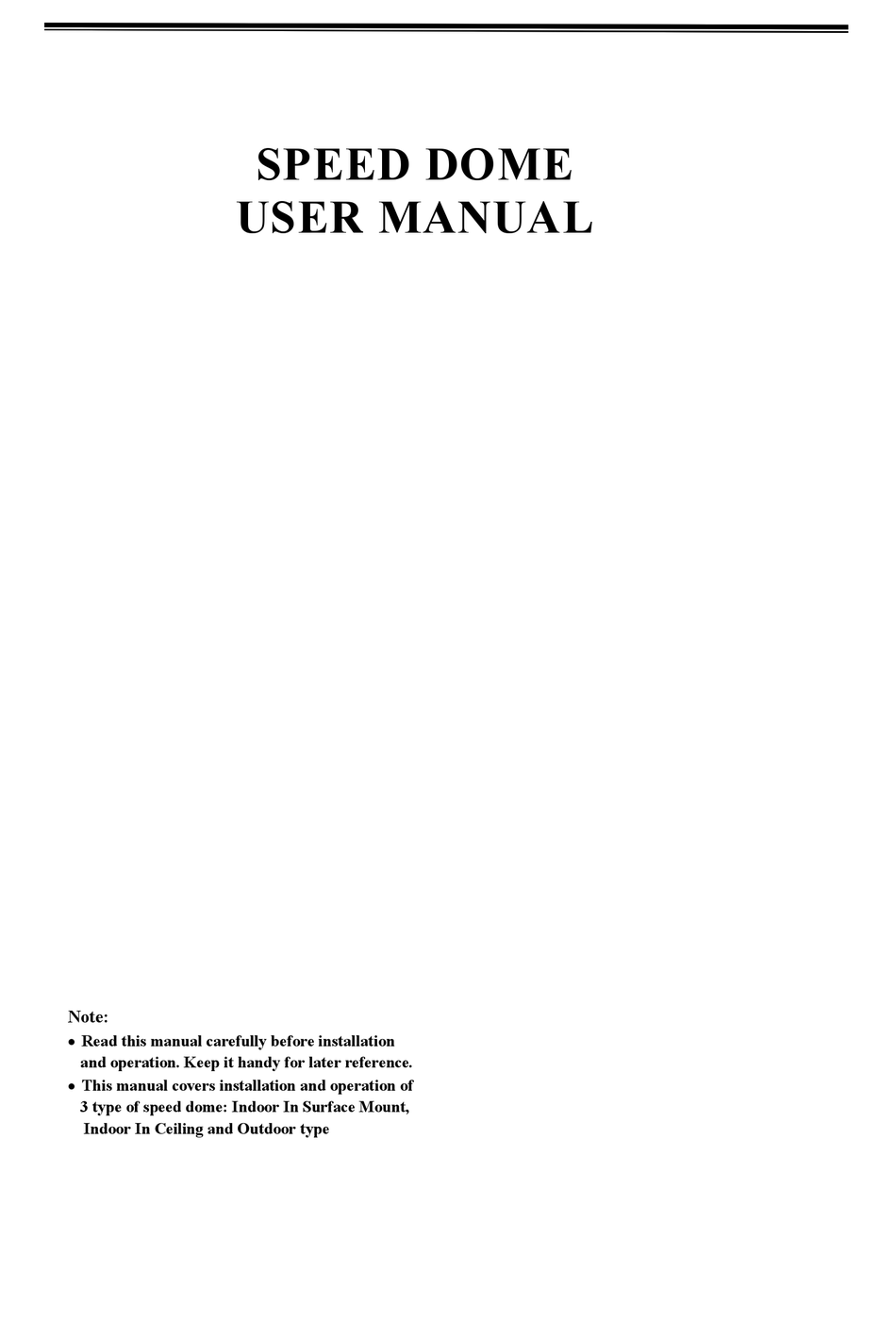

- Page 1 SPEED DOME USER MANUAL Note: Read this manual carefully before installation and operation. Keep it handy for later reference. This manual covers installation and operation of 3 type of speed dome: Indoor In Surface Mount, Indoor In Ceiling and Outdoor type...
-
Page 2: Table Of Contents
◆AGC LEVEL SETTING ........27 CONTENTS ◆DIGI-SLOW SHUTTER SETTING ....27 ◆DAY/NIGHT MODE SETTING ..... 27 Part 1: Analog Parts…………..1 ■WHITE BALANCE ........28 FEATURES ◆WHITE BALANCE SETTING ......28 Canera Parameters 2 ◆RED GAIN SETTING ........28 ■PRECAUTION ..........3 ◆BLUE GAIN SETTING ........ -
Page 3: Part 1: Analog Parts
FEATURES Product Features With high quality motor, low power consumption, no vibration even in extremely slow rotation. Low temperature protection Support many camera module options. Discreet surveillance with black liner. With vandal-resistant down cover option. With Multi-language OSD menu, (Chinese, English, French, German, Russian, Italian, Portuguese, Spanish etc.), User-friendly interface, easy operation. -
Page 4: Camera Parameters
Camera Parameters Speed Dome Outdoor Type Model Speed Dome Indoor -SM Type (Surface Mount) Speed Dome Indoor -CM Type (In Ceiling) 1/4" SONY Super HADⅡ(Double Scan) CCD Image Sensor TV System PAL: 1028 (H) x 596 (V) ; 2:1 interlace NTSC: 1028 (H) x 508 (V) ; 2:1 Interlace Horizontal Resolution Max 700 TV lines in color @ HR 7 mode (750TV lines in B/W @ HR 7 code) Synchronization... -
Page 5: Precaution
Network Protocols TCP / IP, DHCP, HTTP, DHCP, PPPoE, FTP, RTSP, DDNS, NTP Image Frame Rate 30/25 fps (NTSC/PAL) Compression Format H.264/JPEG Video Bit Rate Adjust Cbr, vbr Motion Detection Yes, 3 different areas Triggered Action Yes , configurable Simultaneous Connection Up to 10 Image Mirror OFF/ALL/UD/LR... -
Page 6: Warnings
■WARNINGS Avoid installing this speed dome in hazardous places where inflammable or explosive materials are stored or used. The installation of this product must be strict compliance with national and regional use of the electrical safety regulations this speed dome runs on 24v ... -
Page 7: Installation Preparation
■DOME MODE SETTING INSTALLATION The default of Dome is common PREPARATION simulation(SW1 ON),SWI can set to common dome or Net dome. ■TOOL LISTS: SW1 ON: The Ext-cable move round IP mainboard socket connect the dome The following tools may be needed for the mainboard directly, just the Ext-cable can installation: control. -
Page 8: Controlling Termination
2、 Video Connection terminal J2 VGND VIDEO ■ SET DOME ID, BARD RATE AND PROTOCOL BY ： VIDEO- VGND ： VIDEO+ VIDEO configuring DIP switches (Refer to APPENDIX Ⅱ).。 3、 Alarm input/output socket J3 A4 01A 01B 02A 02B ：ALARM COM ：Alarm IN 1~4 A1~A4 O1A~O1B ：Alarm out 1... -
Page 9: Mount Type
MOUNT TYPE ■IN-CEILING MOUNT 2 2 5 2 2 5 2 4 7 ■SURFACE MOUNT ■WALL MOUNT - 7-... -
Page 10: Corner Mount
■CORNER MOUNT ■POLE MOUNT ■PENDANT MOUNT - 8-... -
Page 11: Installation Guide
INSTALLATION GUIDE Prepare wiring and then put Power/RS485/ Video cables through waterproof connector on the top of housing. Turn the connector into the top hole of the housing ■IN-CEILING MOUNT Maximum thickness of the ceiling is 42mm and the ceiling should be able to hold 8 times of the weight of the speed dome. - Page 12 10.Install Pan/Tilt Module. Adjust clips. Push the black liner into the two tabs. Install the Adjust the height of the mounting clips. Swing the pan/tilt module with two clips, match color of AMP mounting clips to adhere to housing. sockets. Gently push the module upward until hearing two clicks.
-
Page 13: Surface Mount
■ SURFACE MOUNT The thickness of the ceiling should be able to hold the expansion screw and the ceiling is firm enough to hold 8 times of the weight of the speed dome. Install the mounting base Take the mount base as patter to mark the mounting position on the ceiling surface. - Page 14 ■WALL MOUNT Check carefully to make sure the wall is firm and does not peel off. It is required that the wall can withstand 8 times weight of the dome set. Mark mounting position Use bracket to mark the mounting position on wall. 4.Install housing Cross cables through the hole on top of the housing.
- Page 15 6.Set dome ID, baud rate and protocol. Set dome ID, bard rate and protocol by configuring DIP switches (Refer to APPENDIX Ⅱ). AMP SOCKET Black Liner 9.Install down cover. Unscrew the two M4 screw on down cover ring. Push SW 1 SW 2 up the down cover into the housing and then fasten down cover with two M4 screws.
-
Page 16: Corner Mount
Unscrew to release the circuit board on connection board. ■CORNER MOUNT Check carefully to make sure the wall is firm and does not peel off. It is required that the wall can withstand 8 times weight of the dome set. Mark the fastener positions. - Page 17 9.Install black liner and Pan/Tilt Module. Push the black liner into the two tabs. Install the pan/tilt module with two clips, match color of AMP sockets. Gently push the module upward until hearing two clicks. NOTE: Remove the lens cover. SOCKET 7.Set dome ID, baud rate and protocol.
-
Page 18: Pole Mount
Install housing. ■POLE MOUNT Cross cables through the hole on top of the housing. Align the fast connector to bracket and fix with 2 Pole mount is applicable to installation on pole with M5 screw diameter of 130-150mm (5.12”~6”) NOTE: Apply water-proof tape to the thread in the Install base. - Page 19 Set dome ID, baud rate and protocol. Set dome ID, bard rate and protocol by configuring DIP switches (Refer to APPENDIX Ⅱ). AMP SOCKET NOTE: Remove the packing sponge. Black Liner Install down cover. Unscrew the two M4 screws on down cover ring. Push up the down cover into the housing and then SW 1 SW 2...
-
Page 20: Pendant Mount
Install suspender. ■PENDANT MOUNT Connect wirings through the cavity of suspender, and then turn the threaded pipe head into the In case of low ceiling height dome can be mounted bracket base and fasten the connection with a M5 directly into the base flange. screw. - Page 21 housing, and then turn the housing thread pipe ID, bard rate and protocol by configuring DIP switches (Refer to APPENDIX Ⅱ). head into suspender and fasten the connection with two M5 screws NOTE: Apply water-proof tape to the thread in the case of outdoor dome.
- Page 22 Install black liner and Pan/Tilt Module. Push the black liner into the two tabs. Install the pan/tilt module with two clips, match color of AMP sockets. Gently push the module upward until hearing two clicks. NOTE: Remove the lens cover. AMP SOCKET Black Liner 10.
-
Page 23: System Connection
SYSTEM CONNECTION Camera Camera Camera Matrix Keyboard Monitor -21-... -
Page 24: Menu Index
MENU INDEX →Dome ID Title 1 Title 2 System time & date Language Chinese Change password Factory setting System restart System information →lens parameters exposure mode white balance backlight mode privacy mask → pan tilt setup presets setup cruise queue setup pattern setup system setting zone setup... -
Page 25: Boot-Up The Screen
System date The right side of the reciprocal third shows the OPERATION system time. INSTRUCTION Zone title The reciprocal second shows the zone title 1 and title 2. Dome can operate by the key on the keyboard, Position combine of the key or by OSD menu. -
Page 26: Change Value
■CHANGE VALUE ■DOME ID SETTING Press 【iris open】 to enter the menu item, the value This camera supports soft and hard address change, and shines in the right of menu item. Move the joystick up, the default is the hardware address. when the dome’s dip down to change value. -
Page 27: Time Setting
■ LANGUAGE SETTING ■SYSTEM RESTART SETTING Operation settings as follows: . Call preset 95 and enter the camera’s main menu. Operation settings as follows: 2. move the cursor up or down to select 【system settings】 Call preset 95 and enter the camera’s main menu. menu items, press 【iris open】... -
Page 28: Digital Zoom Setting
and exit. I M A G E S T A B I L I Z E R S E T T I N G ◆ ◆ D I G I T A L Z O O M S E T T I N G ... -
Page 29: Shutter Speed Setting
confirm, then enter the exposure mode setting. A G C L E V E L S E T T I N G This allows you to select : ◆ 【auto】：Automatic exposure modes. This is the camera default setting and the camera ... -
Page 30: White Balance
5.With pan tilt up, down, up or down to select setting Operation settings as follows: 6.press 【iris open】to save white balance setting and exit, 1.Move the cursor to select 【day/night】menu item in the press 【iris close】 without saving white balance setting and 【exposure mode】... -
Page 31: Wide Dynamic Mode Setting
【privacy mask】menu item and press【iris open】to enter ◆ W I D E D Y N A M I C M O D E S E T T I N G privacy mask setting. 3. Move the cursor to select 【privacy mask setting】 menu item in the【privacy mask】... -
Page 32: Auto Flip
lens' enlargement factor slows down gradually. Like this A U T O F L I P ◆ causes the image to rape in the rapid traverse also to be able to maintain clear in the monitoring device. The speed which when the lens will change time will be biggest rapes will turn User panned to the bottom （... -
Page 33: Preset Number Setting
demonstration, the elimination initialization and the edition title, should choose an initialization serial Pan tilt setting menu preset setting menu number first. pan tilt setup → → preset number ： 000 presets setup sequence setup title1： ■CRUISE SEQUEUE SETTING pattern setup title2：... -
Page 34: Pattern Setup
press 【iris close】 key without saving edit sequence setting and exit. NOTE: Each group of parameters are composed of two number of classes characters, first represents a initialization serial number, second represents the resident time, each initialization resident time take has not tacitly approved the time in the change Area is the level of a region between two points. -
Page 35: Home Time Setting
【pan tilt setting】 and press【iris open】key to confirm, then changes the home action, may from 1-4 automatic scans, 1-200 presets, 1-4 cruises line up in formation, in 1-4 pattern enter the time action menu. ways to choose. 4. with pan tilt on the orders, or to change the leisure time, but a second time. -
Page 36: Alarm Action
5. Press 【iris open】key to save the current settings and exit; press 【CLOSE 】 key without saving the current settings and ■ALARM ACTION exit. Operation settings as follows: 1. Call preset 95 and enter the camera’s main menu. Move the cursor to select 【motion detection】 menu item ■RESET RELAY and press 【... -
Page 37: Alarm Action
4. Use the Pan tilt up or down command to turn on or off the relay output. ■ALARM ACTION 5. Press 【iris open】key to save the current settings and exit; Operation settings as follows: press 【CLOSE 】 key without saving the current settings and 1. -
Page 38: Appendix I:special Function Operation
APPENDIX I:Special Function Operation There are some shortcuts to operate some speed dome functions under Pelco-D/P protocol. Function Shortcut order Open the dome menu Call 95# preset, store 96# preset Set the left limit Call 92# preset Set the right limit Call 93# preset 3 Run the first zone Call 97# preset... -
Page 39: Appendix Ii:dip Switch Settings
APPENDIX II: SWITCH SETTINGS This is the guides for setting protocol, baud rate, dome address, video cable type, resistor jumper and alarm output. This model of speed dome supports DIP Switches’ position multi-protocol. The set-ting chart is shown below. The corresponding Dip-switches’... - Page 40 Dome address setting Address setting chart The control commands contain target dome’s ID. The dome only reacts to the command sent to its own address or broadcast address. Each dome should be assigned an address. Four kinds of IDs are applicable for domes: 1.
- Page 41 Soft Soft...
- Page 42 Resistor jumper setting RS485/RS422 bus needs two 120Ω_ resistors at both ends. Set on the 120Ω¸resistors of the two devices (keyboard or dome) in the farthest distant on RS485/RS422 bus. Default setting is OFF. When choosing the ON pins in JP5, the 120Ω¸termination resistor is connected.
-
Page 43: Appendix Iii：wire Diameter & Ransmission Chart
APPENDIX III：WIRE DIAMETER & RANSMISSION CHART The transmission distance listed below are farthest ones recommended for each given wire diameter when the 24V AC voltage loss ratio is below 10% (for equipment powered by AC, the allowed maximum voltage loss ratio is 10%). For example, a set of equipment with nominal power as 80VA, installed 35 feet (10m) away from transformer, needs a wire with a... -
Page 44: Appendix Iv：rs485 Basic Knowledge
APPENDIX IV：RS485 BASIC KNOWLEDGE 1. Basic Property RS485 Bus is specified by RS485 standards. It is of half-duplex data transmission cables with characteristic impedance as 120. The maximum load capacity is 32 effective loads (including main controller and controlled equipment). 2. - Page 45 5. RS485 Best Practice Trouble Possible Cause Solution In some circumstances user adopts a star configuration in practical connection. The termination resistors must be connected to the Dome can do 1. The address and 1. Change the self-testing baud rate settings address and baud two equipment that are farthest away from but cannot...
- Page 46 APPENDIX V：TROUBLE SHOOTING Problem Cause Solution Red LED on Check the movements, circuit board is power no video off: connection and after power The is no AC outlet make power connected sure they are to the PCB working Board. properly. There is a power Check power outage or...
- Page 47 APPENDIX VI：LIGHTNING PROOF & SURGE SIGNAL PROOF The product adopts TVS lightning proof technology to prevent from damage by lightning strike below 3000 W and impulse signals such as surge.However, for indoor and outdoor installation need to ensure electrical safety to grounding measures: ◆The outdoor location , the line anti-radar and the earth design take the building lightning proof requirements into account to design the lightning...
-
Page 48: Appendix V
APPENDIX V ： MAINTENANCE SERVICE CLAUSE 1. Warranty Scope The warranty time is 1 year. The factory warrants the repair and replace free, if the fault was caused by the material or technical . The factory warrants the repaired and replaced components for a period of 90 days from the date of dispatching repaired products. - Page 49 4 . Speed Dome Precautions The Speed Dome runs on 24VAC Don’t connect higher or lower voltage Use soft towel to clean the down cover Don’t use caustic detergent To keep away from strong light objects. Don’t place the camera to be shot by strong light objects.
-
Page 50: Part 2:Ip Parts Function
Part 2 : IP Part Function of Content I. Preface This is a professional IP Module with the web server built in. User can view real-time video via IE browser. It supports H.264 & JPEG video and MPEG4 (3GPP Only) compression which provides smooth and high video quality. II. -
Page 51: Ip Assignment
B. IP Assignment Use the software, “IP Installer” to assign the IP address of IP MODULE. The software is in the attached software CD. IP installer supports two languages IPInstallerCht.exe：Chinese version IPInstallerEng.exe：English version iii. There are 3 kinds of IP configuration. Fixed IP (Public IP or Virtual IP) DHCP (Dynamic IP) Dial-up (PPPoE) - Page 52 vii. IP Installer will search all IP Module connected on Lan. The user can click “Search Device” to search again. viii. Click one of the IP Module listed on the left side. The network configuration of this IP Module will show on the right side. You may change the “name”...
- Page 53 A quick way to access remote monitoring is to left-click the mouse twice on a selected IP Module listed on “Device list” of IP Installer. An IE browser will be opened. Then, please key in the default “user name: admin” and “password: admin”.
-
Page 54: Install Activex Control
C. Install ActiveX control: For the first time to view the IP Module video via IE, it will ask you to install the ActiveX component. If the installation failed, please check the security setting for the IE browser. IE Tools Internet Options… Security Tab Custom Level… Security Settings ... - Page 55 When popup the following dialogue box, click “Yes”.
-
Page 56: Live Video
IV. Live Video Start a IE browser, type the IP address of the IP Module in the address field. It will show the following dialogue box. Key-in the user name and password. The default user name and password are “admin” and “admin”. When connect to the IP MODULE。The following program interface shows. - Page 57 ：Get into the administration page ：Video Snapshot Show system time, video resolution, and video refreshing rate. Select video streaming source (When streaming 2 setting in『Video Setting』 is closed, this function will not display) IP Module supports 2-way audio. Click the “Chatting” check box. Then you can use microphone which connects to the PC to talk to server side, which is IP Module side Select PTZ protocol to control the PTZ IP Module which is connected to this video...
-
Page 58: Configuration
V. Configuration Click to get into the administration page. Click to go back to the live video page. -
Page 59: System
A. System i、 System Information Server Information: Set up the IP Module name, select language, and set up the IP Module time. Server Name：This is the IP Module name. This name will show on the IP Installer. Select language：There are English, Traditional Chinese, and Simplified Chinese to select. - Page 60 ii、 User Management IP MODULE supports three different users, administrator, general user, and anonymous user. Anonymous User Login： Yes：Allow anonymous login No：Need user name & password to access this IP Module Add user： Type the user name and password, then click “Add/Set”. Click “edit”...
- Page 62 iii、 System update： To update the firmware online, click “Browse…” to select the firmware. Then click “Upgrade” to proceed. Reboot system：re-start the IP Module Factory default：delete all the settings in this IP Module. Setting Management：User may download the current setting to PC, or upgrade from previous saved setting.
- Page 63 iv、 PTZ Setting : PTZ control mode : Select by Step by step or Continuous Set Patrol Add preset point Edit Patrol group by 24 preset point, then save call Patrol 1 ~ 4 on web page...
- Page 64 Set Pattern Press record button to start record, then press End record to stop record. call Pattern 1 ~ 4 on web page Set Scan Set left / right position by preset point, then set stay time call Scan 1 ~ 4 on web page...
-
Page 65: Network
B. Network i、 IP Setting IP Module supports DHCP and static IP. DHCP：Using DHCP, IP Module will get all the network parameters automatically. Static IP：Please type in IP address, subnet mask, gateway, and DNS manually. Port Assignment: user may need to assign different port to avoid conflict when setting up IP assignment. - Page 66 ii、 PPPoE： Select “Enabled” to use PPPoE. Key-in Username and password for the ADSL connection. Send mail after dialed：When connect to the internet, it will send a mail to a specific mail account. For the mail setting, please refer to “Mail and FTP”...
- Page 67 Enable this service Key-in the DynDNS server name, user name, and password. Set up the IP Schedule update refreshing rate. Click “Apply” If setting up IP schedule update too frequently, the IP may be blocked. In general, schedule update every day (1440 minutes) is recommended.
- Page 68 Camddns service： Please enable this service Key-in user name. IP Schedule update is default at 5 minutes Click “Apply”. DDNS Status Updating：Information update Idle：Stop service DDNS registration successful, can now log by http://<username>.ddns.camddns.com：Register successfully. Update Failed, the name is already registered：The user name has already been used.
-
Page 69: A/V Setting
C. A/V Setting i、 Image Setting For the security purpose, there are three areas can be setup for privacy mask. Click Area button first and pull a area on the above image. Finally, click Save button to reserve the setting. Adjust “Brightness”, “Contrast”, “Hue”, “Saturation”... - Page 70 Resolution： There are 4 resolutions to choose. NTSC – 720×480 / 720×576 4CIF – 704×480 / 704×576 – 352×240 / 352×288 QCIF – 176×120 / 176×144 Quality： There are 5 levels to adjust: Best/ High/ Standard/ Medium/ Low The higher the quality is, the bigger the file size is. Also not good for internet transmitting Video Frame Rate：The video refreshing rate per second.
- Page 71 Streaming 1 Advanced Mode： Resolution： There are 4 resolutions to choose. NTSC – 720×480 / 720×576 4CIF – 704×480 / 704×576 – 352×240 / 352×288 QCIF – 176×120 / 176×144 Bitrate Control Mode There are CBR﹝Constant Bit Rate﹞ and VBR﹝Variable Bit Rate﹞to use.
- Page 72 Streaming 2 Basic Mode： Resolution： There are 4 resolutions to choose. NTSC – 720×480 / 720×576 4CIF – 704×480 / 704×576 – 352×240 / 352×288 QCIF – 176×120 / 176×144 Quality： There are 5 levels to adjust: Best/ High/ Standard/ Medium/ Low The higher the quality is, the bigger the file size is.
- Page 73 – 720×480 / 720×576 4CIF – 704×480 / 704×576 – 352×240 / 352×288 QCIF – 176×120 / 176×144 Bitrate Control Mode There are CBR﹝Constant Bit Rate﹞ and VBR﹝Variable Bit Rate﹞to use. CBR：32Kbps~4Mbps (the higher the CBR is, the better the video quality is) VBR：1~10 (Compression Rate) Video Frame Rate...
- Page 74 (You will need a mic to send audio from local PC to IP Module )
-
Page 75: Event List
D. Event List IP Module provides multiple event settings. i、 Event Setting Motion Detection： IP MODULE allows 3 areas motion detection. When motion is triggered, it can send the video to some specific mail addresses, transmit the video to remote ftp server, trigger the relay, and save video to local SD card. - Page 76 Single JPEG (Single File with Interval Setting) Record Time Setting： Pre Alarm and Post Alarm setups for video start and end time when motion detected, I/O, or other devices got triggered. Note: Pre/Post Alarm record time is base on record time setting and IP Cam built-in Ram memory.
- Page 77 iv、 Log List Sort by System Logs, Motion Detection Logs. In addition, System Logs won’t lose data due to power failure.
-
Page 78: Vi.factory Default
VI. Factory Default i、 To recover the default IP address and password, please follow the following steps. ii、 Remove power, and press and hold the button in the back of IP Module. Factory Default iii、 Power on the IP Module. Don’t release the button during the system booting. iv、...
