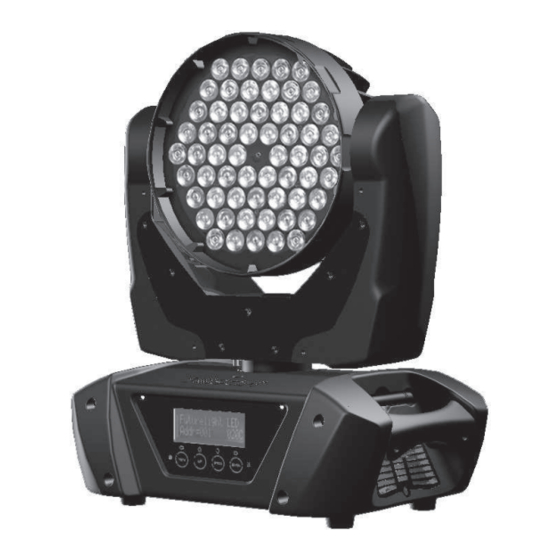

Summary of Contents for GSM IDEA MOVING LED 100

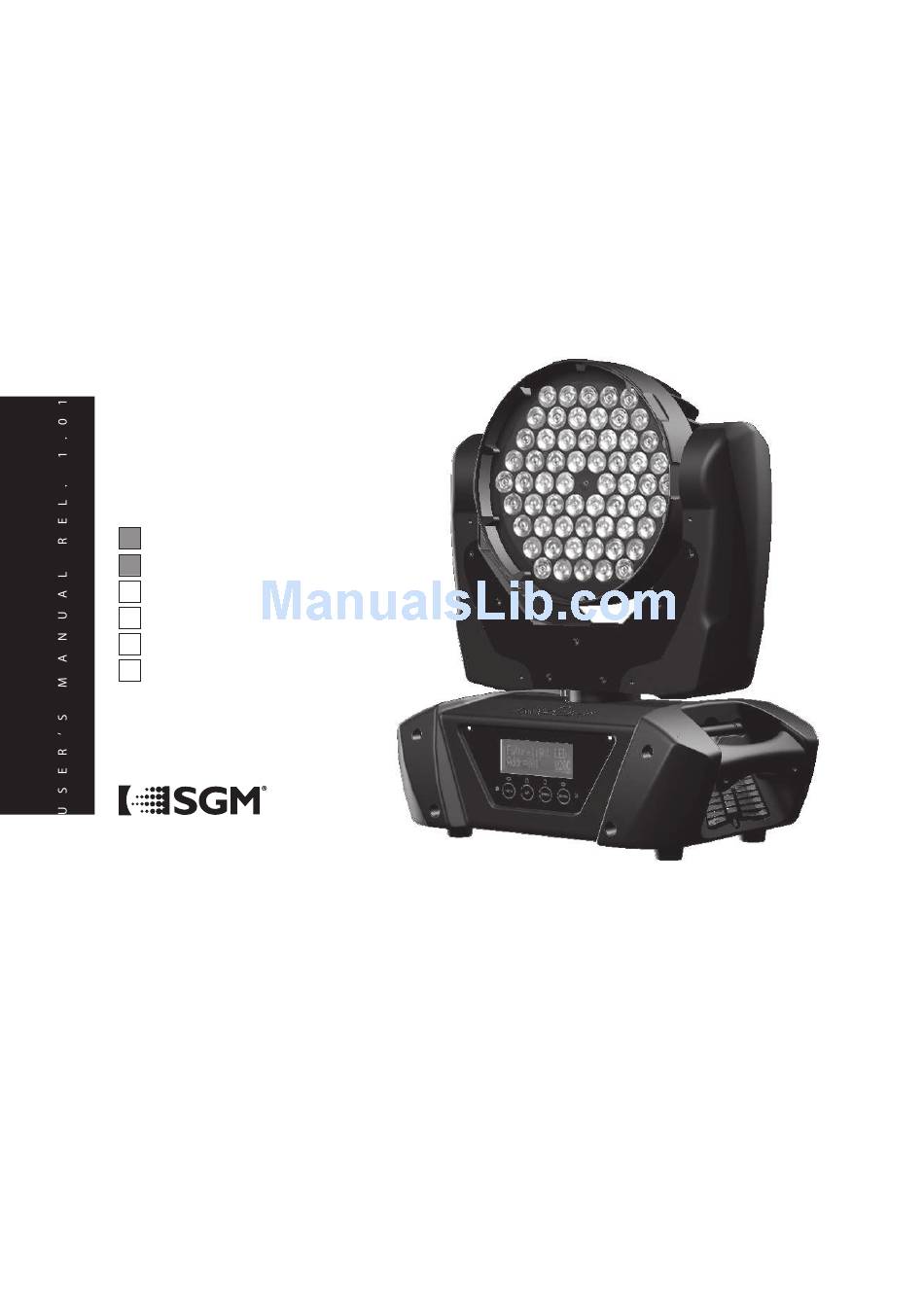

Page 1 I D E A M OV I N G L E D 1 0 0 M O V I N G H E A D...
Page 2: Pulizia E Manutenzione
Alimentazione: 100V~240V AC，50 Hz /60Hz Consumo d’energia: max. 230W Dimensioni dell’imballo: 35x29.5x43cm Peso netto: 7.6KG Peso lordo: 10KG Nota: sono esclusi errori ed omissioni per ogni informazione data in questo manuale. Ogni informazione è soggetta a modifica senza preavviso. Idea Moving Led 100 XM335-V1.1-A...
Page 3 Vi ringraziamo per aver acquistato un prodotto SGM. Per ottenere i migliori risultati dal suo utilizzo, vi preghiamo di leggere attentamente questo manuale di istruzioni. Al suo interno troverete le informazioni tecniche e le specifiche d’uso del prodotto. Nelle pagine in appendice tro- verete inoltre schemi e diagrammi destinati all’assistenza tecnica.
Page 4: Table Of Contents
USERS MODE SET............................13 User mode ............................13 Preset User mode...........................13 EDIT PROGRAM .............................13 Select program ............................13 Edit program ............................13 Edit scenes............................13 Auto scenes rec.............................13 INSTRUCTIONS ON USE ..........................16 ERROR MESSAGE ............................17 CLEANING AND MAINTENANCE ........................18 TECHNICAL SPECIFICATIONS..........................18 XM335-V1.1-A Idea Moving Led 100...
Page 5: Introduction
Strobe effect with 18 flashes per second and pulse effect General dimming and blackout for all four colors Excellent color mixing and rainbow effect Friendly blue LCD display Preset program: 7 built in programs can be called up via DMX controller Idea Moving Led 100 XM335-V1.1-A...
Page 6: Overview
12. 3-PIN DMX output socket 13. 3-PIN DMX input socket 14. 5-PIN DMX output socket 15. 5-PIN DMX input socket 16. Power switch 17. Fuse 18. Power supply 12 13 16 17 18 14 15 XM335-V1.1-A Idea Moving Led 100...
Page 7: Safety Instructions
Never look directly into the light source, as sensitive persons may suffer an epileptic shock. Please be aware that damages caused by manual modifications to the device are not subject to warranty. Keep away from children and non-professionals. Idea Moving Led 100 XM335-V1.1-A...
Page 8: General Guidelines
If you lack these qualifications, do not attempt the installation yourself. Improper installation can result in bodily injury. CAUTION The electric connection must only be carried out by a qualified electrician. XM335-V1.1-A Idea Moving Led 100...
Page 9: Installation Method Via Clamp
3-pin XLR input of the moving head. You can chain multiple Moving head together through serial linking. The cable needed should be two core, screened cable with XLR input and output connectors. Please refer to the diagram below. Idea Moving Led 100 XM335-V1.1-A...
Page 10 In the case of the moving head, which is 13 channels fixture when you select the standard channel mode, you should set the starting address of the first unit to 1, the second unit to 14(13 + 1), the third unit to 27 (13+ 14), and so on. XM335-V1.1-A Idea Moving Led 100...
Page 11 2. Do not connect the fixture which is under the communication of wireless system to the DMX controller, otherwise it will cause interference from the DMX controller. Idea Moving Led 100 XM335-V1.1-A...
Page 12: Control Board
De-activate WDMX Activate WDMX Activate WDMX Act & Data Out Act & Data Out Reset Wireless DMX Mem Rest WDMX Mem Reset Default ON/OFF Restore factory sett. Reset all motors Reset All Reset Pan/Tilt Reset Pan&Tilt XM335-V1.1-A Idea Moving Led 100...
Page 13: Function Mode
You can set the number of steps under “Edit program”. You can edit the individual scenes under “Edit scenes”. With this function, you can run the individual scenes either automatically, i.e. with the adjusted Step-Time. Music control With this function, you can run the internal program sound-controlled. Idea Moving Led 100 XM335-V1.1-A...
Page 14: Information
420,set channel 1 to "7", channel 2 to "8" and channel 3 to "164" (256+164=420). Wait for approx. 20 seconds and the unit will carry out a reset. After that, the new starting address is set. XM335-V1.1-A Idea Moving Led 100...
Page 15: Service Setting
W-DMX control, you can select the function “De-activate WDMX” by turning the encoder. With the function “rest”, you can log out the projector from the wireless sender. Reset Default With this function, you can select restore factory set for ON or OFF, the default is OFF. Idea Moving Led 100 XM335-V1.1-A...
Page 16: Reset-Functions
If e.g. a Slave unit is set to “Slave 1” in the menu “Set to Slave”, the Master unit sends “Auto Program Part 1” to the Slave unit. If set to “Slave 2”, the Slave unit receives “Auto Program Part 2”. XM335-V1.1-A Idea Moving Led 100...
Page 17 Turn the encoder to select the desired scene numbers. You can program a maximum number of 250 scenes. Press the Enter button to confirm. Press the Mode/Esc button in order to return to the main menu. Idea Moving Led 100 XM335-V1.1-A...
Page 18 Auto Pro Part 1 is Program 2; Auto Pro Part 2 is Program 3; Auto Pro Part 3 is Program 6 The 3 Slave groups run the Auto Program in certain time segments, as shown in the following picture: XM335-V1.1-A Idea Moving Led 100...
Page 19: Instructions On Use
Random strobe effect slow to fast 224-255 Led turn on Dimmer intensity: 0-255 Intensity 0 to 100% Rainbow: No function 8-39 Rainbow colours 40-71 Rainbow colours 72-103 Rainbow colours 104-135 Rainbow colours 136-167 Rainbow colours 168-199 Rainbow colours Idea Moving Led 100 XM335-V1.1-A...
Page 20: Error Message
(TILT-head movement error) This message will appear after the reset of the fixture if the head’s magnetic-indexing circuit malfunctions (sensor failed or magnet missing) or the stepping-motor is defective (or its driving IC on the main PCB). The TILT- movement is not located in the default position after the reset. XM335-V1.1-A Idea Moving Led 100...
Page 21: Cleaning And Maintenance
100V~240V,50Hz/60Hz Power consumption: max. 230W Packing dimensions: 35x29.5x43cm Net weight: 7.6KGS Gross weight: 10KGS Remark: errors and omissions for every information given in this manual excepted. All information is subject to change without prior notice. Idea Moving Led 100 XM335-V1.1-A...
