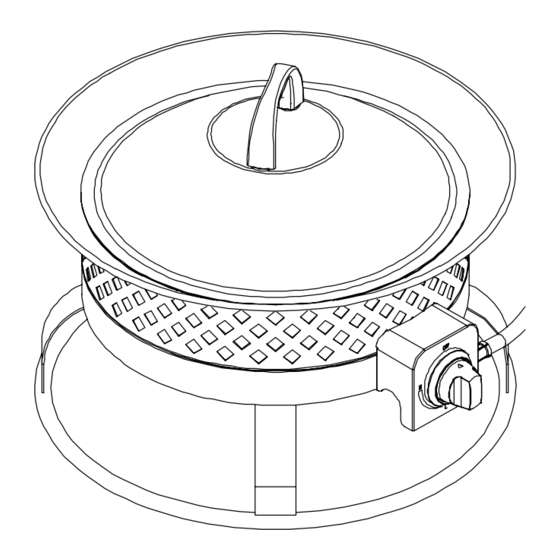

Portable Gas Fire Bowl
Model No. 085-1296-8
Design certified under ANS
Z21.97 - CSA 2.41-(2012)
Requirements for Outdoor Gas
Fireplaces
Assembly Instructions
Toll-free: 1-866-771-2663
IMPORTANT: Please read this manual carefully before beginning assembly of this product.
Keep this manual for future reference.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odour continues, keep away from
the appliance and immediately call
your gas supplier or fire department.
WARNING
Do not store or use gasoline or other
flammable vapours and liquids in the
vicinity of this or any other appliance.
An LP-cylinder not connected for use
shall not be stored in the vicinity of
this or any other appliance.
WARNING
For outdoor use only.
This appliance can produce carbon monoxide
which has no odour.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space
such as a camper, tent, car or home.
Advertisement
Table of Contents
Summary of Contents for Living 085-1296-8
-
Page 1: Assembly Instructions
Portable Gas Fire Bowl Model No. 085-1296-8 DANGER If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. If odour continues, keep away from the appliance and immediately call your gas supplier or fire department. - Page 2 Imported by Trileaf Distribution Trifeuil Toronto, Canada M4S 2B8 | Made in China...
- Page 3 Table of Contents Important Safety Instructions Parts List Assembly 6-10 Operation Cleaning and Maintenance Technical Specifications Warranty Warning! Please read and understand this entire manual before attempting to assemble, operate or install the product. Failure to follow the dangers, warnings and cautions contained in this instruction manual may result in a fire or explosion causing damage to property, serious bodily injury or death.
- Page 4 Model No. 085-1296-8 • Do not use a propane gas tank with a damaged valve and any other worn out parts. A dented or rusty propane gas tank may be hazardous and should be checked by your gas supplier prior to use.
- Page 5 • Inspect the hose before each use of this fireplace. If the hose shows signs of cracks, abrasion, cuts or damage, do not use this fireplace. Fix the hose as required before using appliace. • Remove the hose out of pathways where it may be tripped over or subject to accidental damage. •...
- Page 6 Model No. 085-1296-8 Lid - 1 Body - 1 Pumice stones - 1 box Handle- 1 Wrench - 1 Tank holder - 1 Cushion - 2 Shown at actual size Spring washer - 2 Shown at actual size Flat washer - 2...
- Page 7 Let us help you! DO NOT RETURN YOUR PRODUCT TO THE STORE. CALL US FIRST! 1-866-771-2663 If you have questions regarding your product, require warranty assistance, or have damaged or missing parts, please call our customer service toll-free helpline. Contact us for assistance; we’re here to help. IMPORTANT: Please read and understand this manual before any assembly.
- Page 8 Model No. 085-1296-8 Step 1 Requires 1, 4, A Place two cushions A onto the threaded part of the handle 4. Insert handle 4 into holes on top of the lid 1. Shown at actual size Step 2 Requires 1, 4, 5, B, C, D From underside of lid 1, place a a flat washer C and then a spring washer B onto the threaded part of the handle 4.
- Page 9 Step 3 Requires 2, 3 Place pumice stones 3 into the body 2. Warning! • The screen in this firebowl MUST be clear and free of obstructions at all times to ensure proper operation. Make sure the fire bowl is covered completely with pumice stones lest the flame extinguish occasionally.
- Page 10 Model No. 085-1296-8 Step 5 To install the propane gas tank to the body 2, first turn the cylinder valve on the propane gas tank clockwise to close the gas supply on the propane gas tank. Then, screw the regulator coupling from inside the body 2 onto the valve clockwise by hand only.
- Page 11 Perform leak test in a well-ventilated area outside where no source of spark can occur. Connect propane gas tank to regulator. Turn the on/off valve at the unit to the “OFF’” position to pressurize the control system. Use a soapy-water solution to check all the connections for leaks before attempting to light the appliance. If a leak is found, or you smell gas, disconnect cylinder and turn valve off.
- Page 12 Model No. 085-1296-8 Dimensions (L x W x H) 46.9 x 50.8 x 37.2 cm 18 1/2 x 20 x 14 5/8" Product weight 9.3 kg 20 lb 8 oz This For Living product carries a one (1) year warranty against defects in workmanship and materials.
