Summary of Contents for Taurus TBG-150

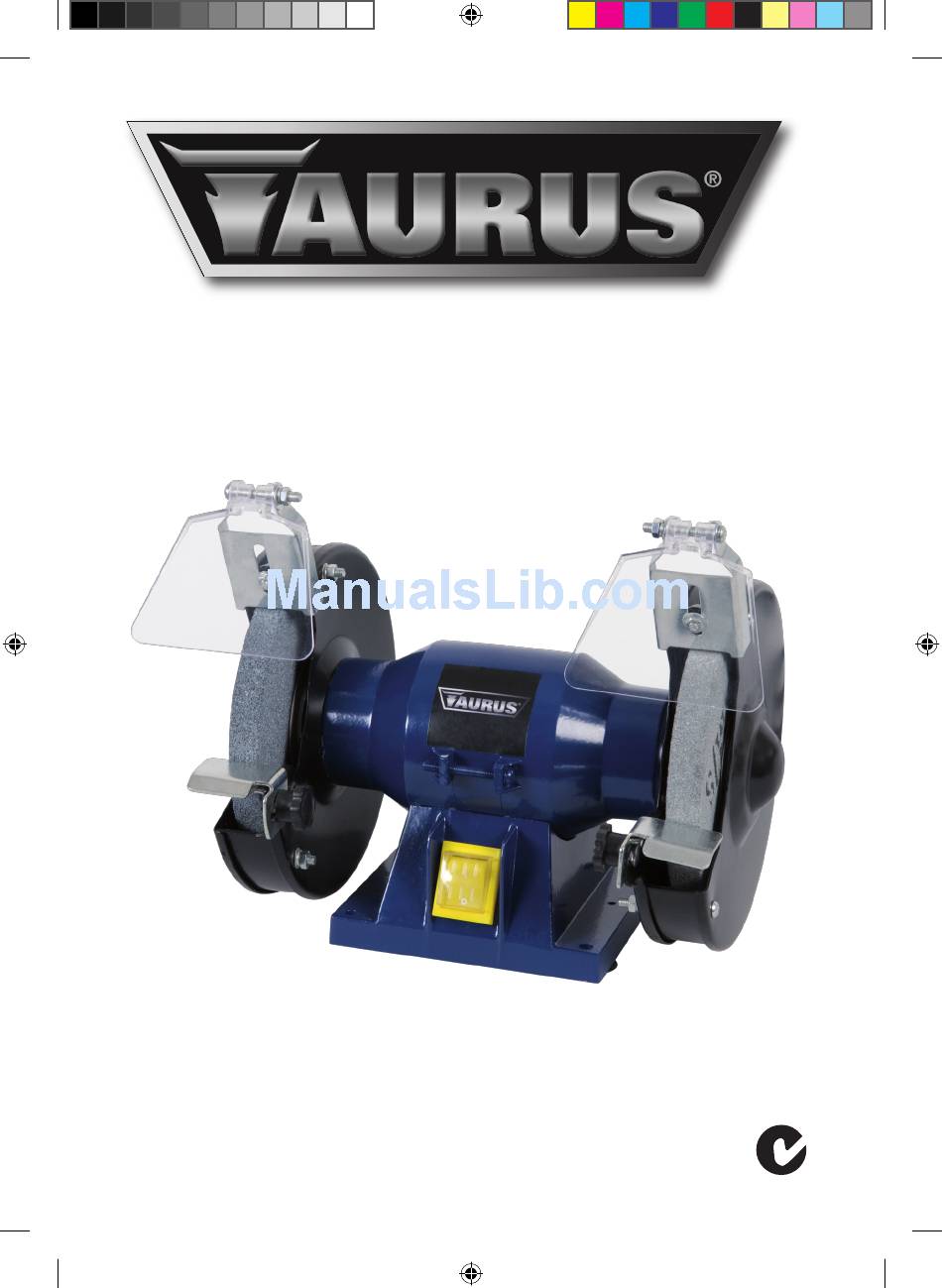

- Page 1 150W Bench Grinder inSTrUcTiOn MAnUAL MOdeL nUMBer TBG-150 ArTicLe nUMBer BGM6018 AFTer SALeS SUPPOrT TeL: 07 3188 2025 WeB: heLPdeSK@dUOnS.cOM.AU After Sales Support TEL: 07 3188 2025 WEB: n26968 helpdesk duons BGM6018 Ma 1109-26.indd 1 9/26/11 10:56:02 AM...
- Page 2 Bench Grinder Congratulations on choosing to buy a TAURUS® product. All products brought to you by TAURUS® are manufactured to the highest standards of performance and safety, and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive Year Warranty.
-
Page 3: General Information And Safety Instructions
Bench Grinder General information and safety instructions page 3 Assembly page 8 Assembly and spare parts page 9 Features page 11 Operating instructions page 13 Frequently asked questions page 13 Other useful information page 14 GenerAl informAtion And SAfety inStructionS Warning Read the enclosed safety warnings, the additional safety warnings and the instructions. -
Page 4: Safe Operation
Bench Grinder “WARNING ! When using electric tools basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury including the following. Read all these instructions before attempting to operate this product and save these instructions”. - Page 5 Bench Grinder - Never yank the cord to disconnect it from the socket. Keep the cord away from heat, oil and sharp edges. 12 - Secure work - Where possible use clamps or a vice to hold the work. It is safer than using your hand. 13 - Do not overreach - Keep proper footing and balance at all times.
- Page 6 Bench Grinder manual may present a risk of personal injury. 22 - Have your tool repaired by a qualified person - This electric tool complies with the relevant safety rules. Repairs should only be carried out by qualified persons using original spare parts, otherwise this may result in considerable danger to the user.
-
Page 7: Electrical Safety
Bench Grinder Whenever using the machine • Check that the switch is NOT in the ‘ON/1’ position before connecting the machine to the power supply. • Always keep the power cord out of the way of the tool’s moving parts. immediately switch off the machine when: •... - Page 8 Bench Grinder Vibration level The vibration emission level stated in this instruction manual has been measured in accordance with a standardised test given in EN 61029; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned using the tool for different applications, or with different or poorly maintainted accessories, may significantly increase the exposure level...
- Page 9 Bench Grinder • Fit the tool rest as shown in Fig. C.(page 12) • Fix it as tightly as possible in position, with a maximum clearance (C) of 1 to 1.5 mm between the tool rest and the grinding wheel. replacing the grinding wheel Fig.
- Page 10 Bench Grinder expanded view After Sales Support TEL: 07 3188 2025 WEB: helpdesk duons BGM6018 Ma 1109-26.indd 10 9/26/11 10:56:03 AM...
-
Page 11: On/Off Switch
Bench Grinder feAtureS 1. On/off switch 2. Tool rest (right) 3. Eye shield 4. Eye shield bracket 5. Screw 6. Tool rest (left) Fig. A After Sales Support TEL: 07 3188 2025 WEB: helpdesk duons BGM6018 Ma 1109-26.indd 11 9/26/11 10:56:04 AM... - Page 12 Bench Grinder Fig. B Fig. D Fig. C After Sales Support TEL: 07 3188 2025 WEB: helpdesk duons BGM6018 Ma 1109-26.indd 12 9/26/11 10:56:04 AM...
-
Page 13: Frequently Asked Questions
Bench Grinder oPerAtinG inStructionS Selecting the grinding wheel Coarse grinding wheels will generally remove the most material, and fine grinding wheels are used for finishing. If the surface is uneven, begin by using a coarse grinding wheel, and grind the workpiece until it is smooth. Next use a fine grinding wheel to remove the grooves and scratching left by the coarse wheel, and finish off the workpiece. -
Page 14: Warranty
Bench Grinder otHer uSefull informAtion cleaning and maintenance Before cleaning and maintenance, always switch off the machine and remove the mains plug from the mains. • Regularly clean the housing with a soft cloth. • Keep the ventilation slots free from dust and dirt. If necessary, use a soft, moist cloth to remove dust and dirt from the ventilation slots. -
Page 15: Declaration Of Conformity
Bench Grinder declArAtion of conformity (GB) We declare under our sole responsibility that this product is in conformity and accordance with the following standards and regulations: en61029-1, en61029-2-4, en55014-1, en55014-2, en61000-3-2, en61000-3-3 2006/42/ec, 2006/95/ec, 2004/108/ec, 2002/96/ec, 2002/95/ec Zwolle, 01-08-2011 I. Mönnink CEO Ferm BV It is our policy to continuously improve our products and we therefore reserve the right to change the product specification without prior notice. - Page 16 1109-26 After Sales Support TEL: 07 3188 2025 WEB: helpdesk duons BGM6018 Ma 1109-26.indd 16 9/26/11 10:56:05 AM...
