Spectrum AIL 660 series Setup Manual

3 Piece Drumset
Setup Guide
Thank you for purchasing the Drum Set. Please take a few moments to
familiarize yourself with the setup guide.
This setup should only be performed by an adult.
Check all of the parts listed below are included in the box. For greater safety, the Mounted Tom
Drum should be mounted on the Bass Drum at an angle of 80 degrees.
Warning: Not suitable for children under 5 due to small parts.
SET INCLUDES:
Drums:
One 16" x 12" Bass Drum
One 8" X 5" Mounted Tom Drum
One 10" x 4" Snare Drum
Drum Heads:
One 16" Clear Batter Side Bass Drum Head
[The Batter Side is the side of the bass drum nearest the
drummer and is struck with the Beater – Foot Pedal]
One 16" Resonant Side Bass Drum Head with Logo.
The Resonant side of a Bass Drum is the side facing out
to the audience.

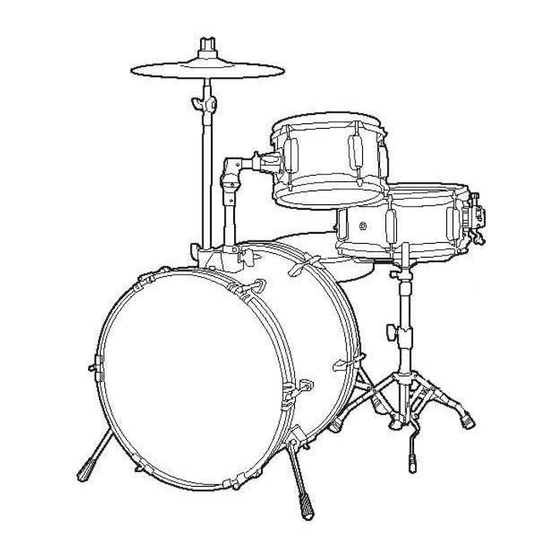

Set shown for illustrative purposes only. Actual set
One 8" Batter Side Mounted Tom Drum Head
may vary.
On the Tom Drum, the Batter side faces up toward the
drummer.
One 8" Resonant Side Mounted Tom Drum Head
On the Tom Drum, the Resonant Side faces down to the
ground.
Snare Drum Heads are already installed on snare.
Legs:
Two Bass Drum Legs
Stands:
One Snare Drum Stand
One Cymbal Stand
Snare Drum Stand Cymbal Stand
Bag Packaged Parts:
34 Washers (A)
22 Short Tension Rods (B)
12 Long Tension Rods (C)
12 Bass Drum "Claws" (D)
1 Drum Key (E)
Drum Set Assembly Instructions 1
