Summary of Contents for Force USA F-AAB-B

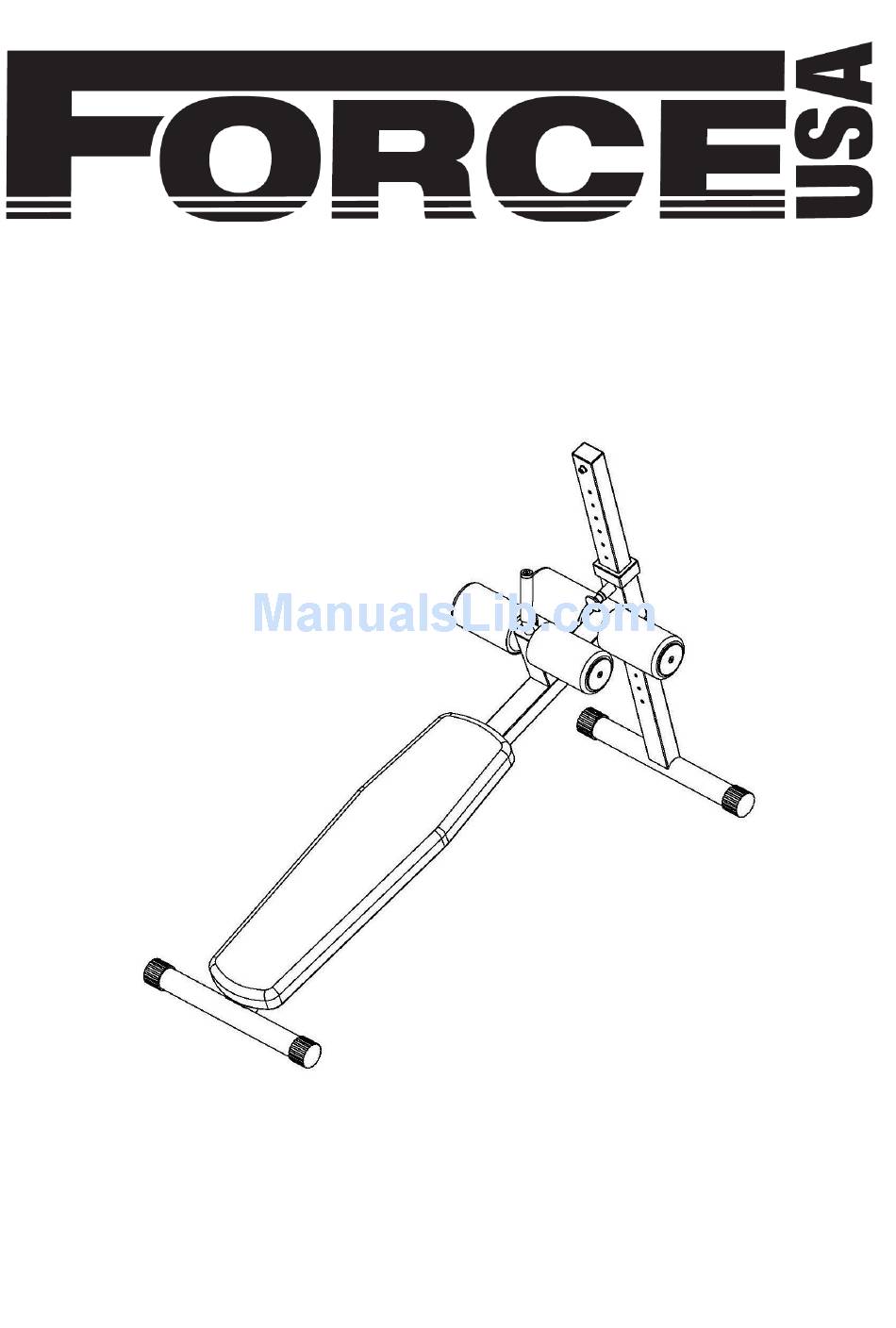

- Page 1 OWNER’S MANUAL F-AAB-B Adjustable Abdominal Bench CAUTION! Read all precautions and instructions in this manual before using this equipment.
- Page 2 ESPECIALLY IF YOU ARE OVER THE AGE OF 35 OR HAVE PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE ASSEMBLING OR USING ANY FITNESS EQUIPMENT. FORCE USA FITNESS EQUIPMENT ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT. SAVE THESE INSTRUCTIONS.
-
Page 3: Exploded Diagram
EXPLODED DIAGRAM Q’TY Q’TY NUMBER DESCRIPTION NUMBER DESCRIPTION MAIN FRAME ROUND CAP FRONT SUPPORT RECTANGULAR PLUG REAR BASE RECTANGULAR BUSHING FOAM TUBE M8*25 SOCKET SCREW SHEATHING M8*70 SOCKET CAP SCREW BIG SHEATHING M10*16 SOCKET CAP SCREW CUSHION M10*85 SOCKET CAP SCREW FOAM ROLLER 8MM WASHER FOAM COVER... - Page 4 STEP 01 1. Insert REAR BASE (3) into rear port of MAIN FRAME (1), secure with SCREW M10*16 (16), SCREW M10*85 (17), three WASHERS 10MM (19) and LOCK NUT M10 (20). 2. Insert FRONT SUPPORT (2) into front port of MAIN FRAME (1), choose proper height and secure with FAST PIN (10).
- Page 5 STEP 02 1.Attach CUSHION (7) to MAIN FRAME (1) using three SCREWS M8*70 (15) and three WASHERS 8MM (18). 2.Insert FOAM TUBE (4) into holes on MAIN FRAME (1). 3.Push FOAM ROLLERS with covers (8) onto each side of FOAM TUBES (4). 4.Attach BIG SHEATHINGS (6) to FOAM TUBES (4) using four SCREWS M8*25 (14).
- Page 7 The replacement or repair provided for under the Force USA warranty is the responsibility of the user and the customer will be responsible for any freight charges applicable. Force USA will not be liable for any consequential damages or for breach of any implied warranty on the range of Force USA strength equipment.
