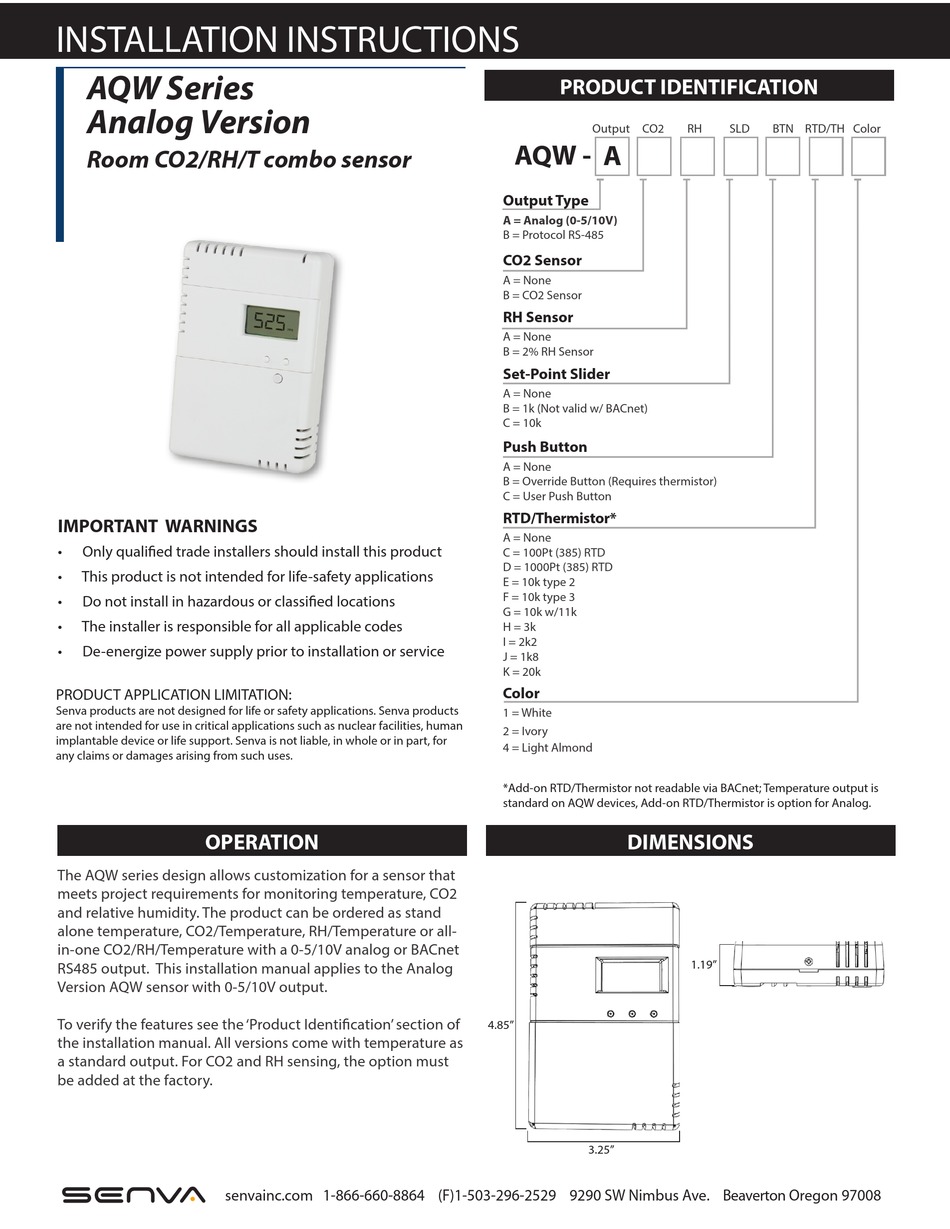

senva AQW Series Installation Instructions

INSTALLATION INSTRUCTIONS
AQW Series
Analog Version
Room CO2/RH/T combo sensor
IMPORTANT WARNINGS
• Only qualified trade installers should install this product
• This product is not intended for life-safety applications
• Do not install in hazardous or classified locations
• The installer is responsible for all applicable codes
• De-energize power supply prior to installation or service
PRODUCT APPLICATION LIMITATION:
Senva products are not designed for life or safety applications. Senva products
are not intended for use in critical applications such as nuclear facilities, human
implantable device or life support. Senva is not liable, in whole or in part, for
any claims or damages arising from such uses.
OPERATION
The AQW series design allows customization for a sensor that
meets project requirements for monitoring temperature, CO2
and relative humidity. The product can be ordered as stand
alone temperature, CO2/Temperature, RH/Temperature or all-
in-one CO2/RH/Temperature with a 0-5/10V analog or BACnet
RS485 output. This installation manual applies to the Analog
Version AQW sensor with 0-5/10V output.
To verify the features see the 'Product Identification' section of
the installation manual. All versions come with temperature as
a standard output. For CO2 and RH sensing, the option must
be added at the factory.
senvainc.com 1-866-660-8864 (F)1-503-296-2529 9290 SW Nimbus Ave. Beaverton Oregon 97008
PRODUCT IDENTIFICATION
Output CO2
AQW - A
Output Type
A = Analog (0-5/10V)
B = Protocol RS-485
CO2 Sensor
A = None
B = CO2 Sensor
RH Sensor
A = None
B = 2% RH Sensor
Set-Point Slider
A = None
B = 1k (Not valid w/ BACnet)
C = 10k
Push Button
A = None
B = Override Button (Requires thermistor)
C = User Push Button
RTD/Thermistor*
A = None
C = 100Pt (385) RTD
D = 1000Pt (385) RTD
E = 10k type 2
F = 10k type 3
G = 10k w/11k
H = 3k
I = 2k2
J = 1k8
K = 20k
Color
1 = White
2 = Ivory
4 = Light Almond
*Add-on RTD/Thermistor not readable via BACnet; Temperature output is
standard on AQW devices, Add-on RTD/Thermistor is option for Analog.
DIMENSIONS
94 mm (3.7 in)
4.85"
3.25"
RH SLD BTN RTD/TH Color
94 mm (3.7 in)
94 mm (3.7 in)
28 mm (1.1 in) 1.19"
