INSTALLATION, OPERATION, MAINTENANCE AND TROUBLESHOOTING
Be sure unit is standing upright 24 hours prior to plug-in.
TABLE OF CONTENTS
We reserve the right to make changes in specifications and design without prior notice.
MODEL 87
1
Page
2
3 - 4
5
6 - 7
6
6 - 7
7
8
8
8
8 - 10
9
9
9
9
9
9 - 10
10
11
12
Advertisement
Table of Contents
Related Manuals for Icer.ette 87
Summary of Contents for Icer.ette 87
-
Page 1: Table Of Contents

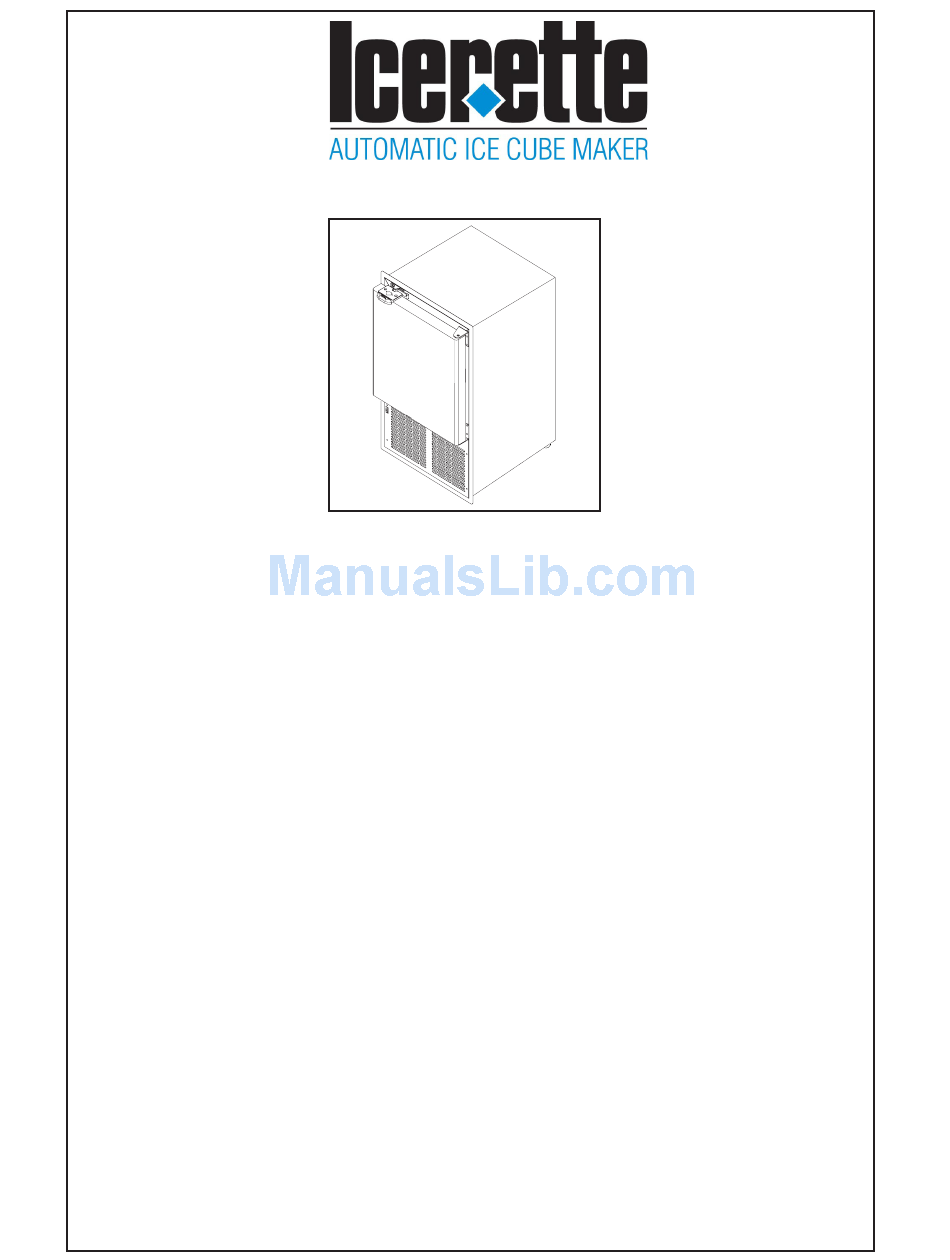

INSTALLATION, OPERATION, MAINTENANCE AND TROUBLESHOOTING MODEL 87 Be sure unit is standing upright 24 hours prior to plug-in. TABLE OF CONTENTS Page ICE MAKER SAFETY IMPORTANT SAFEGUARDS 3 - 4 COMPONENT LOCATIONS ICE MAKER INSTALLATION 6 - 7 Unpacking 6 - 7... -
Page 2: Ice Maker Safety
ICE MAKER SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can injure or kill you and others. -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS Before the ice maker is used, it must be properly positioned and installed as described in this manual, so read the manual carefully. The manufacturer strongly recom- mends that you have a professional install your new machine. The warranty may be affected or voided by an incorrect installation. - Page 4 • Make certain that hoses are not pinched, kinked or damaged during installation. • Check for leaks after water line is connected. • Although the unit has been tested and cleaned at the factory, due to long-term transit and storage, the first batch of cubes must be discarded. •...
-
Page 5: Component Locations
Exploded View of Model 87 Icer-ette item part # Description FIG1 87201W Top and bottom Hinge Includes(7) 872021 Icemaker 115V 872022 Icemaker 230V 87203W Handle Latch Assy. Includes(4) 87205 S/S Door Assy. 87206 Power Switch 87209 Ice Bucket 872111 Water Valve 120V AC... -
Page 6: Ice Maker Installation
Unpacking Excessive Weight Hazard Use two or more people to move and install ice maker. Failure to do so can result in back or other injury. Remove packaging materials IMPORTANT: Do not remove any permanent instruction labels or the data label on your ice maker. Remove tape and glue from your ice maker before using. -
Page 7: Electrical Requirements
。 。 。 。 • Units are designed to operate between 50 F (10 C) and 100 F(38 C). High ambient temperat- 。 。 ures (100 F 38 C or higher) may reduce Ice production rate. For best performance, keep the unit out of direct sunlight and away from heat generating equipment. -
Page 8: Operation
OPERATION Final Check List before Operation Have all packing materials and tape been removed from the interior and exterior of the ice maker? Did you clean the ice storage bin? Have the installation instructions been followed, including connecting the machine to wat- er and electricity? Has the machine been leveled? 。... -
Page 9: Exterior Cleaning
Exterior cleaning The door and cabinet may be cleaned with a mild detergent and warm water solution such as 1 oz.(28g) of dishwashing liquid mixed with 2 gallons( ) ( ) ( of warm water. Do not use solvent-based or abrasive (9L) cleaners. -
Page 10: Troubleshooting
WARNING: DO NOT touch the condenser. They are sharp and can be easily damaged. TROUBLESHOOTING: Before Calling for Service If the unit appears to be malfunctioning, read through the OPERATION section of this manual first. If the problem persists, check the Troubleshooting Guide on the following pages. Some of the problems mentioned in the Guide can be solved easily without a service call. -
Page 11: Technical Information
They are subject to change. **The height include 1/2” (12mm) rubber feet. *The actual quantity of ice produced per day can vary with room and water conditions. Model 87 with flange: 16 1/2" 14" (420 mm) (356 mm) 24 1/2" with feet 14 1/2"... -
Page 12: Limited Warranty
SAVE THESE INSTRUCTIONS Should a problem arise, please feel free to contact Raritan Technical Support at either the Mill- ville, NJ or Fort Lauderdale, FL office. LIMITED WARRANTY Raritan Engineering Company warrants to the original purchaser that this product is free of defects in materials or workmanship for a period of one year from the product’s date of purchase.
