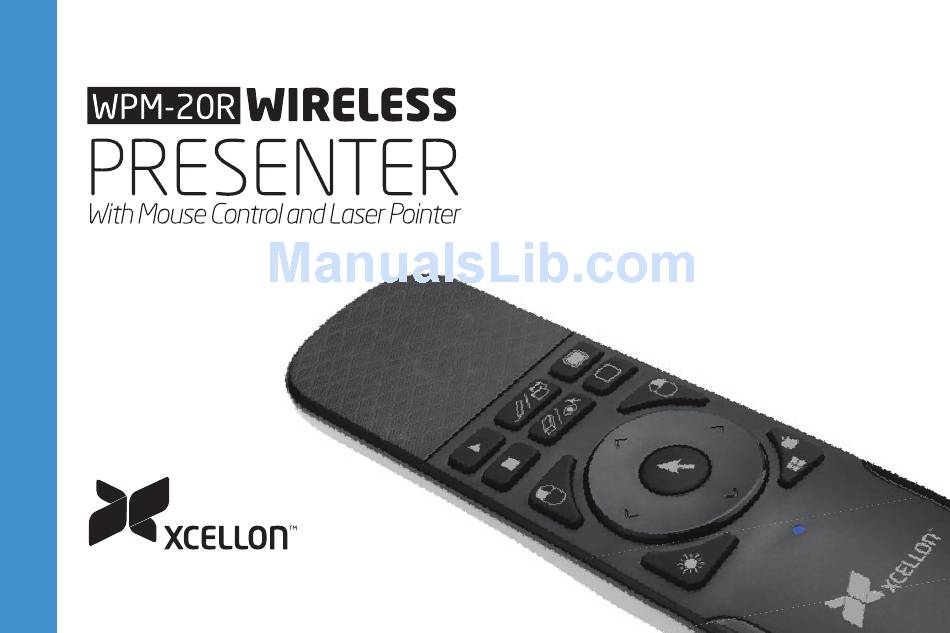

Xcellon WPM-20R User Manual

Wireless presenter with mouse control and laser pointer
Hide thumbs

Advertisement

Quick Links

Download this manual
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the WPM-20R and is the answer not in the manual?

Questions and answers

Related Manuals for Xcellon WPM-20R

Summary of Contents for Xcellon WPM-20R

  • Page 2 Thank you for choosing Xcellon. The Xcellon WPM-20R is a handheld wireless controller that provides users with the flexibility to move around freely while presenting a PowerPoint or Keynote slideshow. This innovative tool features a powerful laser pointer and is designed with numerous special functions that imitate keyboard and mouse commands.
  • Page 3 Precautions » Please read and follow the instructions in this manual for proper use of this device. » Keep this product away from water and flammable gases or liquids. » Use a soft, slightly moistened cloth when cleaning. Do not use solvents or abrasive substances.
  • Page 4 Overview Front Left-click Toggle mouse control on/off PC (PowerPoint): Pen Tool Mac (Keynote): Switch Presenter Display Laser pointer Pause, fade to black screen Rear Pause, fade to white screen Battery compartment Right-click Receiver compartment Navigation Mode selector Also Included LED indicator USB Nano Receiver »...

  • Page 6: Getting Started

    Getting Started Locate the battery compartment on the back of the Presenter. Slide open and remove the battery compartment door. Remove the USB receiver from the battery compartment and plug it into a powered USB port on your computer. Insert two fresh AAA batteries in the orientation indicated by the illustration within the compartment.
  • Page 7 The Extension Cable Electronic interference can occur when there is electronic equipment between the Presenter and the USB receiver. Simply plugging the USB receiver into the back of a desktop computer can affect the performance of the Presenter. If there is electronic interference and your Presenter isn’t responding, follow these steps: Insert the extension cable into the powered USB socket in your computer.

  • Page 8: Using The Presenter

    Using the Presenter The LED Indicator The LED indicator lets you know the status of the Presenter: · Slow blink: Presenter not connected. · Fast blink: Battery power is low. · LED constant on: Presenter connected in PC PowerPoint mode. ·...
  • Page 9 Mouse Control To use the mouse control, point the Presenter at the screen and press the Mouse Control button to toggle to mouse mode. Use small movements of your wrist to control the mouse and assure smooth cursor tracking. Use the Left-Click and Right-Click buttons to perform the same operations as you would with a mouse.
  • Page 10 Presentation Features To use the advanced features of the Presenter when using PowerPoint or Keynote follow these steps: Press the mode selector [ ] to choose the computer you are using. · When PowerPoint is selected (Windows only), the LED indicator is on. ·...
  • Page 11 The Laser Pointer To use the laser pointer, press and hold the laser button. Releasing the button turns the laser pointer off. The Pen and Erase Tools (Windows PowerPoint only) Press the Pen [ ] or Eraser [ ] button to switch the cursor to the corresponding tool.
  • Page 12 Switch Presenter Display (Mac OS Keynote only) Press the Switch Presenter Display button [ ] button in Keynote to swap the position of the presenter display and the secondary display. Show/Hide the Cursor (Mac OS Keynote only) Press the Show/Hide Cursor [ ] button to hide the cursor during your slide presentation.

  • Page 13: Troubleshooting

    Troubleshooting Problem Solution My computer is not • Make sure the batteries have power and are installed in the responding to the correct orientation. Presenter. • Make sure the receiver is fully plugged into your computer’s USB port. • Remove and reseat the receiver in your computer’s USB port.
  • Page 14 Specifications Receiver Nano style Connection port USB port Transmission mode GFSK 2.4 GHz, up to 65' (19.8 m) Transmission power Less than +4 dB Power AAA battery (×2) Sleeping current class 1 50 µA Operation voltage Operating current <15 mA Extension cable length 16.9”...

  • Page 15: One-Year Limited Warranty

    One-Year Limited Warranty This Xcellon product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later.
