MAINTENANCE OF THE

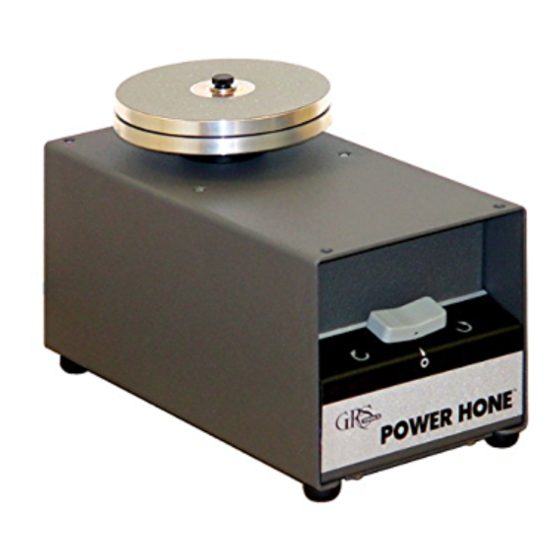

The GRS Diamond
Power Hone is designed for a
long, useful service life. The spindle is driven
by a smooth belt system at 240 RPM. The
diamond wheel supplied with your hone provides
true diamond performance. This means carbides,
hard metals, ceramics, and other exotic
materials are all within the capability of your
Power Hone. Replacement diamond wheels are
available from GRS Tools in several grits for a
wide range of applications.

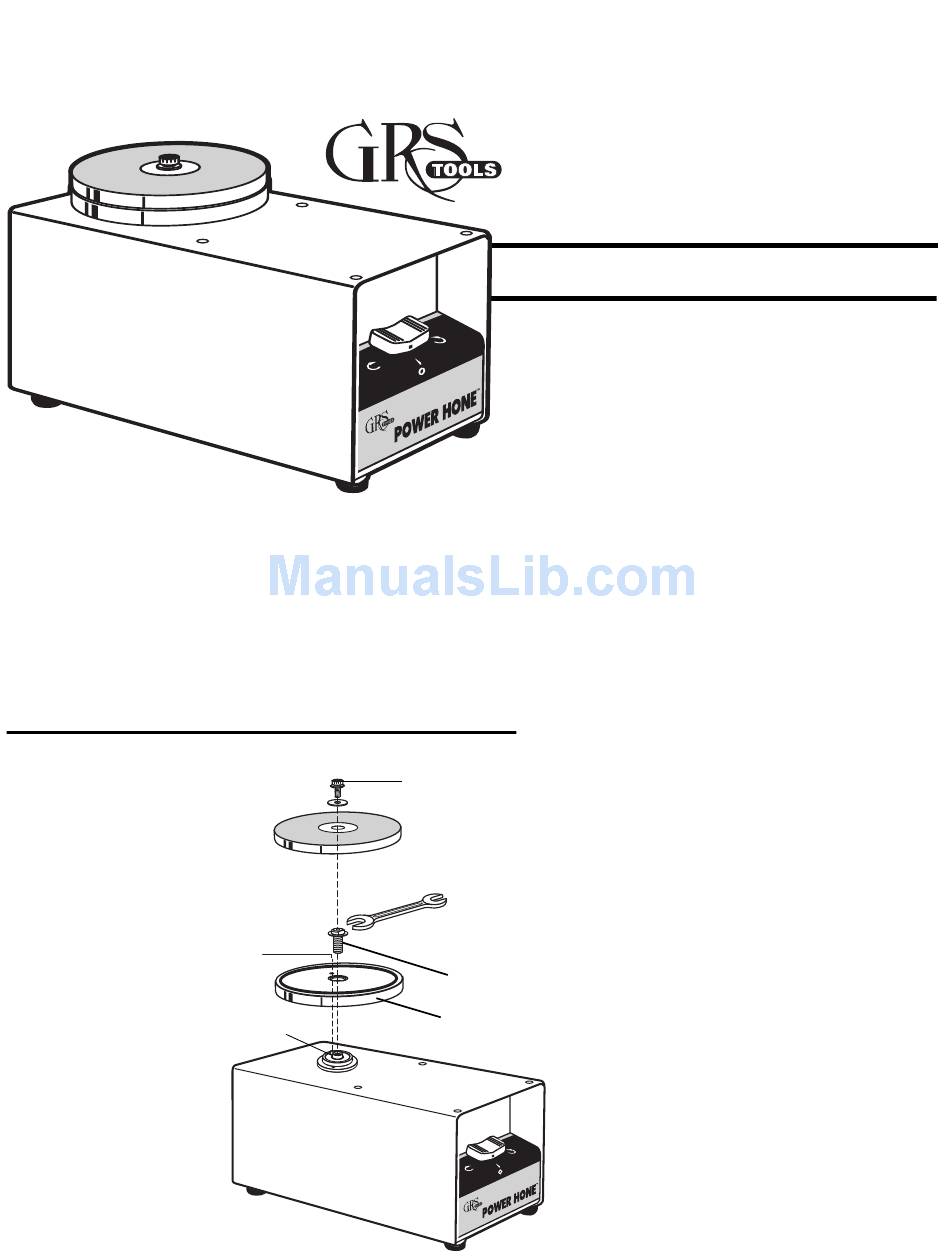

ATTACHING THE
QUICK CHANGE
DRIVE PLATE
FIRST - Align the pin located on
the spindle with hole in the QC
Drive Plate. Make sure plate
rests fully on spindle. Insert
Spindle Nut, tighten snug
with a 3/8" open end wrench.
(Do NOT over tighten) Plug
machine in, turn it on, check
to see if plate runs true and
does not wobble. If it wobbles,
turn off, double check that
the pin aligns with the hole
in QC plate and is seated
properly on spindle.
Place diamond wheel on
top of QC plate and insert
thumb screw / washer into
spindle nut and finger tighten.
OPERATION AND
TIGHTEN ONLY
ALIGN
PIN IN
HOLE
SPINDLE
PIN
Lit #193
POWER
HONE
M O D E L

TOOL SHARPENING

When using the Power Hone, hold the
tool relatively stationary while the rotary
motion of the wheel sharpens the tool.
Sweep the tool slowly across the working
surface of the wheel. This extends wheel
life by using the entire cutting face and
prevents grooving. The Power Hone is
designed mainly for fine tool sharpening
and finishing. Use a bench grinder to rough
shape tool points, then give them a fine
finish on the Power Hone. This will save
time and extend diamond wheel life.
Engraving & Jewelry Tools
The Power Hone was originally
designed to sharpen engraving and jewelry
tools. Sharpening fixtures to hold the
gravers to the precision angles required
FINGER
for fine engraving tools are available
from GRS Tools. See the "accessories"
section or the GRS Tools catalog for the
sharpening fixtures that are available.
3/8"
OPEN
NOTE:
END
WRECH
For very delicate work such as heeling
small gravers, try using the diamond wheel
SPINDLE
with the machine turned off. This will
NUT
prevent removing too much material.
QC DRIVE
PLATE
Household & Shop Items
The Power Hone is useful around the
house and shop to sharpen items like;
scissors, knives, craft tools, hobby
tools, chisels, wood and metal lathe
tools, etc. With the ceramic lap wheel
you can even put an edge on a
razor blade.
TM
B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Power Hone B and is the answer not in the manual?

Questions and answers

Summary of Contents for GRS Power Hone B

  • Page 1 Power Hone. Replacement diamond wheels are Engraving & Jewelry Tools available from GRS Tools in several grits for a The Power Hone was originally wide range of applications. designed to sharpen engraving and jewelry tools.
  • Page 2 POWER HONE MAINTENANCE The GRS Power Hone is virtually maintenance free. For normal service, yearly lubrication is required. For extremely heavy service, the motor should be oiled every 6 months with several drops of SAE 20 non-detergent oil. Oil holes for the two...
  • Page 3 UNPLUG THE MACHINE BEFORE OPENING UNIT: ILL B. REPLACING THE DRIVE BELTS These drive belts are made of a special elastic material designed for this service. Regular belt inspections are unnecessary. If you were to notice a drag or loss of power while honing, it may be a broken belt.
  • Page 4 CONTINUED - 7. Replace belts and slide motor pulley assembly ILL I. back into the housing, guiding the pulley past the threaded standoffs - ILL I. 8. Stand the hone on its end and let the motor mount seat all the way onto the rear mounting screws.
  • Page 5 WIRING DIAGRAM 115V 60HZ (230V 50HZ)
  • Page 6 It provides a good finish with an adequate Fax: 620-343-9640 material removal rate. Finer grits are normally for finishing operation after using a coarser wheel or Tel: 620-343-1084 other abrasive. e-mail: GRS@GrsTools.com Or write: GRS Tools 900 Overlander Road P.O. Box 1153 Emporia, KS 66801 USA...
