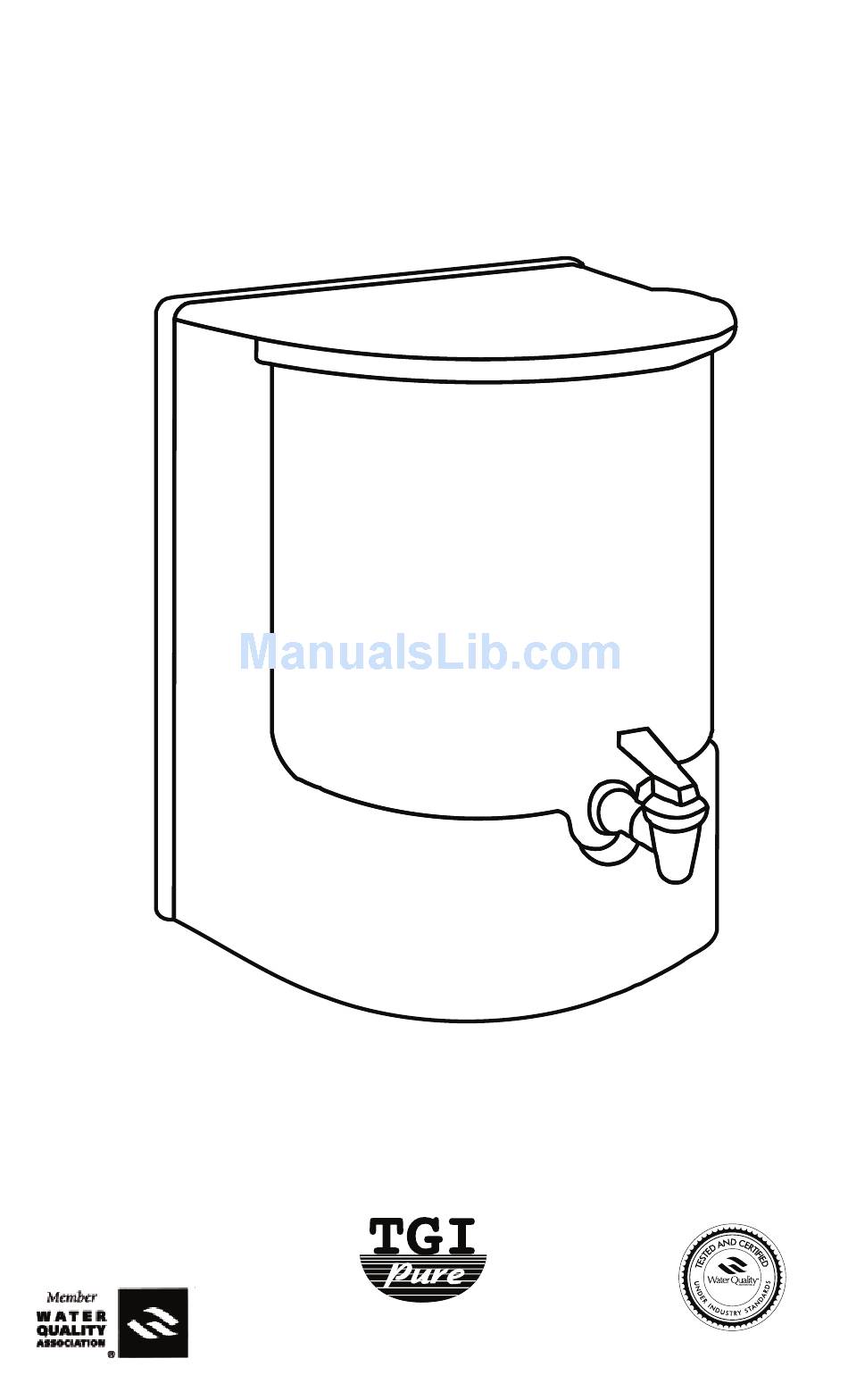

INSTALLATION & SERVICE MANUAL
Countertop Reverse Osmosis Systems
Series CT
System Tested and Certified by WQA against NSF/ANSI Standard 58 for the reduction of
Arsenic, Barium, Cadmium, Copper, Cyst, Hexavalent Chromium, Lead, Radium 226/228, Selenium,
TDS, Trivalent Chromium as verified and substantiated by test data
®
Manufactured by
Topway Global Inc.
Test and Certified
by WQA
Brea, Calif. 92821 U.S.A.
Advertisement
Table of Contents
Related Manuals for TGI CT-445
Summary of Contents for TGI CT-445
- Page 1 INSTALLATION & SERVICE MANUAL Countertop Reverse Osmosis Systems Series CT System Tested and Certified by WQA against NSF/ANSI Standard 58 for the reduction of Arsenic, Barium, Cadmium, Copper, Cyst, Hexavalent Chromium, Lead, Radium 226/228, Selenium, TDS, Trivalent Chromium as verified and substantiated by test data ®...
- Page 2 Series CT Manual Thank you for choosing a Series CT counter top reverse osmosis drinking water system. With proper care your water filtration system will produce high quality drinking water for many years. Read carefully and follow the instructions in this manual before installation. Pay particular attention to all warnings, cautions and notes.
- Page 3 Series CT Manual SPIGOT INSTALLATION Wipe the inside of the water reservoir and rinse with clean water. Install the spigot as shown in <Fig.2>. It is important that the rubber washer be installed on the outside of the reservoir. Hand tighten by turning the spigot. Do not over tighten. Reservoir Wall Plastic Nut Washer...
- Page 4 Series CT Manual FAUCET AERATOR INSTALLATION Male thread faucet Female thread faucet Thick Washer Thin Washer CT-322 Special aerator Snap adapter Hose to RO Plastic collar Snap adapter CT-391/2 Wing valve <Fig.3> Remove the existing aerator from the faucet and attach the new special aerator (CT-322) included with the RO unit.
- Page 5 Series CT Manual START UP Open the plastic wing valve (see <fig.3>) two full turns (counterclockwise). And slowly turn on the cold water. NOTE: Do not allow hot water to enter the unit. This will permanently damage the membrane. Water will fill the unit and also flow from the bottom outlet of the wing valve. Do not completely shut off the reject water.
-
Page 6: Helpful Hints
Do not use with water that is unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that contain filterable cysts. Model CT-445 CT-445P Pressure 50-90... -
Page 7: Installation Guide
Series CT Manual INSTALLATION GUIDE TANK LEVEL CONTROL (TLC) LAYOUT Over Flow Pure Water Green Black <Fig.5> 1. 3 pin connection for sensor wire 2. 2 pin connection for pump 3. 2 pin connection for transformer Power: Powered with world wide primary voltage available (100V, 120V, 230V) -
Page 8: Feed Water
Series CT Manual CT-445 FILTRATION PROCESS To Storage Tank Feed Water Please contact your local dealer at: Or call TOPWAY GLOBAL INC. at 800-840-1688 for your local dealer listing phone number Replacement Part Part No. Descriptions Service life FI-SED010S Inline sediment filter... - Page 9 Series CT Manual CT-445P FILTRATION PROCESS To Storage Tank Feed Water Please contact your local dealer at: Or call TOPWAY GLOBAL INC. at 800-840-1688 for your local dealer listing phone number Replacement Part Part No. Descriptions Service life FI-SED010S Inline sediment filter 6-12 months FI-CBA010S Inline pre carbon filter...
-
Page 10: Troubleshooting
Series CT Manual TROUBLESHOOTING PROBLEM CAUSE SOLUTIONS Milky colored Air in system Air in the system is a normal occurrence water with initial start up of the RO system. The milky look will disappear during normal use within 1 to 2 weeks. Slow Low water pressure Add a booster pump... -
Page 11: Limited One Year Warranty
Limited One Year Warranty 1. What your warranty covers: Series CT countertop reverse osmosis systems are warranted to the original owner to be free of defects in material and workmanship from the date of manufacture for one-year excluding the replaceable filters. 2.
