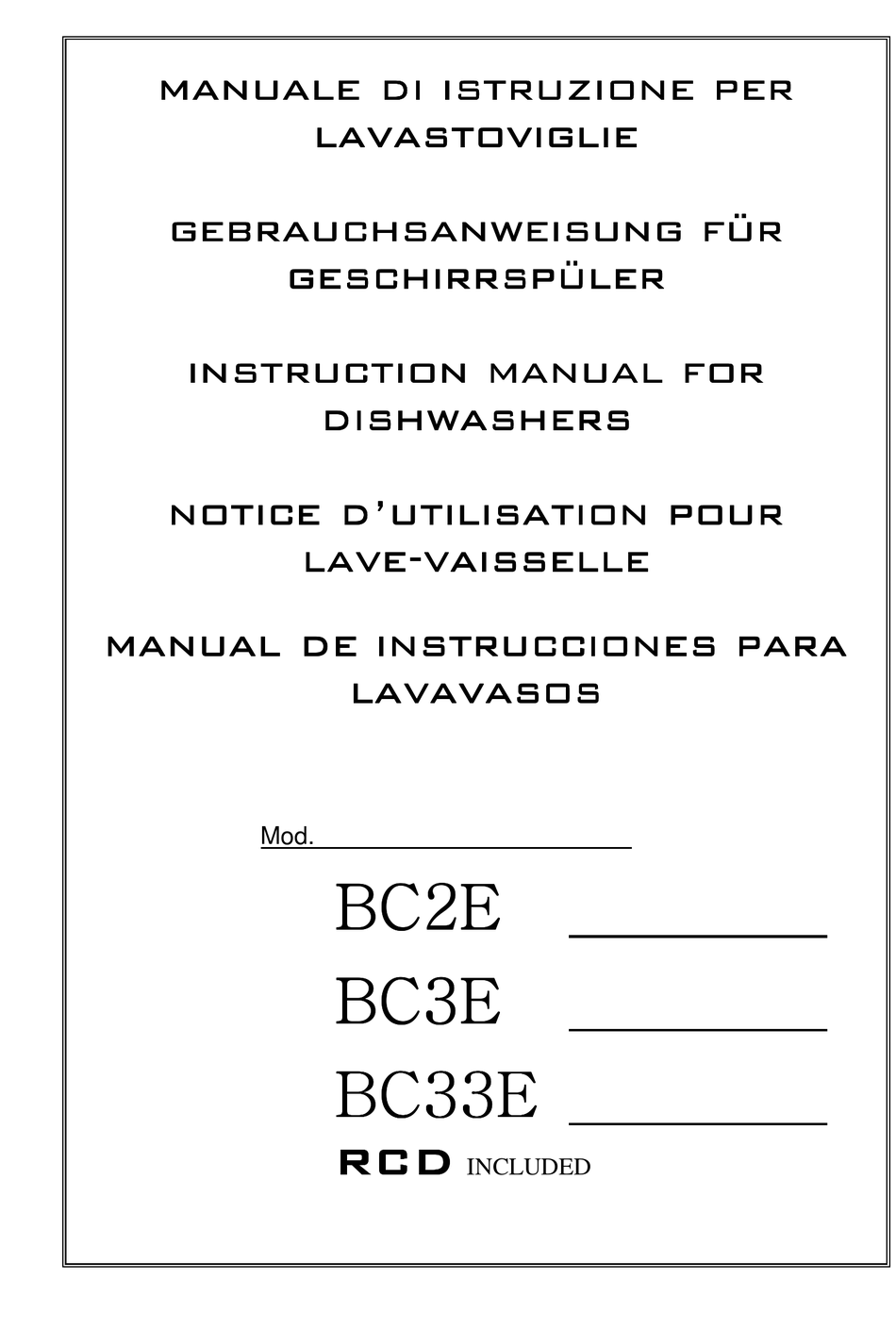

Page 1 - - - vaisselle vaisselle vaisselle vaisselle manual de instrucciones para manual de instrucciones para manual de instrucciones para manual de instrucciones para lavavasos lavavasos lavavasos lavavasos Mod. BC2E BC2E BC2E BC2E BC3E BC3E BC3E BC3E BC33E BC33E BC33E BC33E INCLUDED...
Page 2 INSTRUCTIONS FOR THE USER FOREWORD 1. Read the instructions contained in the enclosed booklet carefully, because it contains important information on installation, operation and maintenance safety. Store this booklet carefully for any further consultation by other operators. 2. Having removed the packing material, check that all the equipment is present.
Page 3: Instructions For Use
INSTRUCTIONS FOR THE USER INSTRUCTIONS FOR USE...
Page 4: Control Panel
INSTRUCTIONS FOR THE USER CONTROL PANEL CONTROL PANEL CONTROL PANEL CONTROL PANEL Main switch Pilot lamp " check " Pilot lamp "short cycle" Pilot lamp "medium cycle" Pilot lamp "long cycle" Pilot lamp "machine ready" Push button "WASH or DRAIN CYCLE START" Cycle selector / AUTOMATIC or MANUAL startup oiler thermometer Tank thermometer...
Page 5: Operation And Use
INSTRUCTIONS FOR THE USER OPERATION AND USE 1. Before washing make sure that: • the wall-mounted on/off switch is switched on; • the water tap is open; • water is present in the distribution network; • the pump protection filters are installed in their respective positions; •...
Page 6 INSTRUCTIONS FOR THE USER 5. Press the "S9" button to select the wash cycle according to conditions of the dishware: • (H9a ON ) ....short cycle .... for glasses and cups • (H9b ON) ....medium cycle..with normally dirty dishes •...
Page 7: Drain Cycle
INSTRUCTIONS FOR THE USER 7. Remove the rack and slightly incline it to permit a perfect drain; allow dishware to dry and after having washed one’s hands, handle the rack in order not to touch the dishware inside then place the rack on hygienically clean shelves.
Page 8 INSTRUCTIONS FOR THE USER INSTRUCTIONS DURING THE WASHING 1)Do not plunge bare hands into the water containing the detergent. If this happens, wash them immediately and abundantly with fresh water. 2)When the machine is operating, do not open the door too rapidly. 3)Use only specific anti-foaming detergents.
Page 9: Useful Suggestions
INSTRUCTIONS FOR THE USER USEFUL SUGGESTIONS 1) MAINTENANCE IMPORTANT: Before carrying out the cleaning and maintenance operations, disconnect the equipment from the electric supply. Frequently check and clean the nozzles. The frequency of this operation will depend on the quantity of residues, which may result in an unsatisfactory washing result.
Page 10: Hard Water Conditions
INSTRUCTIONS FOR THE USER 4)SANITIZING THE MACHINE Sanitizing the machine at least once a week is of the utmost importance in order to guarantee hygiene even when the machine is not in use. It is advisable to use a disinfecting product suggested by an authorised detergent dealer.
Page 11: Installation And Maintenance Instructions
INSTALLATION AND MAINTENANCE INSTRUCTIONS The following instructions are addressed to a qualified personnel the only one authorised to carry out checks and repairs, if any. The manufacturer declines any responsibility in the case of interventions made by a non qualified personnel or the use of spare parts other than those supplied by the Manufacture.
Page 12: Installation
3mm and a supply cable suitable. 220/230V∼ ∼ ∼ ∼ 220/230V 3∼ ∼ ∼ ∼ 380/400V 3N∼ ∼ ∼ ∼ BC2E…/BC3E... 3.57kW BC33E..(Multipower) 5.45kW 3.8kW 2.9kW 2.2kW...
Page 13 INSTRUCTIONS FOR TECHNICAL PERSONNEL 2)WATER CONNECTION Install a 55°C water tap in a well accessible place, terminating in a 3/4" fitting, which the pipe strainer and inlet hose shall be connected to. Carefully comply with any national or regional regulations in force. The operating pressure should be neither less than 2 bars or greater that 4 bars (200/400 kPa).
Page 14: Loading And Unloading Of The Machine
(W) hour with hour with 55°C inlet 12°C inlet water water BC2E.. 2000 3200 3570 40/30/20/7 BC3E.. 5000 5370 2000 BC33E… 60/36/24/7 In the event of low water supply temperature, the will be a subsequent...
Page 15: Wiring Diagram
KM2 Rinse pump contactor Rinse pump Wash pump Drain pump (if required) Detergent dispenser (if required) Door switch Safety door switch S11a RCD pressure switch Pressure switch Booster thermostat SE2a Booster thermostat SE2b Booster safety thermostat Tank thermostat Solenoid valve...
Page 16 BC33E rcd MULTIPOWER...
Page 17 900750 900750 900750 900750 07-2010...
