U.motion
U.motion Client Touch 7
Technical Manual
Art. no. MEG6260-0307
04/2014 Version 1.0.1
www.merten.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the U.motion Client Touch 7 and is the answer not in the manual?

Questions and answers

Related Manuals for merten U.motion Client Touch 7

Summary of Contents for merten U.motion Client Touch 7

  • Page 1 U.motion U.motion Client Touch 7 Technical Manual Art. no. MEG6260-0307 04/2014 Version 1.0.1 www.merten.com...

  • Page 2: General Information

    U.motion Client Touch 7 Technical Manual ENERAL NFORMATION Schneider Electric GmbH c/o Merten Gothaer Straße 29, 40880 Ratingen www.merten.com www.merten-austria.at Customer care centre: Phone: +49 2102 - 404 6000 Operating instructions, manuals and software are protected by copyright. All rights are reserved. Copying, multiplication, translation and conversion, either partially or as a whole, is not permitted.

  • Page 3: Safety Instructions

    U.motion Client Touch 7 Technical Manual AFETY INSTRUCTIONS The present operating instructions contain those safety instructions that are required to safely operate the machine. All persons working with the machine must heed the present operating instructions, especially the safety instructions.

  • Page 4: Table Of Contents

    ONTENTS General Information Conventions Safety instructions Contents A. Product description A1. Front view - U.motion Client Touch 7 A2. Interfaces - U.motion Client Touch 7 A3. Scope of delivery B. Commissioning B1. Grounding B2. Commissioning B3. Installing the U.motion Client Touch 7 C.

  • Page 5: Product Description

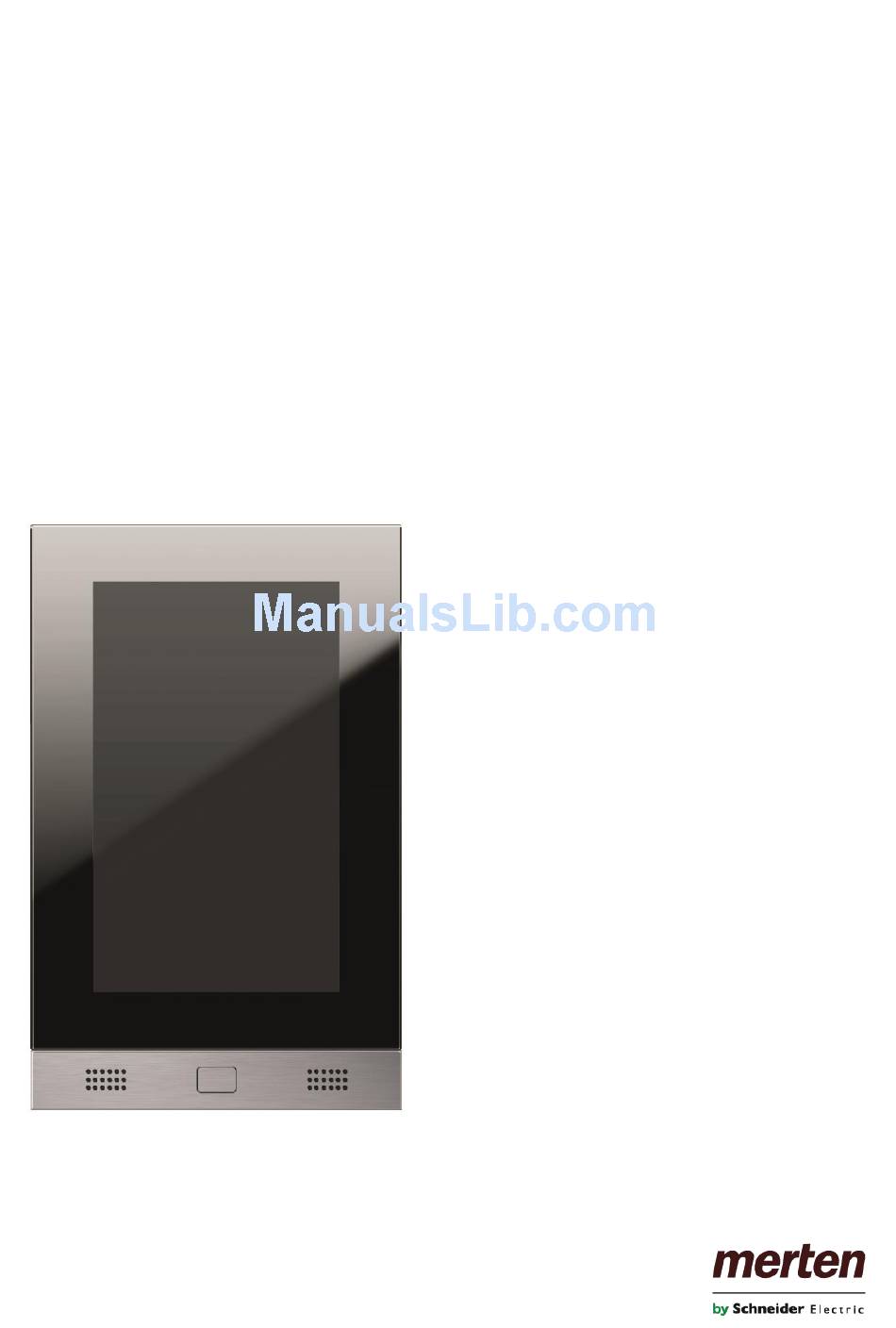

    U.motion Client Touch 7 Technical Manual A. P RODUCT DESCRIPTION A1. Front view - U.motion Client Touch 7 ● U.motion Client Touch 7 Image: with U.motion Touch 7 Design element side-view mounted Image: horizontal mounting...

  • Page 6: A2. Interfaces - U.motion Client Touch 7

    U.motion Client Touch 7 Technical Manual A2. Interfaces - U.motion Client Touch 7 Rear connections U.motion Client Touch 7 has various connection possibilities on his back side. All necessary interfaces can be found there. Rear Connections: DC in USB1 USB2 LINE Out LAN –...
  • Page 7 If you have own applications that require the BACK button, you can find it as a soft key, shown in the navigation bar of U.motion Client Touch 7. Note: further information regarding the interfaces and their control can be found in chapter C1.

  • Page 8: A3. Scope Of Delivery

    B2. Commissioning Power supply of the U.motion Client Touch 7 is granted either through “Power over Ethernet” or through DC input on DC in plug. Using DC input, the power supply needs to provide safety extra-low voltage (SELV) and has to be EN60950-1 par.2.5 compliant.

  • Page 9: B3. Installing The U.motion Client Touch

    Switch off the system/plant supply voltage. Connect the power and controlling cables. After the correct cabling and connecting the magnet, the U.motion Client Touch 7 is put into the wall mount box and is fixed with the screw included in the packing. Now, you can install your U.motion Touch 7 Design element with slight, even pressure.
  • Page 10 The following screenshot shows an example of such a menu: Furthermore, also the MENU key supports long-clicking: in this case it will show another pop-up window which permits to turn off or reboot U.motion Client Touch 7:...

  • Page 11: C1 Hardware Interfaces

    C1 Hardware interfaces: As already seen in chapter A2, U.motion Client Touch 7 offers different kinds of interfaces as well on the rear as on the front side. All interfaces are integrated and functional on Android level and can be accessed from custom applications through corresponding libraries.

  • Page 12: C2 Google Play Store

    2. In order to be able to use the Play Store, you have to check that your U.motion Client Touch 7 shows the correct date and time settings. If these settings are not correct, the Play Store can not connect to its servers and will show no contents.

  • Page 13: C3 U.motion Access

    Technical Manual C3 U.motion Access: The U.motion Access app is the main app of U.motion Client Touch 7 and is a so-called launcher app. Launcher apps in the Android world generally determine start screens or graphical interfaces that hide the original menu of Android.
  • Page 14 The following pages will explain the different configuration possibilities. The first to entries simply redirect to standard Android settings and allow to change the language of the U.motion Client Touch 7 and to set the date and time correctly:...
  • Page 15 The next entry deals with the network settings of U.motion Client Touch 7: U.motion Client Touch 7 supports as well the use of a static IP address as also the usage of DHCP. Depending on your network, these parameters must be configured correctly in order to connect U.motion Client Touch 7 with your network and also with the internet (check out the screenshot in the middle, which shows the configuration menu for the LAN port).
  • Page 16 U.motion Client Touch 7 Technical Manual Note: At delivery both LED functionalities are disabled in the settings, since the RGB-LED is covered by the design element and the LED states are only for debug purposes. The next entry permits to change the design of the U.motion Access. The launcher offers 4 designs /...
  • Page 17 At delivery, this password is set to 0000 and – as mentioned in the welcome screen – must be changed. If this field is left empty, the access to the settings will be unprotected. The next section deals with the display management of U.motion Client Touch 7: -16-...
  • Page 18 7 will still react to inputs). The option „Turn off“ will disable display and touchscreen after a certain time. In order to re-enable U.motion Client Touch 7 from this state, the HOME button must be pressed; no touch input will be recognized in this state.
  • Page 19 The entry „Manage SD card“ can be used to mount / unmount microSD cards connected to the corresponding slot on the front side of U.motion Client Touch 7. The menu permits to mount, unmount and also erase the storage card. Furthermore this menu also shows information about the integrated storages. At delivery, from the 4GB internal storage approximately 750 MB are still usable by the Android system (for system-internal data) and around 2,6GB are free for user data (like media, images,…);...

  • Page 20: C4 U.motion Control

    U.motion Client Touch 7 Technical Manual C4 U.motion Control: The app U.motion Control was especially designed to work in combination with U.motion devices. At delivery, this app is already connected to the field „Building“ of U.motion Access and can be started by clicking on that field.
  • Page 21 U.motion Client Touch 7 Technical Manual This manual will neither describe the contents of the server or its navigation, nor will it enter in detail on the server features themselves. All information can be found in the user and installation manuals of the corresponding U.motion device.
  • Page 22 Since the switching between local and remote access is not required when using the app on U.motion Client Touch 7 (it will always run in the local network), the corresponding option will be shown only when using the app on mobile devices.
  • Page 23 U.motion Client Touch 7 Technical Manual The first connection takes around 40-60 seconds until completion since the necessary data has to be transferred from the U.motion device. Once the web app has been loaded completely, the connection to the server remains established and the pages of the visualisation can be access without further time delay. This is accomplished by using a background service which keeps active the connection to the server and prevents that the web app is closed automatically by the garbage collector of Android.

  • Page 24: C5 U.motion Communication

    Android operating system. The – just like the U.motion Control app – is part of the application preinstalled on U.motion Client Touch 7. At delivery, the app is already connected to the field „Intercom“ of U.motion Access.
  • Page 25 As already mentioned, those 5 settings are enough to register on the VoIP Server and therefore to make calls between the U.motion Client Touch 7 and other VoIP members. If also external units should be handled and the video signals of cameras should be displayed, also the following settings have to be configured correctly.
  • Page 26 U.motion Client Touch 7 Technical Manual The internal units will show the following parameters: VoIP ID: This value must match the VoIP-ID (username) of the internal unit, as configured within the VoIP Server Display name: Optionally a display name can be specified, which is shown in the status bar...
  • Page 27 U.motion Client Touch 7 Technical Manual The selection popup of the external units – besides the default entry “RITTO” - contains the entry „Manual Config.“, which permits the integration of external units, whose type is not directly supported. In both cases,...
  • Page 28 The menu entry “App Autostart” permits to define whether the app should be started automatically at completed boot of the U.motion Client Touch 7 or not. The following screenshots show as well the selection popup for the door spy external unit as also the selection popup of the next settings entry, “Select ringtone”:...
  • Page 29 U.motion Client Touch 7 Technical Manual The following screenshot shows the app in use. On the right side of the screenshot you can find some explanations regarding the elements of the interface: Video area, in this window the video signal of the external unit / the door spy will be shown.
  • Page 30 U.motion Client Touch 7 Technical Manual The following screenshots show some samples of the app in different states: Screenshot upper left: app with active video signal Screenshot upper right: message when clicking a button active only during calls Screenshot lower left:...
  • Page 31 U.motion Client Touch 7 Technical Manual Even when the U.motion Communication app is closed, it must be reachable for incoming calls and open its interface automatically. In order to realize this, also the U.motion Communication app – in the same way as the web app –...

  • Page 32: C6 Recovery

    Technical Manual C6 Recovery: The package contents of the U.motion Client Touch 7 also contain a microSD card with pre-loaded recovery system. Using this accessory, you can bring back U.motion Client Touch 7 to factory defaults within short time. Furthermore, using this microSD it is also possible to load new versions of the Android image to the device.

  • Page 33: Technical Data

    75 mm For the cutout see the flush mounting box Fixing elements U.motion Client Touch 7 has to be fixed to the wall mount box using the magnet and the furnished screw. Mechanical characteristics U.motion Touch 7 Design element: Alloy anodized...

  • Page 34: D2. Maintenance And Upkeep

    U.motion Client Touch 7 Technical Manual D2. Maintenance and upkeep The U.motion Client Touch 7 is a completely fanless system, a fact that reduces strongly the necessary maintenance expense. Note: Additional information’s about the components which are used in U.motion Client Touch 7 you will find in the original documentation of the manufacturer.
