Summary of Contents for GME TX680

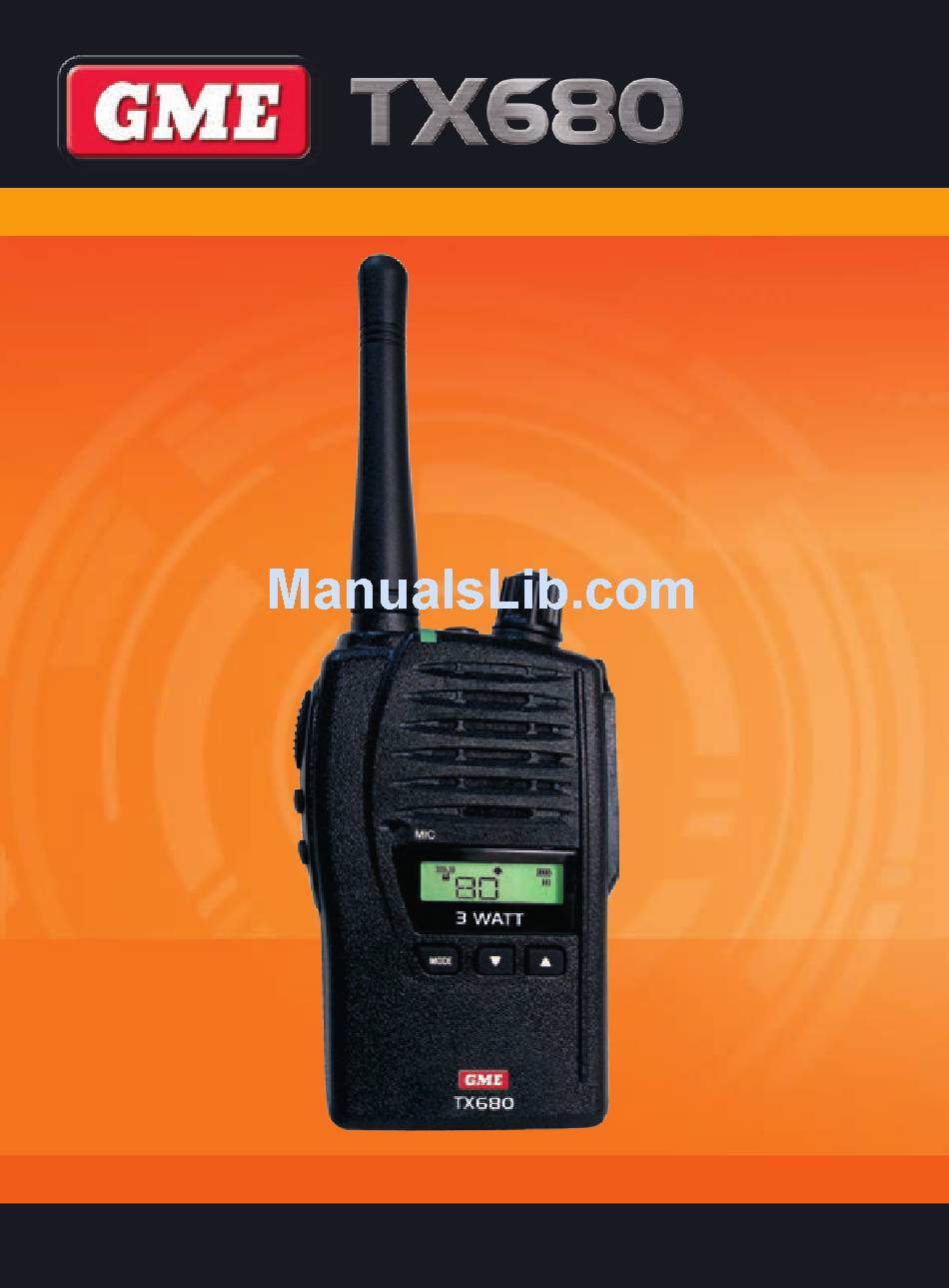

- Page 1 3 watt handheld UHF CB radio I N S T R U C T I O N M A N U A L...
-
Page 2: Table Of Contents
SQL Key ..... 11 ACCESSORIES SUPPLIED • Li-Ion Battery Pack (1000 mAh) • AC Adapter • Semi-Quick Charger • Carry Case WARNING - SAFETY INFORMATION The TX680 is a radio transmitting device. • W hen transmitting, keep the antenna more than 25 mm from any part of the head or body. • D o not transmit near electrical blasting equipment or in explosive atmospheres. • D o not allow children to operate a radio transmitter unsupervised. Page 2 INSTRUCTION MANUAL... -
Page 3: Important Information
AVOID storing or using your radio DO NOT attempt to modify your radio where temperatures are below -20°C in any way. or above +60°C. ALWAYS charge your radio at normal room temperature. IMPORTANT INFORMATION CONCERNING UHF CB RADIO T he use of the Citizen Band radio service is licensed in Australia by the ACMA Radiocommunications (Citizens Band Radio Stations) Class Licence and in New Zealand by the Ministry of Economic Development New Zealand (MED). A General User Radio Licence for Citizens Band radio and operation is subject to conditions contained in those licences. T he class licence for users and equipment operating in the CB/PRS 477 MHz band has been amended. This radio meets the new 80 channel standard. I n simple terms the same amount of spectrum is available; however, radio transceivers can now operate in a narrower bandwidth and hence use less spectrum. These radios are generally referred to as narrowband or 12.5 kHz radios. By using 12.5 kHz channel spacing instead of 25 kHz, the 40 channels originally allocated can now be expanded to 80 channels thereby doubling the channel capacity and relieving congestion in the UHF CB/PRS band. TX680 INSTRUCTION MANUAL Page 3... -
Page 4: Possible Issues
Communications and Media Authority (ACMA) at www.acma.gov.au and the When an older wideband radio receives a Ministry of Economic Development (MED), signal from a new narrowband radio, the Radio Spectrum Management at: speech may sound quiet - simply adjust www.rsm.govt.nz your radio volume for best performance. The ACMA has allocated channels 5/35 Depending on how close your receiving for emergency use only. Channel 5 is the radio is to another transmitting radio, primary Simplex Emergency Channel. there can be interference from the Where a Channel 5 repeater is available, transmitting radio if it is using a channel you should select Duplex on CH 5. adjacent to the channel you are listening to. Simply try going up or down a few NOTE: Channel 35 is the input channel channels from the currently selected for the Channel 5 repeater therefore channel. Channel 35 should also not be used for anything other than emergency The above situations are not a fault of transmissions. the radio but a symptom of operating wideband and narrowband radios in the same bandwidth. This possible Page 4 INSTRUCTION MANUAL TX680... -
Page 5: Telemetry Channels
TELEMETRY CHANNELS ACMA regulations have allocated channels 22 and 23 for telemetry only applications and have prohibited the transmission of speech on these channels. Consequently the TX680 has a transmit-inhibit applied to channels 22 and 23. In the event that additional telemetry/telecommand channels are approved by the ACMA, these channels shall be added to those currently listed where voice transmission is inhibited. Currently transmissions on channels 61, 62 and 63 are also inhibited and these channels are reserved for future allocation. FEATURES Microprocessor Controlled Frequency Synthesiser: Allows user programmable • control of scanning, channel memories and selected feature options. Programmable Scan Function: Scans up to 80 UHF CB channels. • • In-built CTCSS: User selectable Continuous Tone Coded Squelch system for quiet channel operation. • 3 watt/1 watt RF Power: When transmitting in close range you can conserve battery power by using the Low Power setting. • Individually Programmable Duplex Function: User selectable for those individual repeater channels in your area. Power-Save Feature: Sleeps during periods of inactivity. -
Page 6: Controls
CONTROLS TX680 1. Battery 9. Antenna 2 Scan 10. Duplex/Keylock Button 3. Squelch/CTCSS Key 11. Volume On/Off 4. Battery Release Clip 12. External Speaker/Mic 5. Push-To-Talk (PTT) Switch 13. Speaker 6. Mode Key 14. LCD Display 7. Microphone 15. Channel Up 8. Indicator LED 16. Channel Down Page 6 INSTRUCTION MANUAL TX680... -
Page 7: Lcd Indicators
6. CTCSS (CTC) Icon: Indicates that CTCSS tones are enabled on the 14. Channel Display: Indicates the selected channel. channel number in use. 7. Squelch/Monitor Icon: Appears 15. Scan Indicator Icon: Appears when when the Monitor function is activated. SCAN is enabled and the radio is (Squelch is open) scanning. 8. Battery Level Icon: Indicates battery 16. Channel Memory Indicator: charge level. Flashes when battery is Appears when selected channel is almost empty. stored in Scan Memory. TX680 INSTRUCTION MANUAL Page 7... -
Page 8: Powering The Radio
1. P lug the charger into a standard 240 POWERING THE RADIO Volt AC outlet. Your TX680 is powered by a 7.4 Volt 2. P lug the lead from the charger into the 1000 mAh Li-Ion battery pack. When the charging cradle. battery pack is new, it should be fully charged before being used for the first 3. P lace the TX680 into the cradle. The time. If left unused, your TX680’s battery Red LED will light to indicate the pack will discharge itself within a few battery is charging. months. If you have not used your TX680 4. W hen the battery has charged, the LED for some time, you will need to recharge will change to Green. the battery pack before use. WARNING: Use only the approved GME To Remove Battery Pack charger. The use of other types may be dangerous and will void the warranty. - Page 9 When the battery icon blinks on the display, the battery level is low and the Using CTCSS battery pack should be recharged. If the If you are expecting to receive signals on battery is not charged, an audio tone a busy channel, you can program that will then sound to warn the user that the channel for CTCSS operation and get the battery is almost discharged. other person to call you using the same Battery Usage CTCSS tone. Your radio will then remain in Standby and ignore all other signals until The time taken to discharge the battery your selected CTCSS tone is received. pack will depend on how you use the TX680. The1000 mAh battery pack Scanning supplied is powerful enough for a full days The TX680 draws more power from the use under average conditions. battery pack when scanning than when Conserving Battery Power monitoring a single channel. This is because it must ‘wake up’ more often to The TX680 has built-in power saving monitor each channel for activity. You features to help you get the maximum can squeeze that extra bit of life from the amount of time between charges from battery pack by avoiding any unnecessary your Li-Ion battery pack. If you need to scanning. In addition, scanning increases operate your TX680 in a situation where the chance of finding a signal thereby you require maximum battery life (e.g. a...
-
Page 10: General Operation
Rotate the Volume control clockwise past the ‘click’ to turn the radio on. Rotate the If no further signals are received, the unit control counter-clockwise past the click to will return to standby mode. turn the radio off again. trAnsmitting AdjUsting tHe VolUme To transmit, press and hold the Push-To- With the unit powered on, rotate the Talk (PTT) switch. The other radio you Volume control clockwise to increase the are talking to must be set to the same volume and counter-clockwise to decrease channel (and CTCSS code if applicable). the volume. Hold the TX680 approximately 5 to 8 cms from your face with the antenna vertical disPlAy ligHting and speak into the built-in microphone. The LCD backlighting activates While the PTT switch is pressed, the LED automatically whenever a key is pressed indicator on the upper edge of the radio and turns off automatically after about 5 will light RED and the icon will appear seconds. on the LCD. reCeiVing signAls When you have finished speaking, release While the TX680 is not receiving signals, the PTT switch to receive incoming signals it will remain in the Standby mode to (it is not possible to transmit and receive conserve battery power. When a signal is... -
Page 11: Selecting Channels
Key down one channel. The Duplex/Monitor key is a dual Press and hold the keys to function key that controls both the Duplex quickly scroll through the channels. and Monitor functions. sQl Key DUP Key The SQL key is a dual function key that Press this button to select Duplex mode controls both the Squelch and CTCSS on channels 1 – 8 and 41 – 48. Duplex can be enabled or disabled separately on Squelch individual channels. To open the squelch, briefly press the Duplex operation allows the TX680 to SQL key. This will allow you to check transmit on a different frequency to that the current channel for activity before which it receives. This allows operation transmitting, particularly if you have through repeater stations in your area. CTCSS enabled. When the squelch is Repeaters automatically re-transmit your open, the LED indicator on the upper signal over a much wider area, providing edge of the radio will light Green, the greatly increased range. The Duplex mode icon will appear on the display and only works on channels 1 – 8 and 41 – you will hear static or hiss if the channel 48. With Duplex selected, your TX680 is clear. Do not transmit if you hear any actually transmits 30 channels higher than conversations. Briefly press the SQL key... -
Page 12: Scan Key
4. T o remove a channel from the Scan Group, press and hold the SCAN key again. ‘M’ will disappear from the display. To Scan the Selected Channels Briefly press the SCAN key. ‘SCAN’ will be displayed and the radio will show rapidly changing channel numbers as it scans through the channels. While scanning, briefly press the keys to select the scan direction. To exit the scan mode, briefly press the SCAN key again. The TX680 will return to normal operation and ‘SCAN’ will * Emergency channel only disappear from the display. sCAn Key NOTE: Must be at least 2 channels in Scan Memory otherwise the radio will The SCAN key is a dual function key that not scan. controls both Scan and Memory Functions Scanning Function Channel Scanning allows you to monitor selected channels automatically for incoming signals. While the radio is... -
Page 13: Key-Lock Function
Scanning Features To cancel the Key-Lock, press and hold button again. The icon will • I f a signal is received, the scan is disappear from the display. paused, allowing you to transmit and receive on that channel. The radio will MODE KEY automatically resume scanning a few seconds after the last reception or MODE key is used to set the various transmission. feature settings of the TX680. The following chart shows the order of these • P ress the PTT switch while the unit is selections. scanning to jump to the home channel (the home channel is the channel the Standby Mode: Radio was on at the time scanning was activated). You can then transmit 1. CTCSS Code Selection and receive on that channel. The radio will automatically resume scanning a 2. Transmitter Power few seconds after the last reception 3. VOX Settings or transmission. -
Page 14: Transmitter Power
2. Press the keys to select the key momentarily) to confirm required power setting. Select HI for and store your selection. high power or LO for low power. To Activate CTCSS on the Radio MODE 3. P ress and hold the key (or press key momentarily) to confirm 1. S elect a channel that has a CTCSS and store your selection. code selected. The TX680 should now display the 2. P ress and hold the key for about selected channel number along with HI 2 seconds. The ‘CTC’ icon and CTCSS or LO to indicate the transmit power you code will appear on the display. CTCSS have set. is now enabled on ALL channels that have CTCSS codes selected. Page 14 INSTRUCTION MANUAL TX680... -
Page 15: Vox Settings
4. dUAl wAtCH settings locked onto that channel then talk in the usual way. The Dual Watch mode lets you to monitor two channels at the same time. While in • I f you wish to talk on the selected dual watch mode, the unit will monitor channel, press the switch while no both the currently selected channel and a signals are being received. The radio second dual watch channel. will switch to the selected channel. To Set the Dual Watch Mode From the Standby mode: MODE 1. P ress the key FOUR times to select the Dual Watch setting mode. TX680 INSTRUCTION MANUAL Page 15... -
Page 16: Button Beep Tone Settings
To Send the Call Alarm Melody MODE 3. P ress and hold the key (or Press the switch twice quickly. press the key momentarily) to The LED indicator will light Red for a confirm and store your selection. If the few seconds as the melody is sent. The Button Beep function is on, the icon melody will be heard in the speaker of the will remain steady on the display and a receiving radio. beep will be heard in response to key The call alarm can only be sent once activations. per minute. 6. CAll AlArm seleCtion The TX680 provides 5 user selectable call alarm melodies to alert other users to your incoming call. When enabled, the melody can be transmitted to another user where it will be heard in the speaker of the receiving radio. Page 16 INSTRUCTION MANUAL TX680... -
Page 17: Ctcss Tone Frequencies
110.9 173.8 71.9 114.8 179.9 77.0 118.8 186.2 79.7 123.0 192.8 82.5 127.3 203.5 85.4 131.8 210.7 88.5 136.5 218.1 91.5 141.3 225.7 94.8 146.2 233.6 97.4 151.4 241.8 100.0 156.7 250.3 103.5 162.2 (CTCSS frequency shown in Hz) TX680 INSTRUCTION MANUAL Page 17... -
Page 18: Uhf Cb Operating Frequencies
476.575~ 477.075 476.600~ 477.100 476.625 477.125 476.650 477.150 476.675 477.175~ 476.700 477.200~ 476.725 477.225~ 476.750 477.250~ 476.775 477.275~ 476.800 477.300~ 476.825 477.325~ 476.850 477.350~ 476.875 477.375 476.900 477.400 * Emergency use only + Officially designated call channel # T elecommand/Selcall use only. Voice transmission is inhibited as required by AS/NZS 4365:2011. Page 18 INSTRUCTION MANUAL TX680... - Page 19 476.5625~ 477.0625 476.5875~ 477.0875 476.6125~ 477.1125 476.6375 477.1375 476.6625 477.1625 476.6875 477.1875~ 476.7125 477.2125~ 476.7375 477.2375~ 476.7625 477.2625~ 476.7875 477.2875~ 476.8125 477.3125~ 476.8375 477.3375~ 476.8625 477.3625~ 476.8875 477.3875 476.9125 477.4125 ^ Road channel ~ Repeater channels • Guard band channels. Voice transmission is inhibited as required by AS/NZS 4365:2011. TX680 INSTRUCTION MANUAL Page 19...
-
Page 20: Specifications
Power Source: Li-Ion rechargeable - 7.4 V DC, 1000 mAh Operating Time: 10 Hours (High Power), (Transmit 5%, Receive 5%, Standby 90%) reCeiVer: Usable Sensitivity: -121 dBm Maximum Audio Output: >0.3 watt max. (8 Ohm) Modulation Distortion: <5% (1 kHz 70%) trAnsmitter: RF Output Power: L ow: 1 watt High: 3 watts. Maximum Deviation: 2.5 kHz. Modulation Distortion: <5% (1 kHz. 70%) Specifications are typical unless otherwise indicated and may be subject to change without notice or obligation. Page 20 INSTRUCTION MANUAL TX680... -
Page 21: Against Defects
(i) t he supplying of the services rights under the Competition and again; Consumer Act 2010 (Australia) or any (ii) t he cost of having the other mandatory protection laws that services supplied again. may apply. 2.4 F or repairs outside the warranty 2.2 W e warrant our goods to be free from period, we warrant our repairs to be defects in materials and workmanship free from defects in materials and for the warranty period (see warranty workmanship for three months from table) from the date of original sale the date of the original repair. We (or another period we agree to in agree to re-repair or replace (at our writing). Subject to our obligations option) any materials or workmanship under clause 1.2, we will at our option, either repair or replace goods which we are satisfied are defective. TX680 INSTRUCTION MANUAL Page 21... -
Page 22: Warranty Period
Ltd. Unit B, 22-24 College Street, 4. Warranty period Gladesville, NSW 2111, Australia. 4.1 W e provide the following warranty on Telephone: (02) 9879 8888 GME and Kingray products. No repair Fax: (02) 9816 4722. or replacement during the warranty Email: servadmin@gme.net.au period will renew or extend the 2.8 I f we determine that your goods are warranty period past the period from defective, we will pay for the cost of original date of purchase. returning the repaired or replaced goods to you, and reimburse you for PRODUCT TYPE WARRANTY PERIOD your reasonable expenses of sending your warranty claim to us. 477 MH UHF CB 1 year portable transceivers Page 22 INSTRUCTION MANUAL TX680... - Page 23 TX680 INSTRUCTION MANUAL Page 23...
- Page 24 Part Number: 310415 Drawing Number: 44167-5...
