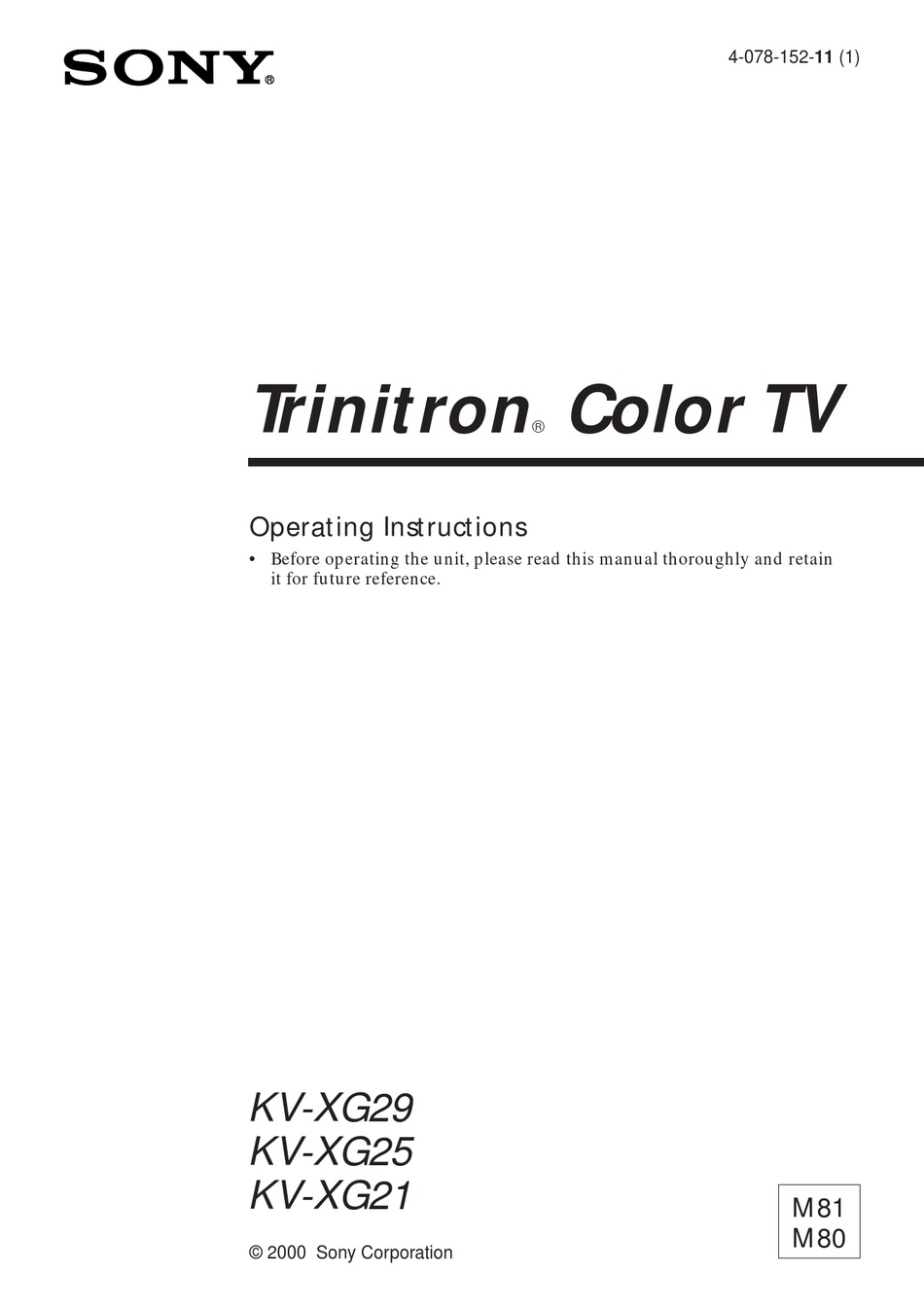

- Page 1 4-078-152-11 (1) Trinitron Color TV Operating Instructions • Before operating the unit, please read this manual thoroughly and retain it for future reference. KV-XG29 KV-XG25 KV-XG21 © 2000 Sony Corporation...
- Page 2 WARNING • Dangerously high voltages are present inside the TV. • Operate the TV only between 110 – 240 V AC. For your own safety, do not touch any part of the For children’s safety, do not leave children TV, the power cord and the antenna cable during alone with the TV.
-
Page 3: Table Of Contents
Table of Contents Using Your New TV Getting Started ..................... 4 Step 1: Connect the antenna ..............4 Step 2: Insert the batteries into the remote .......... 5 Step 3: Preset the channels automatically ........... 5 Connecting optional components ............. 6 Securing the TV .................... -
Page 4: Using Your New Tv
Using Your New TV Getting Started Step 1 Connect the antenna If you wish to connect a VCR, see the “Connecting a VCR” diagram below. Rear of TV Antenna cable (not supplied) IEC connector (not supplied) Antenna cable (not supplied) : Signal flow Connecting a VCR To watch the video input, press t (see page 13). -
Page 5: Step 2: Insert The Batteries Into The Remote
Notes • If you connect a monaural VCR, connect the yellow plug to (the yellow jack) and the black plug to -L (MONO) (the white jack). • If you connect a VCR to the 8 (antenna) terminal, preset the signal output from the VCR to the program number 0 on the TV. -
Page 6: Connecting Optional Components
Connecting optional components You can connect optional audio/video components, such as a VCR, multi disc player, camcorder, video game or stereo system. To watch the picture of the connected equipment, press t (see page 13). Connecting a camcorder/video game equipment using the t (video input) jacks Audio/Video cable (not supplied) Front of TV... - Page 7 KV-XG21M80 Antenna cable (not supplied) Rear of TV Audio system antenna output L(MONO) To video and audio inputs audio inputs (yellow) To T Audio/Video cable -L (MONO) (monitor (not supplied) (white) output) -R (red) : Signal flow Note • When connecting a monaural VCR, connect the yellow plug to (the yellow jack) and the black plug to -L (MONO) (the white jack).
-
Page 8: Securing The Tv
Securing the TV To prevent the TV from falling, secure the TV using one of the following methods: With the supplied screws, attach the band to the TV stand and to the rear of the TV using the provided hole. Put the cord or chain through the clamps to secure the TV against a wall or pillar. -
Page 9: Presetting Channels
Presetting channels You can preset up to 100 TV channels in numerical sequence from program Number buttons number 1 using the remote and the buttons on your TV as well. JUMP 2 +/– SOUND PROGR MODE PROGR +/– SELECT PIC MODE + or –... - Page 10 Presetting channels (continued) Presetting channels manually Press SELECT until SELECT “MANUAL PROGRAM” appears. MANUAL PROGRAM Press + or –. VHF LOW B/G Press PROGR +/– or the number buttons until the PROGR desired program number appears. -/-- Press + or – until the desired channel picture appears.
- Page 11 To change the color system setting If the color is abnormal when receiving programs through the 8 (antenna) terminal or the t (video input) jack. (1) Press SELECT until “COL SYS” appears. COL SYS: AUTO (2) Press + or – to select the appropriate SECAM AUTO color system until the color is...
-
Page 12: Watching The Tv
Watching the TV This section explains functions used while watching the TV. Most operations can be done using the remote. Number buttons JUMP JUMP 2 +/– SOUND PROGR MODE PROGR +/– SELECT + or – FAVORITE ONE-PUSH AUTOMATIC PROGRAMING Press ! to turn on the TV. When the TV is in the standby mode (the 1 indicator on the TV is lit... - Page 13 Additional tasks Do this Turn off temporarily Press 1. The 1 indicator on the TV lights up red. Press ! on the TV. Turn off completely Press %. Mute the sound Press t to select “VIDEO 1” or “VIDEO 2”. Watch the video input To return to the TV program, press a.
-
Page 14: Setting The Sleep Timer
Watching the TV (continued) Setting the Wake Up timer Press until the desired WAKE UP TIMER:10M period of time appears. After 10 minutes The Wake Up timer starts immediately after you have set it. WAKE UP TIMER:OFF WAKE UP TIMER:12H00M No Wake Up timer After 12 hours Select the TV program or video mode you want to display when you wake... -
Page 15: Advanced Operations
Advanced Operations Customizing the SOUND PROGR MODE picture and sound SOUND MODE SELECT You can customize the picture and + or – sound by selecting the picture and PIC MODE sound modes or by adjusting its FAVORITE settings. You can change the sound effect by selecting the surround mode. - Page 16 Customizing the picture and sound (continued) Adjusting the picture and sound settings Press SELECT until the SELECT desired setting appears. PICTURE Each time you press PICTURE COLOR BRIGHT HUE* SELECT, the setting item will change as follows: BALANCE TREBLE BASS SHARP Press + or –...
-
Page 17: Viewing Your Favorite Channels
Viewing your favorite channels Number buttons You can display six of your favorite JUMP channels for quick and easy selection. SOUND PROGR MODE You can change the favorite channel PROGR +/– setting as well. + or – FAVORITE FAVORITE Selecting a favorite channel Press FAVORITE. -
Page 18: Blocking The Channels (Child Lock)
Blocking the channels (CHILD LOCK) You can prevent a child from watching certain channels by using the buttons on the remote control. JUMP SOUND PROGR MODE SELECT + or – FAVORITE Select the channel you want to lock. Press SELECT until “CHILD SELECT LOCK”... -
Page 19: Viewing Teletext (Kv-Xg29M81/Xg25M81 Only)
Viewing Teletext (KV-XG29M81/XG25M81 only) TV stations broadcast an information service called Teletext via some TV channels. Teletext allows you to receive various information, such as shares market or news. JUMP SOUND PROGR MODE FASTEXT FAVORITE Displaying Teletext Select a TV channel that carries the Teletext broadcast you want to watch. Press to display the text. - Page 20 Viewing Teletext (continued) Additional Teletext tasks Do this Press display a Teletext page on the TV Each time you press , the screen changes as picture follows: Teletext n Teletext and TV n TV. Press check the contents of a Teletext service An overview of the Teletext contents and page numbers appear on the screen.
-
Page 21: Additional Information
Count the number of times the 1 indicator flashes. Press ! (main power) to turn off your TV. Inform your nearest Sony service center about the number of times the 1 indicator flashes. Be sure to note the model name and serial number located on the rear of your TV. -
Page 22: Troubleshooting
Troubleshooting If you find any problem while viewing your TV, please check the following guide. If any problem persists, contact your Sony dealer. Symptom Possible cause Page Solutions • Connection is loose or Snowy picture • Check the antenna cable and connection the cable is damaged. - Page 23 TV. stripes neon signs, hair • Adjust the antenna direction for – dryers, power minimum interference. Contact a Sony generators, etc. dealer for advice. • Broadcast signals are • Use a highly directional antenna. – Double images or reflected by nearby “ghosts”...
- Page 24 • There is interference the TV screen. from external sources, e.g.,heavy machineries, nearby broadcast station. • Your TV may need • Contact your nearest Sony service center. indicator on service. your TV flashes red a number of times between 3-second intervals.
-
Page 25: Overview Of Controls
Overview of controls TV front panel KV-XG29M81/XG25M81 AUTO SELECT PROGR PROGR ( MONO ) Button Function Page AUTO PROGR Preset channels automatically. SELECT Select the desired item. Select program number. PROGR +/– Turn off completely or turn on the TV. Adjust volume. - Page 26 Overview of controls (continued) KV-XG21M80 ONE-PUSH AUTOMATIC PROGRAMING ONE-PUSH AUTOMATIC PROGRAMMING Button Function Page AUTO PROGR Preset channels automatically. SELECT Select the desired item. Select program number. PROGR +/– Turn off completely or turn on the TV. 2 +/– Adjust volume. Select TV or video input.
-
Page 27: Remote Control
Remote Control Button Function Page Select the desired item. SELECT +/– Adjust value. PROGR +/– Select program number. Input numbers. 0 – 9, - 2 +/– Adjust volume. Turn off temporarily or turn on the TV. Select TV or video input. Display the TV program. -
Page 28: Specifications
Measured diagonally Screen size (cm) Measured diagonally 640 × 456 × 498 722 × 515 × 512 794 × 573 × 517 Dimensions (w/h/d, mm) Mass (kg) Design and specifications are subject to change without notice. Sony Corporation Additional Information...
