StreetCam VD-9500H User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Copyright 2015, MAI Media Group, LLC
All Rights Reserved
This document contains proprietary and copyrighted information subject to change without notice. The information in this
document shall not be duplicated, used, or disclosed in whole or in part outside of MAI Media Group © 2015. Any distribution
of this material without the written consent of MAI Media Group is strictly prohibited.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VD-9500H and is the answer not in the manual?

Questions and answers

Related Manuals for StreetCam VD-9500H

Summary of Contents for StreetCam VD-9500H

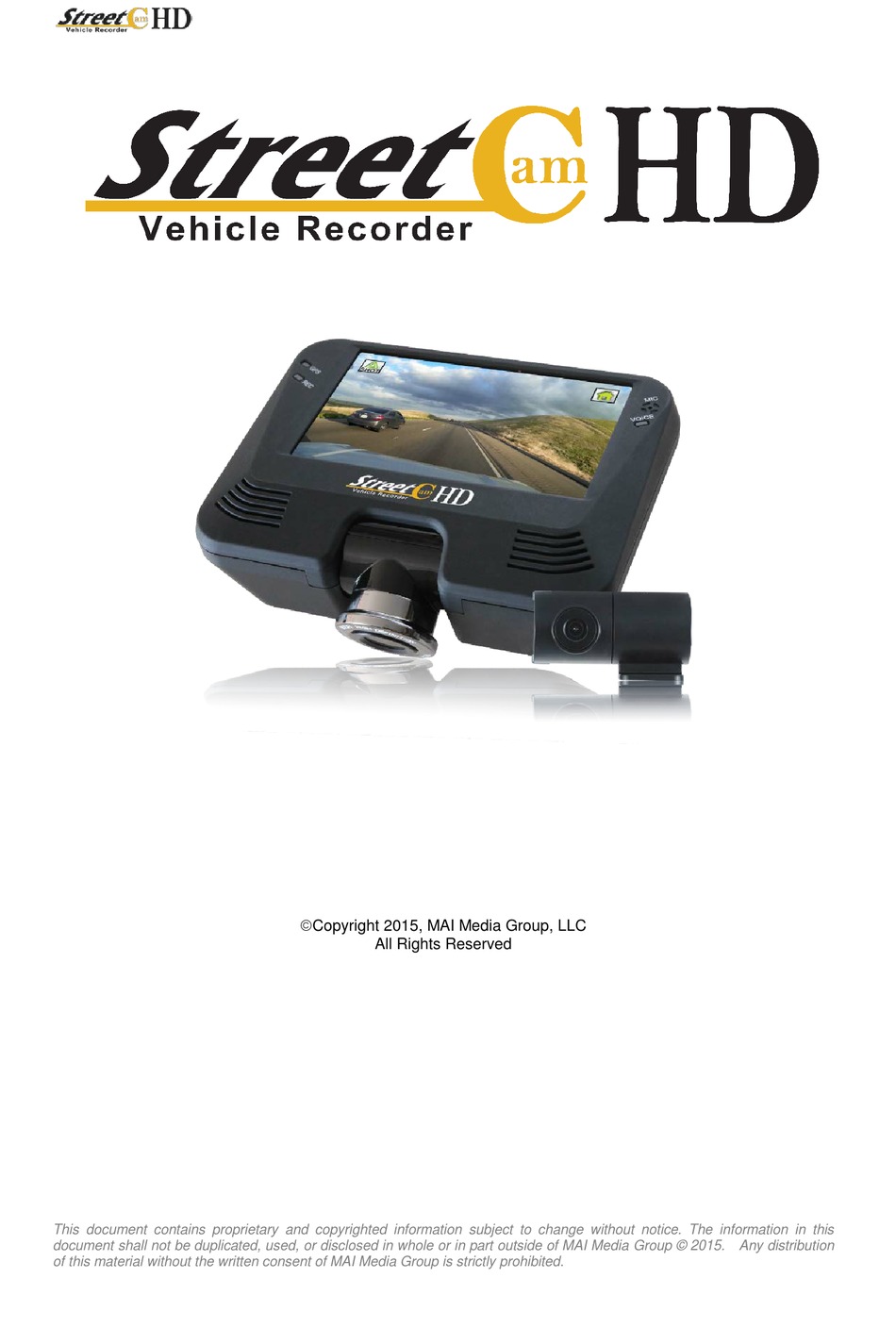

  • Page 1 Copyright 2015, MAI Media Group, LLC All Rights Reserved This document contains proprietary and copyrighted information subject to change without notice. The information in this document shall not be duplicated, used, or disclosed in whole or in part outside of MAI Media Group © 2015. Any distribution of this material without the written consent of MAI Media Group is strictly prohibited.

  • Page 2: Table Of Contents

    Index General Information Before Use Operational Precautions Contents Part Names Product Specifications Installation Precautions Installation Procedure Basic Information How to Use Using the Menus Touch Screen LCD PC viewer on windows based computers Additional Information Service and Support Warranty This document contains proprietary and copyrighted information subject to change without notice. The information in this document shall not be duplicated, used, or disclosed in whole or in part outside of MAI Media Group ©...
  • Page 3 StreetCam HD Digital Video recorder Contact Information MAI Media Group 9624 Cincinnati Columbus Rd. Suite 310 Cincinnati, OH 45241 USA Web site: www.mystreetcam.com Local Phone: 513-779-0604; Local Fax: 513-898-0206 North American Sales: 888-777-9059 Email: sales@mystreetcam.com Technical Support: 888-777-9059 Email: technicalsupport@ mystreetcam.com Customer Support 888-777-9059 Email: customerservice@ mystreetcam.com...

  • Page 4: Before Use

    - Updates to this manual (which are subject to change without notice to improve understanding and any new features) will be posted on the StreetCam HD website. Please refer to www.mystreetcam.com ■...

  • Page 5: Operational Precautions

    - Store the SD card in its carry case when not in use to protect it from static discharge and other external elements. - We are not responsible for any recorded data destruction or loss. - Please copy and archive important recorded data/files onto alternate media (hard disk, CD, portable memory, etc.) Operational Precautions - Please keep these instructions in mind for safe and proper use of the product by...

  • Page 6: Contents

    available at night time. This is normal. - If there is not enough light available, the use of additional external lighting may improve the performance of the recorder. - In case of slight impact, the product may not classify it as an event file automatically (it is however recorded as a Normal file).

  • Page 7: Part Names

    Recorder Main Body Auxiliary Camera and Connecting Cable External GPS Module (Optional – required for GPS information embedding) Mounting Bracket SD card (8~64GB varies as per order) Cable Holders Cigarette Lighter Power Adapter Part Names VOICE LED-> VOICE LED(Audio REC LED) This document contains proprietary and copyrighted information subject to change without notice.

  • Page 8: Product Specifications

    Product Specifications Model VD-9500H VD-9600WHG/B 2 Cameras Main : HD Color CMOS Main : HD WDR Color Digital cameras CMOS Digital Camera Camera(s) Second : HD Color CMOS digital cameras 1280 x 720(HD) 30fps + 1280 x 720(HD) 30fps (2ch...

  • Page 9: Installation Precautions

    Dimensions 100mm * 77mm * 30mm Operating System Support Windows XP / VISTA / Windows 7 / Windows 8 Image Analysis Dedicated PC viewer (Based on AVI format) Security Security LED Automatic Switching to Parking Mode Motion Detection Recording Additional Information Date/Time Display Video Quality Enhancement Function *Over 64GB SD (exFAT) is compatible by formatting it as FAT 32, cluster size 64KB format.
  • Page 10 2) Insert the SD card into the unit 3) Connect the cable and attach on windshield 4) Connect to power source to turn on the product 5) Adjust the camera angle 6) Check LED lamps 7) Arrange wires using wire holders *Connect the optional rear camera.
  • Page 11 - Clean the area on the windshield where the unit will be installed with a glass cleaning solution such as Windex or rubbing alcohol. - For positioning the unit, it is better to place the unit closer to the center of the vehicle. If the unit is installed on the right or left side of the rear view mirror, ensure there is room to detach the unit if needed via the sliding bracket.
  • Page 12 - Move the camera from top to bottom to adjust it and find the best position. - The camera view can be checked on LCD screen. (Please touch the LCD screen in order to switch between front and rear camera in installations where the second optional camera is present).
  • Page 13 Camera lens is movable up and down to adjust the angle. The camera is securely fixed to prevent random movement by slight vibration so apply enough force to adjust the angle of the camera. 6) Check LED lights - The REC LED is blue when the unit is recording (NORMAL) files and red when recording an (EVENT) files after an impact or if the manual button has been activated.

  • Page 14: Basic Information

    - Use the enclosed cable holders to organize cables. *Connect the optional camera - The auxiliary camera can be used by being connected to the CAM IN port. recommend to power off the main unit before connecting the second camera to the CAM IN port.
  • Page 15 connecting cable for the rear camera is disconnected during operation. - When reconnected, the unit will reboot to reactivate two channel recording mode. (We recommend that you turn off the unit before reconnection.) ■ Normal Recording and Event Recording - Normal recording begins with vehicle start-up and then the REC LED will blink blue. - In normal recording mode, recordings are 1 minute in duration and are stored in the NORMAL folder.
  • Page 16 SD card" is displayed due to the absence of an SD card or unformatted SD card. - SD card readers can be purchased at any computer accessory store or from your StreetCam HD agent/dealer/distributor. - Regular maintenance applied to your SD card helps to prevent or resolve bad sectors and malfunctions.

  • Page 17: Using The Menus

    - There is an optional audio notification "Voice recording is on." that is played when audio recording starts while the product boots and VOICE LED stays solid blue state. - The status of audio recording can be set in Menu> Voice Recording ∙ guidance > Voice Recording ON / OFF on the LCD screen.
  • Page 18 1) Screen display during normal driving ■ Screen display once recording starts - The forward view is shown on the LCD by default after the system starts. - Forward and Rear view cameras are switched between on the LCD by tapping the video. If no rear camera is connected, only the forward view will be available.

  • Page 19: System Settings

    ■ Menu - Touch to go back to the video viewing screen. ■ Playback - This area allows files to be selected and viewed. ■ Voice Recording ∙ Guidance - Can be turned On / Off, Up / Down. ■ System Settings - Sensitivity of Shock sensor, recording time for an event file after an impact and storage ratio of each folder, touch calibration, are configured on this screen.
  • Page 20 ■ Manual Recording (SHOT Button) - The videos generated based on the manual recording button are stored separately in the EMERGENCY folder. ■ EVENT - This section stores videos generated based on impact event alarms. Videos based on shock while parked are also stored in this folder. ■...
  • Page 21 ■ Master volume - The higher the number is, the louder the volume will be for notification sounds and video playback. ■ Event alarm - This enables audio notifications when shock events are registered or system checking is required. ■ Voice recording - This enables audio recording inside of the vehicle.
  • Page 22 - This feature allows the system to detect when the vehicle battery is getting low and shut down before the charge is too low to start the vehicle. 12V is the recommended setting when connected directly to the vehicle battery in order to prevent the StreetCam HD from fully discharging the vehicle battery.
  • Page 23 LCD display on the device, as well as export video clips to upload or share. - Double-click the shortcut icon or go to the Start menu> All Programs> StreetCam HD to run the program. 2) How to use the StreetCam HD software ■...
  • Page 24 ■ OPEN - Please click on OPEN to view a list of the video files recorded by the StreetCam HD from the SD card or a previously exported folder. ■ Playback - Select a file from the list located on the right-hand side.
  • Page 25 ■ Shock Sensor Graph - The graph above shows impacts on the x-y-z axis of the vehicle. Z-axis: Detect impacts from Front - Rear Y-axis: Detect impacts from Up - Down X-axis: Detect impacts from Left - Right ■ Speedometer - The speed of the vehicle is calculated using the GPS data and is shown on videos during playback (requires use of GPS module for this function) ■...
  • Page 26 - Short memos/notes regarding the incident or other information can be entered and printed out together with the image. ■ Settings - This allows you to change the configuration settings on the StreetCam HD quickly without using the device’s LCD menu. ■ Version Information This document contains proprietary and copyrighted information subject to change without notice.
  • Page 27 - This window shows version information about the currently installed software package. ■ Auto-play - With this feature enabled, after you double-click a file and finish watching it, subsequent video files will automatically be played in chronological order. - Files in the current folder will play continuously from the bottom to top on the list. ①...
  • Page 28 ■ Video Options ① Switching front/rear -The right click options for the video panes appear as shown below: ② Aspect Ratio - The “Swap Display Views” option allows the video feeds to be switched while in Full screen mode. ③Zoom in / out - The aspect ratio options allow you to stretch the video if needed to better fit your monitor.
  • Page 29 - You can zoom in or out on the video using this option or by scrolling the mouse wheel up or down on the video pane. ④ Video Options - The thumbnail at bottom right indicates which part of the full image is zoomed. ⑤...
  • Page 30 ① Video Settings ② Shock Sensor Settings ③ Vehicle Information ④ Time Zone ⑤ Recording Settings ⑥ Low Vehicle Battery Detection Settings ⑦ Parked Mode ⑧ Speed Alarm ⑨ Speed Standards ⑩ Clock Synchronization ■ Video Settings This document contains proprietary and copyrighted information subject to change without notice. The information in this document shall not be duplicated, used, or disclosed in whole or in part outside of MAI Media Group ©...
  • Page 31 - Resolution and bitrate quality of videos can be changed here. - Videos recorded in high quality or at higher resolution will take up more space on the SD card due to the larger file size this produces. ■ Shock Sensor Settings - The sensitivity of the G-force sensor can be modified here based on the vehicle type and driving conditions.
  • Page 32 ⑤ Security LED triggered or the StreetCam HD switches modes. - When enabled, this LED lights will blink every 2 seconds while the StreetCam HD is on. ⑥ Auto LCD Off During EVENT related recording, it blinks faster to show recording activity.

  • Page 33: Warranty

    12V is the recommended setting for normal vehicles when the StreetCam HD is connected directly the vehicle’s battery to prevent the recorder from fully discharging the battery. ■ Parking Mode - When Auto Parking is selected, the system will switch into Parked mode after 10 minutes of no vehicle movement.
  • Page 34 Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at their own expense. All hardware, software, designs and logos of the StreetCam HD are copyrighted by MAI Media Group.
  • Page 35 CORPORATE HEADQUARTERS 9624 Cincinnati-Columbus Road Cincinnati, Ohio 45241 Main: 513.779.0604 Toll Free: 888.777.9059 Fax: 513.898.0266 www.mystreetcam.com This document contains proprietary and copyrighted information subject to change without notice. The information in this document shall not be duplicated, used, or disclosed in whole or in part outside of MAI Media Group © 2015. Any distribution of this material without the written consent of MAI Media Group is strictly prohibited.
