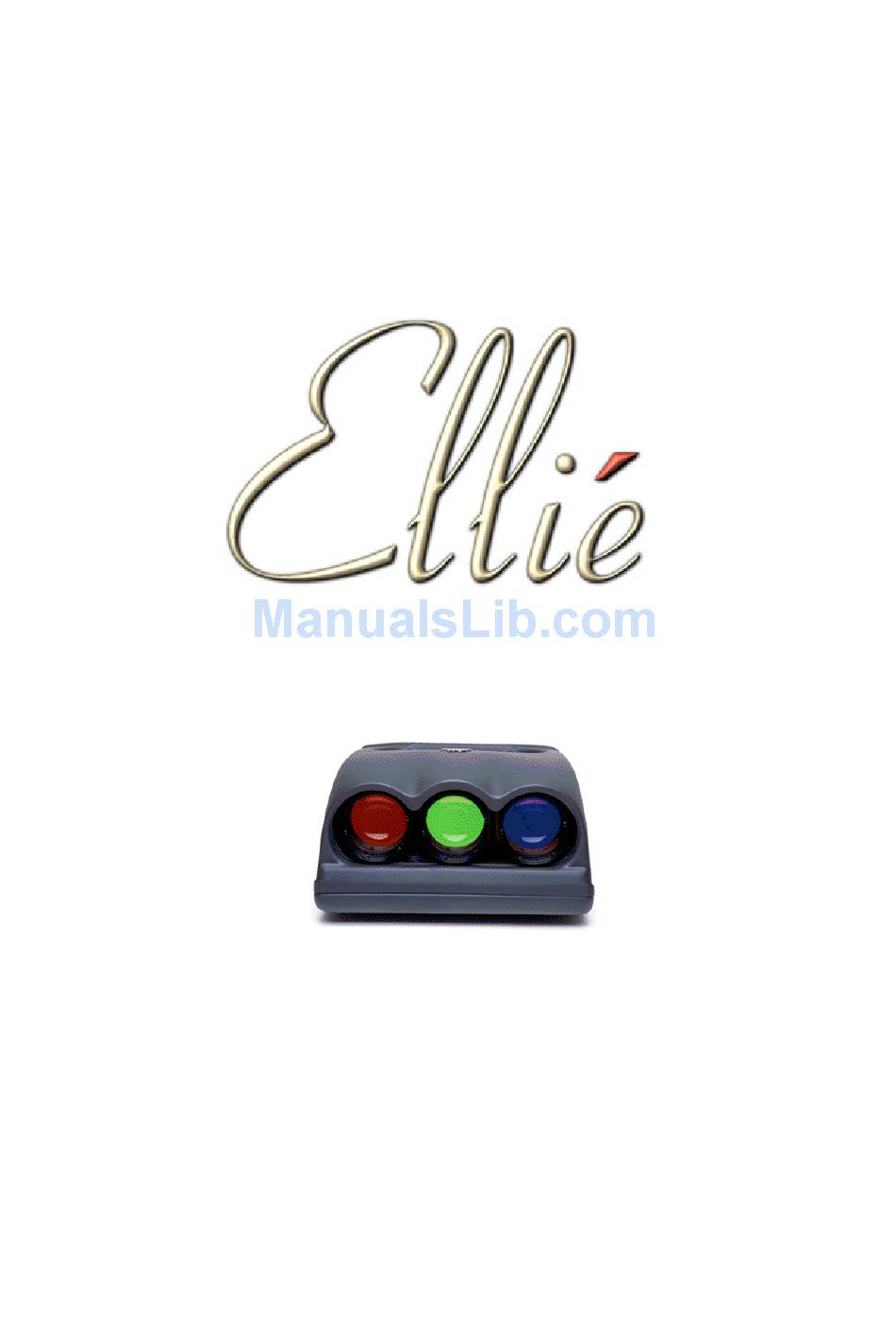

Page 1 XS 2000 HT User Manual...
Page 2: Table Of Contents
INDEX Before the installation pag. 3 Introduction to the use pag. 4 1 Remote control functions pag. 5 2 Input panel and keys pag. 6 3 Connections inputs pag. 7 - Possibilities of connection to the VGA input 4 Adjustment via remote control and control rear panel pag.
Page 3 Before installing, connecting and using the videoprojector Before proceeding with the installation of the videoprojector, please read carefully the handbooks supplied which contain all information you need for the installation, initial set-up and the use of the videoprojector. For a correct installation and a proper connection of the video sources, we recommend you to ask for the technical support.
Page 4: Introduction To The Use
INTRODUCTION TO THE USE OF THE VIDEOPROJECTOR The commands of the XS 2000 HT are designed for using the videoprojector in the easiest and the most straightforward way possible, still maintaining the possibility of acting on all parameters, also the specifically technical ones, by means of a infrared remote-control.
Page 5 // Activate test signal in service mode 12.- VGA 1. - Stand-by / On//- On su bank R 1. THE REMOTE CONTROL Control and Functions 2. - Memory ê 3. - Enter menu - Move menu cursor down ç 4. - Quit menu - Decrease selected function è...
Page 6 2. INPUT SOCKET AND CONTROLS 19.- Recall memory bank from 0 to 9. 20.- Stand-by / On - Recall Bank R. (when switching on after pressing button 29) 21.- Save current configuration in the required Bank. 22.- Standard VGA input socket. 23.- Standard S-VHS input socket.
Page 7: Input Connections
3. INPUT CONNECTIONS VGA Input pin1 red signal - pin2 green signal – pin3 blue signal – pin4-5-6- void – pin6-7-8-ground – pin9 void – pin10 ground – pin11-12 void – pin13 H. sync –pin14 V.sync- pin15 void On this input can be connected standard VGA signal from PC graphic video boards, whose specifications are compatible with the below chart: SYSTEM Hfreq...
Page 8 Video 1, Video 2 Input Socket Composite Video Input 1 Vpp +/- 3dB on 75 Ohm Video 1 Output (crossover) Video 1 crossover output. If the socket is connected to a input with a 75 Ohm impedance open jumper "J6" (on pcb 07/U board). Signal "C"...
Page 9 4. USING THE REMOTE CONTROL AND THE CONTROL PANEL. Press the "arrow" button ê ê ( 3 ) on the remote control or ê ê (30) on the control panel. The main "OSD" menu will be displayed. This menu contains those functions that can be adjusted and saved in ten different memory Banks.
Page 10 Example 2: (Bank :1 recalled bank information) current function value) Bank : 1 (||||||||----- graphic function value) |||||||||||||||||||||||||||||----------------- (ADJUSTMENT sub-menu title) (BRIGHTNESS selected function) -ADJUSTMENT- BRIGHTNESS CONTRAST COLOR BLACK PLUS GAMMA Example 3: (Bank :1 recalled bank information) current state of function) Bank : 1 (ADJUSTMENT sub-menu title)
Page 11 5. SAVING DATA TO A MEMORY BANK All the functions and adjustments, whether displayed on the "OSD" or not, can be saved in any of the ten available "Banks" using the remote control panel. To save: -Switch on the "OSD" (though not necessary, this is advisable so that you can follow the steps better) .
Page 12: Banks Memorizations
PRE MEMORIZATION (FACTORY PRE-SET) BANK INPUT STANDARD NOTE FORMAT VGA IN 640 x 480 CUT OFF MODE ON VIDEO 1 TEST – CROSSHATCH VIDEO 1 COMP. VIDEO - MAIN VIDEO 2 COMP. VIDEO – SECOND S-VHS VIDEO 1 16:9 S-VHS 16:9 VGA IN 640 x 480...
Page 13 CHART OF THE PARAMETERS MEMORIZED IN THE BANKS (The projector is factory preset with the memorized banks in accordance with the details listed in the following chart). FUNCTIONS BANK BANK BANK BANK BANK BANK BANK BANK BANK BANK INPUT VID 1 VID 1 VID 2 S-VHS VID 1 S-VHS 640x 800x...
Page 14 6. LIST OF THE MENU REGULATIONS -MAIN MENU- ADJUSTMENT BRIGHTNESS CONTRAST COLOR BLACK PLUS GAMMA QUALITY PEAKING NTSC MATRIX -WHITE BALANCE R DARK G DARK B DARK R BRIGHT G BRIGHT B BRIGHT - SERVICE CUT OFF WHITE PEAK W. P. MODE B PLUS ITALIAN SOURCE...
Page 15: Menu Adjustment
7. MENU ADJUSTMENT Brightness To adjust the brightness select the menu function and then press the è button to Bank : 1 |||||||||||||||||||||||||||||----------------- increase it or the ç button to decrease it. If you press buttons ( 16 ) on the remote control -ADJUSTMENT- you can immediately activate brightness control BRIGHTNESS...
Page 16: Gamma Correction
Bank : 1 To adjust the tint in standard NTSC select the |||||||||||||||||||||||||||||----------------- menu function and then press the è ( 5 ) button to increase it or the ç ( 4 ) button to decrease it. -ADJUSTMENT- If you press button (15) on the remote control BRIGHTNESS you can immediately access tint control without CONTRAST...
Page 17: Menu Quality
8. MENU QUALITY Peaking Use this function to adjust the amplifier video Bank : 1 signal response curve to sharpen or enhance ||--------------------------- image details. To adjust peaking select the menu function and -QUALITY- then press the è ( 5 ) button or the ç ( 4 ) n PEAKING button to make the required adjustment.
Page 18: Menu Service
9. MENU WHITE BALANCE These six functions allow you to adjust the Bank : 1 colour temperature to your requirements. |||||||||||||||||||||||||||||----------------- When using this function you must observe certain criteria that are linked to the pre-set WHITE BALANCE parameters Particularly, if the Cut-off function in R DARK the "Service"...
Page 19: White Peak W. P. Mode
White peak (limiter) and W. P. mode (white peak limiter absolute/ relative to cut-off) This function should be used by the installation technician only! These two functions are tied to each other. When the "W.P. MODE" function is switched Bank : 1 "ON"...
Page 20: Menu Source
LANGUAGE The menus are in two languages. ON Bank : 1 You can select either of the languages for each memorized Bank. -SERVICE To select the languages use the è ( 5 ) button CUT OFF and the ç ( 4 ) button. WHITE PEAK Menu item will be update when the "OSD"...
Page 21 STANDARD SELECTION The standard selection is adjusted by default to Bank : 1 manually set one of the following standards, by -SOURCE- acting in sequence on the è ( 5 ) or ç ( 4 ) buttons: INPUT SELECT n STANDARD - SELECT è...
Page 22: Shift
12. MENU SIZE ADJ. SIZE ADJ. Bank : 1 The adjustment values in this menu act |||||||||||||||||||||||||||||----------------- respectively on the image geometry and the size: -SIZE ADJ - vertical size n V SIZE - horizontal size H SIZE - horizontal phase H PHASE - keystone KEYSTONE...
Page 23: Shift
CORNER ADJUSTMENT COMPENSATION The dynamic convergence adjustments to the Bank : 1 image corners are globally performed by this ||||||||||||||||||||||||||||||||||||||||||||||||--------- function which allows you to dose the correction needed according to the variation of the image CONVERGENCE format (particularly for the vertical size). SHIFT The adjustment is made by choosing the option n CORNER ADJ.
Page 24 - TOP ,(adjustment of the top margin) Bank : 1 - LEFT, (adjustment of the left margin) ||||||||||||||||||||||||||||||||||||||||||||||||--------- - RIGHT,(adjustment of the right margin) The image quantity when off can be adjusted as wished by selecting the option desired and acting CONVERGENCE on the è...
Page 25 Function of key “A” (10) on the remote control (invert keystone V) (See also installation manual) This button can only be used when the test signal generator has been activated (11 in the second function mode "service test mode"). This function is used when installing the projector to make any correction to the keystone, based on the kind of fixing base (ceiling-floor).
