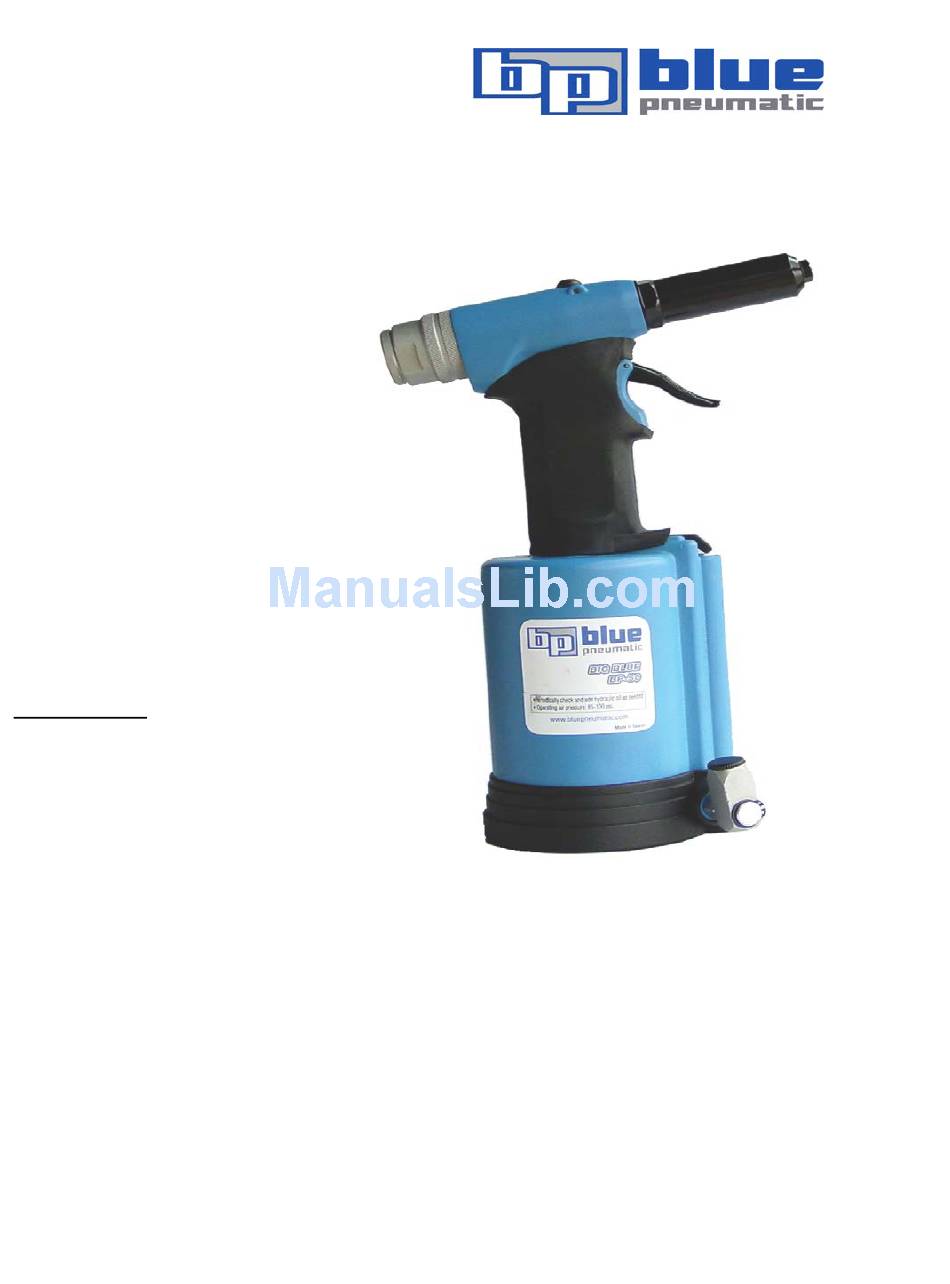

BP-50 BIG BLUE 1/4 HEAVY DUTY RIVETER
Operating Instructions
Specifications
Maintenace
Notices
SPECIFICATIONS :
Blind Rivet Setting Capacity---Max.1/4" Dia
Traction Power...................3800Lbs(1700kgs)
Stroke .............................. 7/8
Operating Air Pressure.........85-110 PSI
Length :.............................317mm
Weight..............................5.2LBS (2.4kgs)
Sound Pressure.................70 dB(A)
Vibration ....................... < 2.5 M/S²
Advertisement
Table of Contents
Summary of Contents for Blue Pneumatic BP-50
- Page 1 BP-50 BIG BLUE 1/4 HEAVY DUTY RIVETER Operating Instructions Specifications Maintenace Notices SPECIFICATIONS : Blind Rivet Setting Capacity---Max.1/4" Dia Traction Power…………….…3800Lbs(1700kgs) Stroke ….………….…..… 7/8 Operating Air Pressure.….….85-110 PSI Length :……………..……..….317mm Weight…………………….…..5.2LBS (2.4kgs) Sound Pressure….……….…70 dB(A) Vibration ……….…..…… < 2.5 M/S²...
- Page 2 THE FUSION OF PRODUCTION AND TECHNOLOGY ™ BP-48V P/Micro Air Hydraulic Riveter (1/8-5/32 Extra Small riveter) Specifications Operating Information Capacity………..3/32, 1/8 and 5/32 Safety Information Air pressure………85-100 psi Parts Breakdown Recommended Hose Size…..3/8 Warranty Information Air Inlet……….1/4 Weight……………….2.4 lbs. Tool Includes: Service Wrenches, 3 Nose Tips, Extra Set of Jaws and Hanging Clip...
- Page 4 THE FUSION OF PRODUCTION AND TECHNOLOGY ™ BP-50 BIG BLUE 1/4 HEAVY DUTY RIVETER Nose Tip Oil Plug Notable Features/Operation Information: 1. Oiling plug is located at the top of the tool (#13) 2. For 1/8 and 5/32 Rivets, remove jaws #4 (#500008 ) and replace #4 w/ (10508) small jaws.
