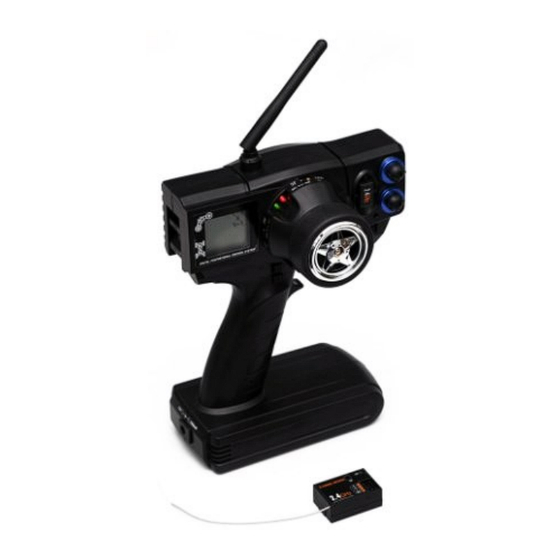

Rock Crawler 2.4ghz Basic Instruction
Thank you for your purchase. Welcome to the RC4WD family. This radio system is
a combination of many specially engineered and manufactured parts. Please take
time to read this manual in is entirety.
Install your batteries into the transmitter
• Remove the battery cover in the direction of the arrow on the cover
• Load your new AA size batteries. Pay close attention to the polarity
markings and insert accordingly.
• Slide the battery cover back onto the case.
Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for RC4WD Rock Crawler
- Page 1 Rock Crawler 2.4ghz Basic Instruction Manual Thank you for your purchase. Welcome to the RC4WD family. This radio system is a combination of many specially engineered and manufactured parts. Please take time to read this manual in is entirety. Install your batteries into the transmitter •...
- Page 2 Function Switches 1. Antenna 6. Steering Wheel 2. Steering Reverse 7. On/Off Switch 3. Steering Trim 8. Throttle Reverse 4. Throttle Trim 9. Battery Monitor 5. Throttle Trigger 10. Third Channel Reverse 11. Non Functionsal 13. Third Channel Switch 12. Non Functional...
- Page 3 1. Binding button 4. 2 channel Throttle 2. Working Indicator 5. 1 channel Steering 3. 3 channel 6. Battery Transmitter Adjustments A. Throttle Trigger 1. Push the trigger forwards to allow the vehicle to slow down or stop. 2. Pull the trigger backwards to allow the vehicle to go forward and speed up.
- Page 4 B. Steering Wheel 1. Turn the steering wheel to the left or right to let the vehicle to turn left or right. Throttle Trim is used to slightly trim the throttle servo when the trigger is at neutral position. Steering Trim is used to slightly trim the front steering wheels Note: If the front wheels are not straight when the trigger is set at neutral position, you can adjust the steering trim to make them aligned.
- Page 5 Further, in no event shall the liability of RC4WD exceed the individual price of the product on which liability is asserted. As RC4WD has no control over use, setup, final assembly, modification, or misuse, no liability shall be assumed nor accepted for any resulting damage or injury.
