Summary of Contents for SG Technologies SGT-3DPEG

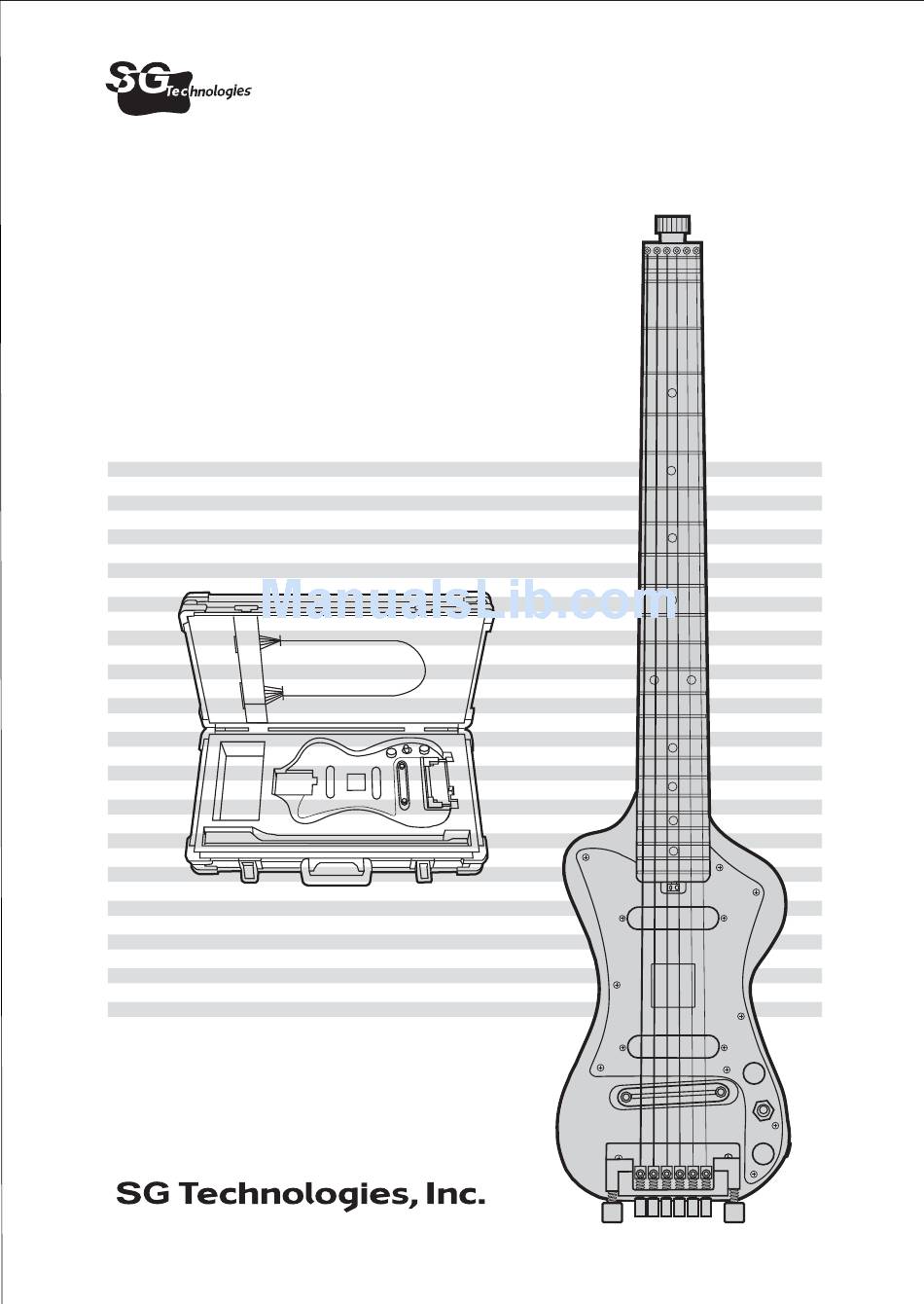

- Page 1 ３Dividable Portable Electric Guitar SGT-3DPEG Owner's Manual...
-
Page 2: Table Of Contents
Precautions ------------------------------------------------------------ 1 ２． Storage and Maintenance ------------------------------------------ 1 ３． SGT-3DPEG Guitar and Accessories ------------------------------ 2 ４． Name of Each Part of SGT-3DPEG --------------------------------- 3 ５． How to Assemble the Guitar ---------------------------------------- 4 ６． Tuning -------------------------------------------------------------------- 5 ７． How to Disassemble the Guitar ------------------------------------ 6 ８．... -
Page 3: Precautions
１-５．Recommended String Gauge At the factory, 09-42 strings have been set on your SGT-3DPEG guitar. SGT-3DPEG guitars can be used with strings up to the gauge 10-46. Do not use thicker strings than 10-46 as it may cause a malfunction. -
Page 4: ３． Sgt-3Dpeg Guitar And Accessories
(available at guitar specialty stores) to the external screws. SGT-3DPEG guitars use special washers (a Teflon washer sandwiched with two Duracon washers) in the knobs for smooth turning. In case the washers broke or worn out, contact the factory. -
Page 5: ４． Name Of Each Part Of Sgt-3Dpeg
SGT-3DPEG Owner's Manual Name of Each Part of SGT-3DPEG Head knob Head String Fixing Bolt (6) Zero Fret End Pin Neck Strap Pin Body Neck Joint Knob PU Output Jack Spoke Wheel Nut Abalone Emblem Pickup Volume Pod Bridge 3 Way Toggle Switch ... -
Page 6: ５． How To Assemble The Guitar
SGT-3DPEG Owner's Manual How to Assemble the Guitar ５-１． Place the neck to the right position of the body and fix it by using two neck joint knobs. You do not need to tighten the knobs with full force. Neck Joint Knob After attaching the neck to the body, lay the guitar face up on a flat place. -
Page 7: ６． Tuning
SGT-3DPEG Owner's Manual ５-４． Attach the head to the neck while aligning the bolt with the locator pin on the head and tighten the bolt. Neck Head Locator Pin ５-５． Align all the strings to the right positions on the bridge and the nut. -
Page 8: ７． How To Disassemble The Guitar
SGT-3DPEG Owner's Manual ６-２． After tuning 5(A) string, tune 4(D) string by using the fine-tuning knob. Do the same with other strings. ６-３． Tune 6 (E) string at the end. ６-４． Tuning should be completed by fine-tuning all the strings again in the same order. -
Page 9: ８． Changing Strings
SGT-3DPEG Owner's Manual Changing Strings Tools needed: Plier, Nipper ８-１． Removing a String １） Align Tail Piece B with the parallel line 3 (PL3) by turning the two master knobs. Line with PL3 ２）Loosen the string fixing bolt on the head and take the target string out of the head. -
Page 10: ９． Adjustments
SGT-3DPEG Owner's Manual ２） Insert the other end of the string to the head. If necessary, remove the head from the neck to insert the string and put it back when it s done. ３） Wind the string on the string fixing bolt (between the... - Page 11 SGT-3DPEG Owner's Manual ９-２．Intonation Adjustment Use a screwdriver to turn the adjustment screws on the bridge from the tail piece side while looking at the guitar tuner. Turing clockwise makes the tone lower and turning counter-clockwise makes the tone higher.
-
Page 12: １ ０．Specifications
SGT-3DPEG Owner's Manual Specification Body : Neck : Maple Finger Board : Rosewood Number of Fret : 23 (including zero fret) Net Scale : 24 in. (609.6 mm) Full Length : 29.72 in. (755 mm) Adjustable Truss Rod : Spoke Wheel Nut Type...
