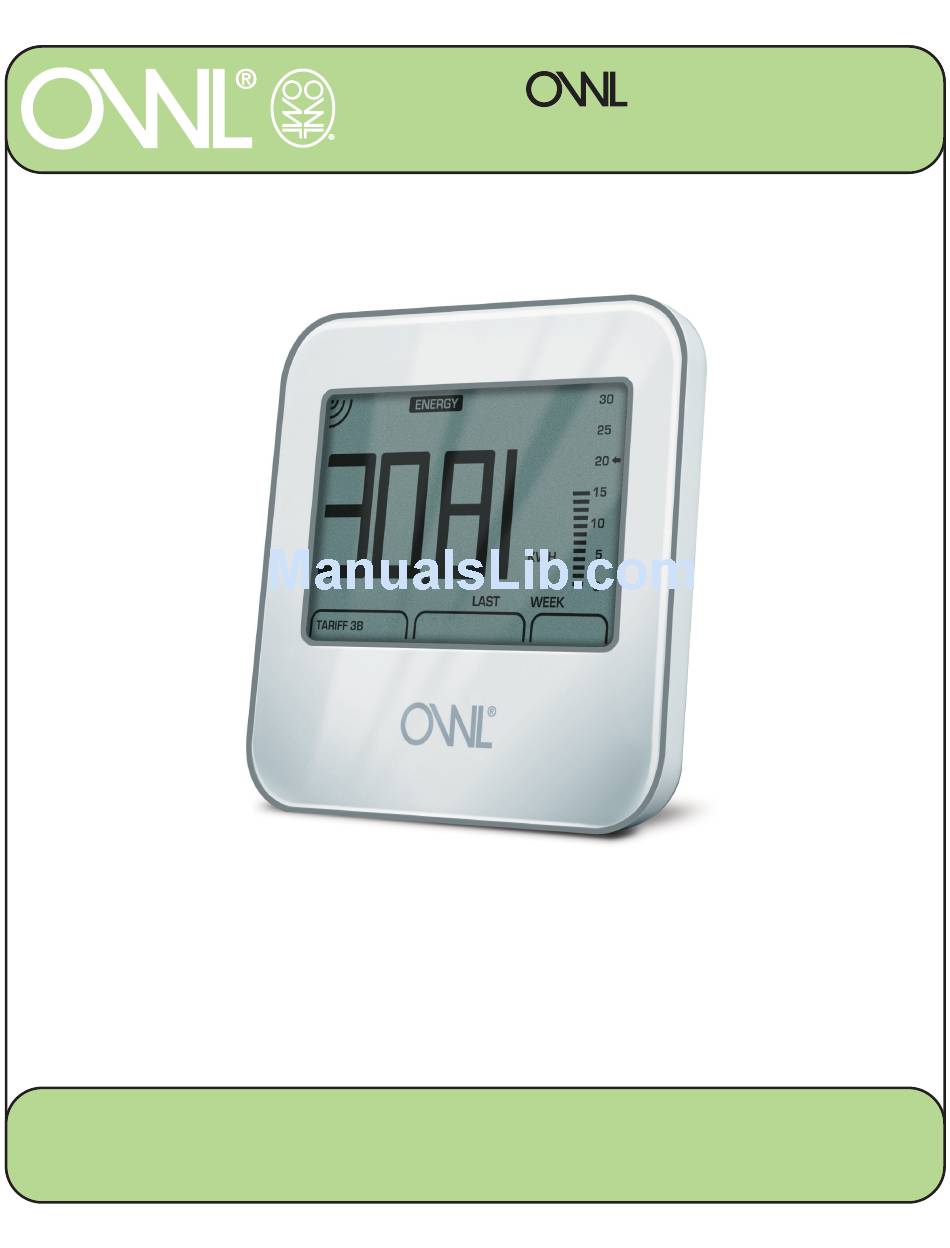

- Page 1 micro+ WIRELESS ELECTRICITY MONITOR USER MANUAL AND INSTALLATION GUIDE 2 Save Energy Limited Chineham Lane, Basingstoke, Hants, RG24 9LR www.theowl.com customer.services@theowl.com...
-
Page 2: Table Of Contents
Page General safety and care guidelines Overview Display Layout Fitting the batteries Pairing up your OWL Micro+ Setting up the time and date Setting up the tariff Fitting the sensor Alarm & Daily Consumption Chart Setting the Voltage, ALARM, CO2e... -
Page 3: General Safety And Care Guidelines
micro+ WIRELESS ELECTRICITY MONITOR General safety and care guidelines To ensure that you use your product safely and correctly please read the warnings, safety precaution and caring for your product. Please observe the following warning and safety precaution guidelines when setting up and using this product. - Page 4 Caring for your product or corrosive materials to clean the the OWL Micro+. This product uses Type C current transformer, do not apply around 2 Save Energy Limited Chineham Lane, Basingstoke, Hants, RG24 9LR www.theowl.com...
-
Page 5: Overview
The intention of the OWL Micro+ electricity monitor is primarily as an educational device to aid understanding of the cost of operating appliances in the home. There is no intention for the OWL Micro+ electricity monitor to replace your accurate electricity revenue meter. -
Page 6: Display Layout
micro+ WIRELESS ELECTRICITY MONITOR Display Layout 3. Function mode indicators 4. Main display digits 5. Period display modes 6. Active tariff display 7. Battery low display indicators 8. SET mode indicator 9. Target display 10. Graphical usage display 11. Measurement units 2 Save Energy Limited Chineham Lane, Basingstoke, Hants, RG24 9LR www.theowl.com... -
Page 7: Fitting The Batteries
micro+ WIRELESS ELECTRICITY MONITOR BEFORE YOU START buttons. Most recent electricity bill so that you can input current cost per unit (KWH) of electricity based on your tariff plan. Bring the Transmitter and Display units together STEP ONE Slide battery cover off of the Transmitter and insert the batteries into the unit. -
Page 8: Pairing Up Your Owl Micro
micro+ WIRELESS ELECTRICITY MONITOR Steps three and four need to be taken quickly after each other STEP THREE – Place the Transmitter into Pairing Mode button in the back of the battery compartment. Transmitter battery compartment until the red LED on the front starts flashing. -
Page 9: Setting Up The Time And Date
micro+ WIRELESS ELECTRICITY MONITOR When the transmitter & display complete the pairing process the display will automatically go into SET mode, requiring the TIME/DATE to be set. STEP FIVE – Set the Time in the display STEP SIX – Set the date in the display STEP SEVEN you have successfully paired your units. -
Page 10: Setting Up The Tariff
micro+ WIRELESS ELECTRICITY MONITOR STEP EIGHT – Set the tariff in the display Identify the tariff type you have, your tariff rate and then follow the applicable steps to setup the tariff you have SINGLE TARIFF SETUP Press the MODE key to take you to the COST screen. Press and hold [SET] key until a currency symbol is flashing. - Page 11 micro+ WIRELESS ELECTRICITY MONITOR DUAL TARIFF SETUP Press the MODE key to take you to the COST screen. Press and hold [SET] key until a currency symbol is flashing. SET key to confirm confirm press the SET key to confirm (The Start Hour should be set to coincide with Start Time for the Tariff) display and press the SET key to confirm (ie £, pence, $, €...
- Page 12 micro+ WIRELESS ELECTRICITY MONITOR BLOCK TARIFF SETUP (ie based on amount of electricity used) Press the MODE key to take you to the COST screen. Press and hold [SET] key until a currency symbol is flashing. the SET key to confirm confirm confirm confirm...
-
Page 13: Fitting The Sensor
micro+ WIRELESS ELECTRICITY MONITOR STEP NINE Connect the sensor over your electricity cable from the meter into the consumer unit (the cable coming out on the right hand side of the meter as you look at it). The live cable is normally a red or brown insulated cable although in a lot of instances these are double insulated with a grey insulation along the live cable from the meter to the consumer unit. -
Page 14: Alarm & Daily Consumption Chart
micro+ WIRELESS ELECTRICITY MONITOR display then repeat steps 3 through 8 units will need to be paired together again. back to factory default. ALARM FUNCTION (MAX) The alarm function is a setting which allows you to set up a warning for high level of electricity consumption at any given time. -
Page 15: Setting The Voltage, Alarm, Co2E
micro+ WIRELESS ELECTRICITY MONITOR Energy Display Mode. flashing. Generating electricity can result in the production of CO2 and some of this is this figure varies from supplier to supplier, your electricity supplier should be able to supply you with a figure for their own generation per KWH. for CO2e is flashing. -
Page 16: Key Functions
micro+ WIRELESS ELECTRICITY MONITOR KEY FUNCTIONS DISPLAY BUTTON KEY FUNCTION IDENT MODE ormal Changes display mode History COST E ERG CO2E T ME DATE COST Press Average o Function MODE ormal Enters History Mode Press History Enters Average Mode Average Returns to Display Mode Hold o Function... -
Page 17: Display Modes
micro+ WIRELESS ELECTRICITY MONITOR DISPLAY MODES OVERVIEW TIME Displays current time DATE Displays current date COST Cost of electricity in use at that time if used at this level for 1hr TOTAL Total cost of electricity used from when display first setup or when last reset to zero. - Page 18 micro+ WIRELESS ELECTRICITY MONITOR DISPLAY MODES OVERVIEW CO2e E uivalent CO2 emissions for amount of electricity in use at that time (KG) TOTAL E uivalent CO2 emissions for total amount of electricity used from display first setup or when last reset to zero (KG) H STOR E uivalent CO2 emissions for total amount of electricity used so far This Day Week Month and electricity used for Last Day...
-
Page 19: Resetting The Owl Micro
WIRELESS ELECTRICITY MONITOR RESETTING OWL MICRO+ RESET THE TOTAL TO ZERO to 0. Resetting the TOTAL to zero does not zero any other history or average values held in display. RESET TO FACTORY DEFAULTS Press the RESET button in the battery compartment in both the transmitter access the recessed buttons. -
Page 20: Warranty And Compliance
WIRELESS ELECTRICITY MONITOR 2 Save Energy Limited guarantees that your OWL electricity monitor will work for a minimum period of 2 years from date of purchase and that it will be free may return it to us and we will replace or at our discretion repair it free of charge.
