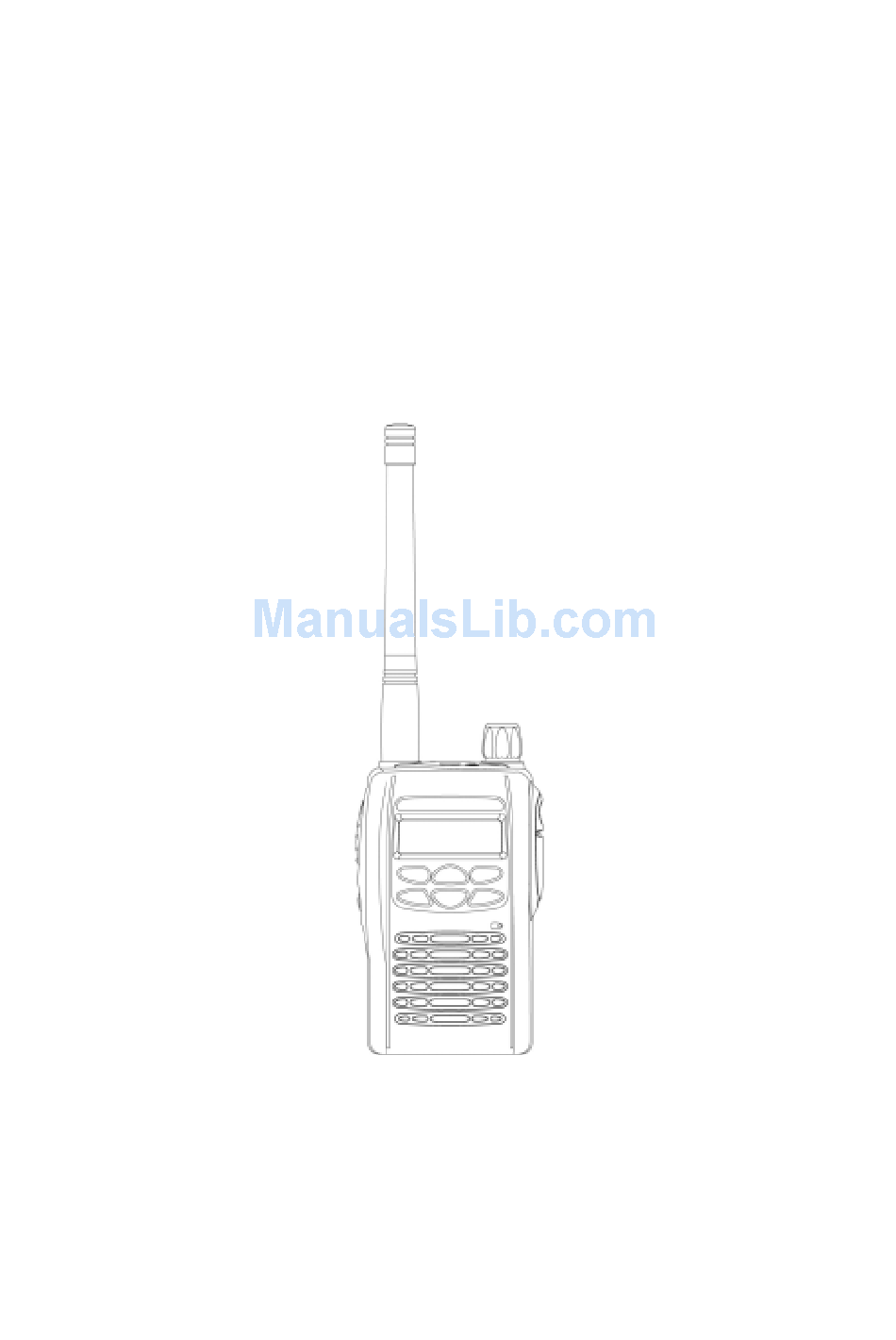

  • Page 1 Professional Radio IP - Series User Guide...
  • Page 2 ITEMS...

  • Page 3: Table Of Contents

    CONTENTS Radio Overview Programmable Buttons Panel Description Radio Controls Menu Keys Menu Navigation Chart LCD Display Icons Accessories Attaching the Battery Removing the Battery Attaching the Antenna Removing the Antenna Operation Turning the Radio On-Off Adjusting the Radio’s Volume Selecting a Radio Channel Missed Calls Contact List Lone Worker...

  • Page 4: Radio Overview

    RADIO OVERVIEW Thank you for purchasing the IP-Series transceivers. Read all instructions carefully and completely before using transceiver. This instruction manual contains important operating instructions for the transceivers. OPERATION AND CONTROL FUNCTIONS Radio Controls The numbers below refer to the illustrations on the inside front cover. 1.

  • Page 5: Panel Description

    Feature Description Monitor/Cancel _______ The monitor function allows you to open the transceiver's squelch manually to check whether a channel is busy or not. Radio Call ___________ To make an individual or group selective call. Missed Call List _____ Allows user direct access into the Missed Call List menu feature. Status call __________ Allows user direct access into Status List menu.

  • Page 6: Menu Keys

    Menu Keys Menu/ Select Down Menu/ Select key This key is used to choose Menu selection. Displays veriety of information such as, Missed call list, Contact list, Status call list, Lone worker Talk around, Password etc. Toggle between high and low power. Start scanning programmed channels.

  • Page 7: Menu Navigation Chart

    Menu Navigation Chart...

  • Page 8: Lcd Display Icons

    LCD Display and Icons Symbol Name and Description Indicate relative signal strength level. Power Level Indicator. "H" is high power. "L" is low power. Key Lock Indicator. Appears during key lock function ON. Alert(Beep) ON/OFF Indicator. Appears when beep sound is turned ON. Battery Level Indicator.

  • Page 9: Accessories

    ACCESSORY INFORMATION Attaching the Battery 1. Fit the extensions at the bottom of the battery into the slots at the bottom of the radio’s body. 2. Press the top part of the battery towards the radio until you hear a click.

  • Page 10: Attaching The Antenna

    Attaching the Antenna 1. Align the threaded end of the antenna with the radio’s antenna connector. 2. Turn the antenna clockwise to fasten it. Removing the Antenna 1. Turn the antenna counterclockwise until you can remove it.

  • Page 11: Operation

    RADIO OPERATION Turning the Radio On or Off To turn the radio on, turn the On-Off/Volume Control knob clockwise. To turn the radio off. turn the On-Off/Volume Control knob counterclockwise until you hear a click. Adjusting the Radio’s Volume Turn the On-Off/Volume Control knob to adjust the volume level.

  • Page 12: Selecting A Radio Channel

    Selecting a Radio Channel This radio offers up to 255 channels. Select the desired channel by using Up/Down Key. Each press increases/decrease the channel number. When held down, the channels increase continuously. Seclect the desired channel by using Down Key. Each press decreases the channel number.

  • Page 13: Missed Calls

    Missed call list If a call remains unanswered, the call will be stored by the radio, provided that Missed Calls has been programmed into your radio. Up to 16 calls can be stored. If the same radio calls more than once, only the most recent call is stored.

  • Page 14: Contact List

    Contact List During a call, the contact list may be used to give access to up to 16 preprogrammed numbers accessed via the menu. Up to 16 calls can be stored. If the same radio calls more than once, only the most recent call is stored. When fifteen calls have been stored by the radio, depending on the radio programming the sixteenth call received may overwrite the first of not be stored by the radio.

  • Page 15: Lone Worker

    Lone Worker The Lone Worker function enables you to work alon with more safety. You can switch On and Off Lone Worker by using a pre-programmed Lone Worker button or through the menu. Method to enter Menu Mode. to scroll list until Lone Worker to select to turn ON / OFF...

  • Page 16: Tx Power

    Tx Power This function selects high or low power for a channel. Method to enter Menu Mode. to scroll list until Tx Power to select to select High/ Low...

  • Page 17: Status Calls

    Status Call List A status is a code for transmitting prearranged messages, e.g. status "03" may indicate "launch". The prearranged messages and associated code digits are contained in a Status List which contains up to 30 entries. Method to enter Menu Mode. to scroll list until Status to select Making a Status Call...

  • Page 18: Group

    Group Method to enter Menu Mode. to scroll list until Group to select to scroll list to select...

  • Page 19: Beep On / Off

    Beep On / Off Alert(Beep) ON/OFF Indicator Appears when beep sound is turned ON. Method to enter Menu Mode. to scroll list until Beep. to select to turn ON / OFF to select...

  • Page 20: Tx Tone

    Tx Tone This function used to change Tx Tone such as CTCSS, DCS. Method to enter Menu Mode. to scroll list until Tx Tone to select to select whether CTCSS or DCS to select There are 38 CTCSS code(1~38) There are 83 DCS code(101~183) 0 means no Tone...

  • Page 21: Rx Tone

    Rx Tone This function used to change Rx Tone such as CTCSS, DCS. Method to enter Menu Mode. to scroll list until Rx Tone to select to select whether CTCSS or DCS to select There are 38 CTCSS code(1~38) There are 83 DCS code(101~183) 0 means no Tone...

  • Page 22: Dtmf

    DTMF This function allows you to send a pre-programmed DTMF code to control a repeater, open another transceiver's squelch, etc. Method to enter Menu Mode. to scroll list until DTMF to select to turn On / Off to select...

  • Page 23: Talkaround

    Talk Around To talk directly with another radio without going through a system or despatcher. Method to enter Menu Mode. to scroll list until Talk Around to select to turn On / Off to select...

  • Page 24: Key Lock

    Key lock Key Lock Indicator. Appears during key lock function is ON. Method to enter Menu Mode. to scroll list until Key Lock to select to select lock / unlock key to select...

  • Page 25: Scan

    Scan Appears when Scan function is activated. Method to enter Menu Mode. to scroll list until Scan to select for scanning 4. Push PTT button for exit.

  • Page 26: Scrambler

    Scrambler This function provides higher communication security. Method to enter Menu Mode. to scroll list until Scrambler to select to turn On / Off to select...

  • Page 27: Approval

    Do not transmit for more than 50% of total radio use time("50% duty cycle"). Transmitting more than 50% of the time can cause FCC RF exposure compliance requirements to be exceeded. Always use E-Tech supplied accessories (antenna, batteries, belt clips, speaker/mic etc.) Use of unauthorized accessories can cause the FCC RF exposure...
  • Page 28 FCC RF exposure compliance requirements are not exceeded. 2. CE APPROVAL The E-Tech transceiver meets the following essential requirement. IP-100: EN 300 086-1/-2 IP-400: EN 300 086-1/-2...
