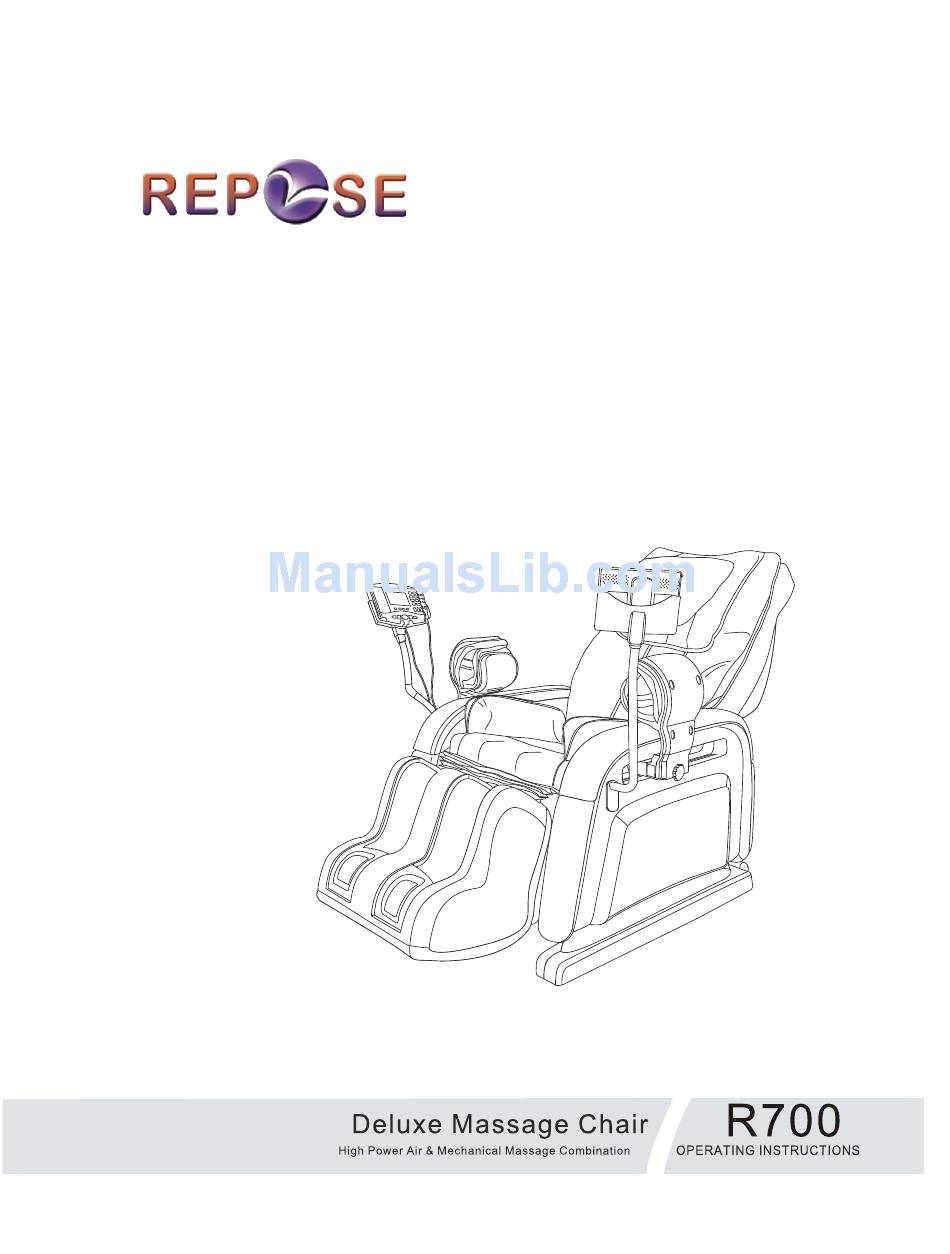

Repose R700 Operating Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R700 and is the answer not in the manual?

Questions and answers

Related Manuals for Repose R700

Summary of Contents for Repose R700

  • Page 2: Table Of Contents

    Thank you for purchasing an R700 Massage Lounger. Before using, please read this Thank you for purchasing an R700 Massage Lounger. Before using, please read this OPERATING INSTRUCTIONS carefully and pay special attention to all precautions OPERATING INSTRUCTIONS carefully and pay special attention to all precautions to avoid any improper or unsafe use.

  • Page 3: Safety Precautions

    Environment Do not use the machine in damp and dirty places to avoid electric shock or product damage Do not use it in temperatures under 40°F or over 100°F Do not store the machine outdoors Always make sure to use it on a level surface If entered in extremely cold or hot environments, wait for one hour before use in a proper environment, or the machine could be damaged.

  • Page 4: Terminating Use

    The massage chair is only for use by one person at a time Users must not exceed 265 lbs Make sure the rollers are moving along with the spine, otherwise pain or discomfort may occur Do not sleep on the chair when in use Do not use it after consuming alcohol or drugs Do not directly touch the massage rollers with any part of your body other than your back...

  • Page 5: Chair Components And Functions

    NAME AND FUNCTION OF EACH PART Exterior structure Big Pillow Auxiliary remote cushion control Small Pillow Main remote cushion control Back cushion Remote control Armrest airbags holder Seat cushion Armrest moving Folded leather mechanism cover Calf rest Easy-assembly armrest Back cover DVD remote control DVD player(optional) DVD player holder...

  • Page 6: Internal Components

    NAME AND FUNCTION OF EACH PART Power cabinet Power socket Fuse cover Power switch Specification label Caution label Main remote control socket Auxiliary remote control socket Head phone socket USB interface DVD player socket Interior structure Backrest 3D massage mechanism Thigh sides air pressure massage airbags Upper waist...

  • Page 7: Main Functions Of Remote Control

    NAME AND FUNCTION OF EACH PART Function areas on main remote controller Turn on/off the Manualfunction area Memory function area heater in back Full auto controlling area Semi-auto controlling area VFD screen area Instructions on buttons Power and the full auto controlling area Power : Turn on/off massage functions .
  • Page 8 NAME AND FUNCTION OF EACH PART Start the “RELAX”auto massage program. Start the “REFRESH”auto massage program. Semi-auto controlling area Neck & shoulder AUTO: select neck and shoulder automatic programs. Back &waist AUTO: select back and waist automatic programs Air bags AUTO: Turn on/off air bags automatic programs. Air bags strength: six air strengths for selection.
  • Page 9 NAME AND FUNCTION OF EACH PART Memory function area A B C three memory function buttons can be selected repeatedly. Memory function setting: Under normal working status, keep pressing any button of A/B/C for more than 1.5second, the current functions combination and the position of backrest and calf rest will be stored to the point position.
  • Page 10 Turn on/off clockwise kneading and tapping mode. Turn on/off anti-clockwise kneading and tapping mode. Turn on/off pummel. Turn on/off shiatsu mode. Turn on/off 3D kneading mode. Turn on/off 3D pummel mode. Turn on/off 3D kneading and tapping mode. Back massage locate Select overall massage position Select partial massage position Select point massage position under the manual function;...

  • Page 11: Vfd Remote Control Screen

    NAME AND FUNCTION OF EACH PART VFD area description 1. Time display: during working, it shows surplus time, the default working time is 20 minutes. 2. Backrest manual function indications. 3. Backrest auto function indications: it will be lightened under six backrest auto modes of “RECOVERY”, “EXTENT”, “RELAX”, “REFRESH”, “UPPER BACK AUTO”, “LOWER BACK AUTO”, while they are invalid under any other modes.
  • Page 12 NAME AND FUNCTION OF EACH PART 14.Ascending and descending adjustment indications Indications of ascending and Indications of ascending and descending of the calf rest descending of the back rest 15.Back massage location mode Overall mode: for the whole backrest. Partial mode: on the basis of current position, massage area extends one third of overall.

  • Page 13: Operating The Audio Remote Control

    NAME AND FUNCTION OF EACH PART Instructions on auxiliary remote controller MP3 music player instructions Play/pause current music. Stop playing music and back to the first song when replaying. Previous song. Next song. Turn up volume. Turn down volume. Note : Should any abnormality occurs on MP3 system or facilities have not been installed, the“DIDI”...

  • Page 14: Features

    INSTRUCTIONS ON FUNCTIONS 1.3D massage mechanism New design of 3D massage mechanism accords with ergonomics. 2.Body detection The former body detection can only detect the position of shoulder, then calculate the approximate value of every point according to a proper scale. This model makes it more reliable and accurate on the collection of data on the back because it adopted the technology of function 3D electric current sensor.

  • Page 15: Preparing The Chair For Use

    PREPARING THE CHAIR FOR USE Select a suitable location Safe Requirements: Make sure there is at least 20″of space benlnd the chair. ″of space in front of the Make sure there is at least 18 legrest 18 inches 20 inches Floor protection The massage chair could potentially damage your floor so we recommend placing a rug under the chair.

  • Page 16: Assembly

    PEWPARING THE CHAIR FOR USE Assembly Step 1: Prepare the components Unpack the main box with the chair frame,cushions and pillows. Unpack the carron containg the footrests. Unpack the carton countaing the armrests. Check all parts for damage and contact your dealer if and components are damaged.

  • Page 17: Assembly

    PREPARING THE CHAIR FOR USE Disassembly of the armrest: open up the cover in the inner of the armrest, pull the handle inside back and the armrest will break away automatically, Lift the armrest up and away from the main frome. Note: You may need to have someone jiggle the release handle while...
  • Page 18 Operating The Chair Step 4:Remove the two small screws from the terminal on the front of chair. Plug legresr cables into the connrctlon terminal. Put serews back in and tighten Note: Switch step 3 & Note: Drewings are upside down step 3.5 Connection terminal on the font of chair frame...
  • Page 19 PREPARING THE CHAIR FOR USE Step 6:Install the back cushion and pillow cushion Attach the back cushion bay fastening the zipperS on, the chair and back cushion together, velcro the bottom of the cushion to the chair after plugging. in the heqtes cunnection. Install pillow to backrest cushion with vekro Zippers Heater connector...

  • Page 20: Moving Assembled Chair

    PREPARING THE CHAIR FOR USE Moving assembled chair Installed casters are used for moving the chair. Lower the backrest to the lowest position. Turn off the power and detach the power plug. Tilt the chair back onto the casters and roll the chair to the desired location .

  • Page 21: Positioning The Chair

    PREPARING THE CHAIR FOR USE Positioning the chair Recline backrest to iowest position and lift legrest to fully extended position to ensure there is suitable space around the chair. Test various massage functions using the remote control to see if any error codes triggered appeared, and turn off the power at last.

  • Page 22: Operating The Chair

    Operating The Chair Reclining and extending system Backward reclining Keep pressing button, backrest gradually goes down while footrest comes up with “DIDI”sound reminding. At this moment, if heels touch the sensors, the footrest will stretch forward to fit user's body length. When it reaches desired angle, release button, the backrest and footrest stop moving, the footrest will retract until touching heels, then...

  • Page 23: Mp3 Music Player

    OPERATING THE CHAIR Manual Legrest Extension Press and hold to manually adjust footrest position for best massage. Extend Retract CAUTION During the footrest angle adjustment, do not place fingers or other objects into the gap between the seat frame and the footrest. Make sure no any foreign objects are present when adjusting bac rest or footrest.

  • Page 24: Care And Maintenance

    If any of the above symptwns ocur, please do stop using the chair to avoid the possible injury. Turn off the power and remove the plug from the socket, then contact your deakr or Repose with all the details. Maintenance and/or repairs should only be performed by qualified technicians.

  • Page 25: Troubleshooting

    Symptoms Please check below Solutions It is attributed to the construction Rubbing or of the chair or from friction Normal between the massage rollers squeaking sound and the leather cover Check to see if the power Connect plug cord has come loose Check to see if power switch Switch on has been turned off...

  • Page 26: Specifications

    Description: Deluxe Multi-functional Massage Chair Model: R700 Up and down massage distance: Approximate 28.3" Distance of extension for footrest: Approximate 0"-10.2" Loading capacity:264 lbs Storage dimensions: 55.1"(L) X 39.3"(W) X 35.4"(H) Expanded dimensions: 85.8"(L) X 39.3"(W) X 50.4"(H) Package dimensions: Main part: 59.0"(L) X 28.7"(W) X 27.2"(H)
