Summary of Contents for EliteCare ECTR 01

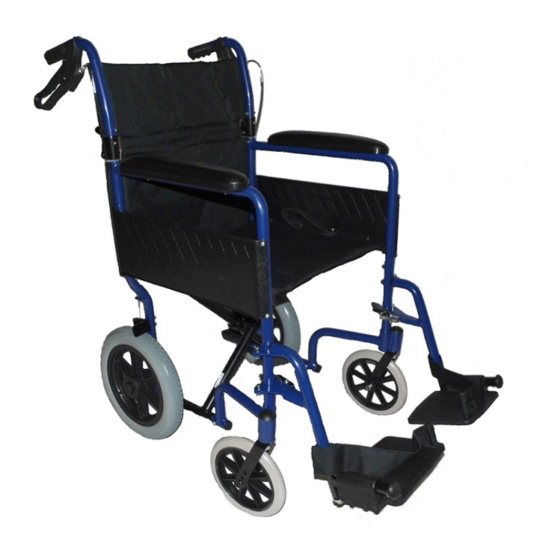

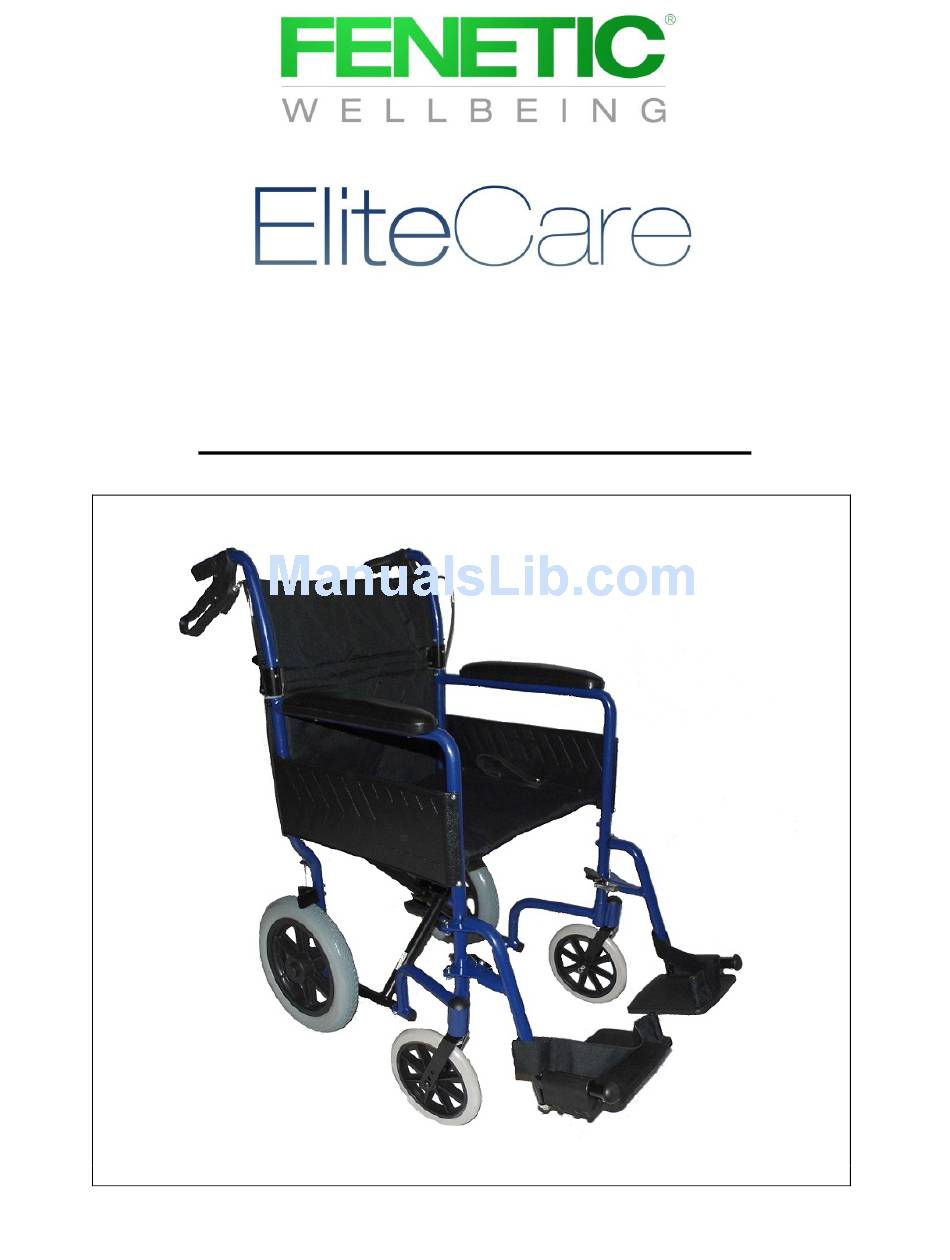

- Page 1 LIGHTWEIGHT TRANSPORT CHAIR ECTR 01 Assembly and Operating Instructions Page 1 of 12...
-
Page 2: Table Of Contents
INTRODUCTION Thank you for purchasing . This model has LIGHTWEIGHT TRANSPORT CHAIR been designed to help you gain independence and meet your particular requirements. Throughout the manufacturing process, great care has been taken, the components have been selected by quality, and inspections carried out to ensure you get full satisfaction from our product. -
Page 3: Safety Summary
SAFETY SUMMARY The following recommendations are made for the safe use of the wheelchair. Do not assemble or use this equipment without first reading and understanding this instruction manual. If you cannot understand the instructions, please contact a Healthcare Professional or a Dealer before installing this equipment. - Page 4 ASSEMBLY 1. First remove all contents from the carton. 2. To open the wheelchair, push seat rails and press downwards until the chair is fully opened. Note: The seat rails must be fully engaged in the seat frame support brackets before sitting down.
- Page 5 1. Reaching / bending forward Move the wheelchair as close as possible to the object you wish to reach. Position the front castors so that they are extended as far forward as possible. Fully engage the wheel locks on the rear wheels. Only reach out to take what is within arms length in normal sitting position.
-
Page 6: General Description
GENERAL DESCRIPTION The following diagram shows details of the wheelchair terminology used in this manual. 1. Back Upholstery 7. Castor & Bearing 2. Handles 8. Wheel lock assembly 3. Armrest 9. Cross Brace 4. Seat Upholstery 10. Folding Backrest Device 5. - Page 7 1. Backrest The backrest can be folded down by means of a locking mechanism fitted to both sides of the lower part of the backrest pillars. To fold the backrest down, push on both of the black plastic levers, then pull back and down on the top part of the backrest. To return to the original, reverse the procedure, making sure the mechanisms are locked securely.
- Page 8 8. Wheel lock assembly (brakes) These are used to hold the wheelchair in a stationary position, and are fitted on either side of the wheelchair. They should not be used when the wheelchair is moving or to slow it down. They should always be applied together. To operate, push the brake lever forward towards the front of the wheelchair.
-
Page 9: Routine Checks And Maintenance
ROUTINE CHECKS AND MAINTENANCE 1. Upholstery Upholstery should be routinely cleaned with a mild soap and water solution. Never use paint remover or thinners on upholstery. 2. Metal Parts Clean all metal parts with a wax compound such as car wax to maintain finish. Do not use any obtrusive cleanser that will scratch the finish on the chair. -
Page 10: Guarantee
GUARANTEE This product is warranted to be free of defects in materials and workmanship for a period of 12 months. The warranty is subject to the following conditions: - 1. The purchaser shall complete the registration form below and send it to The Fenetic Trading Company within 14 days of purchase of the product, together with a copy of the sales invoice/receipt. -
Page 11: Specifications
SPECIFICATIONS ITEM DIMENSIONS LENGTH (FOLDED) 22" (55.9 CM) LENGTH (UNFOLDED) 22" (55.9 CM) WIDTH (FOLDED) 10 1/2" (27 CM) WIDTH (UNFOLDED) 23 1/2" (59 CM) HEIGHT (FOLDED) 31" (79 CM) HEIGHT (UNFOLDED) 31" (79 CM) NET WEIGHT 11 KGS CARRYING WEIGHT 115 KGS SEAT SIZE 19"...
