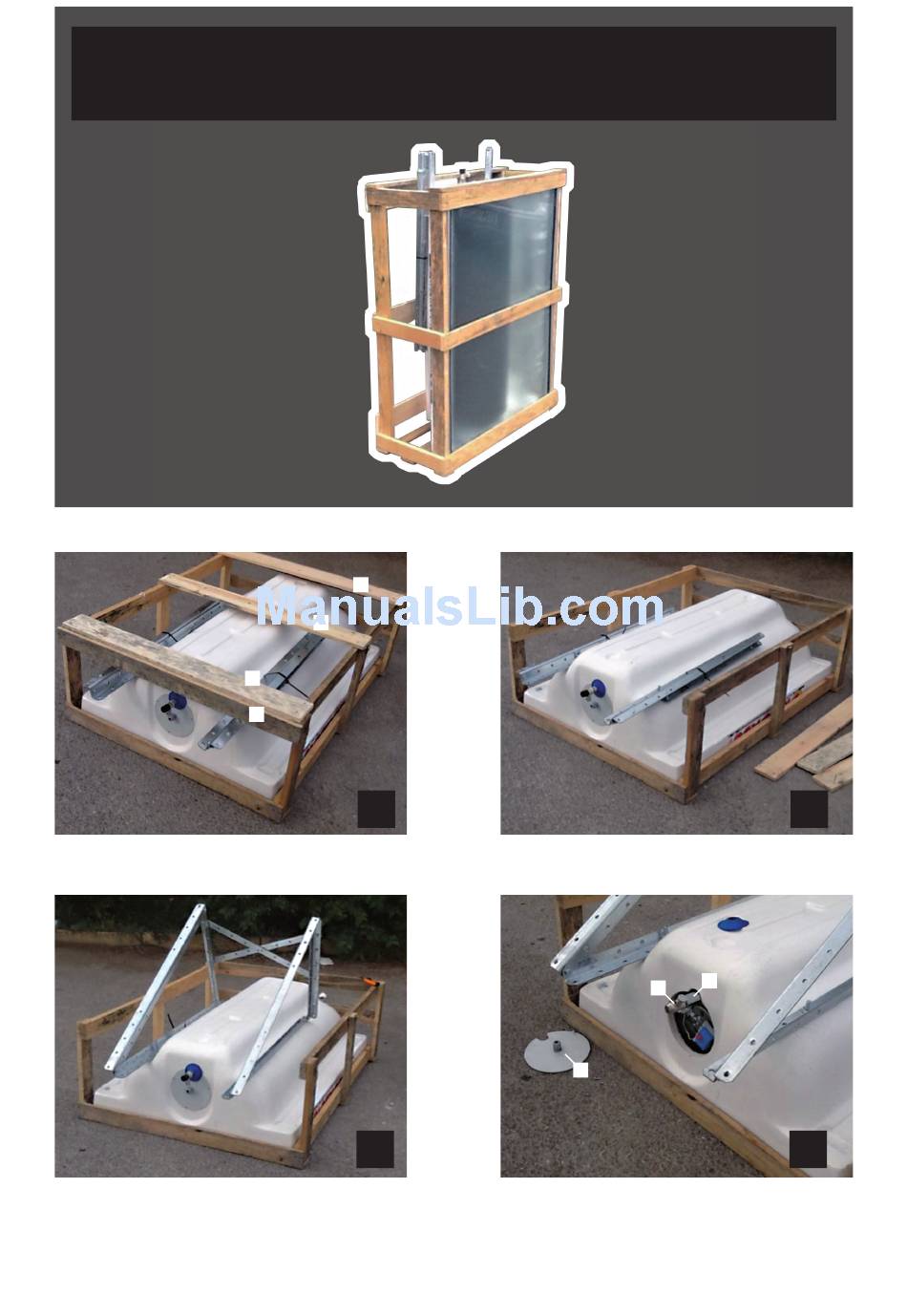

Place the COMPACT with the glass facing the floor.
Create the 2 triangles and place the "Χ" plates of the
mount by tightening all screws and nuts.
INSTALLATION INSTRUCTIONS
COMPACT 100 - 125 -160 - 200
4
3
2
1
Φ 1
Φ 3
Remove the 4 horizontal wooden planks.
3
1
Remove the plastic cover (1) and screw the nipple
fitting (2) and the safety valve (3).
(Use Teflon to seal them).
Φ 2
2
Φ 4
