Summary of Contents for DPCAV BLACK PEARL RC801
-

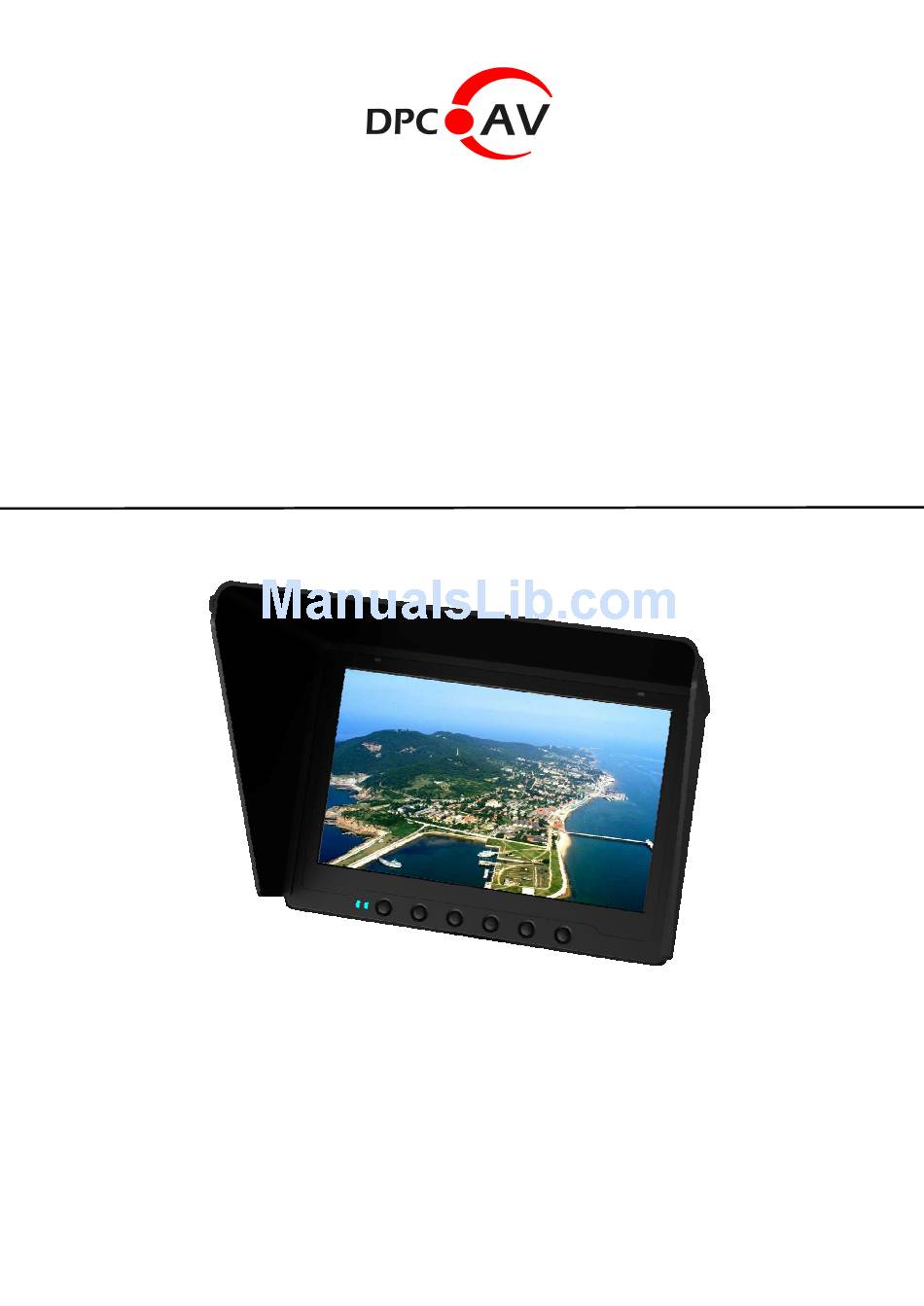

Page 1: Instruction Manual

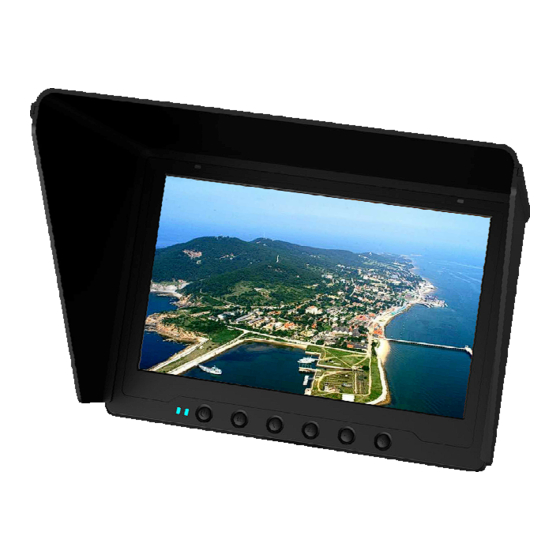

Part Number: LCD-RC801-NBC Part Number: LCD-RC801-SMA BLACK PEARL RC801 7”Screen / 5.8GHz / FPV Diversity RX Instruction Manual Before operating the unit: Please read this manual thoroughly and retain it for future reference. -
Page 2: Table Of Contents
Table of Contents Safety Notice..........................Packing List ..........................Battery ............................. Icons ..............................Operation Instructions ......................Function Instructions ........................Function Instructions (continued) ..................... Menu ............................Specifications.......................... -
Page 3: Safety Notice
Safety Notice Warning In order to reduce the damage from fire, electric shock, or product hazard, do ● not expose the unit to rain or moisture. Please use only the recommended accessories. ● Do not disassemble this product; It should be repaired by an authorized repair ●... -
Page 4: Packing List
Packing List Main Body Sun Shade Battery Antenna AV Cable (included with #LCD-RC801-SMA) DC Input Cable DC Output Cab... -
Page 5: Battery
Battery Battery Installation (Battery included with #LCD-RC801-SMA) Push the battery socket with gold ● contacts toward the gold contacts the battery compartment of the device and press the battery down. When the battery reaches the bottom of the battery compartment the battery will automatically lock in place. -
Page 6: Icons
Icons Function Icons Screen Icons There are different icons in different working modes. ● When the battery icon is shown as it means it needs to be recharged. ●... -
Page 7: Operation Instructions
Operation Instructions Power on/off To turn on the monitor press and hold the power button. Release it when the ● red light is on. To turn off the monitor press (and hold) the power button and release it after the ●... -
Page 8: Hdmi Mode
AV IN Mode The AV IN mode is for external NTSC/PAL video and audio signals. For example, ● you can connect the Black Pearl to any quality made FPV receiver (900MHz, 1.2GHz, 1.3GHz, etc.). In AV IN mode the internal wireless receivers automatically shut down to extend ●... -
Page 9: Function Instructions
Function Instructions ZOOM Function Vertical Scaling ● This function can alter the vertical size (zoom) scaling. Long press < > button to ZOOM IN long press < > button to ZOOM OUT (back to original scale) Attention: HDMI does not support vertical scaling. For example: original scale ZOOM IN Horizontal Scaling... -
Page 10: Function Instructions (Continued)
Function Instructions (continued) When an external signal is input the DNR (digital noise reduction) can be used to reduce video noise caused by some types of RF interference. The DNR features may not function on all interference so please experiment with it to see if it helps your video image. -
Page 11: Menu
Menu (Bold text is menu function) While the monitor is turned on, enable the on screen menus by quickly pressing and releasing the power button (half-second press). The menus consists of 4 directories: Color Sound Function and RF. Press button to enter settings. Press buttons to browse options and adjust values. -
Page 12: Specifications
Specifications • • • • Display Ratio 16 9 Auto (Display full screen according to input resolution) Reset Restore factory settings ● Auto Power Off Off 15Mins 30 Mins 45 Mins 60 Mins ● Flip Horizontal On Off (Mirror image display control) ●... - Page 13 Diagonal 7 inch Display Resolution 1024X600 Screen Contrast 700:1 Luminance 300cd/ BAND F FREQUENCIES CH 1 5740M 5760M 5780M 5800M 5820M 5840M 5860M 5880M Wireless Sensitivity -90dBm ±1dBm Receiving Channel 32Channel ( 4 Band X 8 Channel ) Antenna 2 X SMA, 50 ohm Diversity Antenna diversity (dual receivers) TV System...
