Summary of Contents for iVistaTablet IWB-770
-
Page 1: Interactive Whiteboard

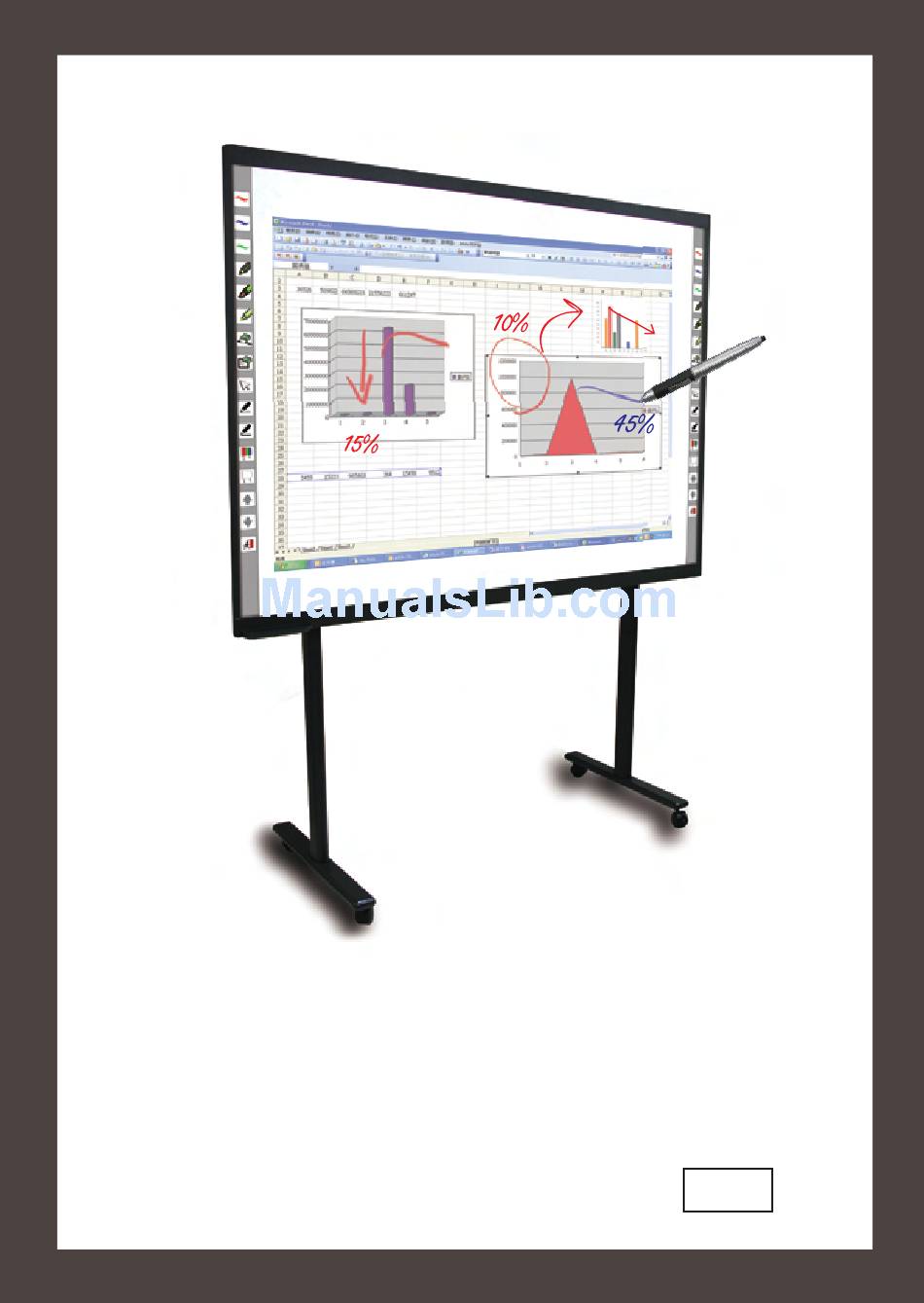

Interactive WhiteBoard [ Conducting presentations become easier than ever ]... - Page 2 Introduction IWB-770 Interactive White Board is very easy to use. If you know how to use a computer, then you will know how to use IWB-770 Interactive White Board. When you connect the electronic whiteboard with your computer and projector, you can use it to display images from your computer.
- Page 3 Maintenance and Installation Precautions 1. In order to ensure correct usage of the Interactive White Board, please make sure to read the following safety guides and the contents of the operation manual. 2. Please keep the operation manual properly to ease checking in the future.
-
Page 4: Application Precautions
Application Precautions 1. While installing this device, please use the original parts and components (such as wall brackets, screws, etc) provided to avoid improper installation and the danger of loosening, toppling over or falling. 2. If the device is left idle for a long time, please disconnect the USB plug to ensure safety. -
Page 5: Original Parts
Original Parts Main body parts After opening the package box, please check the following parts and components to ensure they come in good order and right quantity with nothing missing. Model number Parts name Parts diagram Quantity Program CD-ROM Operation manual Wall hooks Electromagnetic... - Page 6 Pen Slot Installation Guide Pen slot installation precautions: 1. Please use the screws pre-fastened at the rear of the whiteboard. First unscrew them and then tighten the pen slot with the screws. Four-in-one set Screw installation While installing the pen slot, please ensure that it has been secured properly.
- Page 7 Hardware Installation Guide Wall brackets installation diagram 1108 mm 152 mm Wall installation guide Wall hooks installation precautions: (1)Please use two types of screws suitable for cement wall or wooden wall to secure the wall hooks. The carrying load of each hook should be more than 50kg to ensure safety.
- Page 8 Wiring Installation Guide 1.3.1 Interactive White Board installation guide The interactive mode is able to allow users to carry out interactive operations with the projector. This function is able to shorten the distance between the user and audiences; and further to strengthen communication concept.
- Page 9 Wiring Installation Guide Step 2: Connect the VGA cable that links between the computer and projector Projector Step 3: Connect the USB cable in the USB port of the computer...
- Page 10 Wiring Installation Guide Step 4: The complete hardware installation diagram is shown below Projector Power Supply...
- Page 11 Hardware Function Operation Guide Control panel function guide Item Function name Function guide Diagram Red ink Indicates red pen touch color Blue ink Indicates blue pen touch color Green ink Indicates green pen touch color Pencil Indicates pencil touch for writing Indicates brush pen touch for writing, Brush pen different exert pressure will show thin or...
- Page 12 Driver Program Installation Guide Installation procedures of IWB-770 Interactive White Board program Step 1: Please click on Driver from the installation menu of CD-ROM Following the installation program guide, execute next as shown in the diagram below...
- Page 13 Driver Program Installation Guide After finish installing the program, please click “finish” in order to end the installation program, and restart the computer...
- Page 14 Software Installation Guide The application software installation procedures of briefing assistant of IWB-770 Interactive White Board. Step 1: Please click “Power Present” on the menu of CD-ROM to complete the installation of briefing assistant. Following the installation guide, execute next as shown in the...
- Page 15 Software Installation Guide After completing the installation, please click “finish” to end the installation program...
- Page 16 Calibration Operation Guide Initial function of projected image correction Step 1: Move the mouse cursor to the icon, click the mouse right key, select “Pen Pad” mode as shown in the diagram below Step 2: From Pen Pad functional window, select “calibration” function (click the mouse left key, select “calibration”...
- Page 17 Calibration Operation Guide Initial function of projected image correction Step 3: Use the exclusive electronic pen to touch the top left corner, top right corner, central, bottom left corner, and bottom right corner positions on the screen successively as shown in the diagrams below: ‧Please touch the central point of the top left cross ‧Please touch the central point of the top...
- Page 18 Calibration Operation Guide Initial function of projected image correction ‧Please touch the central point of the central cross ‧Please touch the central point of the bottom left cross...
- Page 19 Calibration Operation Guide Initial function of projected image correction ‧Please touch the central point of the bottom right cross Step 4: After finish checking, return the correction program to Pen Pad functional window, click “OK” mode to complete the correction operation.
- Page 20 Basic Equipment Repair and Maintenance Basic equipment repair and maintenance In order to ensure normal operation of the Interactive White Board, regular inspection and maintenance are indispensable. The Interactive White Board is a precision electronic product, so please pay attention to the following matters while application: Pay attention to USB cable: Pay attention to wiring installation to ensure that nobody would walk through the area to avoid people from tripping over, and at the same time, damaging the device.
- Page 21 Basic Equipment Repair and Maintenance Simple maintenance guide and malfunction eliminating methods: Possible reasons and eliminating Problem description methods No response while writing The USB is unplugged or there is a on the electronic whiteboard poor connection, please unplug it and reinsert it No response while writing Inspect or change the batteries of the...
