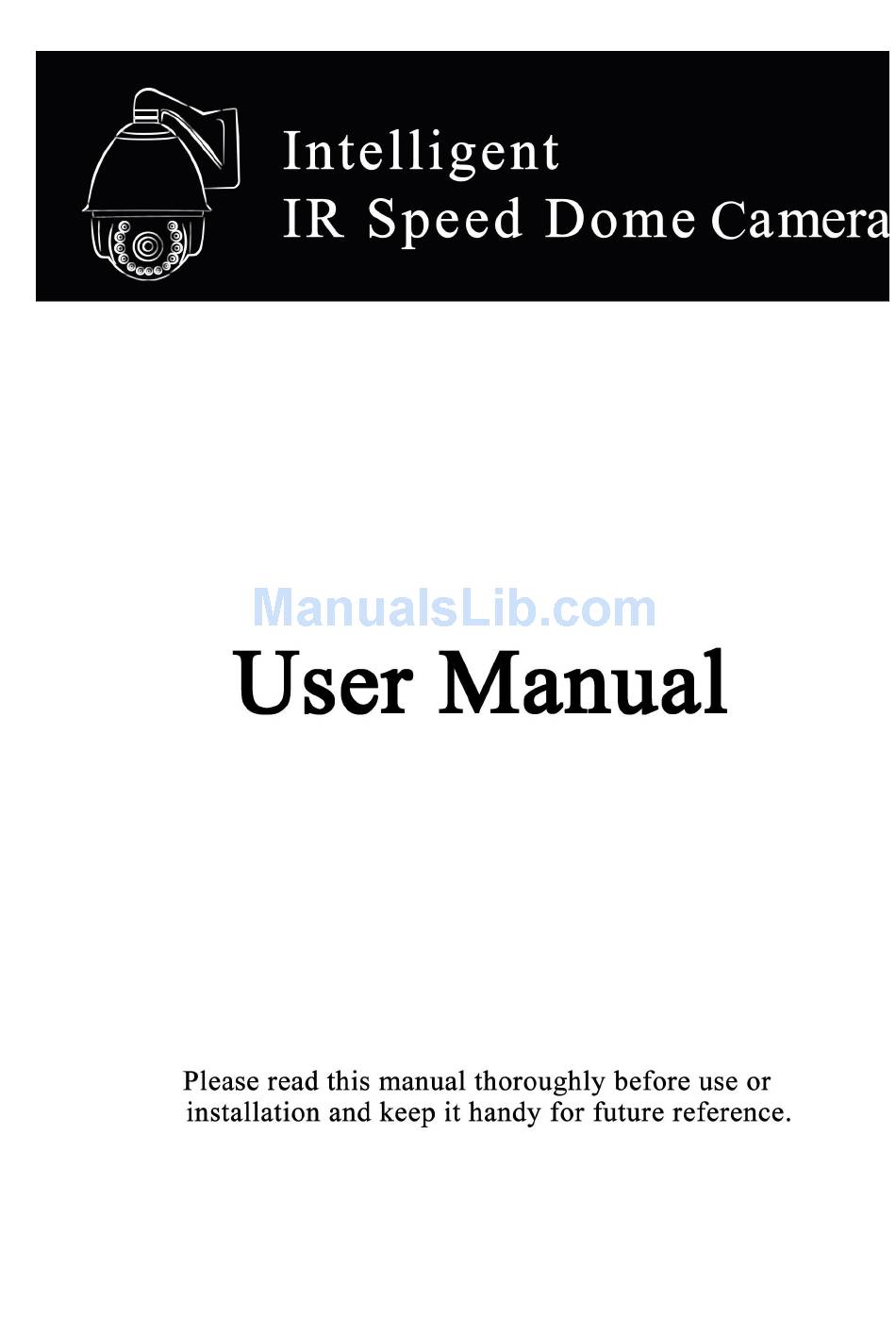

Hyking HK-GIR8362 User Manual

Intelligent ir speed dome camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HK-GIR8362 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hyking HK-GIR8362

  • Page 2 WARNINGS AND CAUTIONS WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH VENTILATION GRILLS OR OPENINGS ON THE EQUIPMENT. CAUTION EXPLANATION OF GRAPHICAL SYMBOLS The lighting flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user the presence of non-insulated “dangerous voltage”...
  • Page 3 PRECAUTIONS: 1. Persons without technical qualifications should not attempt to operate this dome device before reading this manual thoroughly. 2. Remove any power to the dome before attempting any operations or adjustments inside the dome cover to avoid potential damage to the mechanism. 3.
  • Page 4 IMPORTANT SAFEGUARDS 1. Read these instructions before attempting installation or operation of dome device. 2. Keep these instructions for future reference. 3. Heed all warnings and adhere to electrical specifications. Follow all instructions. 4. Clean only with non abrasive dry cotton cloth, lint free and approved acrylic cleaners. 5.

  • Page 5: Table Of Contents

    INDEX 1 Product Introduction ........................1 1.1 Package Contents ........................1 1.2 Specification ..........................2 1.3 Performance Features ......................4 1.4 Function Description ......................5 2 Installation ............................. 7 2.1 DIP Switch Settings ........................ 7 2.1.1 Preparation ........................7 2.1.2 Address Settings......................7 2.1.3 Baud Rate Settings ......................
  • Page 6 4.2.5 Privacy Zone ........................23 4.2.6 Other..........................24 4.2.7 Alarm ..........................24 4.3 Camera...........................25 4.3.1 CAM ADV........................25 4.3.2 CAM AE ..........................25 4.4 IR .............................26 4.5 Display ............................26 4.6 Time ............................27 4.7 Language ..........................27 4.8 Reset ............................27 Appendix Ⅰ Anti-lightning, Anti-surge .................28 Appendix Ⅱ Clean Transparent Cover ..................28 Appendix Ⅲ...

  • Page 7: Product Introduction

    1 Product Introduction 1.1 Package Contents IR speed dome Wall mount bracket Power supply Screws kits User manual...

  • Page 8: Specification

    1.2 Specification Horizontal Rotation Speed 0.02°-200°/s Tilt Rotation Speed 0.02°-90°/s Horizontal Rotation Range 360° Tilt Rotation Range 93° Auto Flip Horizontal 180°, Vertical 90° Ratio Speed Support Auto Control IR LED IR Testing Time 2-15s selectable Ambient Light Testing 0-50 grades IR Illumination On 0-25 grades selectable IR Output Power...
  • Page 9 Memory/Pattern 1/Tour 1/360° scan/A-B scan/Preset PWR on Action 1-8/None Park Action Pattern 1/Tour 1/360° scan/A-B scan/Preset 1-8/None Communication Protocol Pelco-D, Pelco-P Communication RS485 Bus Baud Rate 1200/2400/4800/9600bps Soft ID 1-255 Privacy Mask Support (according to zoom module type) 3D Location Support (DH-SD1) OSD Menu Multiple Language...

  • Page 10: Performance Features

    1.3 Performance Features  PWM function. Intelligent IR illumination & power consumption is variable, depending on the zoom factor.  3D allocation. That screen coordinate location and zoom local are performed at the same time can be available.  Privacy masking. 24 privacy masking areas can be random set (module support). ...

  • Page 11: Function Description

    1.4 Function Description Alarm Linkage Intelligent dome camera supports 4 switch alarm inputs, 1 switch output and 1 digital output. When the dome camera has detected the alarm closed signal, it will run the preset action which can be one of the calling preset points or no action. Auto-adaptive to Protocol and Module The dome can auto-adaptive to the multi-protocol and most of the module without changing the DIP switch.
  • Page 12 (4) Targets are behind the glass covered with water droplets or dust; (5) Targets are moving quickly; (6) Monotonous large area targets, such as wall; (7) Targets are too dark or faint. BLC(Back Light Compensation) If the light of background is bright, the target in the picture may appear dark or as a shadow. BLC enhances exposure of the target in the center of the picture.

  • Page 13: Installation

    User can set the function or parameter, or check the related information through the OSD. 2 Installation 2.1 DIP Switch Settings 2.1.1 Preparation Before installation, make sure that the protocol, baud rate and address code used by the product is fully consistent with the control system. Corresponding DIP switch site can be seen below: 2.1.2 Address Settings DIP switch SW1 is the address settings of camera.

  • Page 14: Rs-485 Bus Matching Resistance

    2.1.4 RS-485 Bus Matching Resistance The 8 bit of DIP switch SW2 is to select the matching resistor. To the control center, in order to prevent the reflection and interference of RS-485 communication signal and other signals, the parallel matching resistor is needed in the communication interface of dome camera at the end away from the control center.

  • Page 15: Corner Mounted Bracket

    2.2.2 Corner Mounted Bracket 2.2.3 Pole Mounted Bracket...

  • Page 16: Ceiling Mounted

    2.2.4 Ceiling Mounted 2.3 Installation of Brackets. 2.3.1 Wall Mounted Fig 1 Installation conditions: Wall mounted dome can be used in the hard wall structure whose thickness should be enough to install expansion bolt in indoor and outdoor environment. The wall can bear at least 4 times the weight of the dome.

  • Page 17: Corner Mounted

    Fig 2 b. As shown in fig 3, fix the wall hanging bracket on the wall with wire and cable through it. Fig 3 2.3.2 Corner Mounted Fig 4 Installation conditions: Corner mounted dome can be used in the hard wall structure with an angle of 90° whose thickness should be enough to install expansion bolt in indoor and outdoor environment.
  • Page 18 a. As shown in fig 5, with the installation holes in the corner mounted attachment as pattern, draw punched locations on the wall with an angle of 90°and punch to install expansion bolt. Fig 5 b. As shown in fig 6, use M8 screw nut to fix the base of corner mounted on the wall with all cables through the center holes of the corner mounted, marine glue and bracket.

  • Page 19: Pole Mounted

    Fig 7 2.3.3 Pole Mounted Fig 8 Installation conditions: Pole mounted dome can be used in the hard pole structure in indoor and outdoor environment whose diameter should match the installation size of stainless hose clamps. Factory default is 6 inches stainless hose clamps (fit φ130-152mm pillar).

  • Page 20: Ceiling Mounted

    Fig 9 b. As shown in fig 10, fix the wall hanging bracket with all cables through it on the pole mounted attachment. Fig 10 2.3.4 Ceiling Mounted Fig 11...
  • Page 21 Installation conditions: Ceiling mounted dome with thick pole can be used in the hard ceiling structure whose thickness should be enough to install expansion bolt in indoor and outdoor environment. The ceiling can bear at least 4 times the weight of the dome. Install the base of ceiling and boom: a.

  • Page 22: Connection

    Fig 14 Note: If the dome is used in the outdoor conditions, after using eno ugh raw materials to wrap the thread at the upper end of boom, tighten the boom on the base of ceiling. Use the silica gel around the joint sleeve and connector of the boom to be sure water proof.

  • Page 23: Instruction

    3. Instruction 3.1 Power On Action When initializing the system, the operation as left figure will <IR SPEED DOME> run in 2 seconds. PROTOCOL PELCO-D/P When restore out-of-factory settings, please wait patiently. The operation as left figure will run in 1 minute. COMM 2400.N.8.1 DOME ID...

  • Page 24: Basic Function

    3.2 Basic Function Dome Running Control joystick or up, down, left and right key in the keyboard. Zoom Press ZOOM- button to make the lens farther and minify the scene. Press ZOOM+ button to make the lens closer and magnify the scene. Focus After FOCUS- button is pressed, the object in vicinity will become clearer while the object far away will become ambiguous.

  • Page 25: Screen Character Operation

    Digital zoom off OSD menu off Auto day/night OSD menu on Switch to night Guard tour 3 Switch to day Guard tour 2 Force on far light Guard tour 1 Force on near light 360 scan Note: If use some other equipments to control IR dome, some special functions probably can’t be effective because of the limit of protocol.

  • Page 26: Osd Menu

    4 OSD Menu...

  • Page 27: System

    4.1 System  <SYSTEM> <MAIN MENU>  PROTOCOL: Display the protocol of the dome. <SYSTEM>  COMM: 2400. N. 8. 1 means the communication <DOME> <CAMERA> information. 2400 is the baud rate, which <IR> can be changed via DIP switch and has <DISPLAY>...

  • Page 28: Scan

     <SET PRESET> Entering SET PRESET displays the content as left <PRESET> PRESET NO figure. Call preset 1 to save and call preset 2 to CALL PRESET back. <SET PRESET> Because some presets are used to realize special PRESET 1: SAVE PRESET 2: BACK functions, they can not be set and called normally.

  • Page 29: Pattern

    4.2.4 Pattern  PATTERN NO: Factory default is 1. <PATTERN> Select the pattern needing to be edited. 1-4 pattern PATTERN NO are effective. CALL PATTERN  <PATTERN> CALL PATTERN: Call the patterns having been edited. EXIT  <PATTERN> <PATTERN> PATTERN NO Left figure shows the status when entering to the pattern set.

  • Page 30: Other

    4.2.6 Other  PARK MODE: There are 13 actions of None, Pattern <DOME> 1, Tour 1, 360° scan, A-B scan, Preset 1-8 selectable. <PRESET> <SCAN>  PARK TIME: The dome camera runs home position <GUARD TOUR> after a period of idle time which is home time and whose range is 1-60 minutes.

  • Page 31: Camera

    4.3 Camera <CAMERA>  ZOOM LIMIT: Display the maximum zoom position, ZOOM LIMIT which relates to that digital zoom is OFF or ON. FOCUS MODE AUTO  FOCUS MODE: Auto and manual are selectable. DIGITAL ZOOM ZOOM SPEED HIGH  DIGITAL ZOOM: ON and OFF are selectable.

  • Page 32: Display

    4.4 IR <IR>  IR MODE: It has auto, small light on, large IR MODE AUTO light on, manual and off selectable. OUTPUT POWER  OUTPUR POWER: Its selectable range is 1-9 TESTING TIME level. STANDBY POWER  STANDBY TIME TESTING TIME: Its settable range is 2-15S.

  • Page 33: Time

    4.6 Time <TIME>  DATE: Set the system date. DATE 2000-01-01  TIME 00:00:00 TIME: Set the system time. <SCHEDULE>  SCHEDULE: Action: There are None, Pattern 1, Tour 1, 360 Scan, A-B Scan, SAVE EXIT Preset 1-8 selectable. <SCHEDULE> Example of Schedule: START 1: 8 schedules can be set.

  • Page 34: Appendix Ⅰ Anti-Lightning, Anti-Surge

    Appendix Ⅰ Anti-lightning, Anti-surge This product is extremely air discharge and lightning protection with TVS tube technology, which can effectively prevent the transient lightning below voltage 6000V, surge and damages caused by other types of pulse signals. However, necessary protective measures should be made in the premise of ensuring electrical safety for outdoor installation according to the actual situation: ·...

  • Page 35: Appendix Ⅲ Common Knowledge On Rs-485 Bus

    of under cover. Hard tool scratching the under cover may lead to blurring the images of dome so that affecting image quality. ● Please use soft enough dry cloth or other alternatives to wipe internal and external surface. ● If dirt is serious, user can use a mild detergent. Any senior furniture cleaning products can be used to clean the under cover.
  • Page 36 Following is a dome address code mapping table to set PELCO_D: Switch Settings Address SW1-1 SW1-2 SW1-3 SW1-4 SW1-5 SW1-6 SW1-7 SW1-8 ---- ---- ---- ---- ---- ---- ---- ----...
  • Page 37 Following is a dome address code mapping table to set PELCO_P: Switch Settings Address SW1-1 SW1-2 SW1-3 SW1-4 SW1-5 SW1-6 SW1-7 SW1-8 ---- ---- ---- ---- ---- ---- ---- ----...

  • Page 38: Appendix Ⅴ Exception Handling

    Issue Possible Reason Solution Appendix Ⅴ Exception Handling...

  • Page 39: Copyright Statement

    After power is applied, Cable harness is improperly Verify that the orientation of the connector connected input there is no action Input power voltage is too low Verify the voltage of the input power (self-test) and no video image. Power supply does not work Change a new power supply Wrong communication Set the correct protocol, baud rate and...
  • Page 40 The company follows the policy of continuous development. Therefore, the company reserves the right to modify or improve the products described in this manual without notice. The content of manual is offered according to the "current state". Unless applicable law otherwise specified, the company does not make any kind of clear or tacit reassurance about the accuracy, reliability and contents of this manual.
