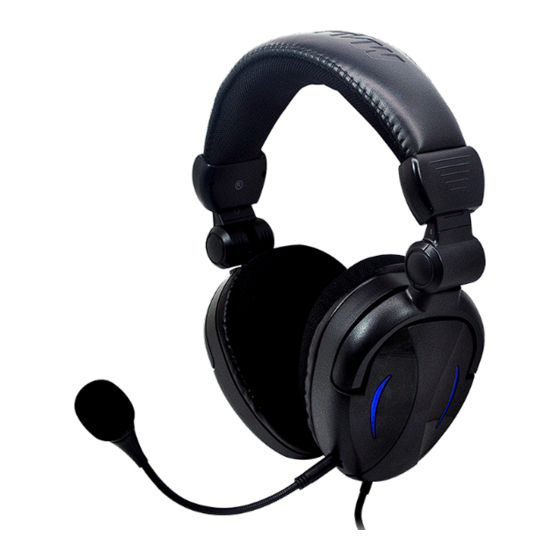

- Page 1 Gaming Headphones MODEL NUMBER: HG363 USER GUIDE After Sales Support UK/N.IRELAND HELPLINE N 01270 508538 REP.IRELAND HELPLINE N 1800 995 036 WEBSITE: www.quesh.co.uk EMAIL: enquiries@quesh.co.uk...
-
Page 2: Table Of Contents
Contents Welcome Section Contents & Features PS4 Setup 4 - 5. PS3 Setup 6 - 7. Xbox 360 Setup PC/Mac Setup Microphone Setup Inline Controls Specifications After Sales Support UK/N.IRELAND HELPLINE N 01270 508538 REP.IRELAND HELPLINE N 1800 995 036 WEBSITE: www.quesh.co.uk EMAIL:... -
Page 3: Welcome Section
Welcome Section Congratulations! You have made an excellent choice with the purchase of this quality MAXTEK product. ® By doing so you now have the assurance and peace of mind which comes from purchasing a product that has been manufactured to the highest standards of performance and safety, supported by the high quality standards of Quesh Ltd. -
Page 4: Contents & Features
Contents & Features Contents 1 x Headphones 1 x Detachable Microphone Features • Compatible with PC/Mac, Xbox 360 & PS4/3 • Chat volume control • Game volume control • 2.5mm controller input • Inline phono connectors • Compatible with USB 2.0, 1.01 & 1.0 • 40mm stereo drivers • Detachable omni directional microphone • Multi pose able microphone boom • Foam Microphone filter • 3.6m Headset cable length • 0.5m Gamepad cable length After Sales Support UK/N.IRELAND HELPLINE N 01270 508538 REP.IRELAND HELPLINE N 1800 995 036 WEBSITE: www.quesh.co.uk EMAIL:... -
Page 5: Ps4 Setup
PS4 Setup Connecting to a PS4 (HDMI - TV with RCA out) • Use the HDMI cable to connect your PS4 to your TV/Monitor. • Connect the white and red RCA jacks to the corresponding red and white audio out RCA ports on the TV/Monitor. • Connect the USB jack to an available USB port on the PS4 to provide power to the in built amplifier and use of the microphone. After Sales Support UK/N.IRELAND HELPLINE N 01270 508538 REP.IRELAND HELPLINE N 1800 995 036 WEBSITE: www.quesh.co.uk EMAIL:... -
Page 6: Ps3 Setup
PS3 Setup Connecting to a PS3 (HDMI - TV no RCA out) • Use the HDMI cable to connect your PS3 to your TV/Monitor. • Connect the composite adaptor to the AV port on your PS3 • Connect the white and red RCA jacks to the corresponding red and white audio out RCA ports on the composite adaptor. • Connect the USB jack to an available USB port on the PS4 to provide power to the in built amplifier and use of the microphone. • Set the audio output setting on the PS3 to ‘AV Multi’ Conneting to a PS3 (HDMI - TV with RCA out) • Use the HDMI cable to connect your PS3 to your TV/Monitor. - Page 7 PS3 Setup Connecting to a PS3 (Composite) • Use the composite adaptor to connect your PS3 and use the yellow jack to connet to your TV/Monitor. • Connect the white and red RCA jacks to the corresponding red and white audio out RCA ports on the composite adaptor. • Connect the USB jack to an available USB port on the PS3 to provide power to the in built amplifier and use of the microphone. • Set the audio output setting on the PS3 to ‘AV Multi’ After Sales Support UK/N.IRELAND HELPLINE N 01270 508538 REP.IRELAND HELPLINE N 1800 995 036 WEBSITE:...
-
Page 8: Xbox 360 Setup
Xbox 360 Setup Connecting to an Xbox 360 (HDMI - TV no RCA out) • Use the HDMI cable to connect your Xbox to your TV/Monitor. • Connect the white and red RCA jacks to the corresponding red and white audio out RCA out ports on the TV/Monitor • Connect the USB jack to an available USB port on the Xbox to provide power to the in built amplifier. • Finally connect the 2.5mm Jack cable to the Xbox gamepad in order to use the microphone. Connecting to an Xbox 360 (HDMI - TV with RCA out) • Use the HDMI cable to connect your Xbox to your TV/Monitor. - Page 9 Xbox 360 Setup Connecting to an Xbox 360 (Composite) • Use the composite adaptor to connect your Xbox and use the yellow jack to connet to your TV/Monitor. • Connect the white and red RCA jacks to the corresponding red and white audio out RCA out ports on the composite adaptor • Connect the USB jack to an available USB port on the Xbox to provide power to the in built amplifier. • Finally connect the 2.5mm Jack cable to the Xbox gamepad in order to use the microphone. After Sales Support UK/N.IRELAND HELPLINE N 01270 508538 REP.IRELAND HELPLINE N 1800 995 036...
-
Page 10: Pc/Mac Setup
PC/Mac Setup Connecting to a PC/Mac • Use the USB cable to connect your headset to your PC/Mac. • Wait for the operating system to download and install the drivers from the internet. • You may need to setup the headphone through ‘Playback Devices’ for the headphones and ‘Recording Devices’ for the microphone. Right click on the speaker icon and select the function you require to setup. Make the required outputs the headset on the drop down boxes and click ‘Default Device’. To finalise the selection click ‘Apply’. Please note: The ‘Game’... -
Page 11: Microphone Setup
Microphone Setup Connecting and setting up the microphone • Connect the 3.5mm jack end of the microphone into the 3.5mm port on the left ear cup. • Adjust the microphone boom so that the microphone is positioned at it’s full extent by the left corner of your mouth and below your lip level by 2-3cm. Move the Microphone towards your chin till it is about 3cm away. -
Page 12: Inline Controls
Inline Control Using the Inline Control • The ‘Chat’ volume wheel will control the in game communication audio levels. • The ‘Game’ volume wheel will control the in game audio level. • The ‘Mute Mic’ switch will enable or disable the microphone. • The ‘Platform Selection’ switch allows you to use Xbox or PS3. PS4 or PC with the headset. Please note: Listening to high volume for long periods of time may damage your hearing. Further audio adjustments will have to be done through the system/device setup options on the platform used. -
Page 13: Specifications
Specification Gaming Headset • Compatible platforms PC/Mac, Xbox 360 & PS4/3 • USB, RCA & 2.5mm connectors • Compatible with USB 2.0, 1.01 & 1.0 • 40mm Speakers • 32 OHm Speaker impedance • 20Hz - 20KHz Frequency response • 6mm x 2.7mm microphone • -52dB Microphone sensitivity • Onmi-directional microphone • 50Hz - 15KHz Microphone sensitivity • 3.6M Headset cable length • 0.5M Gamepad cable length After Sales Support UK/N.IRELAND HELPLINE N 01270 508538 REP.IRELAND HELPLINE N 1800 995 036 WEBSITE: www.quesh.co.uk EMAIL: enquiries@quesh.co.uk... - Page 14 Warranty Certificate Warranty This product is guaranteed to be free from defects in workmanship and parts for a period of 36 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and labour.
-
Page 15: Warranty Card
Warranty Card Gaming Headphones Model Number: HG363 Please keep your purchase receipt together with your warranty card Name: Address: Date of purchase: Location of purchase: Fault Description: We recommend that you attach a photocopy of your receipt, showing the date of purchase, to this warranty card and keep it for your reference.
