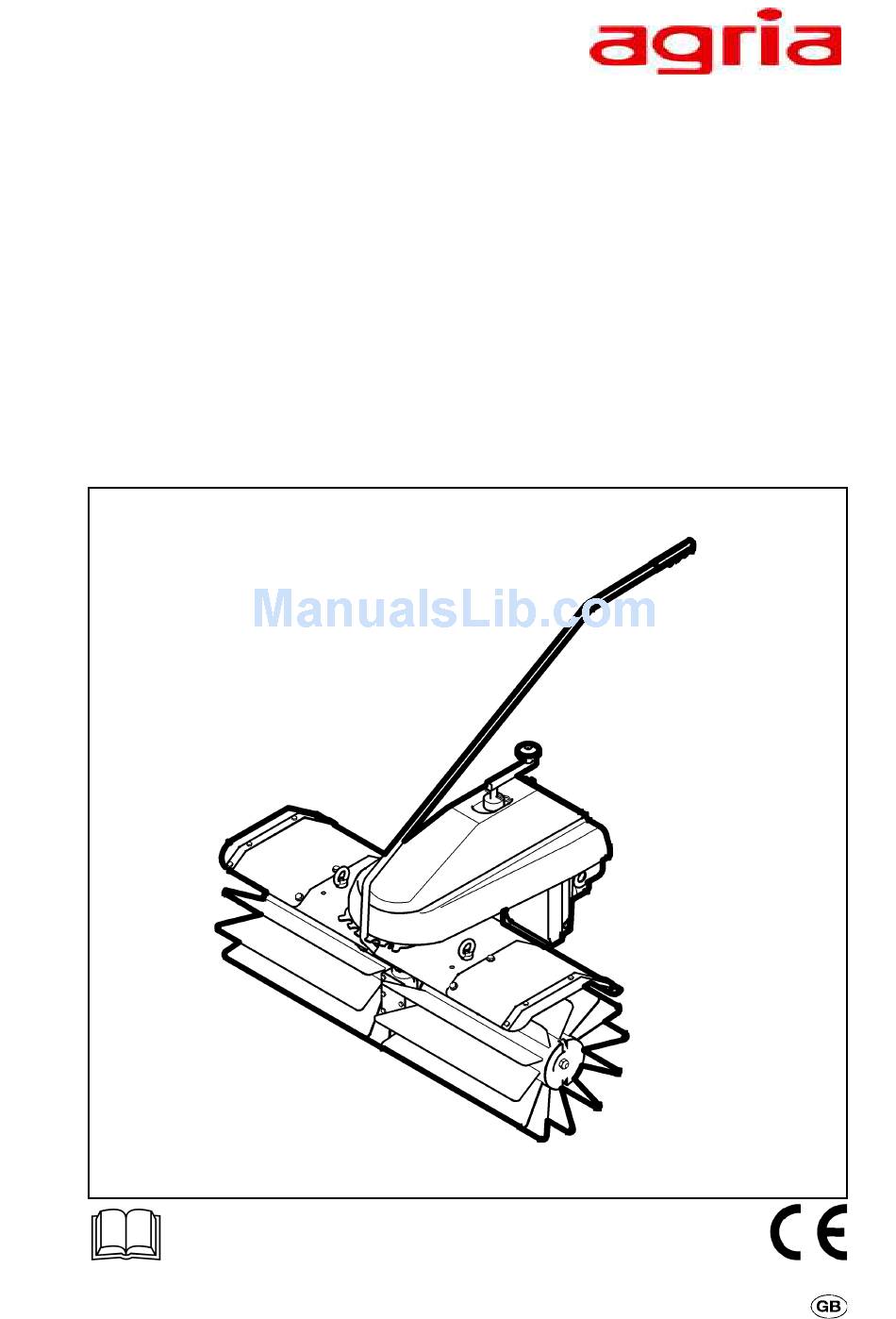

Operating Instructions
Translation of the original operating instructions
Front Mounted Sweeper
2294 071, -081
2294 171, -181
2294 271, -281
2294 071, -081
2294 171, -181 100 cm
2294 271, -281 120 cm
6120
Before commissioning the machine, read operating
instructions and observe warnings and safety instructions!
Operating Instructions No. 998 428GB
80 cm
02.12
Advertisement
Table of Contents
Related Manuals for Agria 2294 071
Summary of Contents for Agria 2294 071
-
Page 1: Operating Instructions
Operating Instructions Translation of the original operating instructions Front Mounted Sweeper 2294 071, -081 2294 171, -181 2294 271, -281 2294 071, -081 80 cm 2294 171, -181 100 cm 2294 271, -281 120 cm 6120 Before commissioning the machine, read operating instructions and observe warnings and safety instructions! Operating Instructions No. -
Page 2: Table Of Contents
Support Wheel ........ 17 Sweeper .......... 17 Lubricating point, grease Cleaning .......... 18 Storage ........... 18 Wear Parts ........18 Lubricating point, brush Conformity Declaration ..19 See Operating Instructions agria Front Mounted Sweeper 2294071, -081, -171, -181, -271, -281... -
Page 3: Safety Instructions
Careful with rotating tools – keep at a safe distance! Beware of coasting tools. Before you start any maintenance or repair on them, wait until tools have come to a complete stop. agria Front Mounted Sweeper 2294071, -081, -171, -181, -271, -281... - Page 4 If steering causes problems, immedi- ately bring the sweeper to a halt and turn it off. Have the malfunction removed without delay. agria Front Mounted Sweeper 2294071, -081, -171, -181, -271, -281...
- Page 5 Mount implements as specified and only Only use original agria spare parts. All couple at specified points. other commercial spare parts must cor- respond to quality and technical require- ments specified by agria. agria Front Mounted Sweeper 2294071, -081, -171, -181, -271, -281...
- Page 6 Signs When working with the machine, wear individual pro- tective ear plugs. Wear protective gloves. Wear solid shoes. agria Front Mounted Sweeper 2294071, -081, -171, -181, -271, -281...
-
Page 7: Specifications
2. Specifications Designation of Parts Article no.: ......2294 071 ..-081 ... -171 ..-181 ..-271 .. -281 Working width: [cm] ......80 ..80 ..100 ..100 ..120 ... 120 Rotary brushes: ....... coarse ..fine coarse ..fine . coarse ... fine Weight: [kg] approx. -
Page 8: Devices And Operating Elements
120). Use three hex head bolts and lock nuts for each guard. 120 cm Mounting pivoting lever Mount the pivoting le- ver (11) using bolt (12) and 2 spring cotter pins (13) to the sweeper. agria Front Mounted Sweeper 2294071, -081, -171, -181, -271, -281... -
Page 9: Attaching The Rotary Brushes
- insert groove on rotary brushes into cam of the drive plate. Screw on and tighten he- xagonal nut. To remove the brushes, re- verse the above order. agria Front Mounted Sweeper 2294071, -081, -171, -181, -271, -281... -
Page 10: Connecting Port
Check loading belt for damage; replace it, if necessary. Do not use any loading devices with shar p edges (e.g. sharp-edged hooks, lugs etc.). Never walk or remain under moving loads. Danger! agria Front Mounted Sweeper 2294071, -081, -171, -181, -271, -281... -
Page 11: Sweeping Height Adjustment
Select a fast speed for snow sweeping: Turn the dial (19) in clockwise direction. To adjust the speed from slow to fast, give the dial a maximum turn of 6 full turns. agria Front Mounted Sweeper 2294071, -081, -171, -181, -271, -281... -
Page 12: Implements
– the swept up material will now drop from the collector. Alternatively: Remove the collector upwards from its coupling pins and carry it to the dump area for emptying. agria Front Mounted Sweeper 2294071, -081, -171, -181, -271, -281... -
Page 13: Commissioning And Operation
Shut off the engine and disconnect the spark plug connector, if cleaning is necessary during operation. agria Front Mounted Sweeper 2294071, -081, -171, -181, -271, -281... -
Page 14: Danger Zone
The user is liable to third parties working within the working range. Careful! Dirt and stones may get airborne during sweeping. Watch out for vehicles, window panses and other objets to avoid damage. agria Front Mounted Sweeper 2294071, -081, -171, -181, -271, -281... -
Page 15: Maintenance
(2) 50 h Indentation depth of the V-belt (thumb pressure approx. 50 N) should be 8 - 10 50 N mm, re-tension V-belt if necessary p16. 8 - 10 mm agria Front Mounted Sweeper 2294071, -081, -171, -181, -271, -281... -
Page 16: Self-Aligning Bearing
For this remove the spring cotter pin on the crank handle, lift off the crank hand- le and fixing nut and remove the cover- ing hood. Replace and fix the covering hood after lubrication. agria Front Mounted Sweeper 2294071, -081, -171, -181, -271, -281... -
Page 17: Support Wheel
8 operating hours. Check the rotary brushes for wear at least after every 25 hours and replace them in good time. Minimum diameter is 250 mm. A; 8 h 25 h agria Front Mounted Sweeper 2294071, -081, -171, -181, -271, -281... -
Page 18: Cleaning
..... 80 cm: 6194 061 ... 100 cm: 6194 161 ... 120 cm: 2294 261 V-belt X13 "6847" 1125 Ld ..............103159 V-belt 13x600 Li ..................48174 8,5 - 9 mm agria Front Mounted Sweeper 2294071, -081, -171, -181, -271, -281... -
Page 19: Conformity Declaration
Conformity Declaration agria Front Mounted Sweeper 2294071, -081, -171, -181, -271, -281... - Page 20 Agria-Werke GmbH Bittelbronner Straße 42 D-74219 Möckmühl Tel. +49/ (0 )62 98 /39-0 Fax +49/ (0 )62 98/39-111 e-mail: info@agria.de Internet: www.agria.de Your local agria specialist dealer:...
