Summary of Contents for Cornelius 06 1 3601 Series

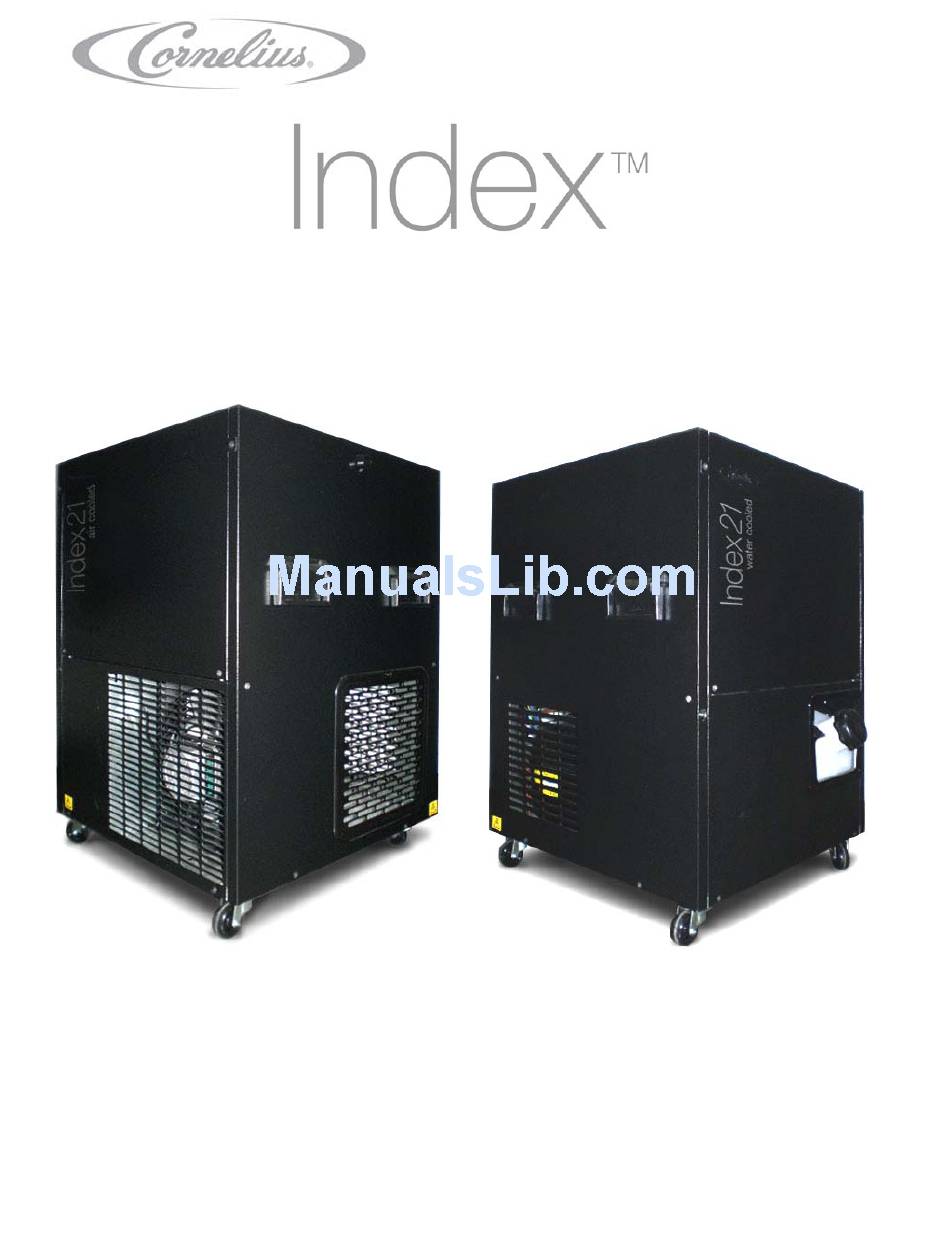

- Page 1 Product Manual Model Number Range 06 1 3601XX 06 1 3602XX Applies to Index remote cooler range: Index AC, Air cooled models with part code commencing – 06 1 3601XX Index WC, Water cooled models with part code commencing – 06 1 3602XX...
-
Page 2: Table Of Contents
Contents Section Content Introduction Installation Instructions Service Maintenance instructions Fault Finding Product Photos Data Sheets Parts Lists and exploded views Wiring Diagrams... -
Page 3: Introduction
Index also has a small footprint, minimising the valuable space taken up in account cellars or back room IMI Cornelius is able to offer one of the most extensive ranges of equipment together with a support package which is second to none. - Page 4 2. Installation 2.1. Requirements Summary Installation must be carried out by a suitably trained person and comply with national and local codes for connection to the electrical supply. Unit must be installed indoors on a dry, level surface Good ventilation (minimum 100 mm gap around unit) Access to side, top and front Electrical - 13 amp, 230V Grounded, switched (preferably an RCCB)
-
Page 5: Installation Instructions
2.2 Installation Instructions Please read carefully before installing the unit Please follow these instructions carefully. Only if the remote unit is properly installed and maintained will trouble free operation and customer satisfaction be achieved. General description This is a remotely sited cooler used for cooling drinks such as beer, lager, cider & stout. Incorporating mechanical temperature control this unit is suitable for the utilization of water as the product cooling medium and for the formation of an ice reserve. - Page 6 WARNING - As the glycol lines will circulate a warm glycol mix it is important for safety reasons that suitable tubing is used. Consult a specialist tubing manufacturer or contact Cornelius. WARNING - PVC tubing, whether braided or not, is not suitable for this application.
- Page 7 The tubing ID must be sufficient to ensure a minimum flow rate of 4.5 litres/minute in the glycol circuit. It is recommended that an ID of at least 11.5mm be used. Avoid using elbow joints as these cause pressure drops. The tubing must not be routed next to hot surfaces or sharp edges.
-
Page 8: Service Information
If any maintenance/servicing is required, refer to the fault finding chart, wiring diagram and exploded drawings contained in the manual. Only use Cornelius recommended spare parts for cooler maintenance, failure to do so will invalidate cooler approvals and warranty. Condenser – It is recommended that the condenser is cleaned with a soft brush or vacuum cleaner at least every 6 months. - Page 9 Description of controls Refrigeration system reset The Water Cooled remote utilises a refrigeration system cut out switch. This switch is of manual reset type and is located in the refrigeration system compartment, behind the removable service panel. Upon activation of the switch, diagnose the cause and rectify the problem. Once the problem is resolved allow 10 minutes then press the Refrigeration System Reset button.
-
Page 10: Service Maintenance Instructions
3. Service Maintenance Instructions 3.1. INDEX 21 AC Check that the water level in the water bath is up to the overflow. Check and clean the rear Condenser fins. Dirt and dust can block the air vents in ... -
Page 11: Fault Finding
Is line voltage too high or low? Improper voltage supply Consult electrical supplier Voltage range 207v to 253v Unit malfunction Contact IMI Cornelius 2. No Cooling Is line voltage within 10% of Go to 1. Totally inoperative Go to 1. Totally inoperative Go to 1. - Page 12 3. Warm Product Is compressor running? Go to 2. No Cooling Go to 2. No Cooling Go to 2. No cooling Low water bath level Leaks Check for leaks and fill to overflow Ice build will displace water to the overflow Insufficient water recirculation python Ensure python is fully primed on install Insufficient python insulation seriously...
-
Page 13: Product Photos

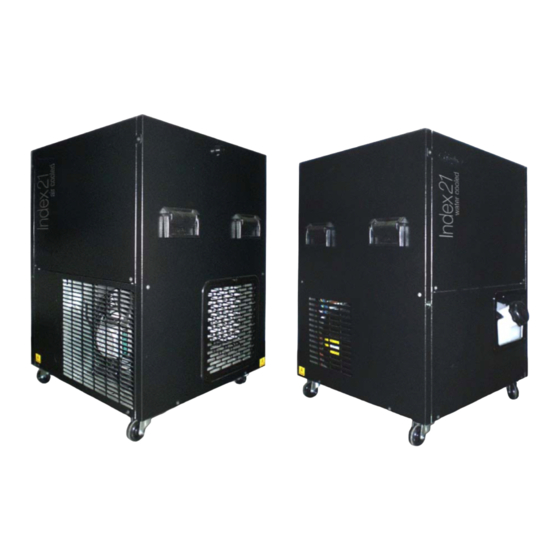

5. Product Photos Index21 AC Index21 WC Heat Dump Exchange Unit... -
Page 14: Data Sheets
6. Product Data sheets Product data sheet Index Model 06 1 3601XX Date: 25 Feb 2010 Issue No: Performance Nominal icebank pull down:( water 10 C at 24 C ambient) 5 hours Icebank weight: 25kg nominal Thermal capacity icebank: 8375KJ (2000 Kcal) Maximum ambient temperature: Dimensions Height:... - Page 15 Python Pump / Water Bath Agitator Type: 3-stage semi - submersible Agitation type: Continuous Output: 90watts Speed: 2700rpm Protection: Thermal trip Max flow rate @ no pressure: 20 litres per minute Max lift @ min flow: Connection size: 15mm diameter tube Product coils Length Max Qty...
- Page 16 PRODUCT DATA SHEET Index Model 06 1 3602XX Date: 25th Feb 2010 Issue No: Performance Nominal Icebank pull down:( water 10 C at 24 C ambient) 5 hours (max. Icebank) Icebank weight: 25kg Nominal Thermal capacity icebank: 8675KJ (2000 Kcal) Maximum ambient temperature: Dimensions Base Unit...
- Page 17 Python Pump / Water Bath Agitator Type: 3-stage semi - submersible Agitation type: Continuous Output: 90 watts Speed: 2700rpm Protection: Thermal trip Max flow rate @ no pressure: 20 litres per minute Max lift @ min flow: Connection size: 15mm diameter tube Coolant System Coolant: Monopropylene Glycol...
-
Page 18: Parts Lists And Exploded Views
7. Parts Lists and Exploded View Parts List Index AC - Model 06 1 3601XX ITEM PART No. Description 58 0420 589 Totton pump 58 0420 567 Marchmay pump 06 0 105108 Inspection panel 2RF738A Coil support bar blank 06 0 105136 Foamed tank 06 0 105113 Handle assy - black... - Page 19 Exploded View Index Model 06 1 3601XX...
-
Page 20: Parts List
Parts list Index 21 wc Model 06 1 3602xx Item Part no. Description 58 0420 589 Totton pump 58 0420 567 Marchmay pump 06 0 105143 Glycol bottle 2rf738a Coil support bar blank 06 0 105136 Foamed tank 06 0 105113 Handle assy - black Cm011514s ½”... - Page 21 Exploded View Idex Model 06 1 3602XX...
-
Page 22: Wiring Diagrams
8. Wiring Diagram Index Model 06 1 3601XX... - Page 23 Index...
