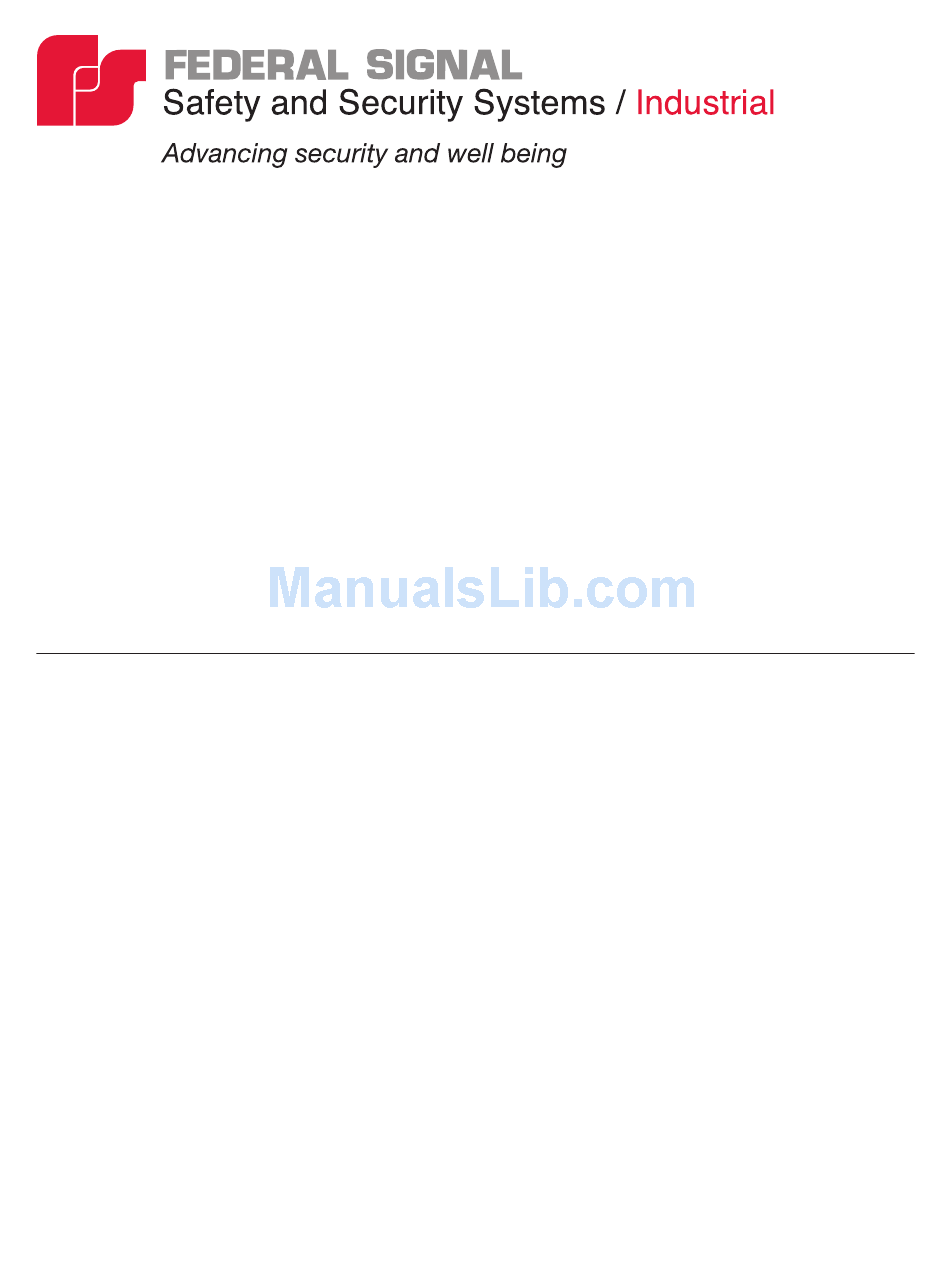

- Page 1 Model PS1000 Power Supply/Charger Installation and Maintenance Manual 2562563A REV. A 1212 Printed in U.S.A.
- Page 2 8 hereof must be fully explained in writing and received by Seller within thirty days after Buyer learns of the defect or such claim shall be deemed waived. Federal Signal Corporation Industrial Products 2645 Federal Signal Drive University Park, IL 60484-3167 Phone: +1 877 289 3246 •...
-
Page 3: Table Of Contents
Contents Safety Messages to Installation and Service Personnel of Federal Signal Products ....2 Product Specifications........................3 Installing and Maintaining the Model PS1000 ..................5 Mounting the Model PS1000 Enclosure......................5 Wiring the Model PS1000 ..........................5 Maintaining the Model PS1000 ......................9 Obtaining Service, Parts, and Support ...................10 Repair Service .............................. -
Page 4: Safety Messages To Installation And Service Personnel Of Federal Signal Products
Safety Messages to Installation and Service Personnel of Federal Signal Products Peoples lives depend on your proper installation of our products. It is important to follow all instructions shipped with the products. The selection of the mounting location for the device, its controls and routing of the wiring is to be accomplished under the direction of the Facilities Engineer and the Safety Engineer. -
Page 5: Product Specifications
Product Specifications The Model PS1000 is a power supply/charger that converts an AC input to a 24 Vdc regulating output. It is intended for indoor use only. Input PS1000: 115 Vac / 60 Hz, 4.4 A ◆ PS1000-240: 230 Vac / 50-60 Hz, 2.2A ◆ Output 24 Vdc ◆ 8 A supply current in a non-alarm condition with 10 A supply current during the alarm for fire alarm ◆ applications 10 A supply current for access control applications ◆ Filtered and electronically regulated outputs ◆ Short circuit and thermal overload protection ◆ Battery Backup Built-in charger for sealed lead-acid or gel batteries. ◆... - Page 6 Standby Specifications (Total Current) Output 15 Min. of Standby, 4 Hr. of Standby, 24 Hr. of Standby, 60 Hr. of Standby, 5 Min. of Alarm 5 Min. of Alarm 5 Min. of Alarm 5 Min. of Alarm 24 Vdc, Standby = 8 A Standby = 1.5 A Standby = 200 mA Standby = 100 mA...
-
Page 7: Installing And Maintaining The Model Ps1000
Wiring the Model PS1000 For an illustration of the enclosure wiring, see Figure 2 on page 5. Keep the power limited wiring at least 0.25" away from non-power limited wiring, such as the AC input wires and battery wires. SHORT CIRCUIT—Do not expose the Model PS1000 to rain or moisture. Failure to heed this warning may cause electrical shock or equipment damage. EQUIPMENT DAMAGE—To avoid equipment damage, do not exceed a total output rating of 10 A for each Model PS1000 installed. - Page 8 – DC + Connect the power distribution module to terminals marked AC FAIL BAT FAIL Connect the appropriate signaling notification devices to the terminals marked (supervisory relay outputs. AC FAIL When the Model PS1000 is used in fire alarm, burglar alarm, or access control applications, the relay must be used to provide a visual indication that AC power is on. Insure that the cover is secured with the provided Key Lock. Table 1 Terminal identification for power supply board Terminal Legend Function/Description L, G, N Connect 115 Vac to these terminals: L to Hot, N to Neutral, G to ground. – DC + 24 Vdc at 8 A continuous, 10 A in alarm non-power limited output, 10 A continuous when batteries are not used.
- Page 9 Figure 2 Enclosure wiring BATTERY AND AC SUPERVISION CIRCUIT (POWER LIMITED) C NC NO C BAT FAIL AC FAIL REPLACE FUSE COVER BEFORE 250V 250V ENERGIZING + BAT --- -- DC + GREEN 115 Vac LEAD POWER MAINS NON-POWER LIMITED NON-POWER LIMITED CLASS I DIVIDER...
- Page 10 I * 1.8 (safety factor) Notes: The Model PS1000 is designed to work with batteries up to 65 Ah. Line I must not exceed 36 Ah. To keep Line I at or under 36 Ah, either reduce standby current consumption (Line A) or the standby time (Line C).
-
Page 11: Maintaining The Model Ps1000
Maintaining the Model PS1000 SHOCK AND FIRE HAZARDS—De-energize the Model PS1000 before servicing it. For continued protection against the risk of electric shock and fire hazard, replace the fuses with fuses of the same type and rating. Input fuse: 10 A, 250 V... -
Page 12: Obtaining Service, Parts, And Support
Product is not a service part All returns are subject to a re-stock fee. Defective products that are returned within the warranty period will be repaired or replaced at Federal Signal’s sole discretion. Defective products do not include those products with lamp failure. Circumstances other than those listed above will be addressed on a case-by-case basis. Federal Signal Corporation Industrial Products 2645 Federal Signal Drive University Park, IL 60484-3167 Phone: +1 877 289 3246 • +1 708-534-4756 • Fax: +1 708 534 4887 www.federalsignal-indust.com • www.fs-isys.com © 2012 Federal Signal Corporation...
